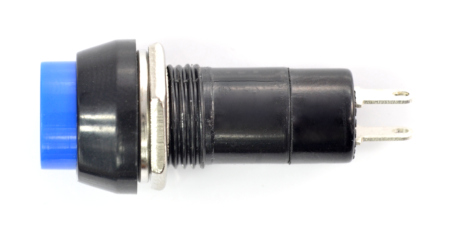

ON-OFF Switch PBS 11A, 250V/1A - blue
Bistable switch with a circular attachment with the contacts' loading capacity of 1 A for 250 V or 3 A for 125 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- Type: bistable ON-OFF
- Number of pins: 2
- Pins pitch: 5 mm
- Working parameters: 125 V / 3 A or 250 V / 1 A
- Insulation resistance: 500V DC 100 mΩ
- Service life: 50000 cycles
- Contact resistance: max 20 mΩ
- Range of the working temp.: -25 °C to + 85 °C
- Dielectric strength: 1500 V AC / 1 minute
- Color: blue
- Length: 34 mm
- Thread diameter: 10.5 mm
| Name | Value |
|---|---|
| Switch - type2 | bistable |
| Switch - type | with button |
| Switch - shape | round |
| Switch - backlight | no |
| Colour | blue |
| Length | 34 mm |
| Raster | 5.00 mm |
| Width | 5 cm |
| Height | 1.6 cm |
| Depth | 7 cm |
| Weight | 0.006 kg |
