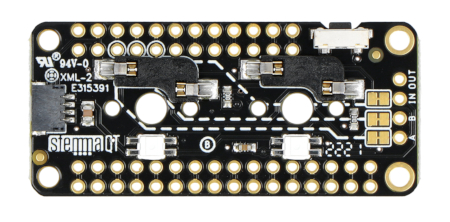

Product description: NeoKey FeatherWing - module with two sockets of mechanical keys - NeoPixels 1x2 - I2C - STEMMA QT / Qwiic - Adafruit 4979
A 50 x 23.2 x 5.2 mm board by Adafruit . NeoKey FeatherWing has two outputs in the form of a Kailh socket that allows you to plug in any switch compatible with Cherry MX . In addition, in each slot there is one NeoPixels diode, which illuminate the buttons in any color you choose. The board also has a STEMMA QT / Qwiic connector and leads in the form of solder pads. NeoKey from Adafruit uses the I2C bus to communicate with the controller module (e.g. with Feather, Arduino or Raspberry Pi). The set consists of a module with two sockets and goldpin strips - switches, keycaps and a controller module must be purchased separately.
NeoKey FeatherWing - module with two sockets of mechanical keys - NeoPixels 1x2 - I2C - STEMMA QT / Qwiic - Adafruit 4979.
Using NeoKey FeatherWing you can make a standalone Art Deco keyboard. Check out the Deco Two-Key Feather Macro Pad project prepared by the manufacturer!

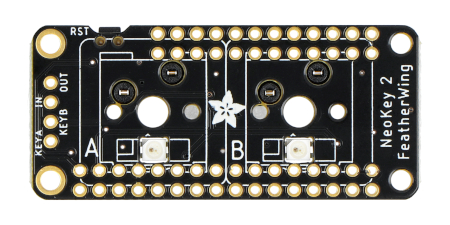

NeoKey FeatherWing - module with two sockets of mechanical keys from Adafruit.
NeoKey FeatherWing technical specification from Adafruit
- Compatible with e.g. with Feather, Arduino and Raspberry Pi
- Maximum number of supported buttons: 2
- Built-in backlight: yes
- Backlight source: LEDs
- LED type: NeoPixels
- Lighting color: individually programmable
- Button socket type: Kailh standard
- Soldering Required: No
- Supply voltage: 3 V to 5 V DC
- Communication interface: I2C bus
- Leads: STEMMA QT / 2.54 mm solder pads
- Dimensions: 50 x 23.2 x 5.2mm
Kit contents
- NeoKey FeatherWing - module with two sockets of mechanical keys - NeoPixels 1x2 - I2C - STEMMA QT / Qwiic - 1 piece
- Goldpin strip 1x16 - raster 2.54 mm - 2 pieces
In our offer you will also find compatible Kailh buttons! We invite you to familiarize yourself with the available assortment.

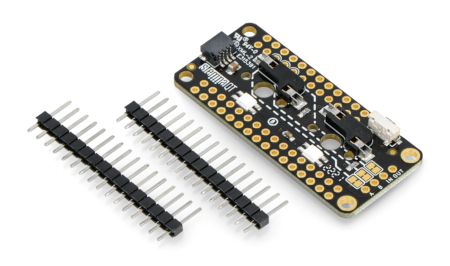

Components included in the set.
