Product description: Toggle Switch - ON-OFF toggle switch 15A/250V - SparkFun COM-09276

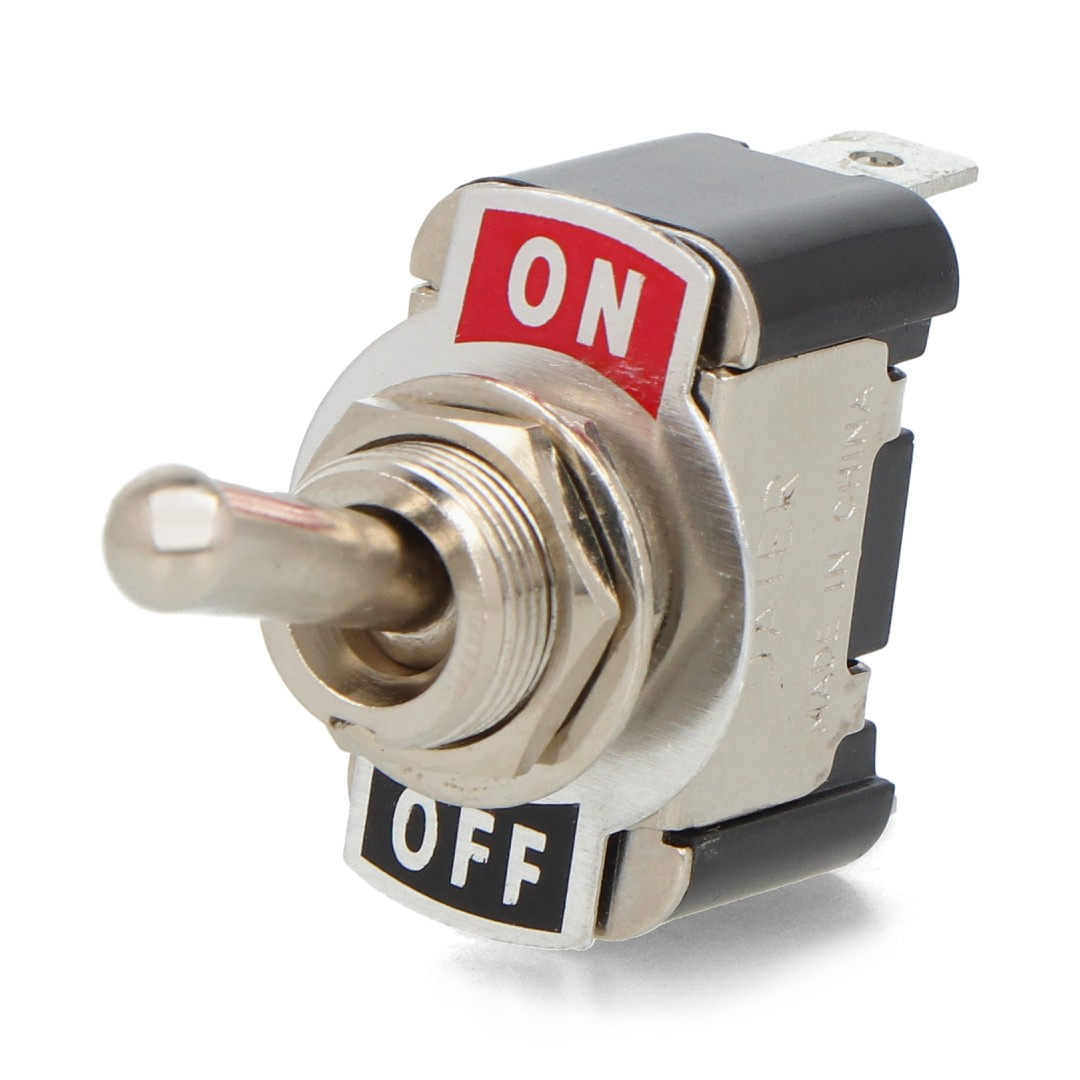

A two-position lever switch with two contacts rated at 15 A / 250 V AC or 20 A / 125 V DC . Switch states are additionally color-coded – ON (red lettering) and OFF (black lettering). The switch can be used to control, among other things, an electric actuator or a driveway gate.
The manufacturer has prepared a technical drawing that shows the individual dimensions of the switch.

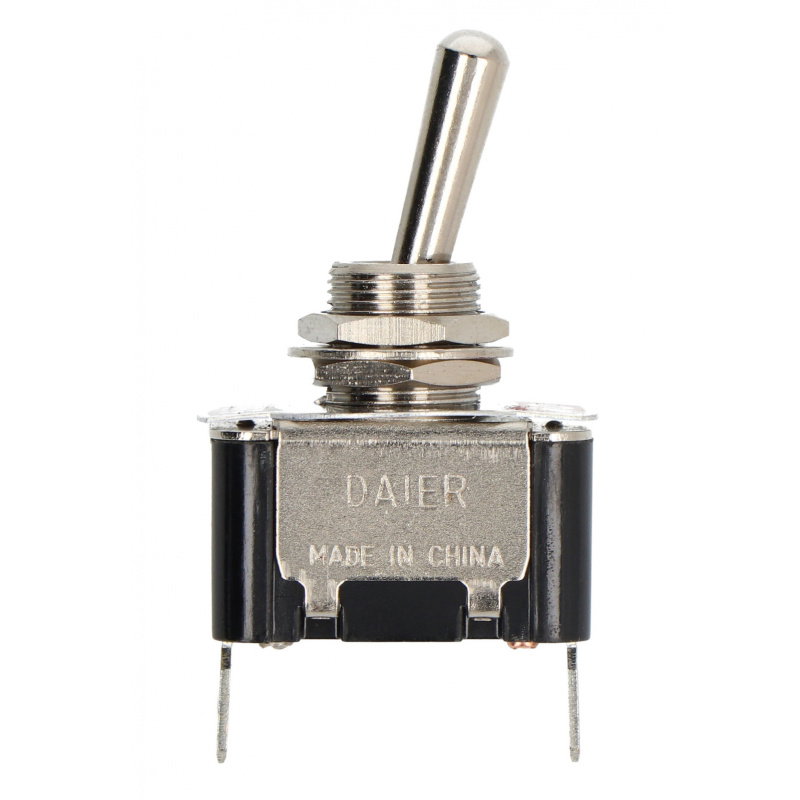

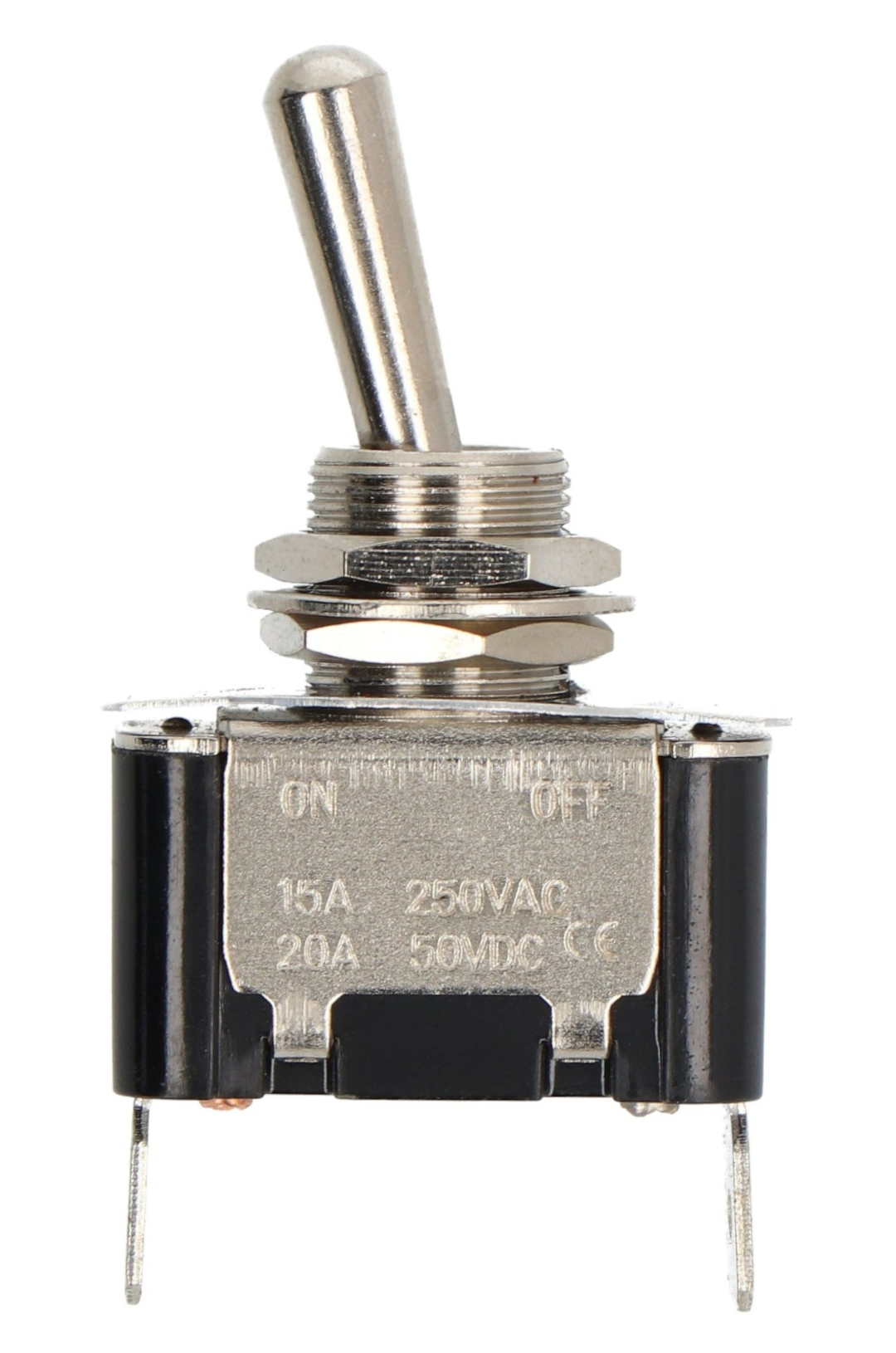

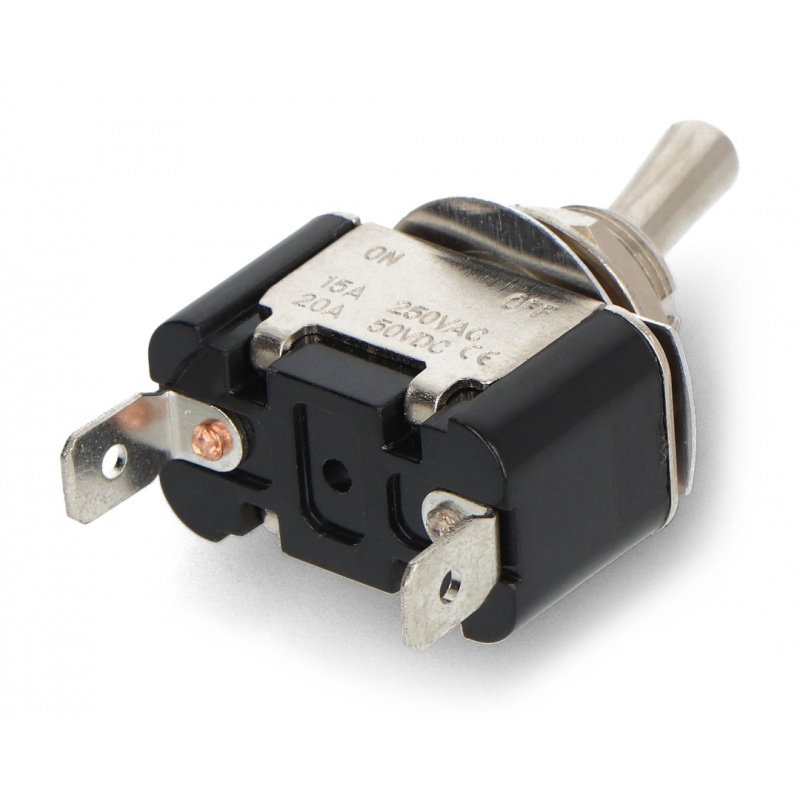

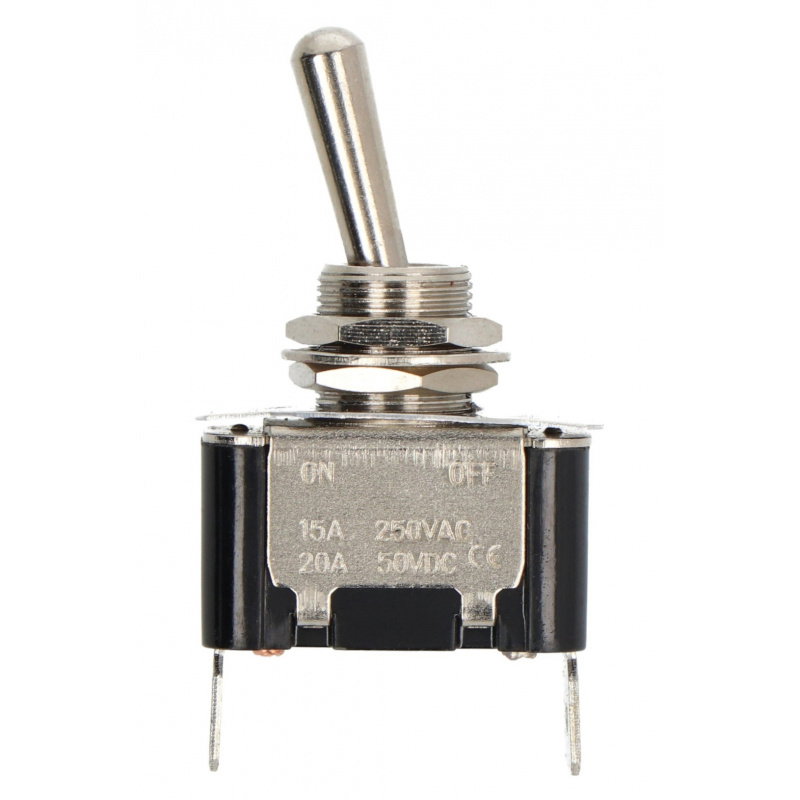

Toggle Switch - ON-OFF toggle switch 15A / 250V - SparkFun COM-09276.
Toggle Switch - ON-OFF toggle switch.
Technical specifications of the switch
- Switch type: toggle
- Number of items: 2
- Number of contacts: 2
- Type: On-Off for soldering wires
- Contact load capacity: 15 A / 250 V AC or 20 A / 125 V DC
- Lifespan: about 10,000 cycles
- Dimensions: 28 x 15 x 55 mm
