Tinycontrol tBSm - RJ12 splitter - I2C/1-Wire

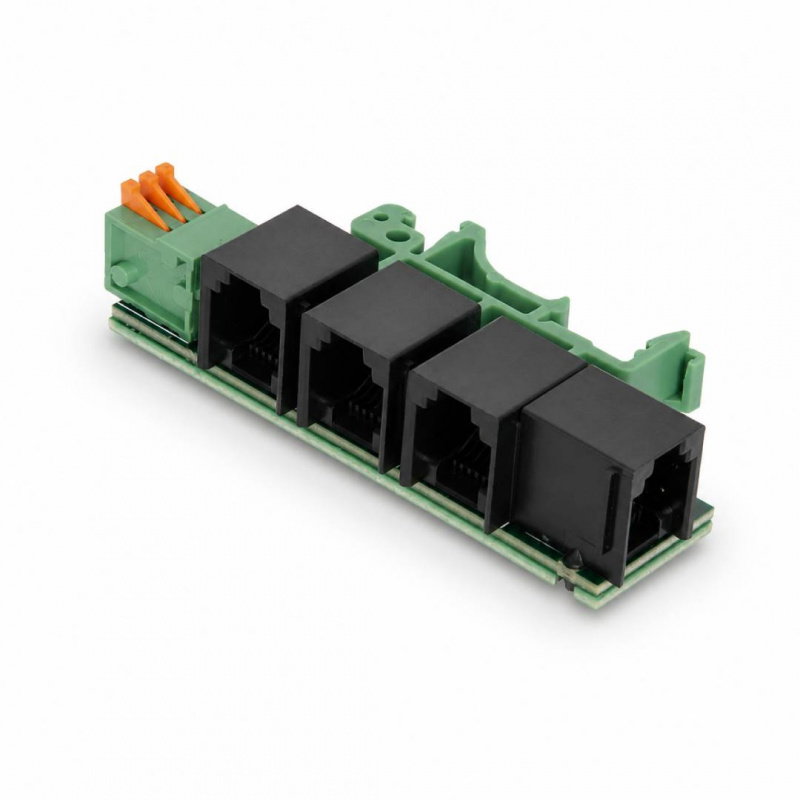

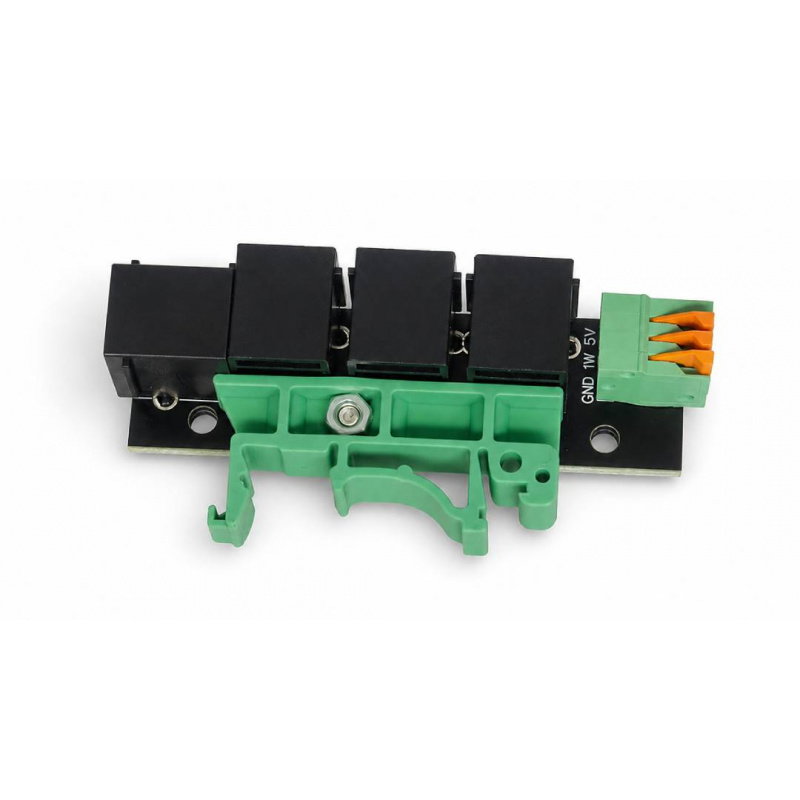

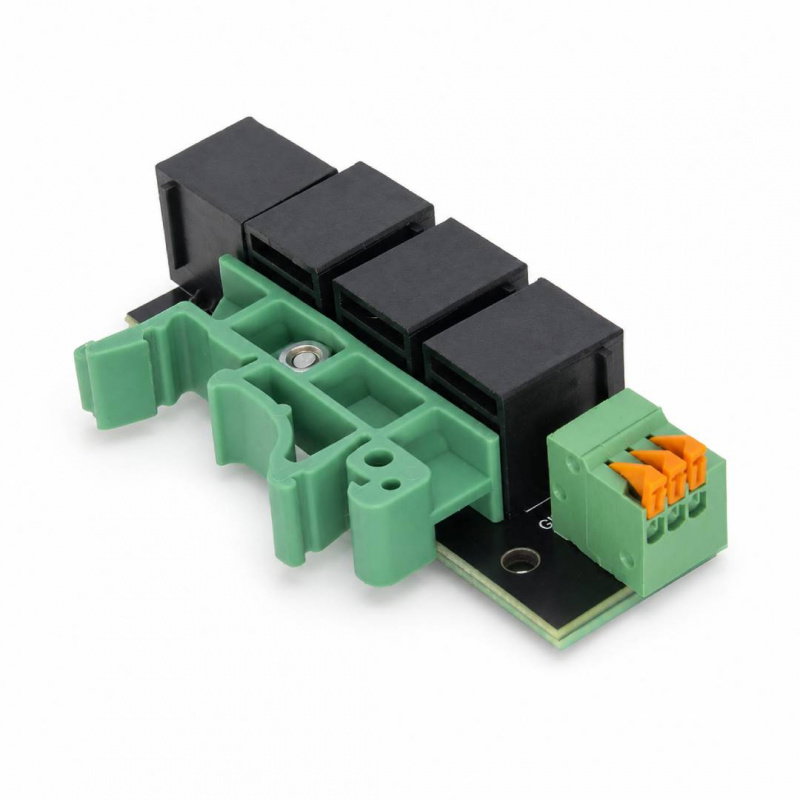

The tBSm is a compact RJ12 splitter for I2C and 1-Wire buses , designed for use with Tinycontrol devices equipped with an RJ12 port. The module provides four RJ12 connectors and an additional spring-loaded connector for connecting 1-Wire sensors. A 6-wire connection cable is included.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Tinycontrol tBSm - RJ12 splitter - I2C / 1-Wire

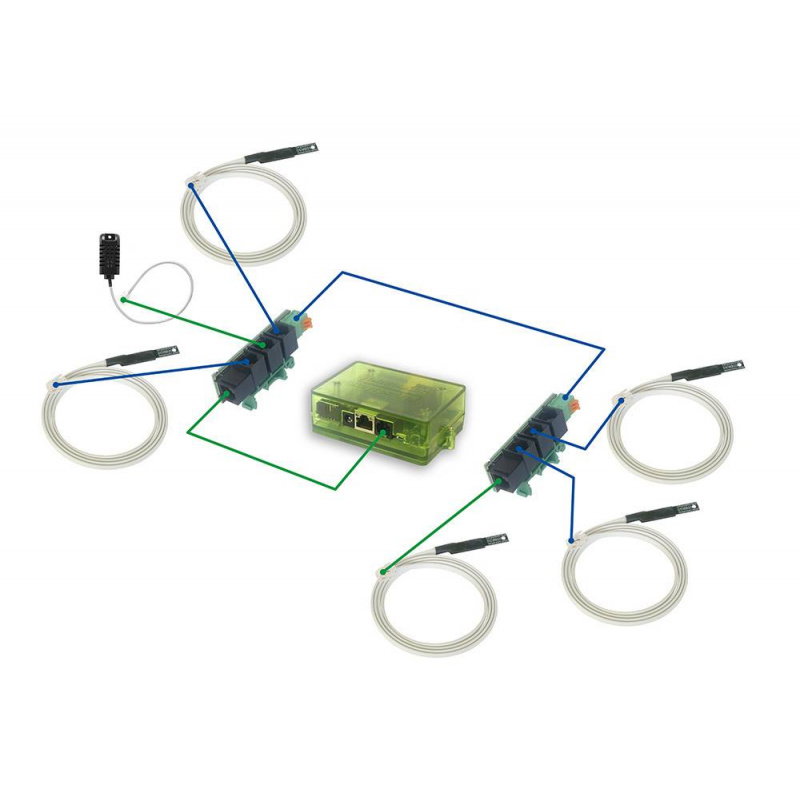

The tBSm is a practical module that allows for the convenient expansion of an installation based on Tinycontrol devices. The splitter works with all controllers equipped with an RJ12 port , allowing you to connect sensors and modules using I2C and 1-Wire buses. Connect the controller to one of the four RJ12 ports, while the remaining ports can be used to connect compatible sensors or expansion modules. An additional spring-loaded connector allows you to connect 1-Wire sensors located at a remote point using twisted-pair cable or a cable with a diameter of approximately 0.5 mm. The manufacturer recommends that the I2C cables not exceed 3 m in length and that third-party 1-Wire cables with more than 3 wires in the RJ12 plug not be connected to the RJ12 connectors.
Technical specifications of the splitter
- Model: LANKON-101
- Supported buses: I2C, 1-Wire
- Number of RJ12 connectors: 4
- Additional connector: spring-loaded for 1-Wire sensors
- Compatibility: Tinycontrol devices with RJ12 port
- Recommended maximum I2C cable length: up to 3 m
- Recommended wire for spring connector: twisted pair or wire with a diameter of approximately 0.5 mm
Kit contents
| Name | Value |
|---|---|
| Width | 8 cm |
| Height | 10 cm |
| Depth | 2.5 cm |
| Weight | 0.028 kg |
