Product description: Solenoid valve 12 V - 1/2 "
The NC (normally closed) solenoid valve allows you to control the fluid flow by opening the valve after applying 12 V to the connectors. The device is equipped with flat power connectors to which a 12 V DC power supply should be connected. The valve can be successfully controlled with any microcontroller, e.g. Arduino or Raspberry Pi with the use of a relay . Together with the flow sensor, the valve can serve as a simple real-time water control system. It can work with a maximum pressure of 2 MPa. The spigots have a size of 1/2 ", and the dimensions of the entire element are 71 x 56 x 41 mm (with connectors).
Check also other solenoid valves available in our store's offer.

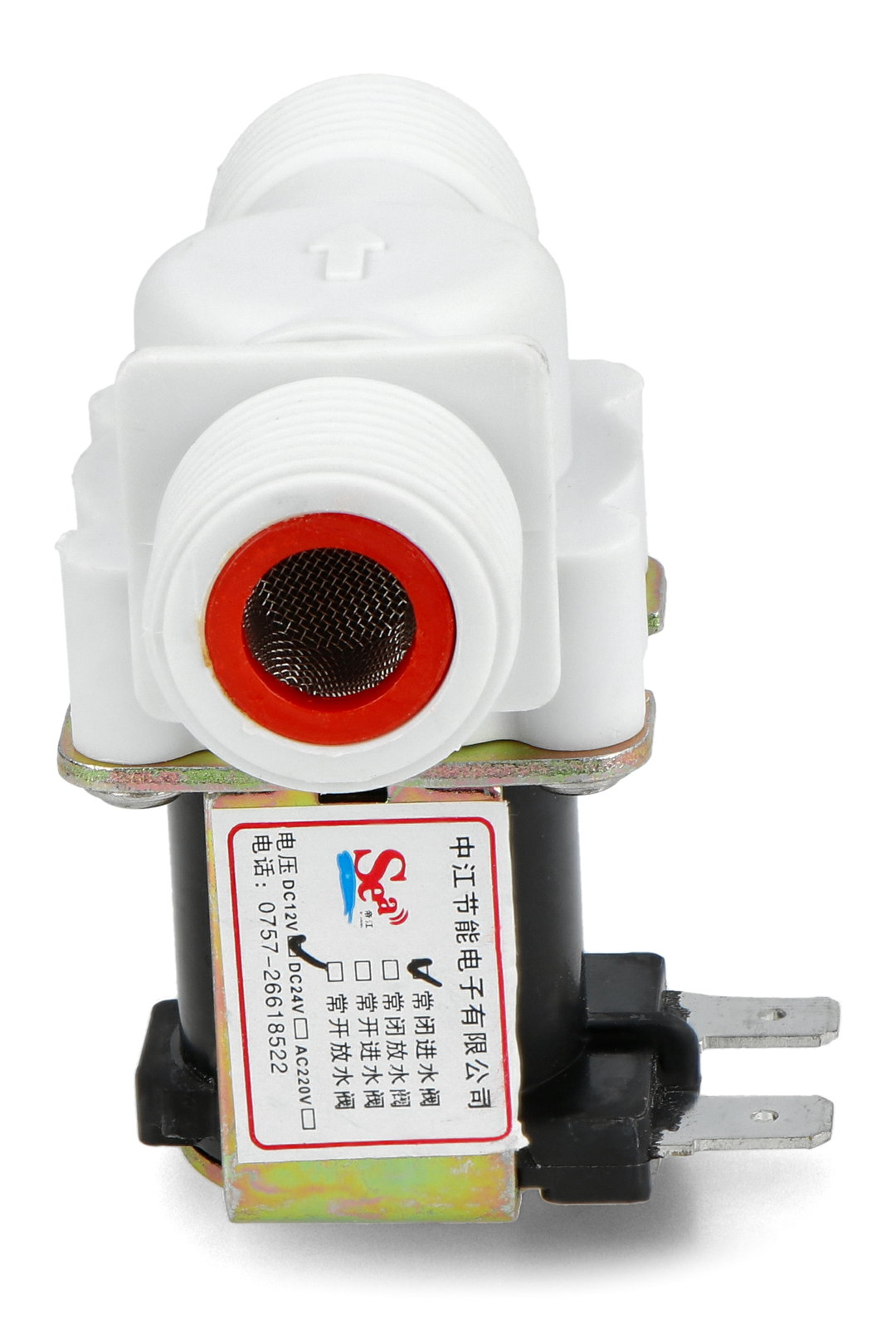

12 V - 1/2 "solenoid valve.

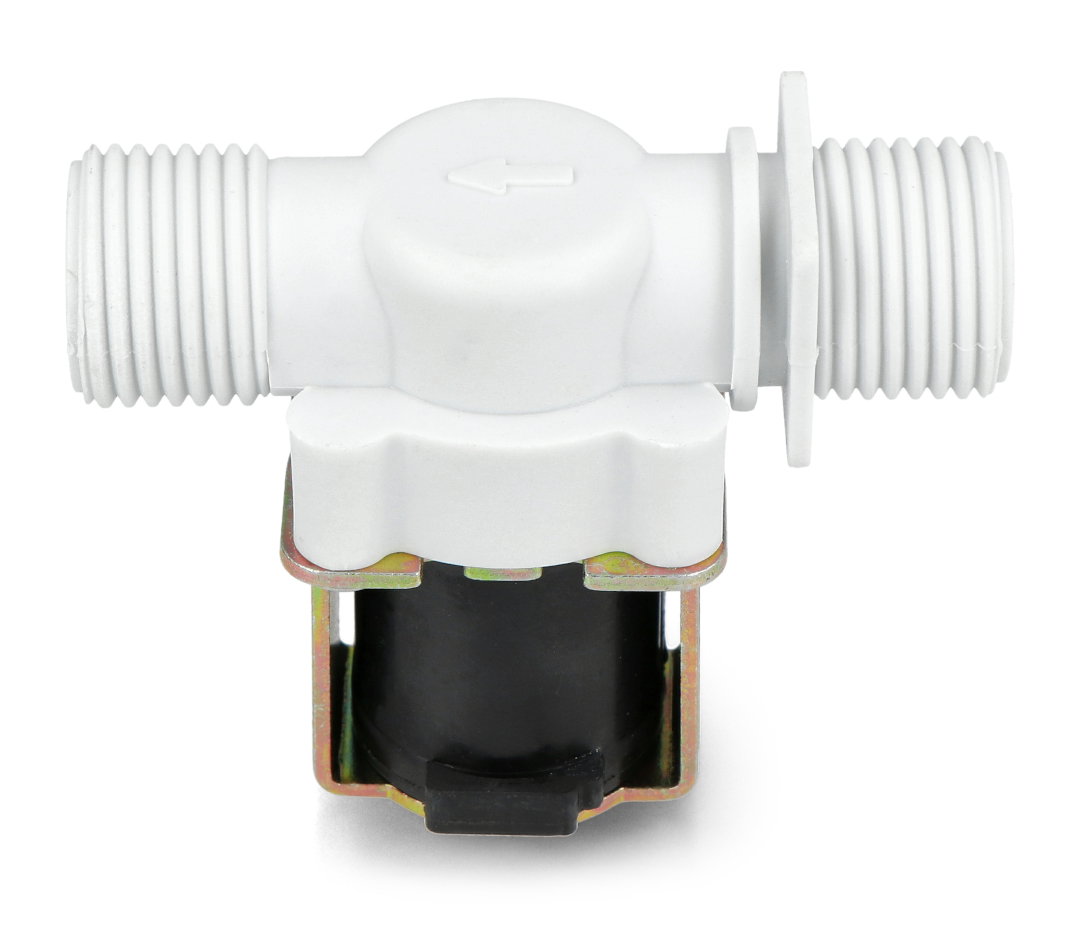

Solenoid valve with 1/2 "connections.
Valve specification
- Supply voltage: 12 V
- Current consumption: 0.42 A
- Connection thread: 1/2 ''
- Working pressure: from 0.02 MPa to 0.8 MPa
- Resistance to static pressure: up to 2 MPa
- Service life: 200,000 cycles
- Liquid temperature: 0 ° C to 60 ° C
- Relative humidity: 95%
- Dimensions: 71 x 56 x 41 mm
- Weight: 116 g
