Description

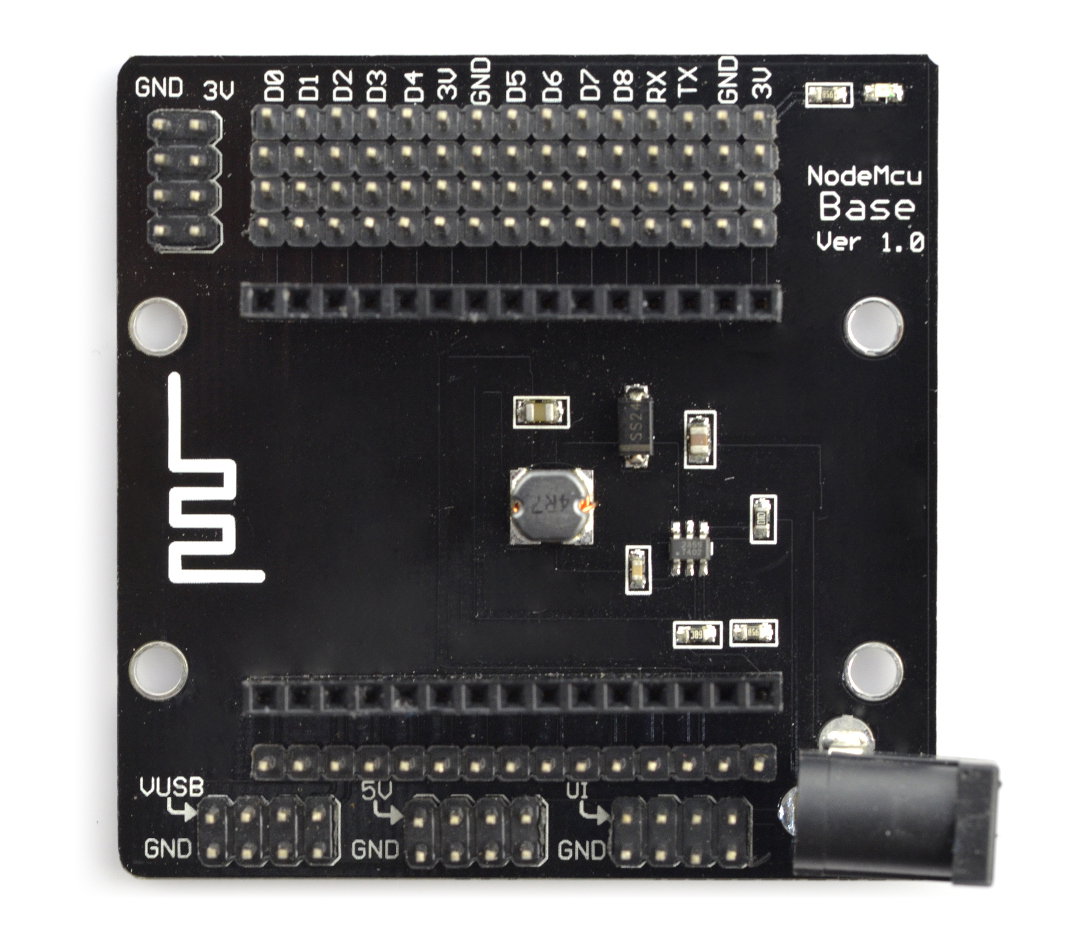

The adapter facilitates the connection of the wi-fi NodeMcu Lua wifi module. It has goldpin pins expanding the capabilities of the base module. It has DC 5,5/2,1 mm connector, it can provide power supply of3 V, 5 Vor input voltage. Board is powered with voltage from6 V to 24 V.
|
Module dimensions: 60 x 60 mm, pins pitch is 2.54 mm.
Lua is a scripting language that can work independently or as an extension of the capabilities of other applications. It was implemented as a library of C language. It has a simple code, high performance and the possibility of transfering between platforms. Details are onthe home page of Lua.
|
The adapter is not compatible with the wi-fi NodeMcu Lua v2 module. Boards have different pins pitch. The module works withwi-fi NodeMcu Lua v3. |
Specification
- Adapter for wi-fi NodeMcu Lua module
- Supply voltage: 6 V to 24 V
- It expands pins of the main module
- Built-in DC 5,5 / 2,1 mm connector
- Built-in LED
- Converter step down
- The ability to led out the 3 V, 5 V power supply or output voltage
- Pins pitch: 2.54 mm
- The distance between connectors of input slot: 28mm
- Module dimensions: 60 x 60 mm
