DFRobot LCD1602 RGB Keypad v1.0 - display Shield for Arduino

Index: DFR-05182 EAN: 6959420910496

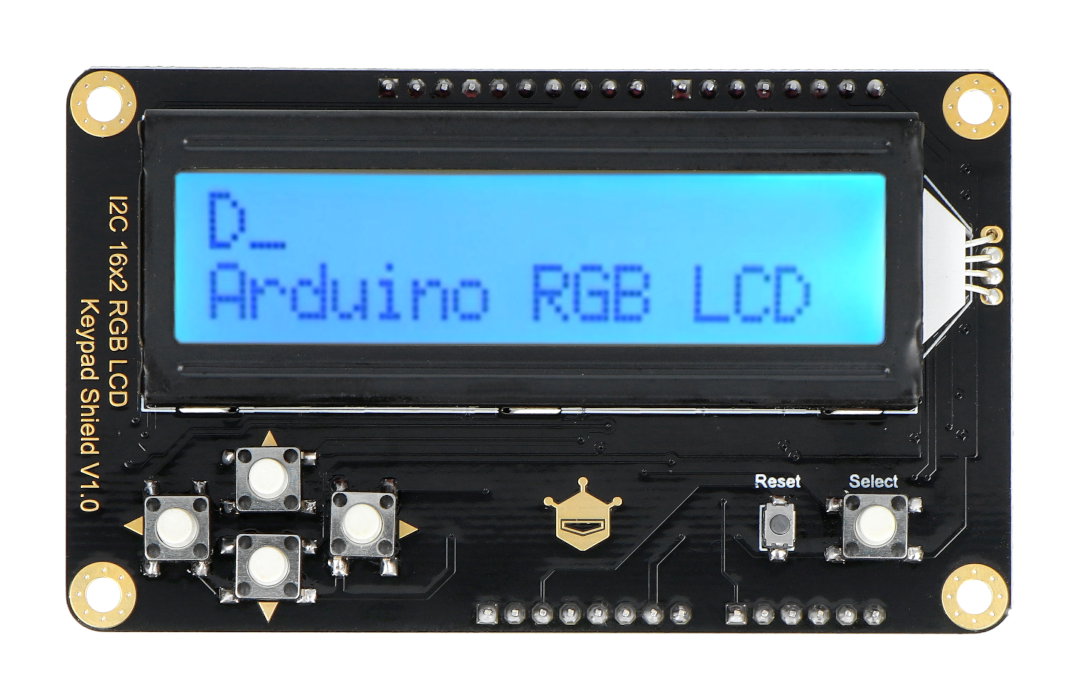

Shield for Arduino with popular LCD 2x16 character display and with five buttons at the user's disposal. Thanks to the LCD KeyPad Shield, you can easily create a user interface.

DFRobot LCD1602 RGB Keypad v1.0 - display Shield for Arduino
€16.00
€13.01 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Description

Shield forArduinowith popular 2x16 character LCD display and with five buttons at the user's disposal. It offers 16 million color combinations. The screen uses pins 4, 5, 6, 7, 8, 9 and 10. Reading the button's state occurs through an analog signal, thanks to this solution, all five buttons uses only one A0 lead. The 5 V supply voltage comes from the Arduino.





The product is compatible with Arduino

Auser's guide with sample codefor Arduino users is available.



Connection

The module is compatible with the Arduino Liquid Crystal library. To start the module, you must specify the connection of the leads in the library in accordance with the table below:



Pin

LCD Keypad Shield

Pin

Arduino

D4 ~ D7 D4~D7
RS D8
Enable D9
Backlight D10

Button

(analog signal)

A0



Specification

  • Working voltage: 5 V
  • Working voltage of logical pins: 5 V (consumed from Arduino)
  • Backlighting: RGB with adjustable backlighting (16 million)
  • Five buttons at user's disposal
  • Built-in LCD display - 2x16 characters with blue backlight
  • Led out RESET Arduino button
  • Used Arduino pins: D4, D5, D6, D7, D8, D9, D10
  • Compatible with the standard Arduino Liquid Crystal library
  • Board sizes: 86 x 52 mm



By default, the device operates with a voltage of 5 V. To connect the system with controller powered with low voltage, you must cut the track to the IOREF pin.



Screen - type alphanumeric
Screen - diagonal 2.6 ''
Screen - interface GPIO
Screen - touch no
Screen - resolution 2x16 znaków
Package width 9 cm
Package height 10.5 cm
Package depth 3 cm
Package weight 0.06 kg
