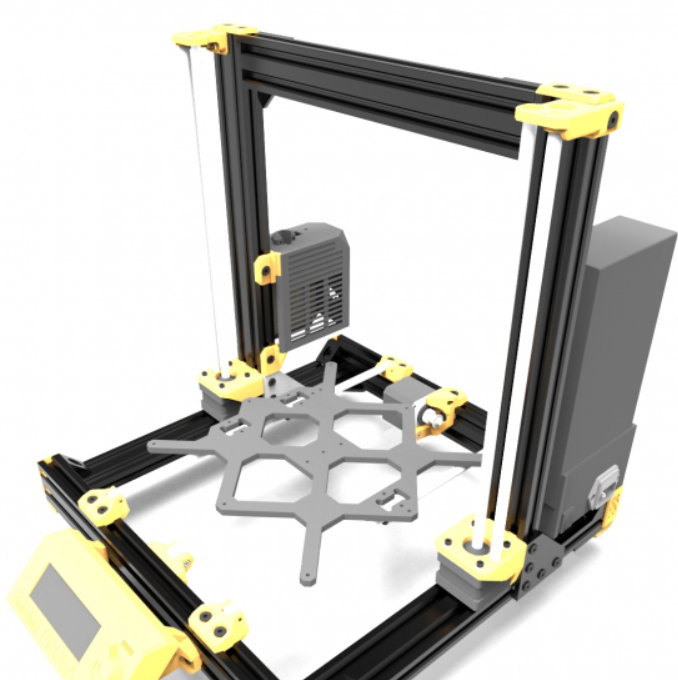

Product description: Full Bear Upgrade Prusa i3 MK3 - 3D Printer Frame - V-Slot aluminum profile kit and accessories
This kit contains all the parts needed to convert the Prusa i3 3D printer frame to an aluminum frame. The modification allows you to use as many original parts as possible (no need to change a new RAMBo chassis or change cables, line technology or firmware). The kit is compatible with MK2(S), MK2.5(S)(S+) and MK3(S)(S+).

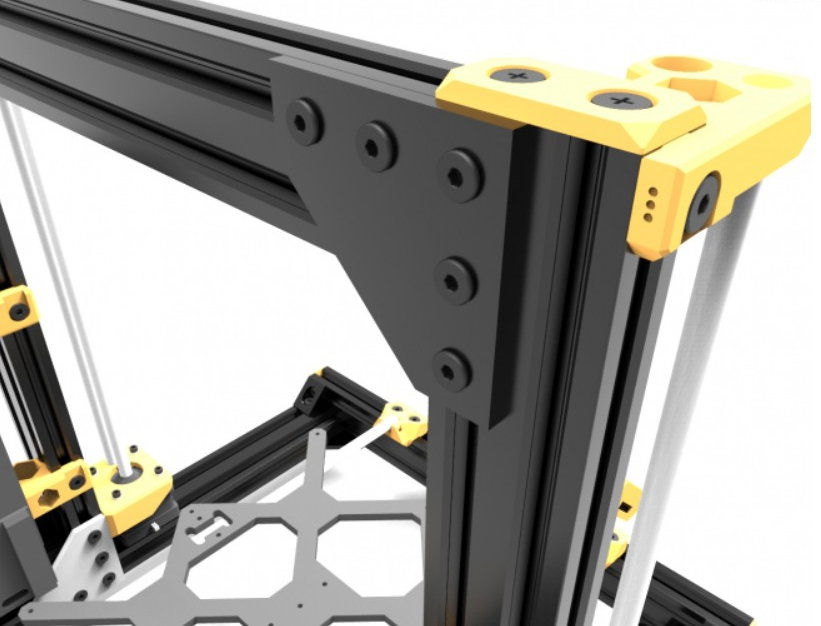

Bear Frame Upgrade improves the rigidity and reliability of the original Prusa i3 printers. The frame improves precision, prints faster, and facilitates maintenance. The construction is based on V-Slot profiles- the kit includes all necessary profiles, corners, connection plates and screws. Construction for self-assembly. Frame model, profile length and accessories based on G. Saunier (Bear Frame upgrade designer).
Full Bear Upgrade Prusa i3 MK3 - frame for 3D printer - V-Slot aluminium profile set and accessories.
Technical specification of V-Slot profiles:
- Material: 6063 aluminum
- Finish colour: black
- Finishing type: anodizing
- Groove : type v
Set includes:
- V-Slot 2040 aluminium profile, black, 331 mm x 2 pcs.
- Aluminium profile V-Slot 2040, black, 359 mm x 2 pcs.
- Aluminium profile V-Slot 2040, black, 370 mm x 2 pcs.
- Aluminium profile V-Slot 2040, black, 290 mm x 1 pc.
- Black solid corners, 4 pcs.
- Corner connector plate 90 degrees, silver, 10 pcs.
- T-NUT grooves M5, 89 pcs.
- Low head screws M5 x 8 mm, 12 pcs.
- Low head screws M5 x 10 mm, 63 pcs.
- Low head screws M5 x 12 mm, 14 pcs.
