FireBeetle 2 ESP32-S3-U - WiFi, Bluetooth - External Antenna - OV2640 Camera - DFRobot DFR0975-U
The FireBeetle 2 Board ESP32-S3-U (N16R8) module is a board based on the popular ESP32 microcontroller, capable of communicating via WiFi and Bluetooth . The wireless interface antenna is located on an external module connected to the SMA socket.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: FireBeetle 2 ESP32-S3-U - WiFi, Bluetooth - external antenna - OV2640 camera - DFRobot DFR0975-U
The FireBeetle 2 Board ESP32-S3-U (N16R8) module is a board based on the popular ESP32 microcontroller, capable of communicating via WiFi and Bluetooth . The wireless interface antenna is located on an external module connected to the SMA socket. The clock speed of both processor cores is up to 240 MHz, and the user has 8 MB PSRAM and 16 MB Flash memory at their disposal. The board also has GDI connectors for connecting a display and a CAM to which the OV2640 camera is connected. Power can be supplied via the USB Type-C connector, which, thanks to the ETA6003 chip, also allows you to charge lithium-ion batteries. Thanks to separate systems powering the processor and the camera, image interference can be minimized.
Product compatible with Arduino
The manufacturer provides a product Wiki page that includes a detailed user guide.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Power can be supplied via the USB Type-C connector.
Main features of FireBeetle 2 Board
- The ESP32-S3-U microcontroller - equipped with a fast Xtensa processor and up to 16 MB Flash memory, is an ideal base for many projects.
- OV2640 camera - a camera connected to the CSI connector with a resolution of 2 Mpx and a viewing angle of 68°, is a great system for beginners in the field of image recognition.
- Wireless communication - a built-in module equipped with 2.4 GHz WiFi and Bluetooth 5, with an external antenna, allows easy communication with other devices.
- The battery charging module - ETA6003 - is designed for use with Li-Ion batteries and allows charging from a USB port with a maximum current of 1 A.
- Many popular interfaces - including I2C, SPI, UART, PWM, ADC, GPIO - facilitate integration with sensors, actuators and other microcontrollers.
- A dedicated power supply system - AXP313A - ensures proper power supply to the processor and camera, while limiting image interference.
Specification of the ESP32-S3-U system
- Processor: dual-core Xtensa 32-bit LX7
- Operating frequency: 240 MHz
- SRAM: 512 KB
- ROM: 384KB
- Flash: 16 MB
- PSRAM: 8 MB
- USB: USB 2.0 OTG full-speed
- WiFi: 2.4 GHz IEEE 802.11b/g/n
- Bluetooth: Bluetooth 5 (BLE)
- Support for Bluetooth Mesh
- Supply voltage: 3V to 3.6V

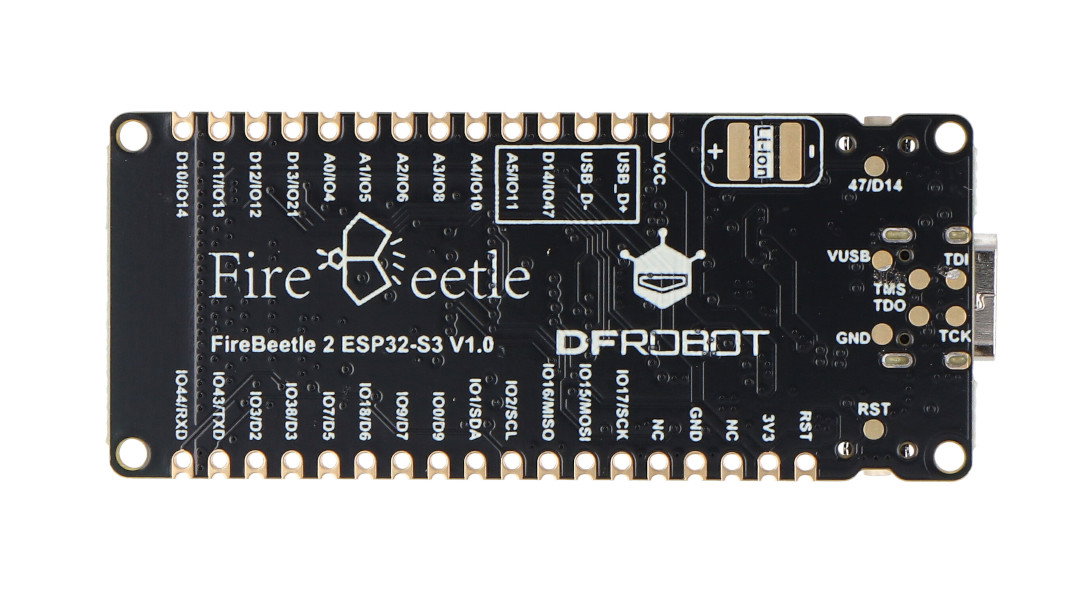

The board has a dual-core Xtensa 32-bit LX7 processor.

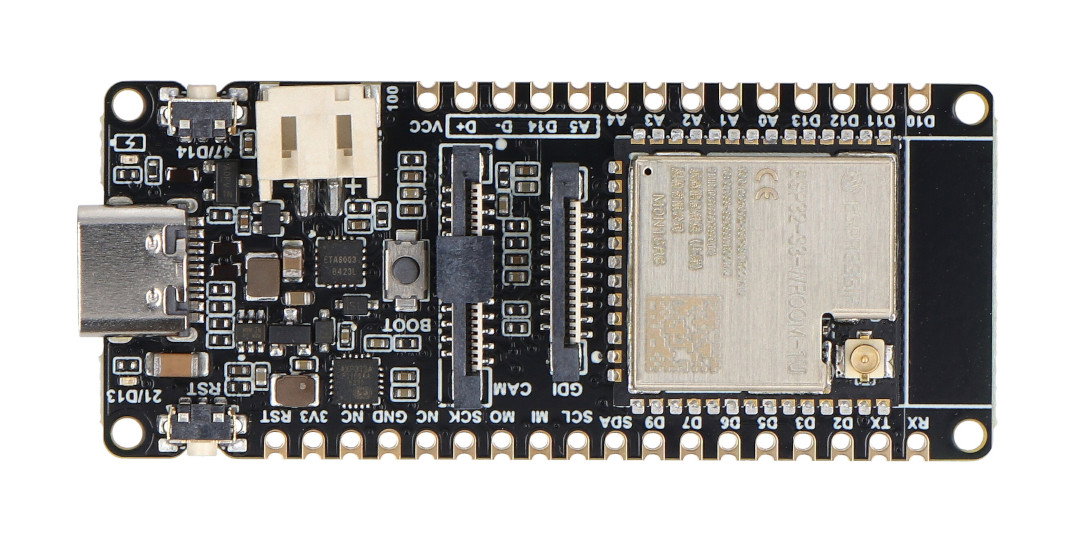

Layout of components and pins of the FireBeetle 2 ESP32-S3-U module.
Arrangement of elements on the board
- Type-C - USB Type-C connector
- Charge - LED indicating battery charging
- 21/D13 - LED diode available to the user
- RST - reset button
- BOOT - BOOT button
- AXP313A - power supply system
- BAT - Li-Ion battery connector
- ETA6003 - battery charging system
- CAM - DVP camera connector
- GDI - display interface connector
- ESP32-S3 - ESP32-S3-U microcontroller module
Set contents
- 1 x FireBeetle 2 ESP32-S3-U module - WiFi, Bluetooth - external antenna - OV2640 camera - DFRobot DFR0975-U
- 1 x OV2640 camera
- 1 x external WiFi and Bluetooth antenna
- 1 x 18-pin male connector, 2.54 mm pitch
- 1 x 18-pin female connector, 2.54 mm pitch
- 1 x 14-pin male connector, 2.54 mm pitch
- 1 x 14-pin female connector, 2.54 mm pitch
FireBeetle 2 technical specifications
- Built-in chip: ESP32-S3-U
- Processor: dual-core Xtensa 32-bit LX7 240 MHz
- Flash: 16 MB
- PSRAM: 8 MB
- WiFi: 2.4 GHz IEEE 802.11b/g/n
- Bluetooth: Bluetooth 5 (BLE)
- External antenna for wireless communication
- Camera:
- Interface: DVP
- Model: OV2640, 2 Mpx
- Resolution: 1600×1200
- Viewing angle: 68°
- Dedicated power supply system
- Display connector: GDI
- Available interfaces: 26 x GPIO, 8 x PWM, 2 x SPI, 3 x UART, 2 x I2C, 2 x I2S, 5 x IR receiver/transmitter, 2 x ADC
- USB connector: type C
- Supported battery type: lithium-ion
- Maximum charging current: 1 A
- Supply voltage: 5V
- Operating temperature: -20°C to 70°C
- Dimensions: 25.4 x 60 mm

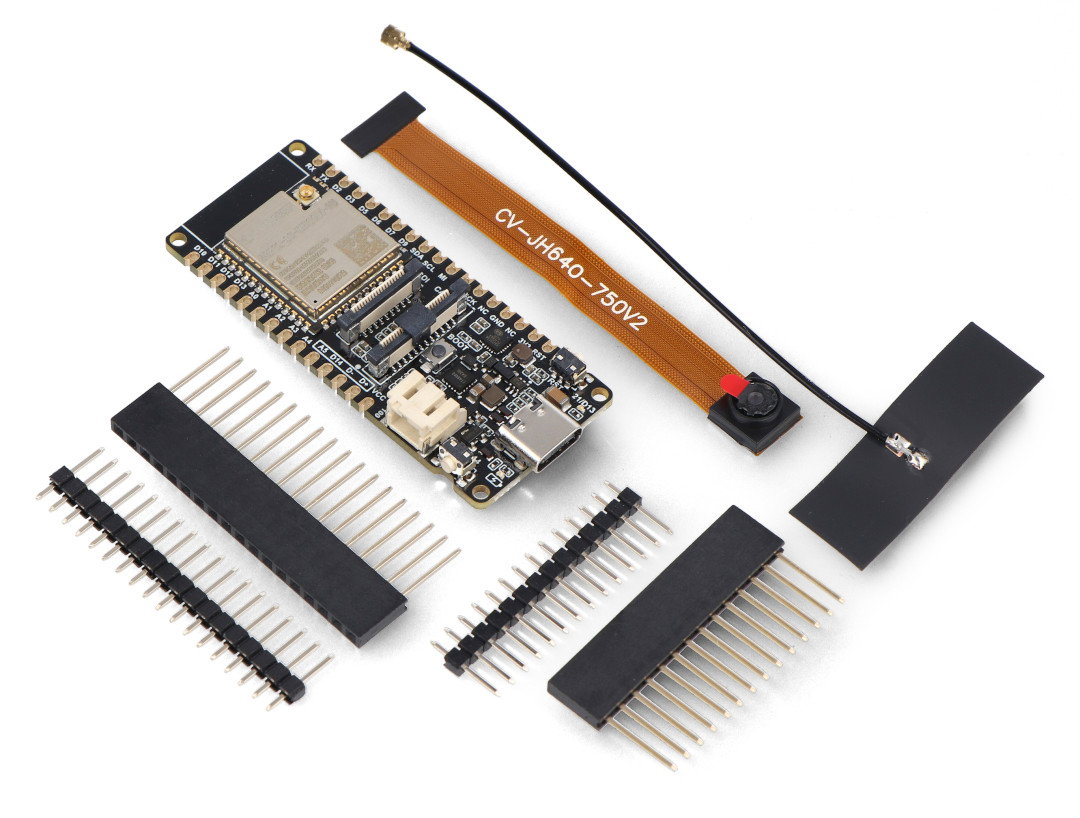

Elements included in the set.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-S3 |
| UC - Core | Tensilica Xtensa LX7 |
| UC - Flash | 16 MB |
| UC - RAM | 8 MB |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - A/C | 12-bit |
| UC - PWM | 8 |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| UC - Camera interface | yes |
| Camera - matrix | OV2640 |
| Width | 6.6 cm |
| Height | 8 cm |
| Depth | 2.5 cm |
| Weight | 0.026 kg |
