Shipping from PolandProduct description: 3D printer - Flashforge AD5X
The Flashforge AD5X is an advanced desktop 3D printer designed for speed, precision, and ease of use. Thanks to the robust CoreXY design and built-in IFS module for printing with four filaments , the printer allows you to create full-color models without the need for painting. A large build volume of 220 x 220 x 220 mm and automatic platform leveling allow for comfortable and reliable operation. The printer supports a wide range of filaments , including PLA, TPU, PETG, and ASA, providing a wide range of creative possibilities.

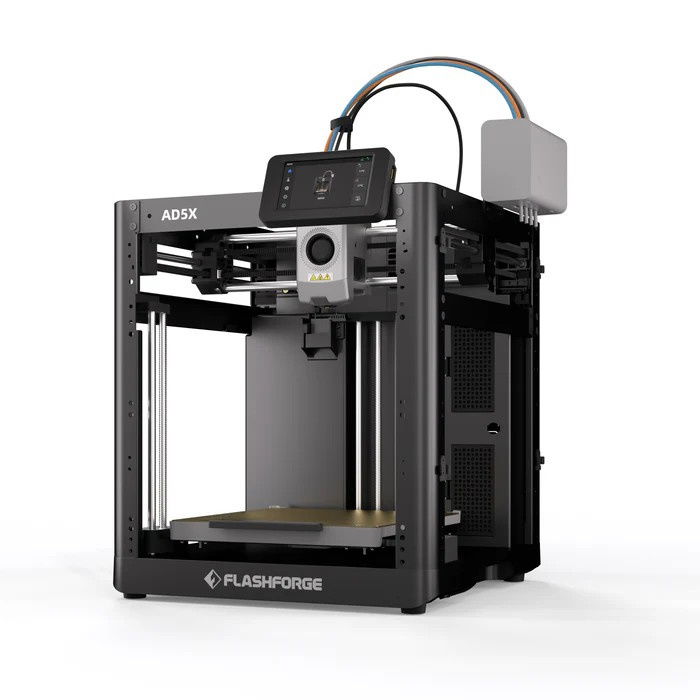

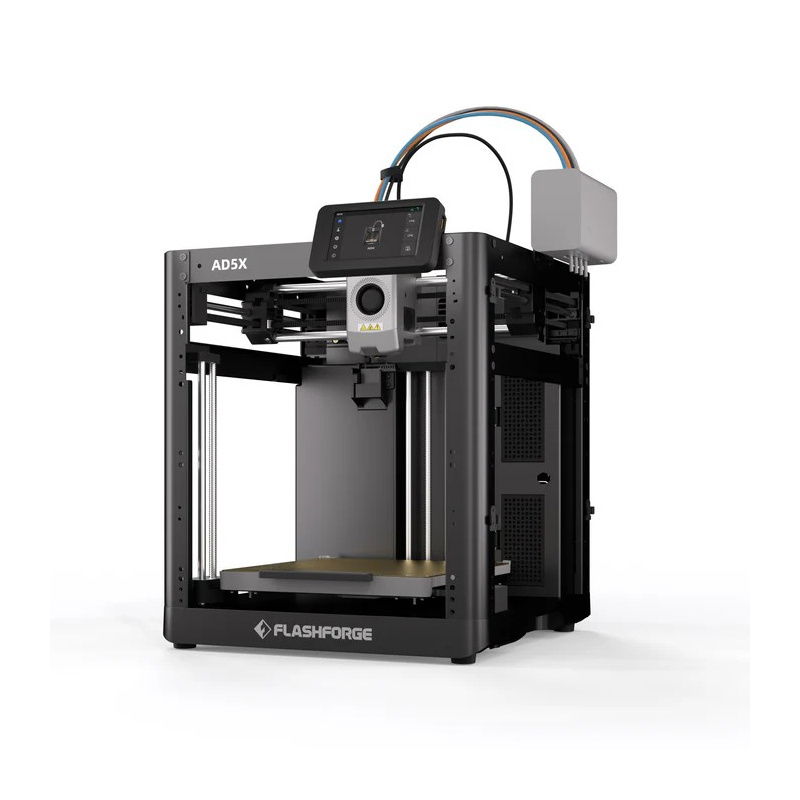

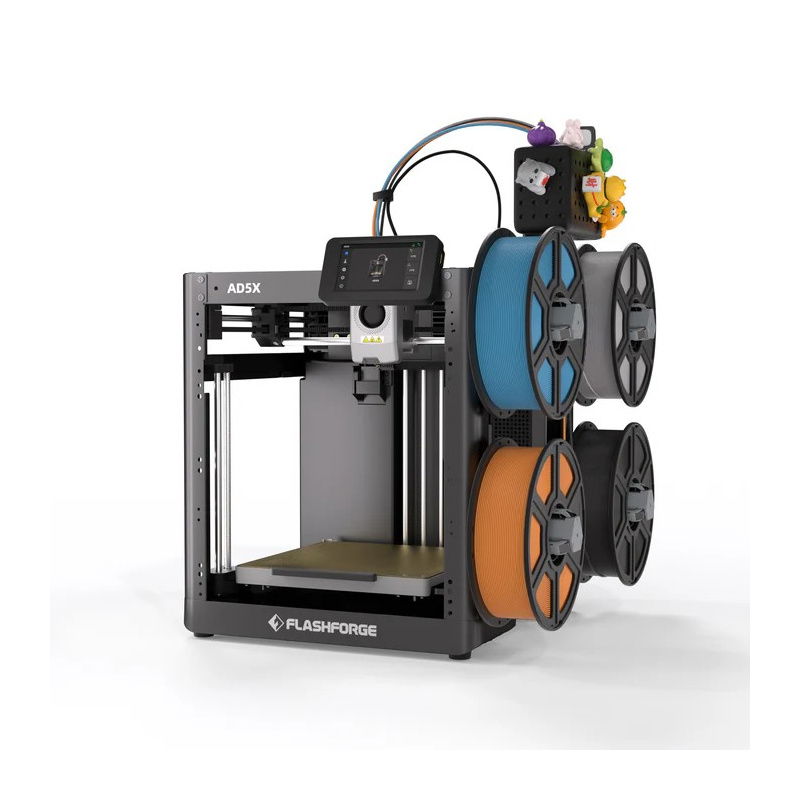

3D printer - Flashforge AD5X.
The Core XY design guarantees precise movement positioning, and the nozzle is cleaned with each material change.

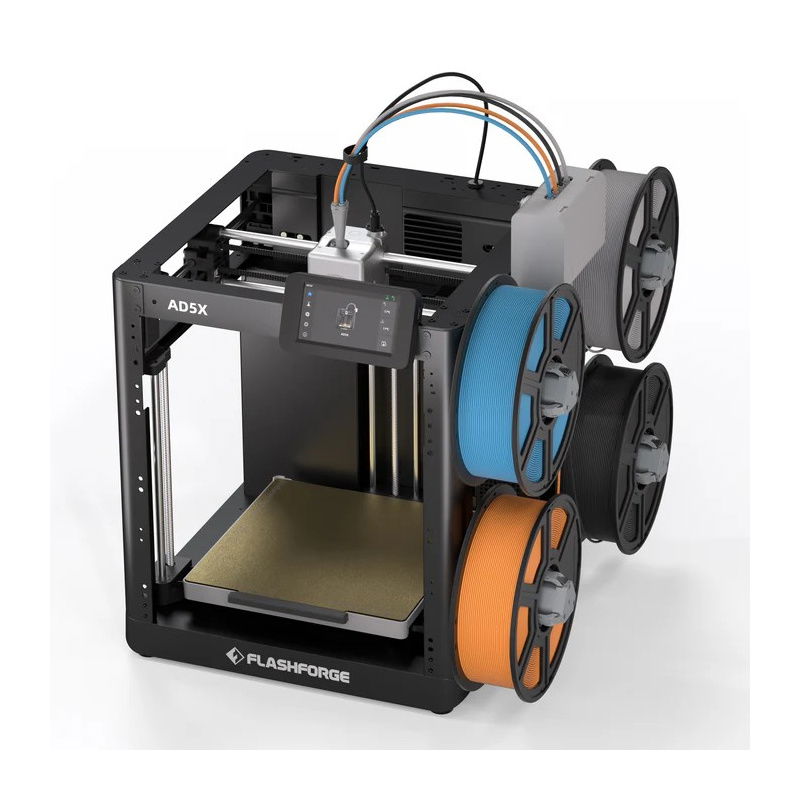

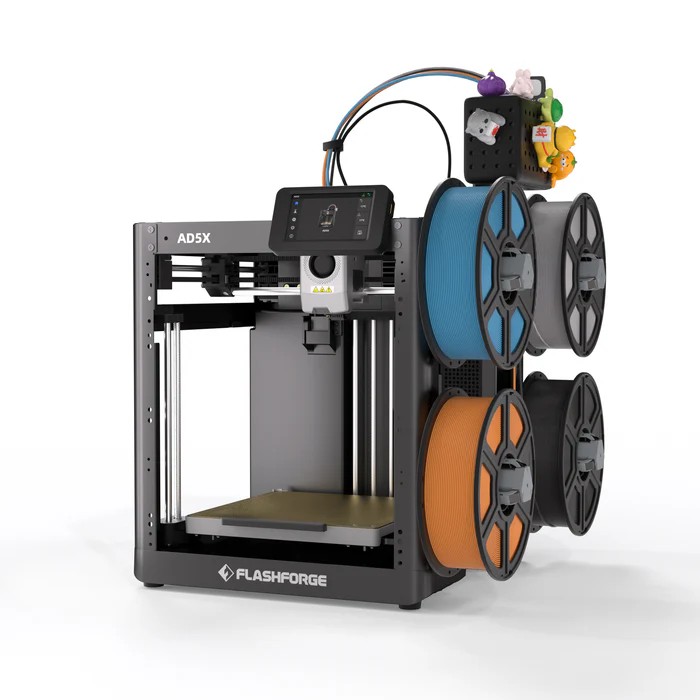

Multi-color printing with IFS technology
Thanks to the integrated Intelligent Filament System (IFS), the Flashforge AD5X allows you to create models with four different filaments in a single print . Automatic material switching and a nozzle cleaning system ensure clean, crisp color transitions without color mixing . This feature allows you to create realistic prototypes, educational models, or decorative models without the need for hand painting.
CoreXY mechanics and printing precision
The CoreXY system ensures stability, speed, and reduced vibration during printhead operation. Two independent stepper motors control the X and Y axes, enabling smooth movement, which translates into high-quality detail reproduction. This design extends the device's lifespan and ensures consistent results, even in mass production.
Efficiency and reliability in everyday work
The Flashforge AD5X was created for users who expect not only high quality but also trouble-free operation. Automatic bed leveling, filament runout detection, power interruption recovery , and the ability to manage multiple devices guarantee uninterrupted operation. This makes the AD5X ideal for both design studios and educational or production environments.
Easy to use and wide compatibility
The printer is equipped with a 4.3-inch touchscreen for intuitive operation. Getting started is as simple as three simple steps: installing the display, spool holder, and IFS module . The AD5X is compatible with popular Windows, Linux, and macOS systems, and data can be transferred via Wi-Fi, Ethernet, or USB . The most commonly used file formats such as STL, 3MF and OBJ are supported.

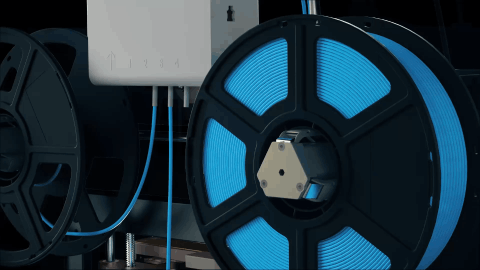

When printing a single-color model, when one spool runs out, it automatically switches to the next one.

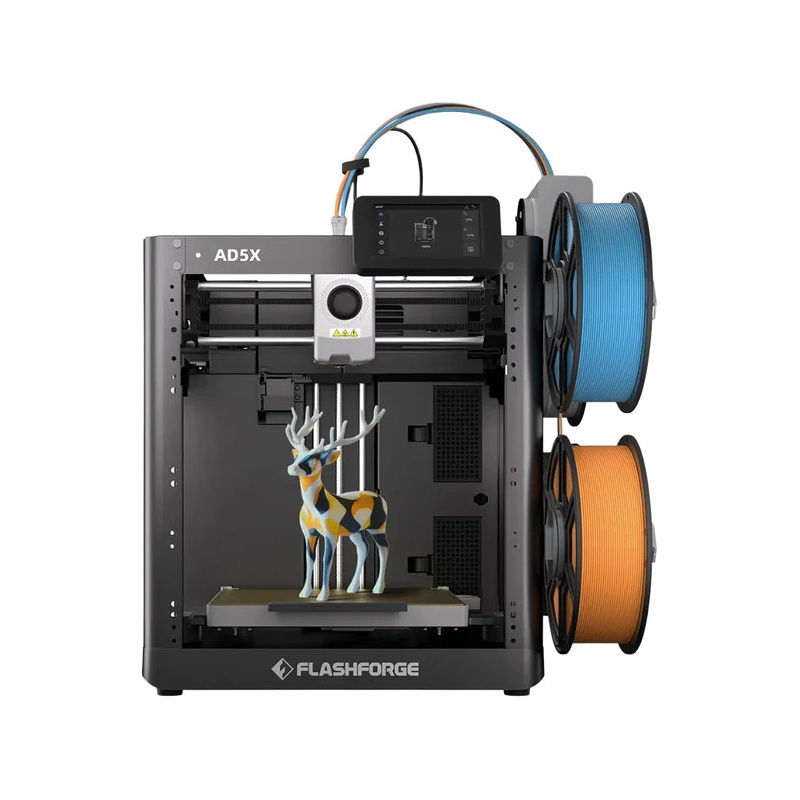

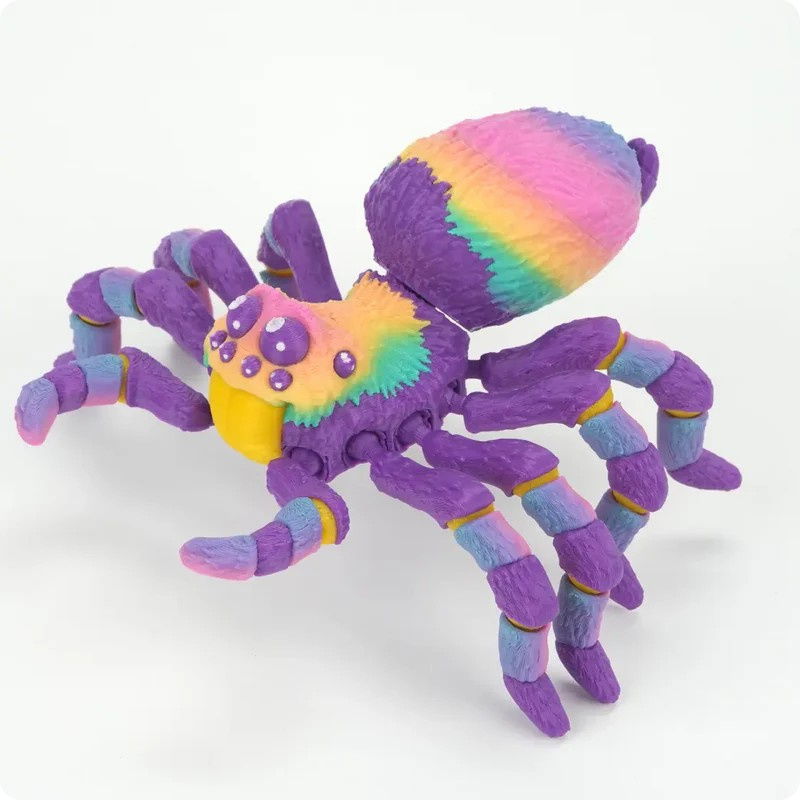

Sample multi-color print.
Other features of the printer
- Flexible, magnetic spring steel platform for easy print removal
- Filament end reminder and automatic stop
- Replaceable heating table
- Open Filament support (compatibility with filaments from other manufacturers)
- Optional expansion with remote monitoring and chamber lighting
- Safe power supply from 100 V to 240 V, 50/60 Hz
- Easy maintenance and spare parts availability
Contents of the set
- 1x Flashforge AD5X 3D Printer
- 1x Touchscreen
- 1x IFS Module (4-color)
- 4x Spool holder
- 4x Filament Sample 10g
- 1x Power cord
- 1x IFS connection cable
- 1x Filament guide tube (4-in-1)
- 1x Mounting plate
- 1x Grease, glue
- 1x Allen key set (2.0 / 2.5 / 3.0)
- 1x Side pliers
- 1x Phillips screwdriver
- 1x Nozzle unclogging tool
- 1x Cable clip
- 4x M3x6 screws
- 1x Service Card
- 1x User Manual

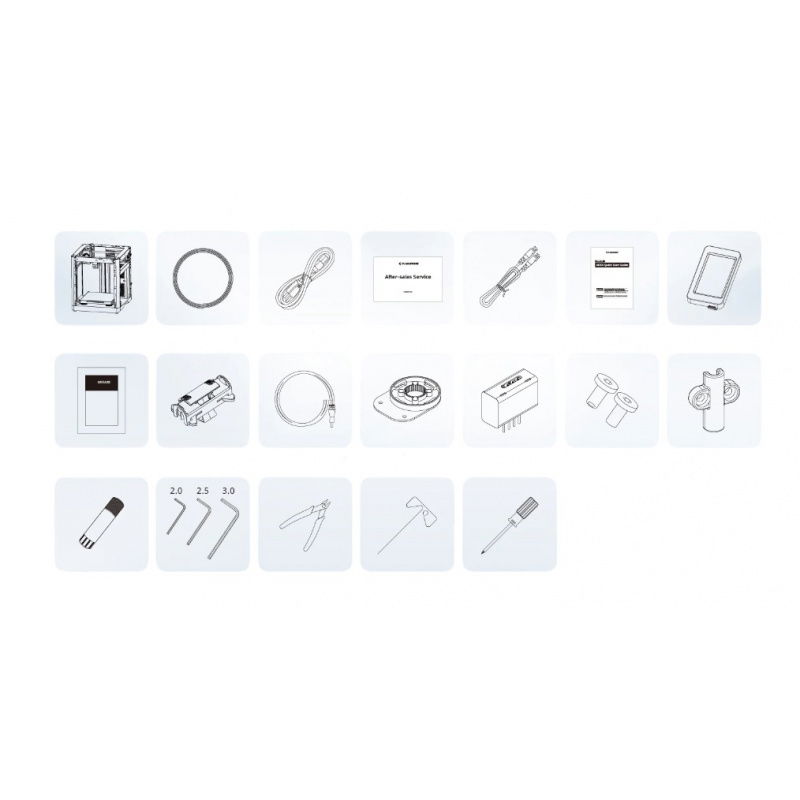

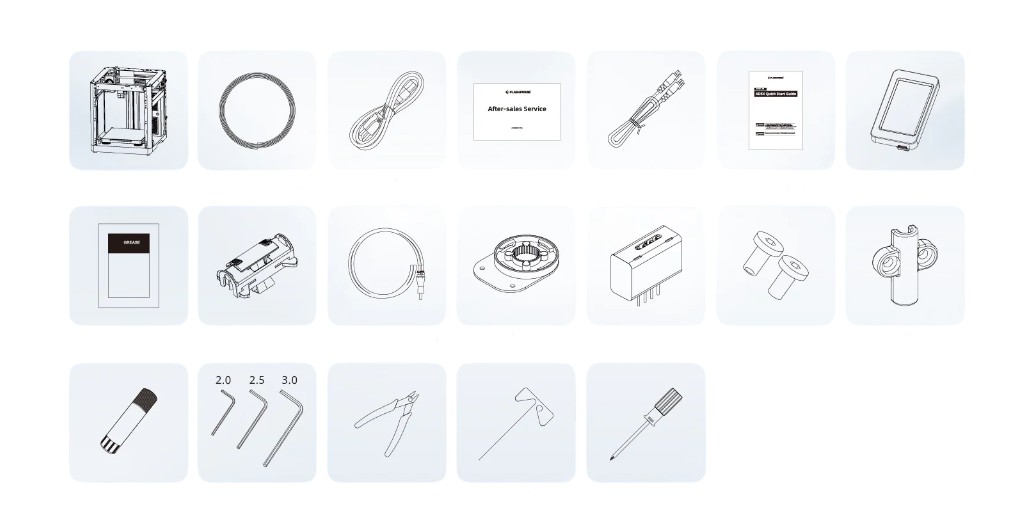

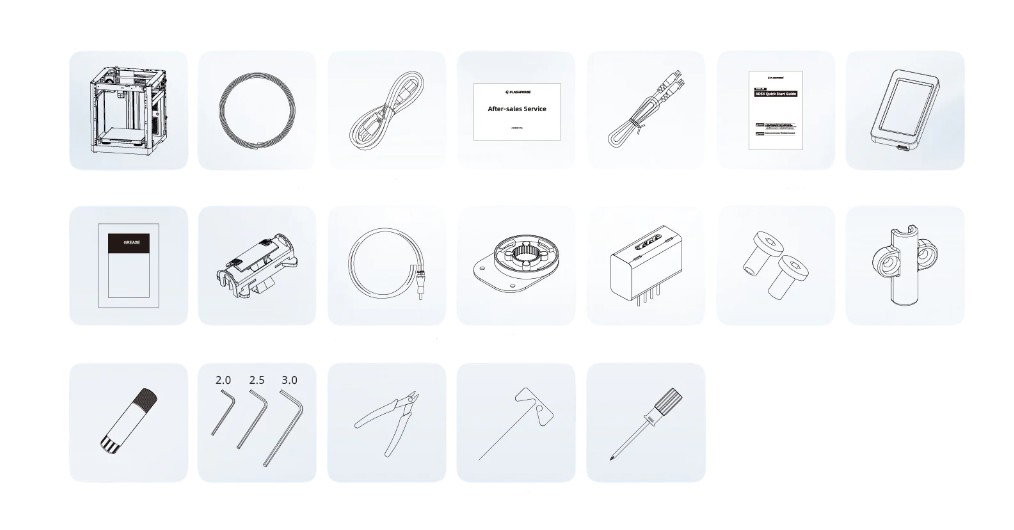

Elements included in the set.
| Technical specifications of the Flashforge AD5X 3D printer | |
|---|---|
| Printing technology | FFF (Fused Filament Fabrication) |
| Construction type | CoreXY |
| Work area | 220 x 220 x 220 mm |
| Layer thickness | from 0.05 mm to 0.4 mm |
| Nozzle diameter | 0.4mm (default), optional 0.25mm / 0.6mm / 0.8mm |
| Types of filaments | PLA, PLA Pro, PLA HS, TPU, PETG, PETG Pro, ASA, PLA Silk, PLA Matte |
| Maximum nozzle temperature | 300°C |
| Maximum table temperature | 110°C |
| Print speed | up to 600 mm/s |
| Acceleration | up to 20,000 mm/s² |
| Platform leveling | automatic |
| Display | 4.3-inch touchscreen |
| Compatible systems | Windows 7/8/10/11, Linux (Ubuntu 20.04+), macOS 10.9+ |
| Supported file formats | 3MF, STL, OBJ, FPP, BMP, PNG, JPG, JPEG |
| Software | Orca-Flashforge |
| Communication | WiFi, Ethernet, USB |
| Dimensions | 363 x 402 x 448 mm (with spool holder) |
| Mass | 11.4 kg |
