Product description: 3D printer - Flashforge Creator 5 Pro
The Flashforge Creator 5 Pro is a closed 3D printer designed for multi-color, multi-material, and technical projects. It features four independent printheads , allowing individual colors or materials to be assigned to separate tools, minimizing filament waste when changing tools . The printer offers a build volume of 256 x 256 x 256 mm , a print speed of up to 300 mm/s , a printhead movement of up to 600 mm/s, and an acceleration of up to 30,000 mm/s². Nozzle temperatures reach up to 320°C, a print bed up to 120°C, and an actively heated chamber up to 65°C facilitates work with materials such as ABS, ASA, PC, PA, and fiber-reinforced filaments. Automatic leveling, head calibration, Auto PA, compensation systems , HEPA13 activated carbon filtration, Full HD camera , and WiFi and USB connectivity create a comprehensive environment for convenient and repeatable 3D printing.

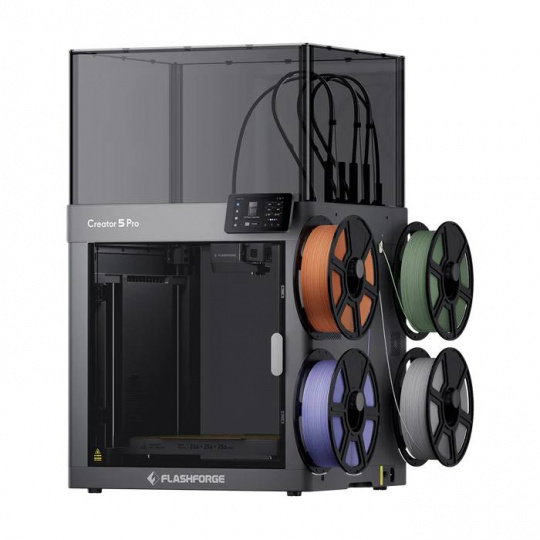

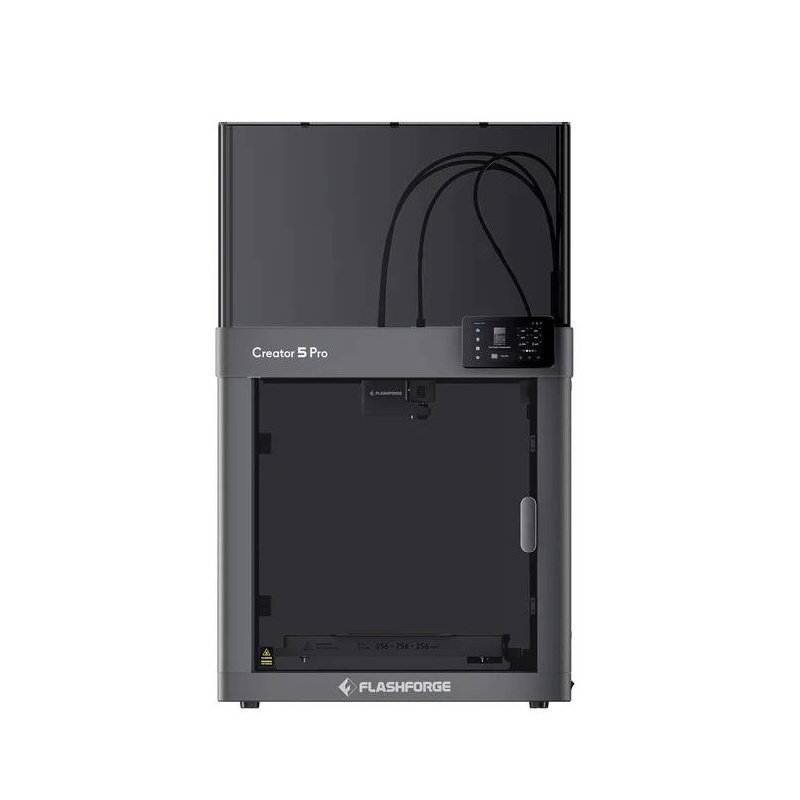

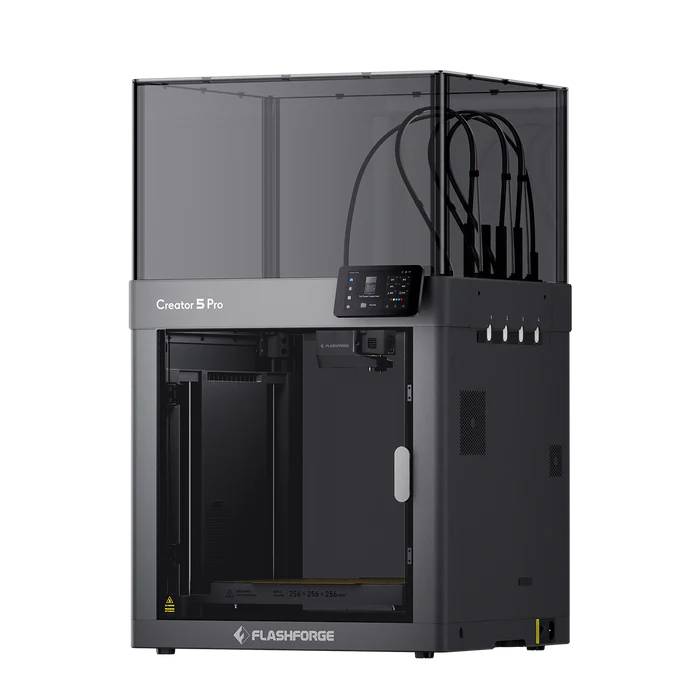

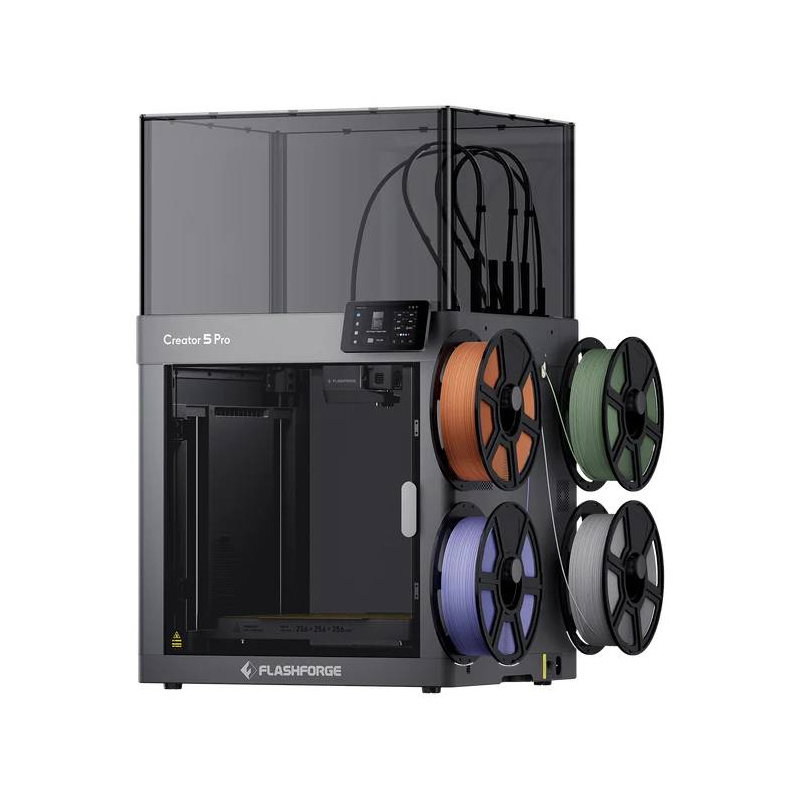

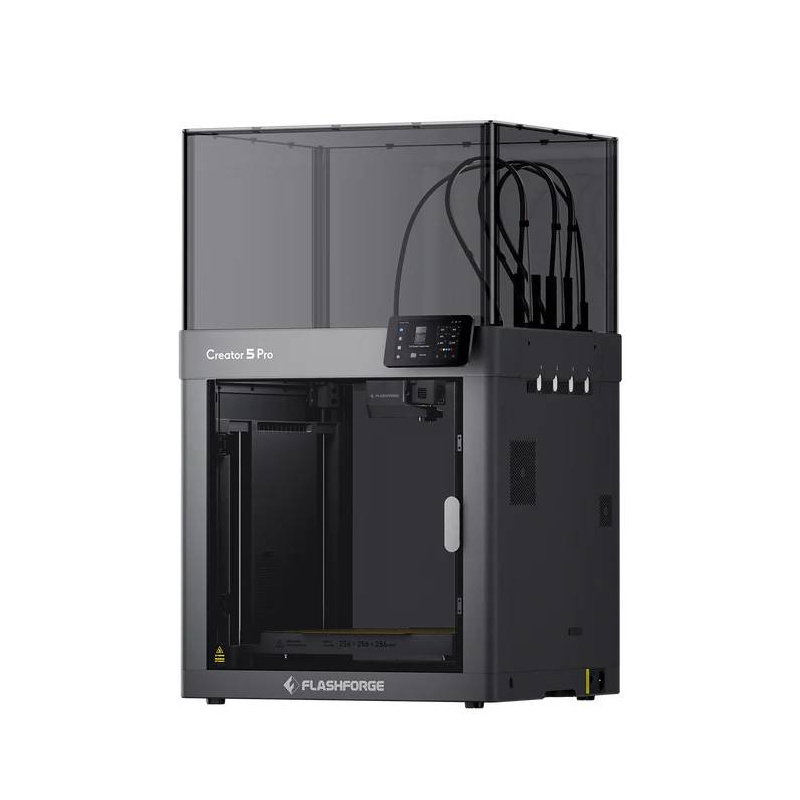

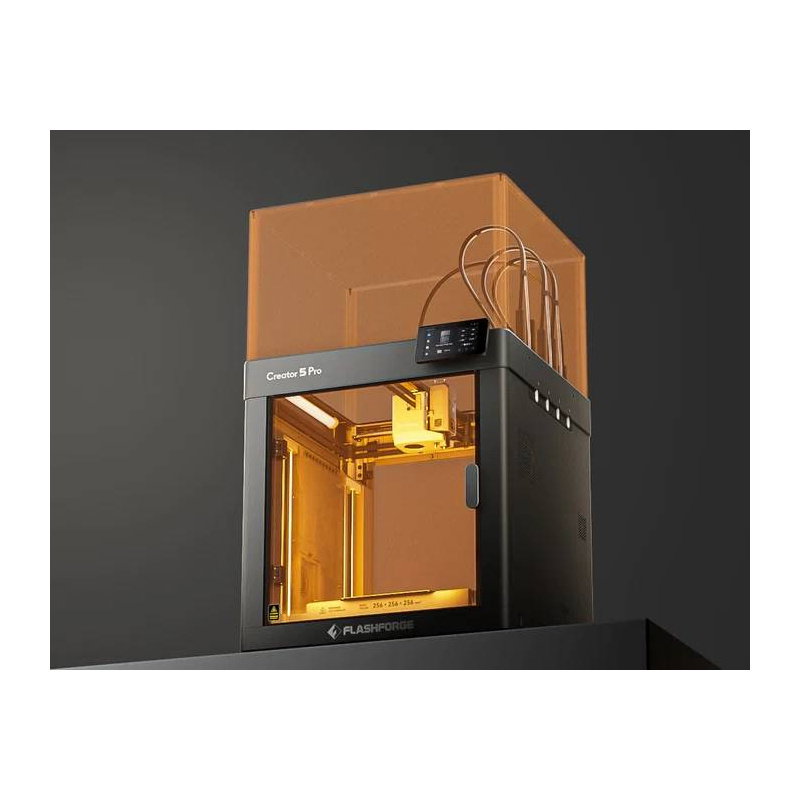

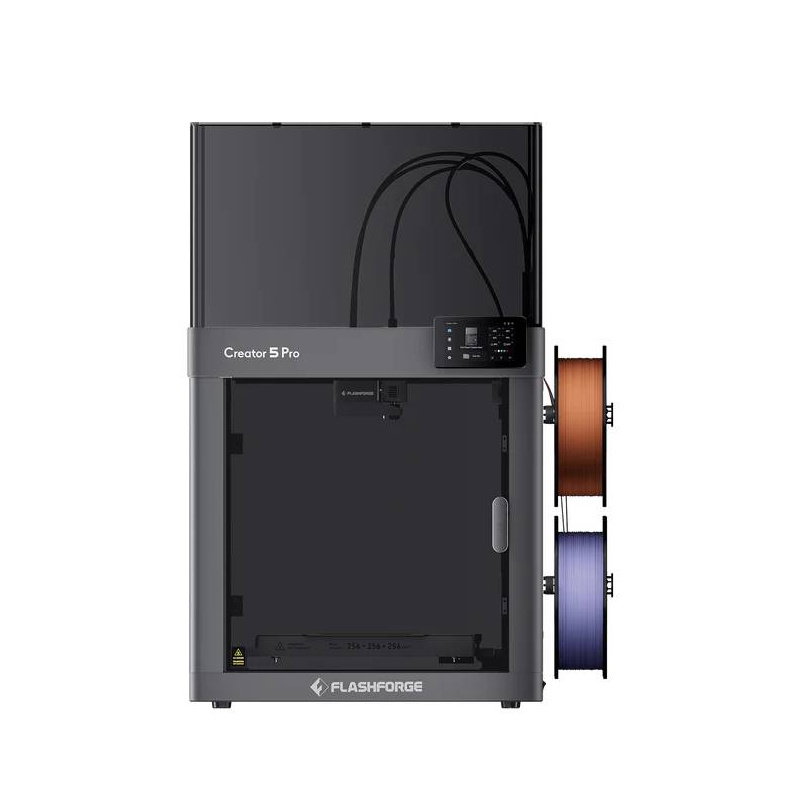

3D printer - Flashforge Creator 5 Pro.

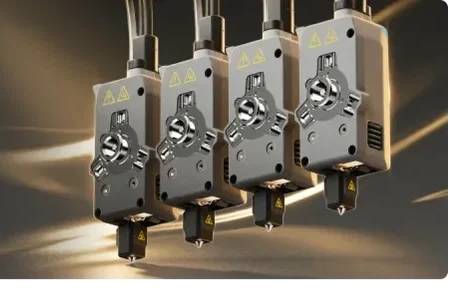

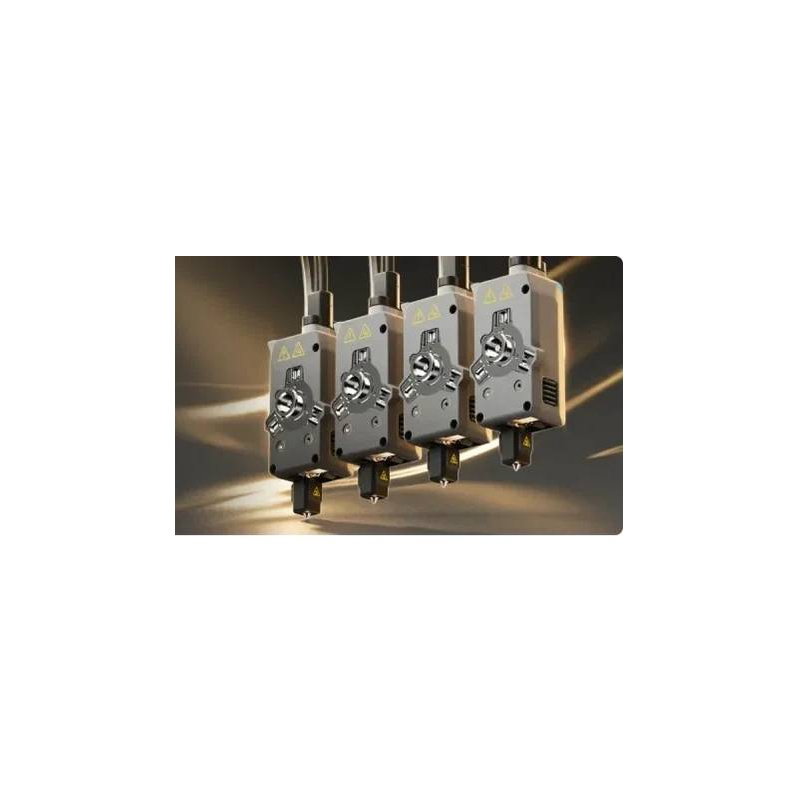

4 independent heads enable multi-color and multi-material printing without the need to constantly switch the material in one nozzle.
Four independent heads for multi-color and multi-material printing
The Creator 5 Pro utilizes four independent printheads , allowing individual colors or materials to be handled by separate tools during a single job. When changing materials , the printer eliminates the need to clean a single shared nozzle , significantly reducing waste and the time required to change filaments. According to Flashforge, this solution can deliver up to 500% faster multi-color printing compared to typical systems requiring nozzle cleaning. Four printheads also allow for combining materials with different properties in a single model, such as a structural material with a soluble support material. A nozzle temperature of up to 320°C , a bed heated to 120°C , and an actively heated chamber allow the Creator 5 Pro to work with a much wider range of materials. Recommended filaments include PLA, PETG, TPU, PLA-CF, PETG-CF, PET, SILK, PVA, BVOH, ABS, ASA, PC, PA, and PC-ABS . The printer is also compatible with fiber-reinforced technical materials such as PA-CF, PET-CF, PAHT-CF, ASA-CF, ABS-CF, PPA-CF, and PPS-CF. This allows it to be used for both visual and multi-color models and more demanding prototypes and functional parts.
Fast 3D printing and a build volume of 256 x 256 x 256 mm
The Creator 5 Pro's build volume measures 256 x 256 x 256 mm , allowing the printer to produce both single, larger models and batches of smaller parts arranged on the table. The maximum print speed is 300 mm/s , and the printhead can reach 600 mm/s . The printer offers acceleration of up to 30,000 mm/s² and a maximum material flow of 32 mm³/s , supporting the implementation of highly dynamic designs. These parameters, combined with the independent printhead system, are particularly important when producing complex multi-color and multi-material models.
The manufacturer declares up to 500% faster multi-color printing compared to traditional systems requiring frequent material changes.

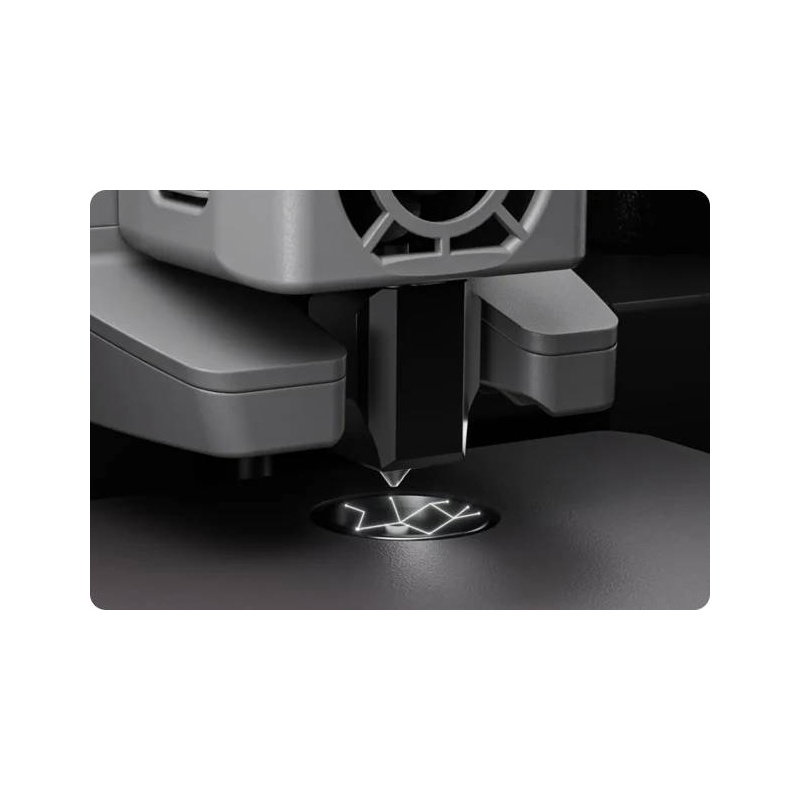

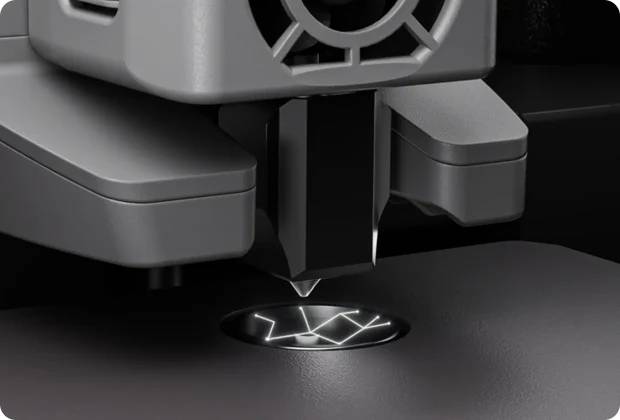

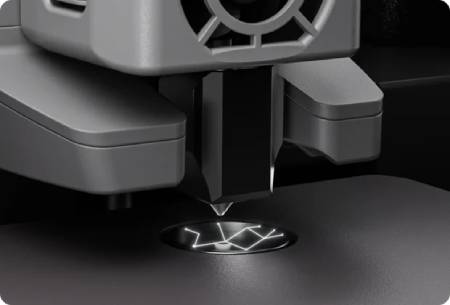

Auto calibration includes auto leveling, multi-head offset calibration, and dynamic flow calibration.
Automatic calibration and compensation for accurate prints
Flashforge Creator 5 Pro automates the most important steps in preparing the device for operation, eliminating the need for time-consuming manual adjustments. Automatic bed leveling helps ensure an even first layer, while automatic head offset calibration ensures correct head alignment during multi-material printing. Dynamic flow calibration with Auto PA adjusts filament feed to printing conditions and helps reduce issues arising from rapid speed changes. Active vibration compensation complements the system, designed to reduce surface artifacts created by rapid mechanism movements. Together, these solutions simplify printer preparation and help maintain consistent results during subsequent print runs.

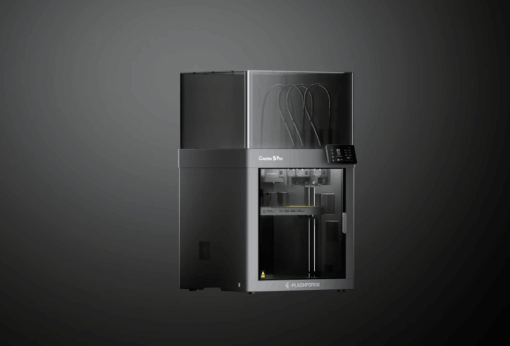

Actively heated 65°C chamber and closed 3D printer design
The fully enclosed, rigid structure of the Creator 5 Pro limits the impact of ambient temperature changes on the printed model and ensures more stable working conditions. The actively heated chamber reaches temperatures up to 65°C , which is particularly important for materials such as ABS , ASA , PC, and PA, which are susceptible to shrinkage, cracking, and deformation. For filaments requiring more intensive cooling, the printer is also equipped with an additional air exchange system and an auxiliary fan . The enclosed chamber works with a HEPA H13 filter and activated carbon , increasing user comfort in studios and other spaces. Sensors on the front door and top cover also allow the device to monitor the condition of the enclosure during operation.
An additional cooling system allows for better adjustment of the chamber temperature to materials such as PLA, PETG or TPU.
The built-in camera with a resolution of 1280 x 720 px at 30 fps enables remote control of the printing process.
Orca-Flashforge, WiFi and Remote 3D Printing Management
For model preparation, the Creator 5 Pro can work with Orca-Flashforge and OrcaSlicer , allowing you to configure print parameters, materials, and multi-color jobs before sending the file to the device. The printer offers a USB port and dual-band 2.4 GHz and 5 GHz WiFi , allowing it to be integrated into a local work environment without having to transfer files to a USB drive each time. A built-in camera with a resolution of 1280 x 720 px and a frame rate of 30 fps allows for remote monitoring of the job in progress . Multi-printer management support makes it easy to manage multiple devices, which is especially useful for design studios, schools, and 3D printing farms. The Flashforge ecosystem also includes manufacturer tools for managing devices and downloading updated software.
Flashforge Creator 5 Pro Kit Contents
- Flashforge Creator 5 Pro 3D Printer
- Textured worktop
- Housing components and mounting elements
- Filament guide assembly with cables
- Power cord
- Allen keys 1.5 mm, 2 mm and 2.5 mm
- Set of mounting screws
- Service grease
- Quick Start Guide

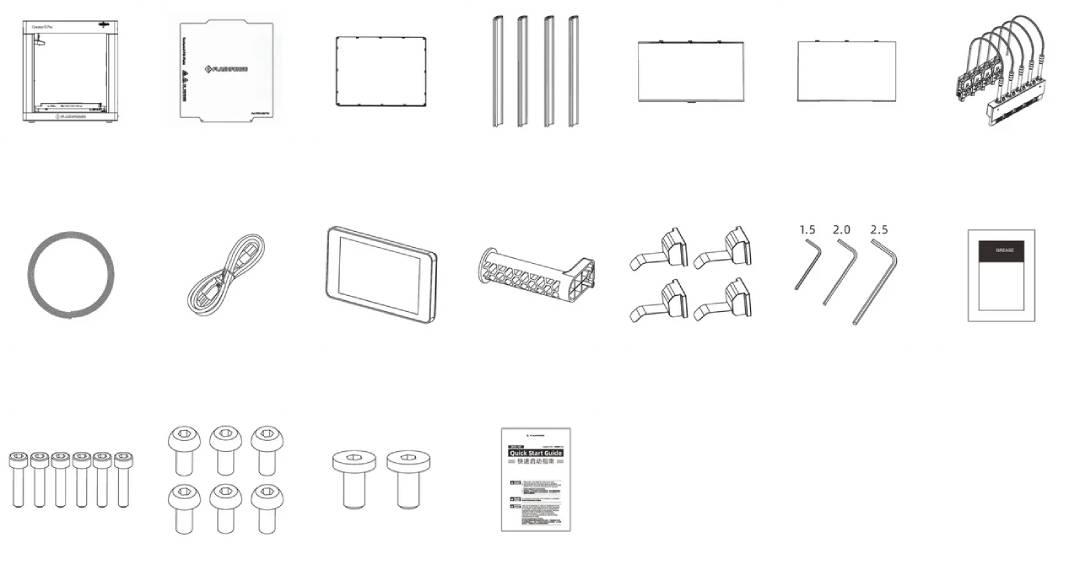

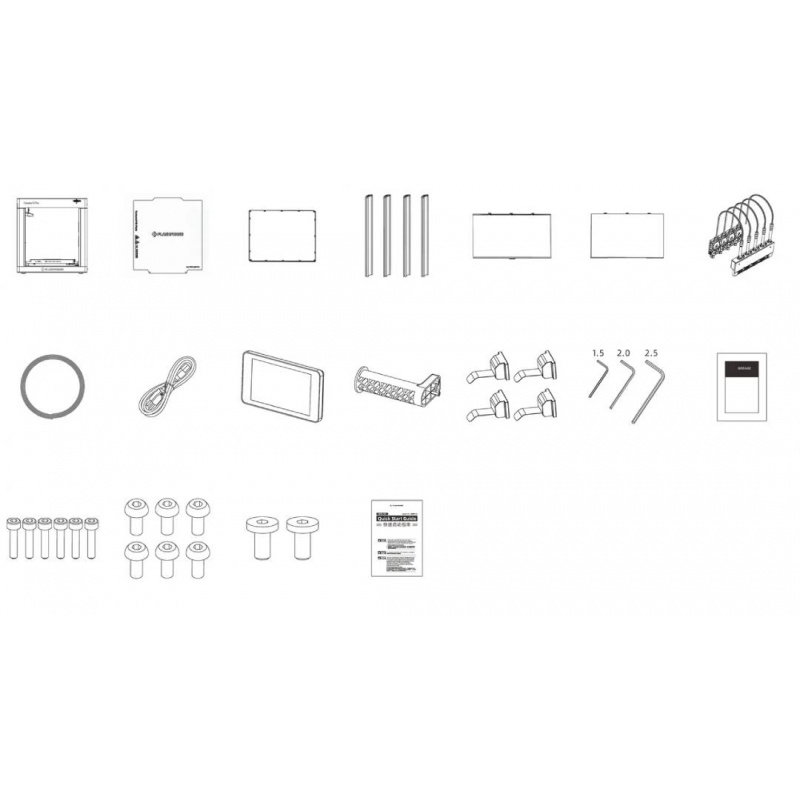

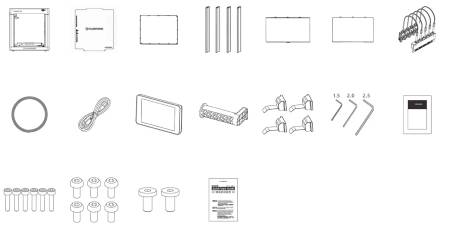

Elements included in the set.
| Flashforge Creator 5 Pro Technical Specifications | |
|---|---|
| Printing technology | FDM / FFF |
| Design | closed |
| Number of heads | 4 independent heads |
| Working field | 256 x 256 x 256 mm |
| Maximum print speed | 300 mm/s |
| Maximum movement speed | 600 mm/s |
| Maximum acceleration | 30,000 mm/s² |
| Maximum material flow | 32 mm³/s |
| Maximum nozzle temperature | 320°C |
| Standard nozzle diameter | 0.4 mm |
| Replaceable nozzle | Yes |
| Maximum table temperature | 120°C |
| Work surface | flexible, textured spring steel plate with PEI surface |
| Automatic leveling | Yes |
| Automatic head offset calibration | Yes |
| Dynamic flow calibration | Yes, Auto PA |
| Active vibration compensation | Yes |
| Actively heated chamber | Yes |
| Maximum chamber temperature | 65°C |
| Additional cooling | yes, auxiliary fan |
| Air filtration | HEPA H13 filter + activated carbon |
| Housing opening detection | front door and top cover |
| Filament end sensor | Yes |
| Resuming printing after a power outage | Yes |
| Chamber lighting | Yes |
| Display | 4-inch color touchscreen 800 x 480 px |
| Camera | 1280 x 720 px, 30 fps |
| Remote monitoring | Yes |
| Managing multiple printers | Yes |
| Communication | USB, WiFi |
| WiFi | 2.4GHz / 5GHz |
| Compatible software | Orca-Flashforge, OrcaSlicer |
| Turn on and off with one touch | Yes |
| Recommended filaments | PLA, PETG, TPU from 90A to 95A / 64D, PLA-CF, PETG-CF, PET, Silk, PVA, BVOH, S-Multi, S-PATH, ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF(GF), ABS-CF(GF), PPA-CF(GF), PC, PA, PC-ABS, PPS-CF |
| Compatible reinforced filaments | PA-CF, PET-CF, PAHT-CF, PPA-CF(GF) |
| Power supply | 100V to 120V AC / 200V to 240V AC, 50 / 60 Hz |
| Maximum power | 850 W |
| Dimensions with filament guide tubes and spool holders | 520 x 443 x 710 mm |
| Dimensions without filament guide cables and spool holders | 441 x 411 x 460 mm |
| Mass | 18 kg |
