Product description: 3D printer - Flashforge Creator 5
The Flashforge Creator 5 is a 3D printer designed for the rapid production of multi-color models and projects combining different materials. Instead of a single nozzle switching filament, the printer uses four independent printheads , allowing it to change colors or materials without the typical nozzle cleaning process and associated filament waste. The 256 x 256 x 256 mm build volume provides space for larger models, and the maximum print speed is 300 mm/s with an idle motion of up to 600 mm/s and acceleration of up to 30,000 mm/s². The Creator 5 supports PLA, PETG, TPU, PLA-CF, PETG-CF, PVA, and BVOH , as well as a range of technical materials. Auto-leveling, printhead calibration, vibration compensation, and dynamic flow calibration reduce manual adjustments, while a camera, Wi-Fi, USB, a 4" touchscreen, and remote control streamline everyday workflows.

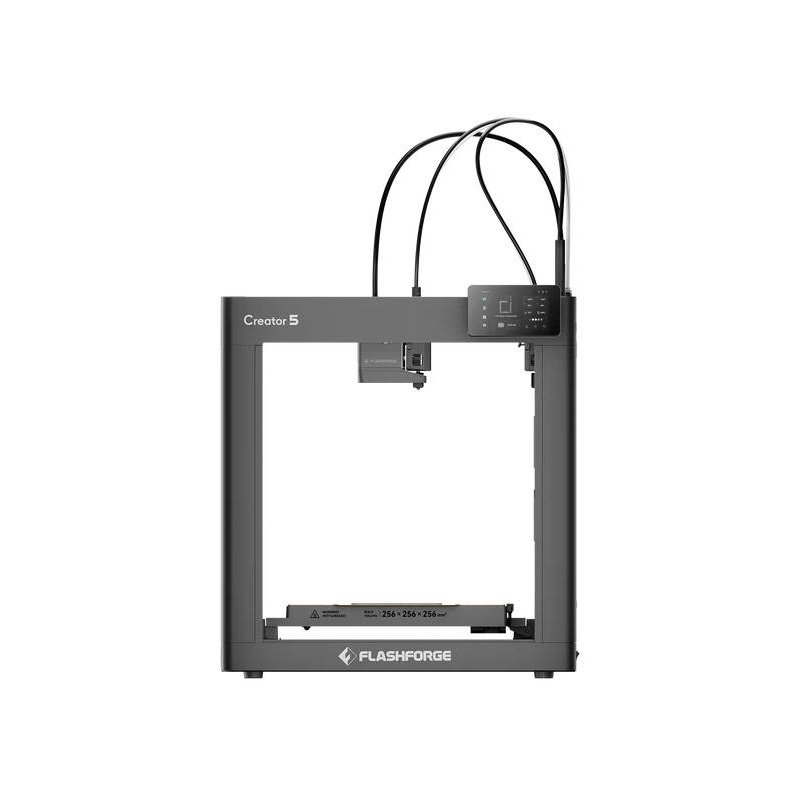

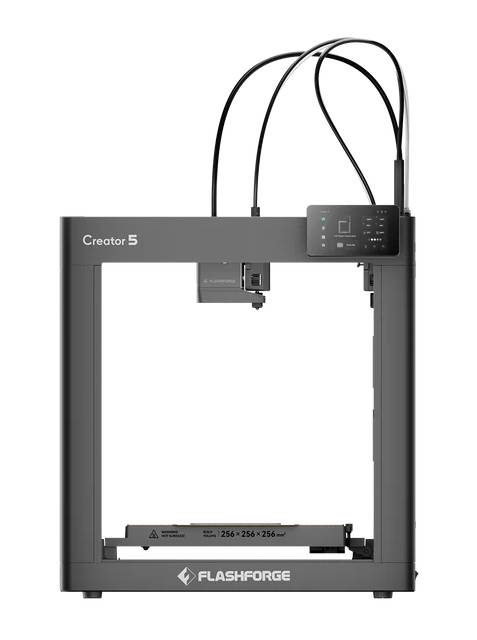

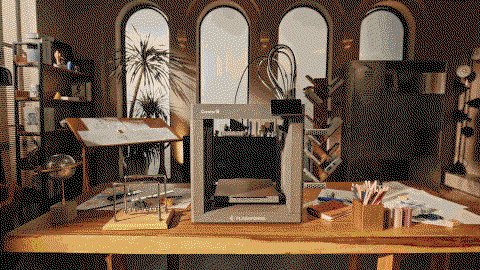

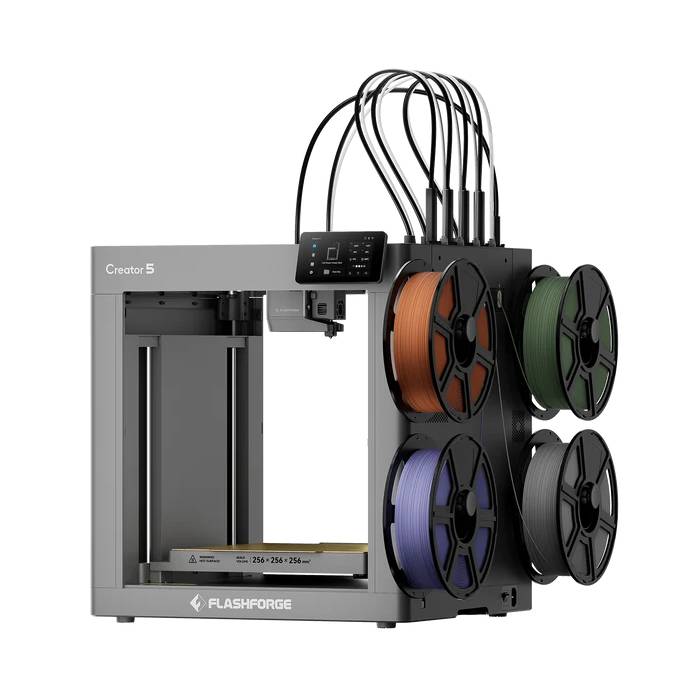

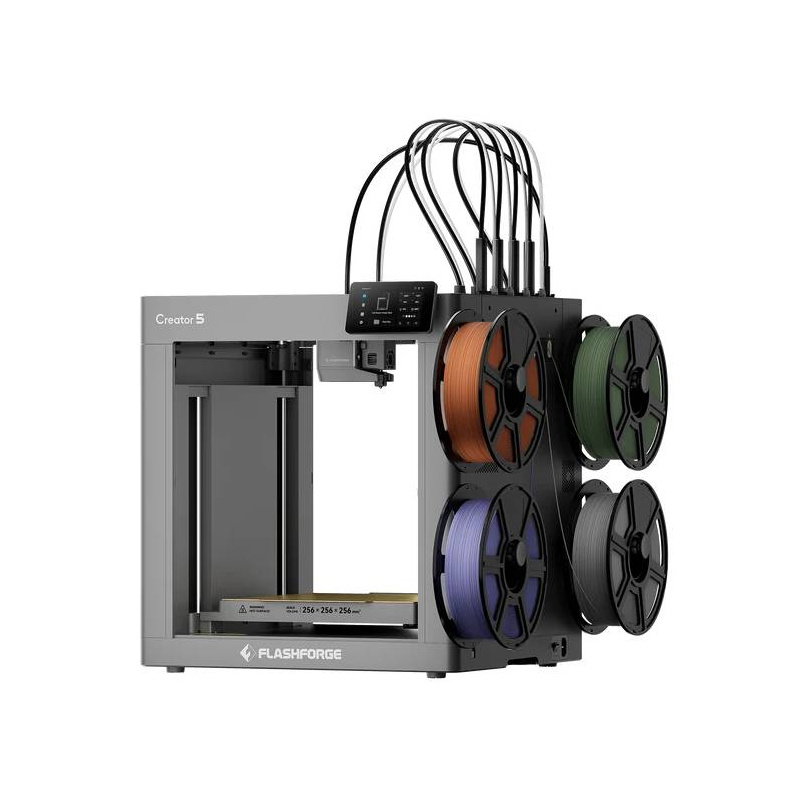

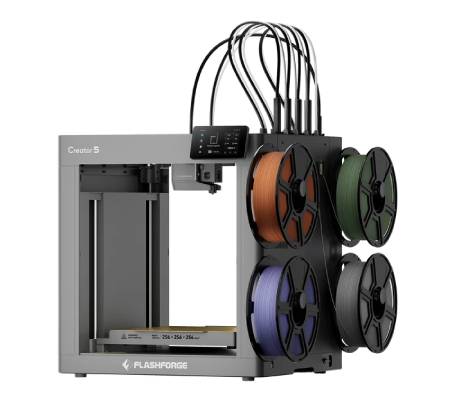

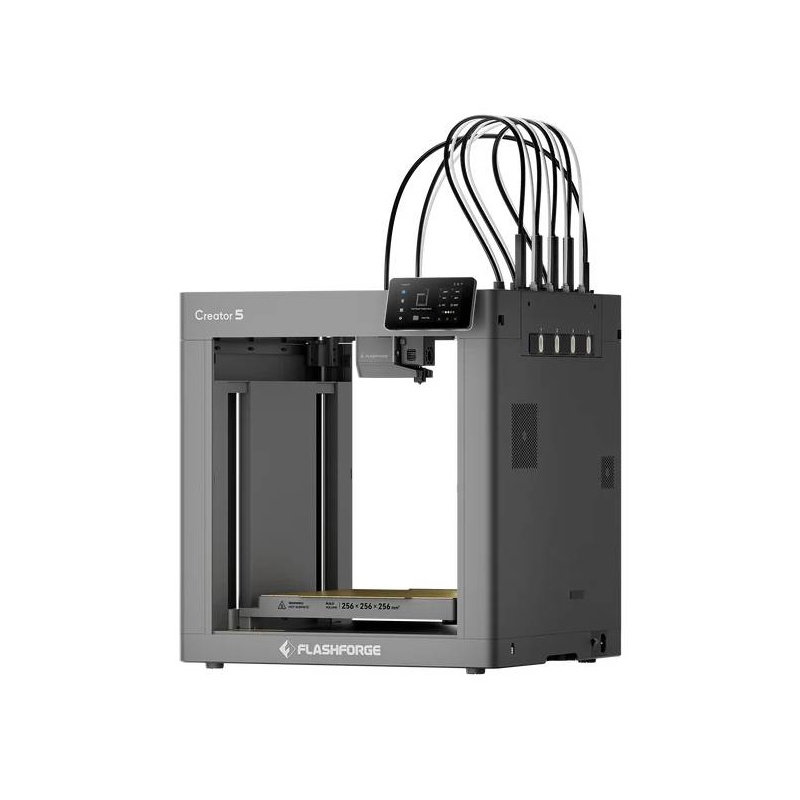

3D Printer - Flashforge Creator 5.

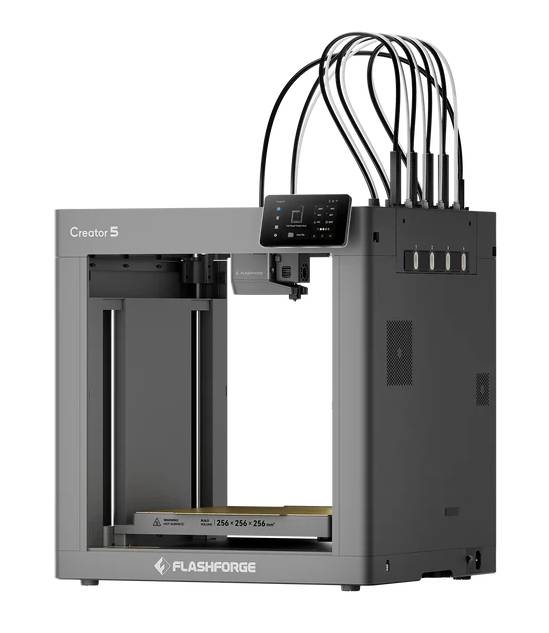

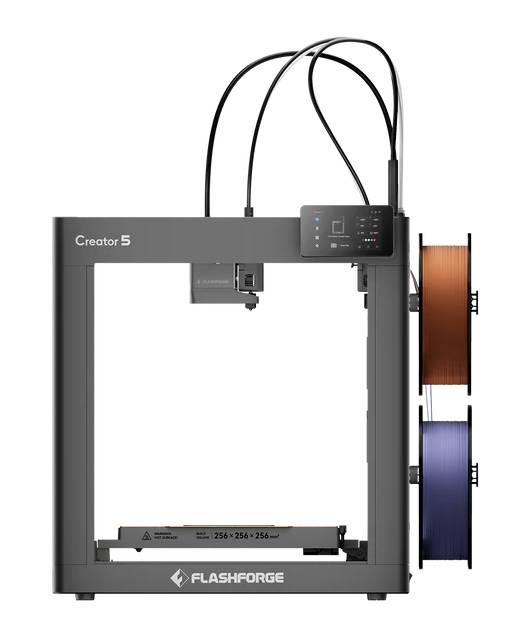

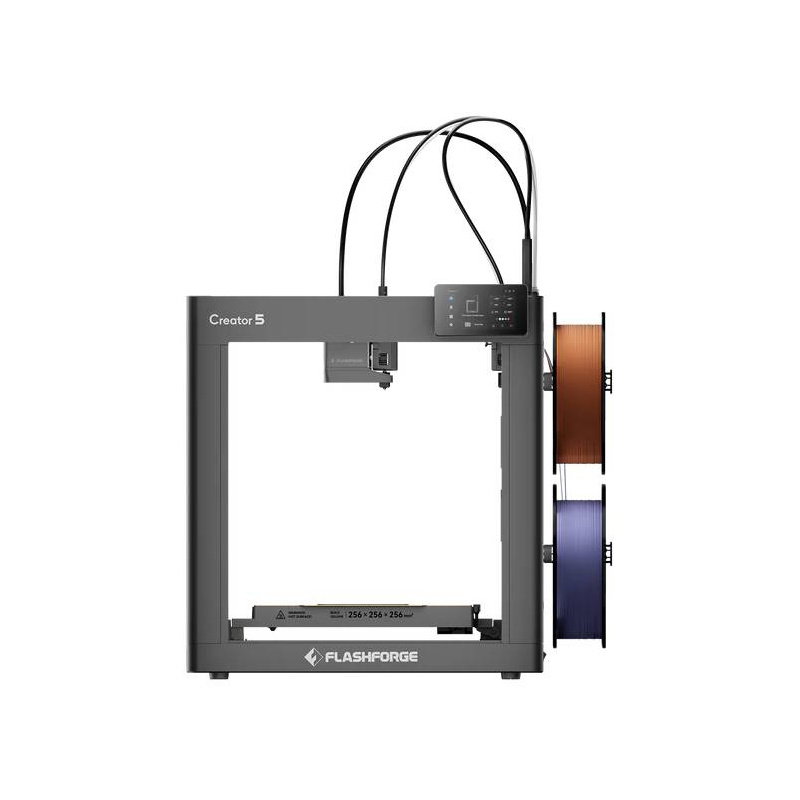

Flashforge Creator 5 is a versatile FDM 3D printer designed for fast multi-color and multi-material printing.
Four independent Flashforge Creator 5 heads - fast multi-color printing
The Creator 5's key feature is its four independent printheads , which the printer can select during a single project. This allows you to assign different colors or materials to each printhead , creating multi-color models without manually changing filament. The separate printhead design eliminates the need to clean a single nozzle for each color transition , reducing waste and the time spent changing materials. For multicolor printing, this architecture can provide up to 500% faster speeds than typical systems requiring standard nozzle cleaning.
Multi-material printing with four Creator 5 extruders
Separate printheads allow not only for color changes but also for combining different materials within a single model . The Creator 5 supports PLA , PETG , TPU 95A, TPU 64D , PLA-CF, PETG-CF, SILK, PVA, and BVOH , among others, while TPU 90A can be fed from the top external mount. It is also possible to print ABS, ASA, HIPS, and many fiber-reinforced filaments, although due to the printer's open design, their full properties may not be achieved. For these materials, Flashforge recommends printers equipped with features such as a heated build chamber, such as the Creator 5 Pro . The Creator 5's broad material compatibility allows for the successful implementation of complex designs, including models combining rigid and flexible materials and prints using dissolvable PVA or BVOH supports .
The printer offers a working area of 256 x 256 x 256 mm, print speed up to 300 mm/s, head movement up to 600 mm/s and acceleration up to 30,000 mm/s².
256 x 256 x 256 mm build volume and fast 3D printing
The Creator 5 offers a build volume of 256 x 256 x 256 mm , making it suitable for both individual, larger projects and the serial placement of smaller components on the table. The maximum print speed is 300 mm/s , while the non-extrusion head movement speed can reach 600 mm/s. A maximum acceleration of 30,000 mm/s² allows the device to quickly respond to changes in the trajectory of the prepared model. A flow rate of up to 32 mm³/s supports efficient material feeding with faster print profiles.
Creator 5 auto calibration and precise first layer
Creator 5 offers an extensive set of calibration procedures that help prepare the device for operation without the time-consuming manual adjustment of numerous parameters. Multi-point auto-leveling compensates for bed irregularities, and head offset calibration automatically determines their relative position in the X, Y, and Z axes – particularly important during multi-head prints. Extruder position calibration is also available, useful after disassembly, reinstallation, or replacement. The manufacturer recommends recalibration after, among other things, nozzle replacement and when print quality indicates the need for system realignment.

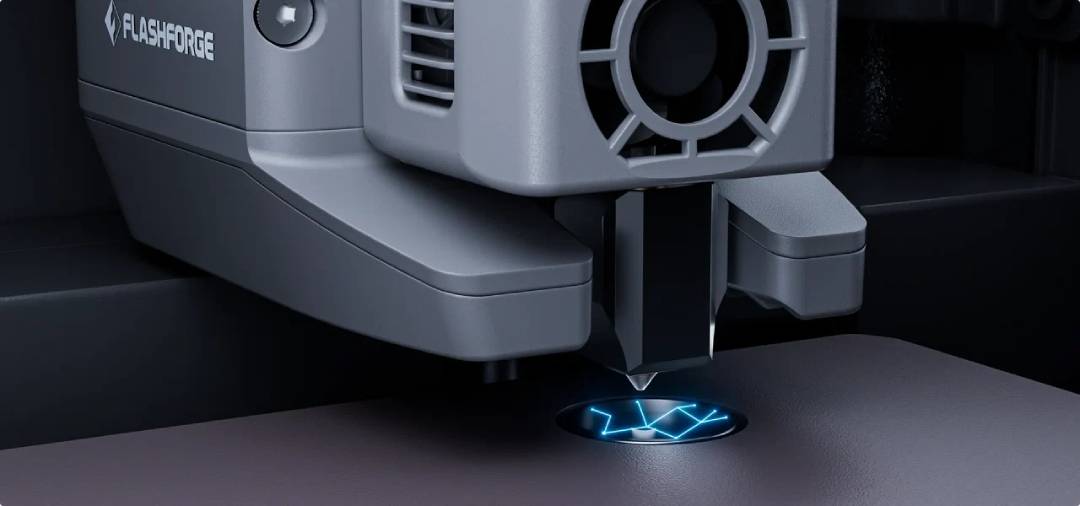

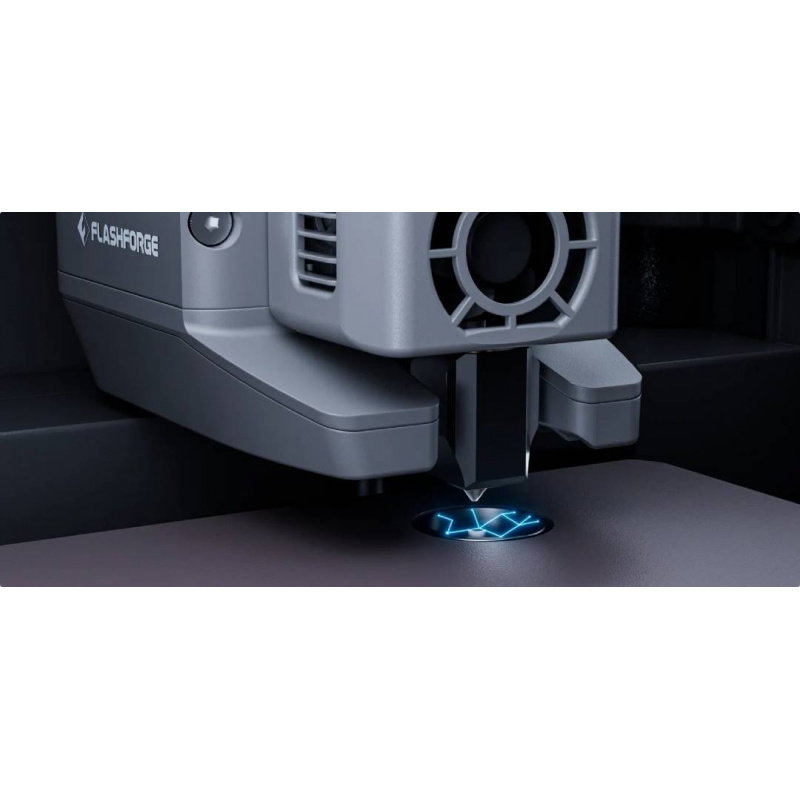

Auto leveling, head offset calibration, vibration compensation, VFA and Auto PA support high quality prints.
The nozzles can reach temperatures up to 320°C and the work table up to 120°C.
Vibration compensation and automatic print quality control
A vibration compensation system helps reduce ghosting and ringing that can occur during rapid mechanical movements. Creator 5 also offers VFA Vertical Stripe Compensation , which optimizes motor control to reduce subtle vertical stripes on model surfaces and reduce operating noise. This is complemented by Auto PA dynamic flow calibration , which supports more precise extrusion control during speed changes. Combining these mechanisms reduces manual parameter adjustments and helps maintain consistent quality from project to project.
Flash Studio Desktop - preparing models for Creator 5
To prepare prints, Flash Studio Desktop is available, where you can select the printer model, nozzle diameter, The build plate type and the type and color of filaments assigned to individual heads. The program allows you to import 3MF and STL models , as well as prepare their position, scale, rotation, and process parameters before slicing. Once the project is ready, you receive, among other things, estimated printing time and information on material consumption . For multi-color printing, you can assign individual project colors to specific Creator 5 extruders.
Creator 5 supports a wide range of filaments, including PLA, PETG, TPU, composite materials, and PVA and BVOH supports.
Flash Studio Mobile allows you to remotely preview your prints using a camera.
WiFi, mobile app and remote management Creator 5
Creator 5 can receive files via WiFi or USB , so you can choose a workflow that's right for your workspace. Flash Studio Desktop lets you submit jobs over the network and monitor the status of multiple printers, which is especially useful in studios, schools, and 3D printing farms. The Flash Studio Mobile app lets you assign a printer to an account and remotely monitor it using the standard camera . The camera offers 1280 x 720 px image at 30 fps , and devices can be grouped by location and monitored from a shared management system.
Flashforge Creator 5 Kit Contents
- Flashforge Creator 5 3D Printer
- Filament 10 g x 4
- Worktop
- Power cord
- Spool holder x 4
- Screen
- Nozzle lock x 4
- Extruder docking station module
- 1.5 mm Allen key
- 2 mm Allen key
- 2.5 mm Allen key
- Grease
- M3 x 14mm screw x 4
- M3 x 16mm screw x 2
- Screw ST2.9 x 9.5 mm x 2
- M3 x 6mm screw x 2
- Quick Start Guide

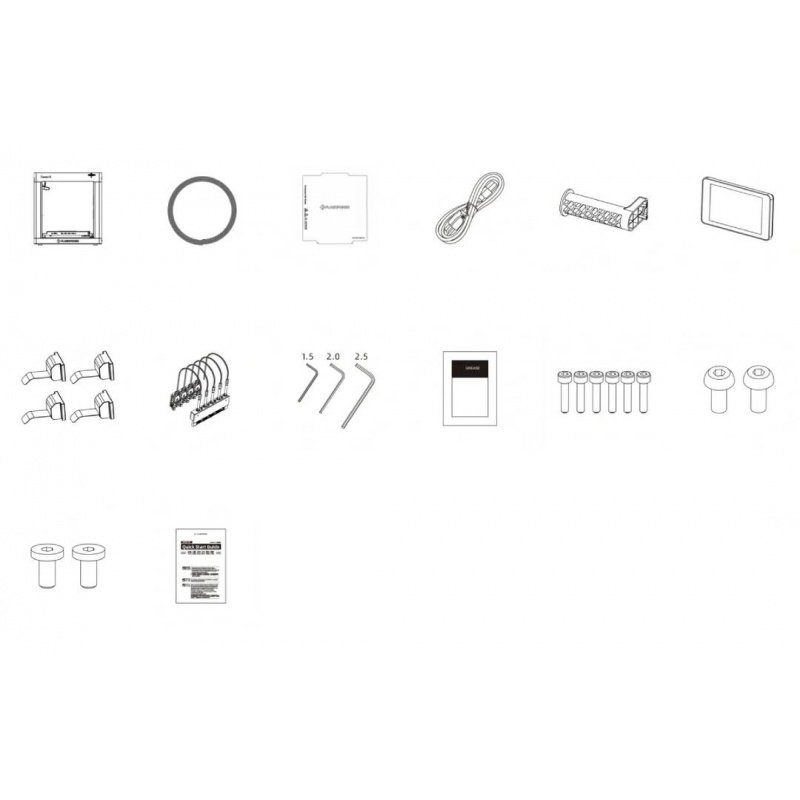

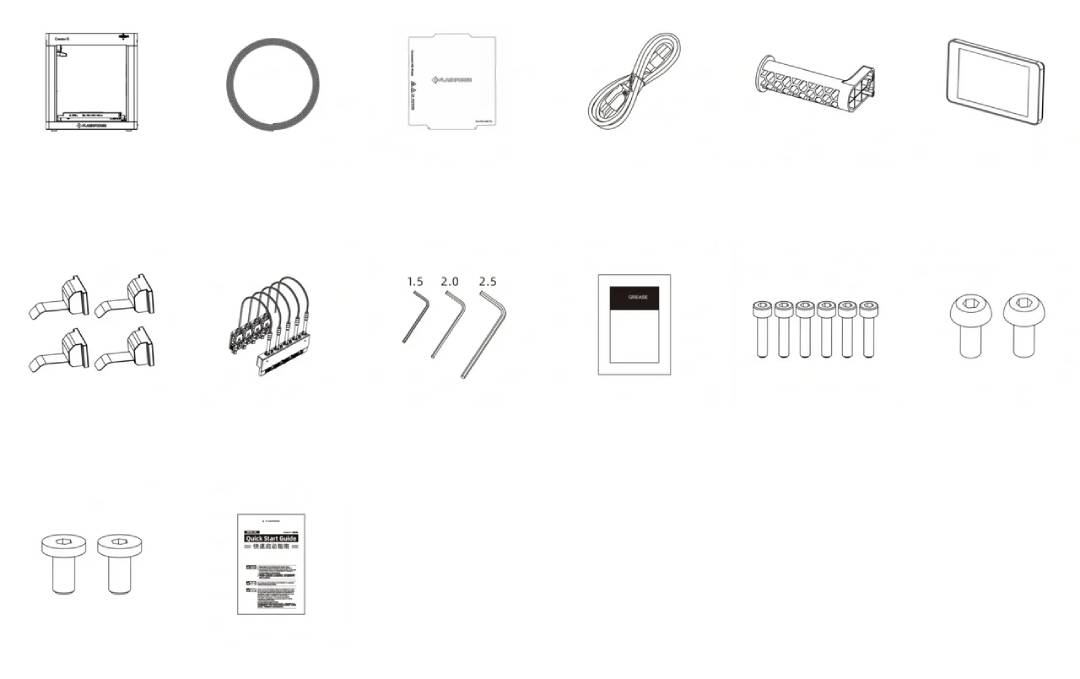

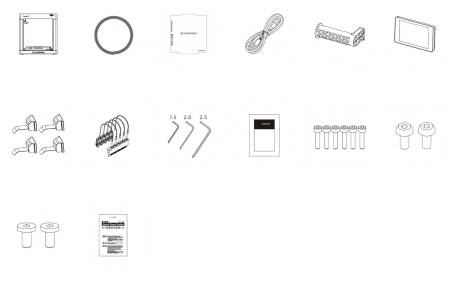

Elements included in the set.
| Flashforge Creator 5 Technical Specifications | |
|---|---|
| Printing technology | FDM / FFF |
| Number of heads | 4 independent heads |
| Working field | 256 x 256 x 256 mm |
| Maximum print speed | 300 mm/s |
| Maximum movement speed | 600 mm/s |
| Maximum acceleration | 30000 mm/s² |
| Maximum material flow | 32 mm³/s |
| Maximum nozzle temperature | 320°C |
| Standard nozzle diameter | 0.4 mm |
| Optional nozzle diameters | 0.25mm, 0.6mm, 0.8mm |
| Nozzle material | Hardened steel |
| Filament diameter | 1.75 mm |
| Maximum table temperature | 120°C |
| Work surface | Flexible steel plate with textured PEI surface |
| Automatic leveling | Yes |
| Auto PA Dynamic Flow Calibration | Yes |
| Head offset calibration | Automatic |
| Vibration compensation | Yes |
| VFA Compensation | Yes |
| Filament detection | Yes |
| Resuming printing after a power outage | Yes |
| Workspace lighting | Yes |
| Camera | Full HD 1280 x 720 px, 30 fps |
| Remote monitoring | Yes |
| Multiple printer support | Yes |
| Timelapse | Yes |
| Communication | USB, WiFi |
| WiFi bands | 2.4 GHz and 5 GHz |
| Software | Flash Studio Desktop, Flash Studio Mobile, Orca-Flashforge, OrcaSlicer |
| Display | 4" color touchscreen, 800 x 480 px |
| Internal memory | 8 GB |
| Recommended filaments | PLA, PETG, TPU 95A, TPU 64D, PLA-CF, PETG-CF, SILK, PVA, BVOH, TPU 90A with top mount |
| Additionally supported materials | ABS, ASA, HIPS, ABS-GF, PA-CF, ASA-CF, ASA-GF, S-Multi, S-PAHT, PET-CF, PAHT-CF, PPA-CF, PPS-CF |
| Design | Open |
| Construction materials | Aluminum, steel, plastic |
| Power supply | 100V to 120V AC / 200V to 240V AC, 50/60 Hz |
| Power | 700 W |

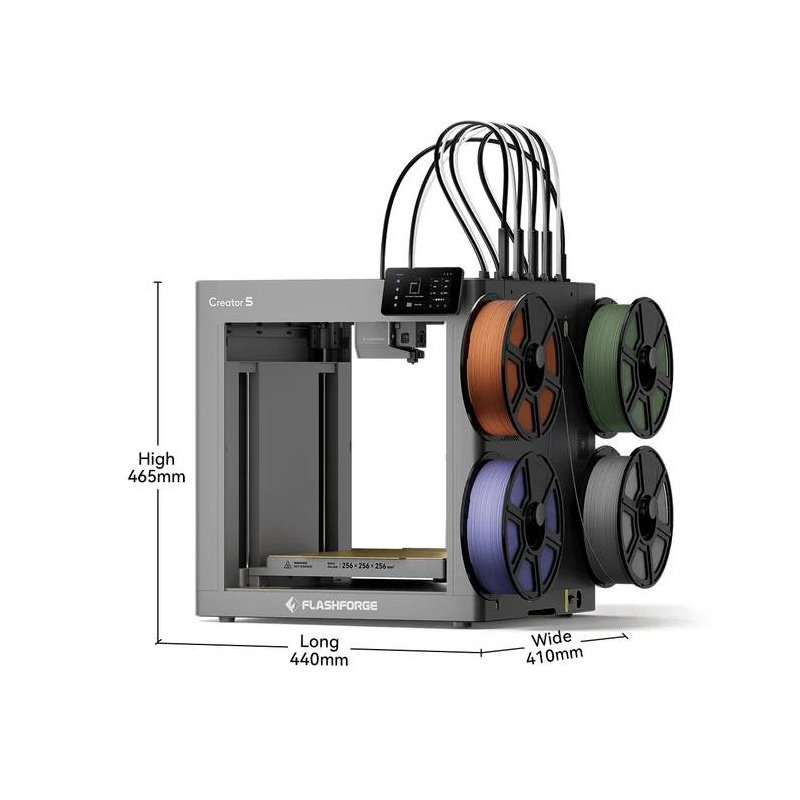

| Dimensions with filament tubes and spool holders | 520 x 443 x 710 mm |
| Dimensions without filament tubes and spool holders | 436 x 432 x 480 mm |
| Mass | 14 kg |
