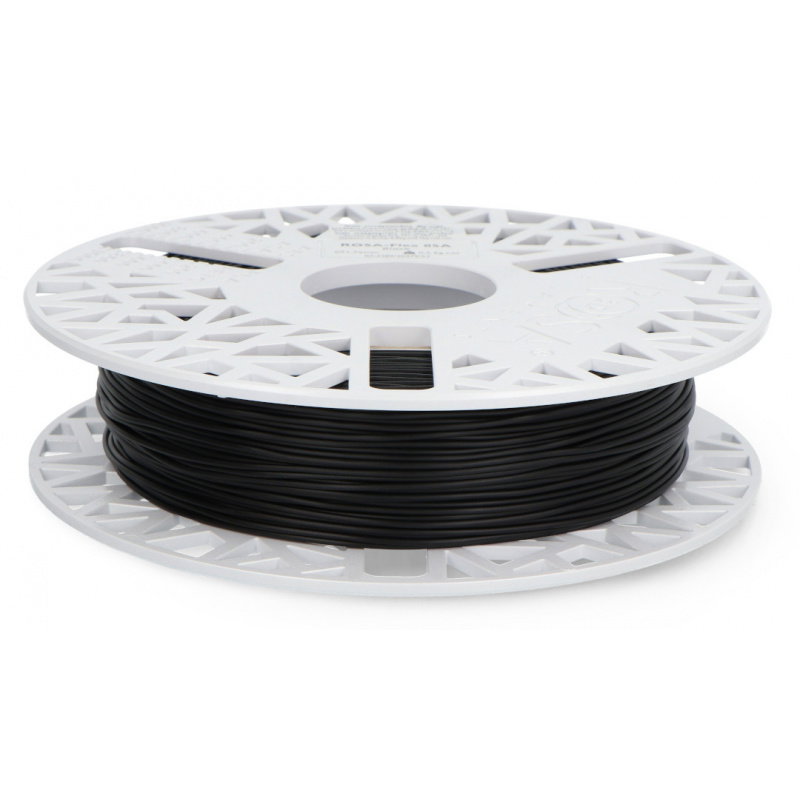

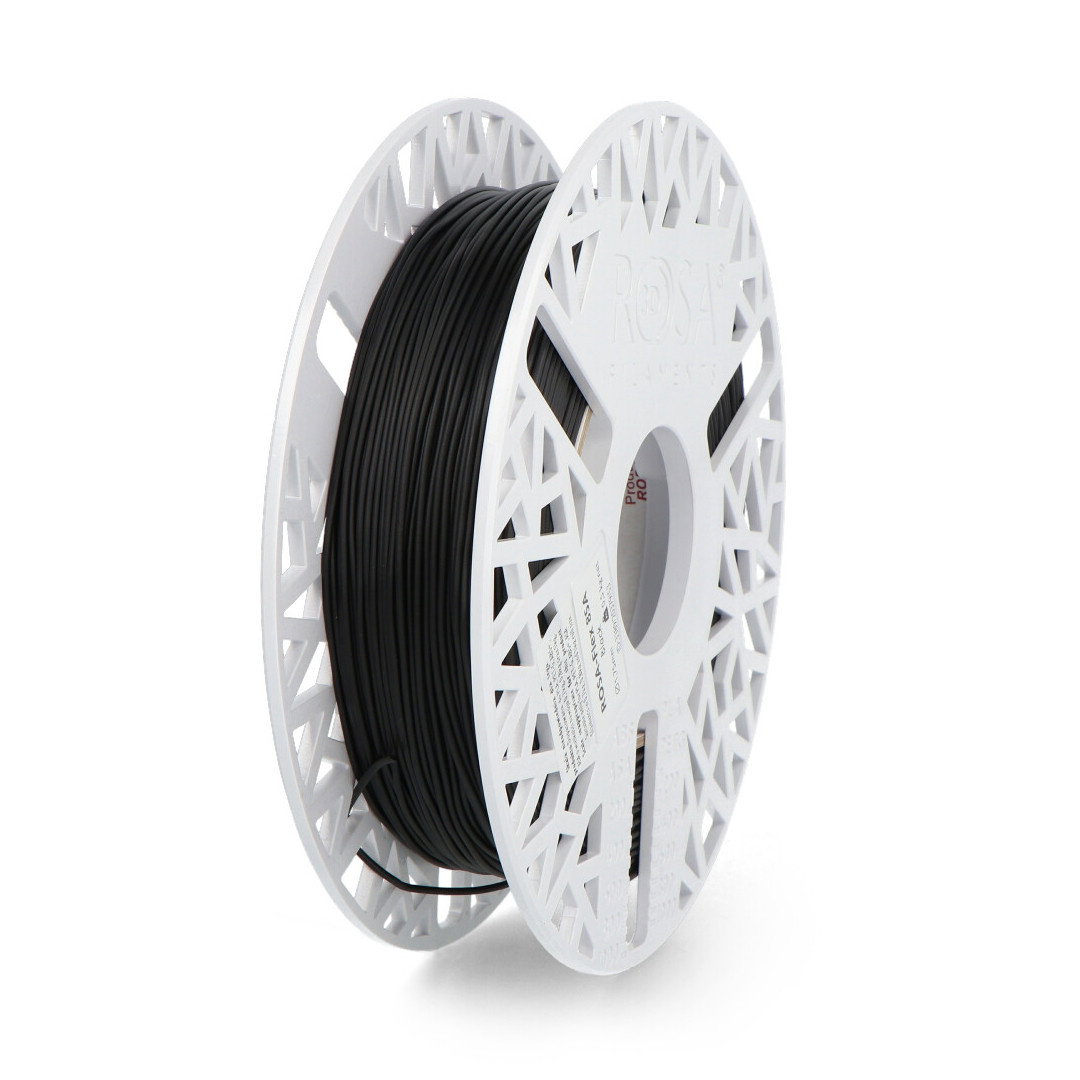

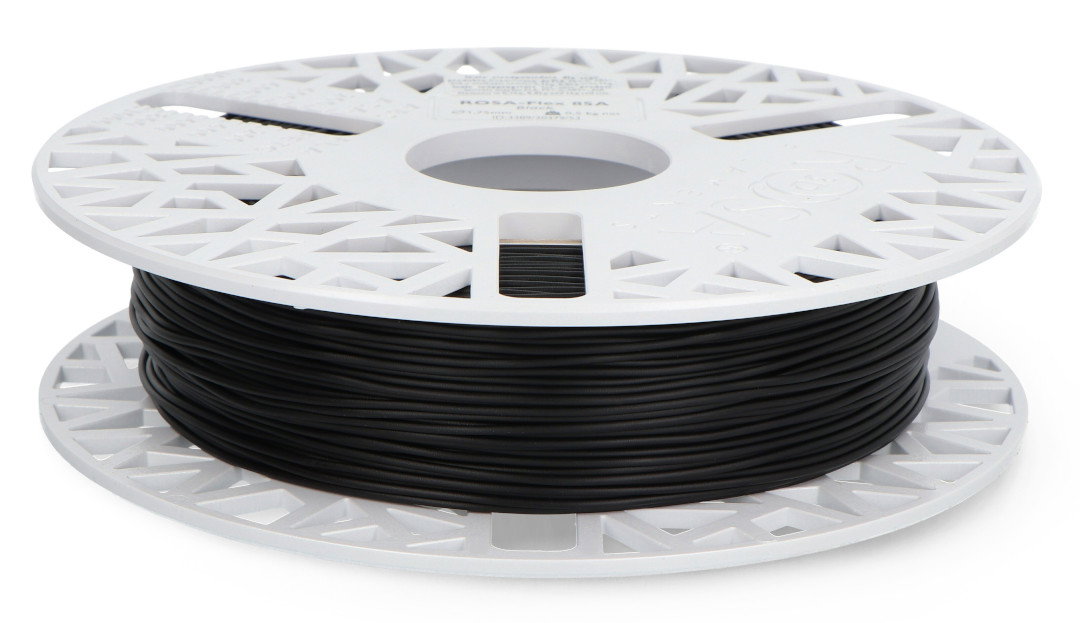

Product description: Rosa3D Flex 85A Filament 1.75mm 0.5kg - included with a reusable spool - Black
Flex 85A filament is a thermoplastic polyurethane (TPU) designed for FFF/FDM 3D printers . The material is pre-wound on a reusable spool and vacuum-sealed. The filament diameter is 1.75 mm . Designed for technical applications, its flexibility and excellent interlayer adhesion make it suitable for applications requiring mechanical resistance and tensile strength. The filament is resistant to grease, oils, and many solvents.
Our range of filaments also includes other materials and colors.
Rosa3D Flex 85A filament 1.75mm 0.5kg - included with reusable spool - Black.
Main features of Flex 85A material
- Chemical resistance
- Flexibility
- Odorlessness
- Tensile strength
Practical use of Flex 85A filament
- Smartphone cases
- Parts for drones and RC cars
- Seals and covers
- Device housings
- The filament does not require a heated bed or chamber
- In case of adhesion problems, we recommend using an adhesive agent.
- It is recommended to cool the print
- It is recommended to start slowly and gradually increase the printing speed.
Suggested filament printing parameters
| Printing temperature | From 220°C to 250°C |
| Table temperature | From 30°C to 60°C |
| Recommended print cooling | From 50% to 100% |
| Recommended printing speed | From 15 to 50 mm/s |
| Compatible work tables | Glass, smooth PEI, textured PEI, aluminum |
| Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |

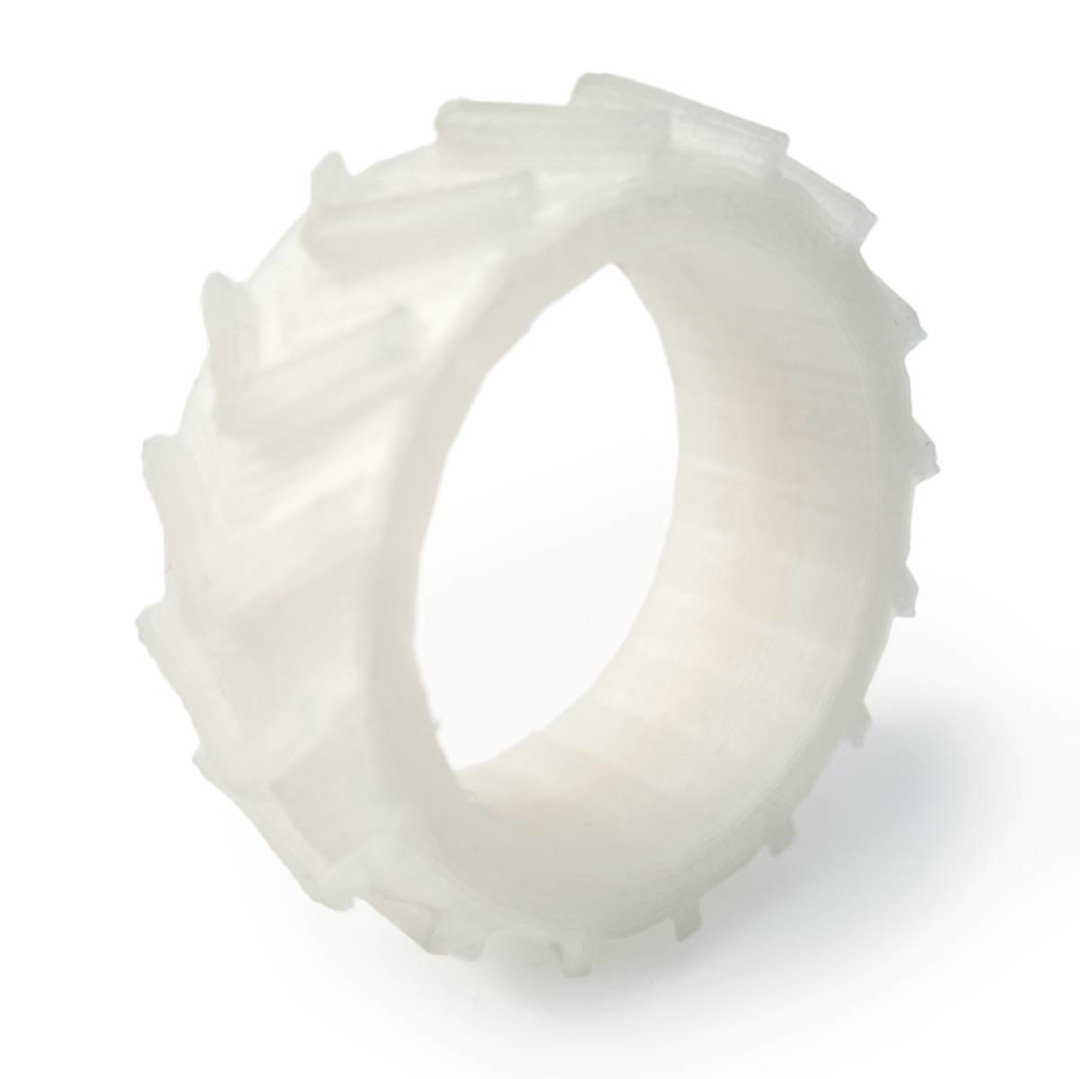

Sample print using Flex 85A filament - illustrative photo.
Technical specifications and physical properties of the filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75 mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Color | Black |
| Printing temperature | From 220°C to 250°C |
| Recommended print speed | From 30 to 60 mm/s |
| Material | Flex 85A (TPU) |
| Spool diameter | 200 mm |
| Spool width | 50 mm |
| Mounting hole diameter | 52 mm |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Material density | 1.18 g/ cm3 |
| Tensile strength at break | 35 MPa |
| Tensile elongation | 520% |
| Print speed | From 15 to 50 mm/s |
| Net weight | 0.5 kg |
If you experience problems with filament extrusion, you should:
- Loosen the screw that regulates the pressure level of the knurl on the roller
- Reduce printing speed
- Install the Teflon tube sealing the filament feed path
