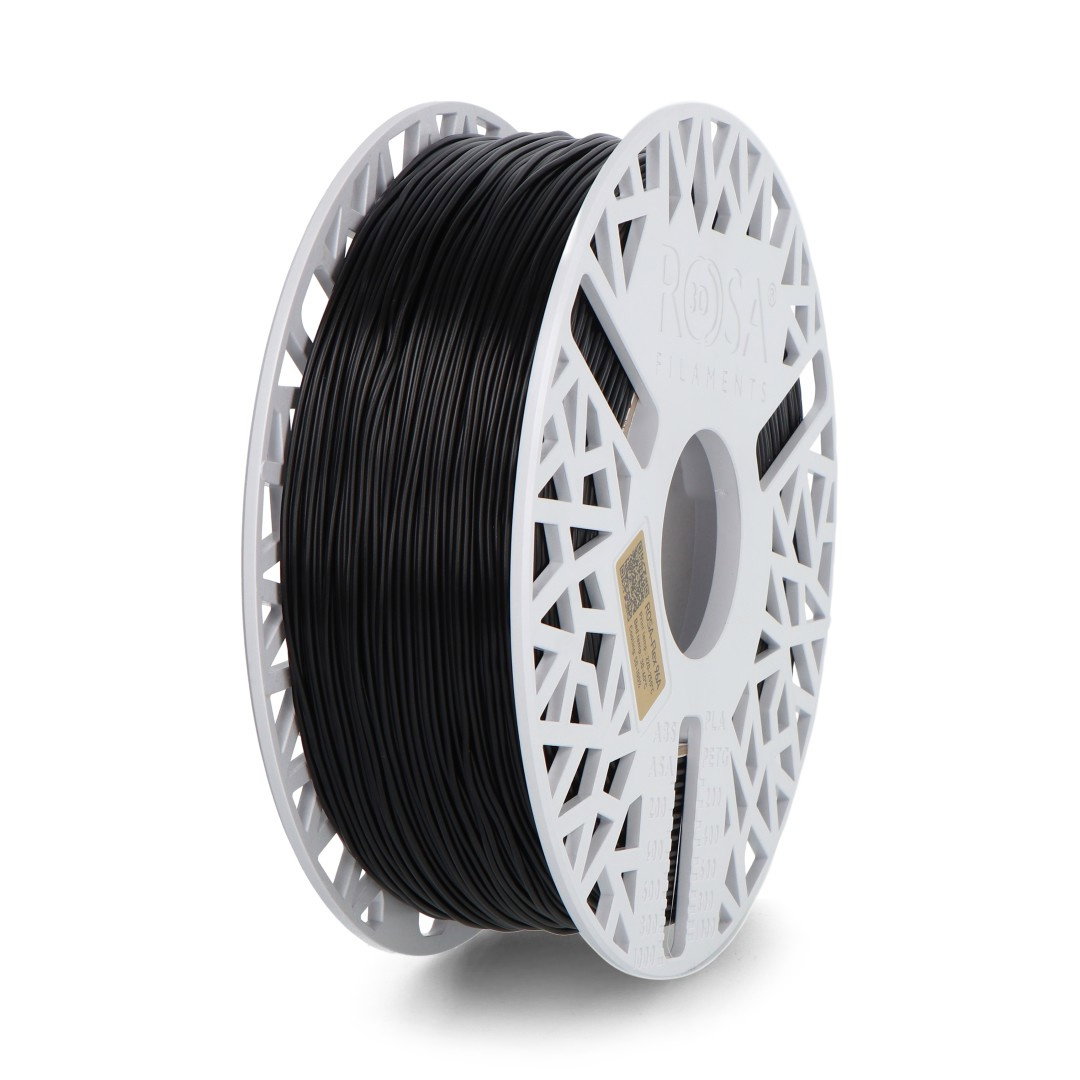

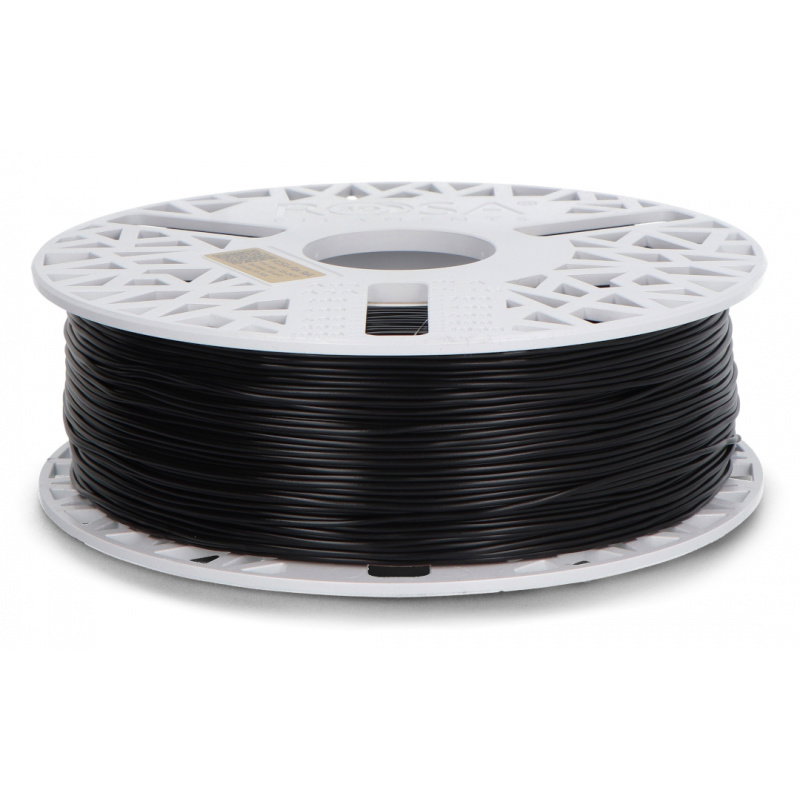

Product description: Rosa3D Flex 96A Filament 1.75mm 1kg - included with a reusable spool - Black
Flex 96A filament is a black thermoplastic polyurethane (TPU) filament used in FFF/FDM 3D printers . It is designed for intermediate users who want to print with flexible materials. The material is pre-wound on a reusable spool and vacuum-sealed. The filament diameter is 1.75 mm . Designed for technical applications, its flexibility and excellent interlayer adhesion make it suitable for applications requiring mechanical resistance and tensile strength. The filament is resistant to grease, oils, and many solvents.
The filament is equipped with an NFC TigerTag , which allows you to quickly read key material parameters using your smartphone. This gives you instant access to information such as printing temperatures, material type, and recommended settings.
Our range of filaments also includes other materials and colors.
Filament Rosa3D Flex 96A 1.75mm 1kg - included with reusable spool - Black.
Main features of Flex 96A material
- Chemical resistance
- Flexibility
- Odorlessness
- Tensile strength
Practical use of Flex 96A filament
- Smartphone cases
- Parts for drones and RC cars
- Seals and covers
- Device housings
- The filament does not require a closed chamber
- In case of adhesion problems, we recommend using an adhesive agent.
- The filament can be printed on direct feed and Bowden printers.
Suggested filament printing parameters
| Printing temperature | From 210°C to 250°C |
| Table temperature | From 50°C to 70°C |
| Recommended print cooling | From 50% to 100% |
| Recommended printing speed | From 15 to 50 mm/s |
| Compatible work tables | Glass, smooth PEI, textured PEI, aluminum |
| Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |
Sample print using Flex 96A filament.Technical specifications and physical properties of the filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75 mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Color | Black |
| Printing temperature | From 210°C to 250°C |
| Recommended print speed | From 50 to 70 mm/s |
| Material | Flex 96A (TPU) |
| Spool diameter | 200 mm |
| Spool width | 55 mm |
| Mounting hole diameter | 52 mm |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Material density | 1.22 g/ cm3 |
| Tensile strength at break | 55 MPa |
| Tensile elongation | 350% |
| Print speed | From 15 to 50 mm/s |
| Net weight | 1 kg |
If you experience problems with filament extrusion, you should:
- Loosen the screw that regulates the pressure level of the knurl on the roller
- Reduce printing speed
- Install the Teflon tube sealing the filament feed path
