Product description: Grove - angled female connector 4-pin - 2 mm pitch - SMD - 20 pieces - M5Stack

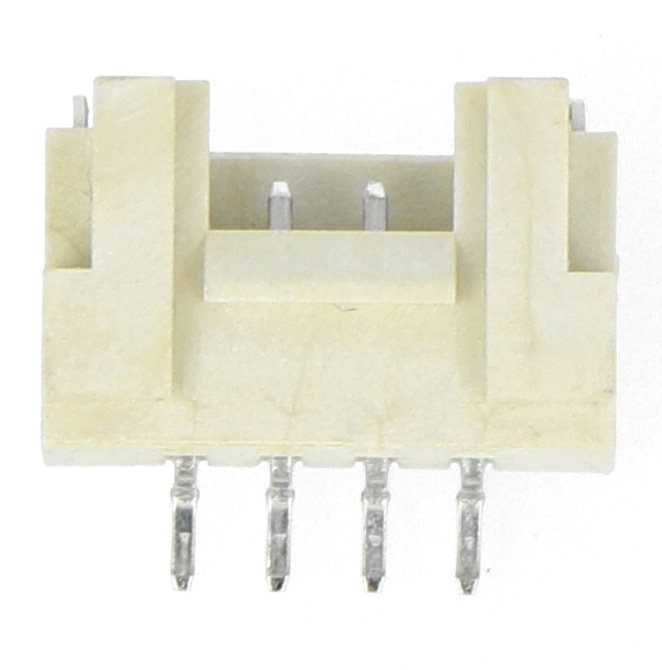

System Compatible Connector Grove. The item is a female connector with a raster equal to 2 mm, with the leads aligned at 90 degrees. The component is white in color. Designed to be soldered into PCB boards, is compatible with Grove series connecting cables. Package contains 20 connectors.
Technical specification of the connectors
- Standard: Grove connector
- Connector type: female
- Leg orientation: angular
- Number of pins: 4
- Raster: 2 mm
- Housing: SMD
- Mounting: dedicated for PCB mounting
- Resistance: ≥1000 MOhm
- Number of pieces per set: 20 pieces
- Color: white
- Operating temperature range: from -25°C to 105°C
- Weight of a single connector: 0,4 g
Components sold in packs of 20 pieces.
Grove female 4-pin connector - 2 mm pitch - SMD.
The set contains 20 pieces of Grove angle connectors from M5Stack.
Grove system - what is the Grove system?
Grove System - a modular system for prototyping electronic devices, which is based on standardized connectors. It uses mainly Molex and ARK type connectors, which are assembled into modular blocks. Using Grove system in projects allows to eliminate the need of soldering. Read more about this topic on our blog - Grove System - what is it and for whom?
Warning!
The connector is not compatible with M5Stack developer modules series, Unit type expansion modules and other extensions from this manufacturer.
