Product description: Grove - Grove connector - 4 pin - BLS - extension from M5Stack - 10 pieces

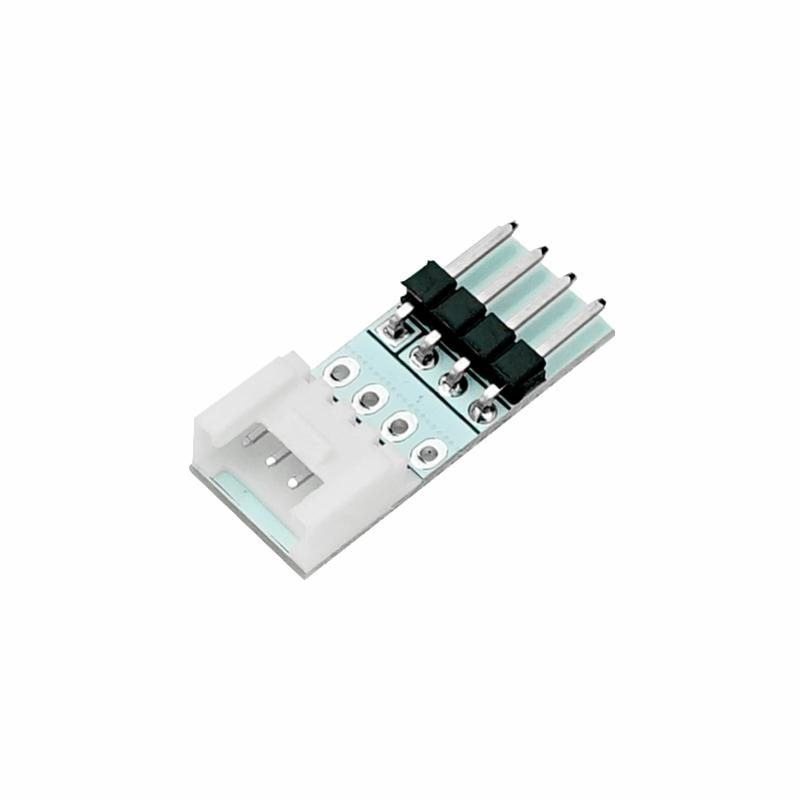

The module features aGrovetype connector on one side anda 4 - pinconnector with a2.54 mmpitch on the other side. It is used as an auxiliary element when some sensors ofM5Stackseries must be connected usingDuPont BLScables. Extension manufactured by M5Stack - a company specializing in a system of programmable electronic modules containing integrated peripherals. The set includes 10 pieces of module with Grove connector and 4 pins.
Grove - Grove connector - 4 pin - extension from M5Stack.

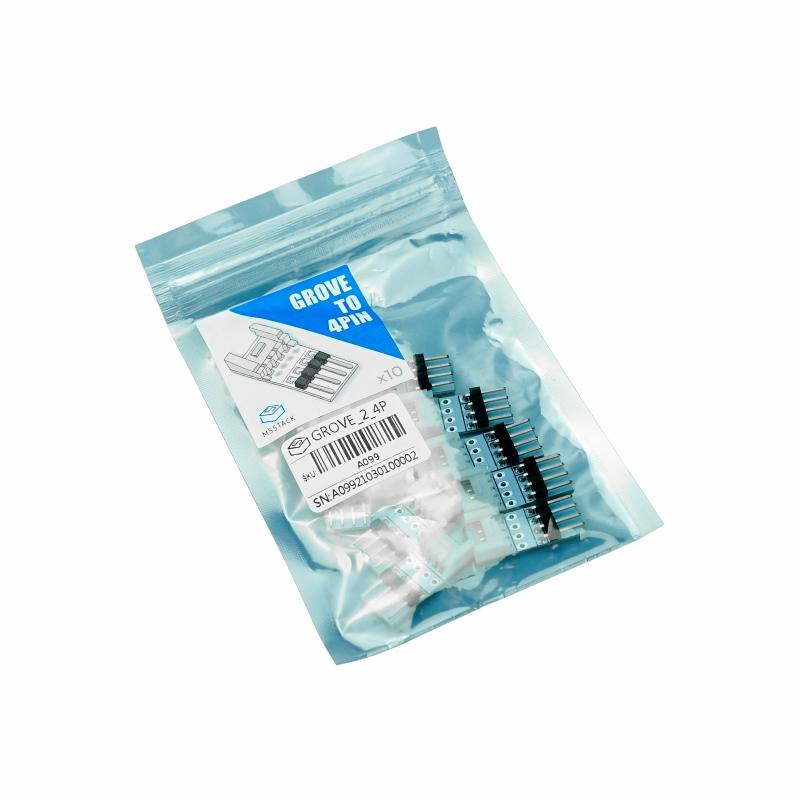

The connector is sold in sets of 10 pieces.
Technical specification of the element
- Compatible with M5Stack product series -M5Atom,M5Stick,M5Stack Core
- Module: expansion connector
- Connector type: Grove - 4 pin - BLS (DuPont)
- Pinout designations:
- GND - system ground
- 5 V - power supply pin
- Pin spacing: 2.54 mm
- Dimensions of one module: 25.34 x 10.27 x 1 mm
Set contents
- Grove Connector - 4 pin from M5Stack - 10 pieces
