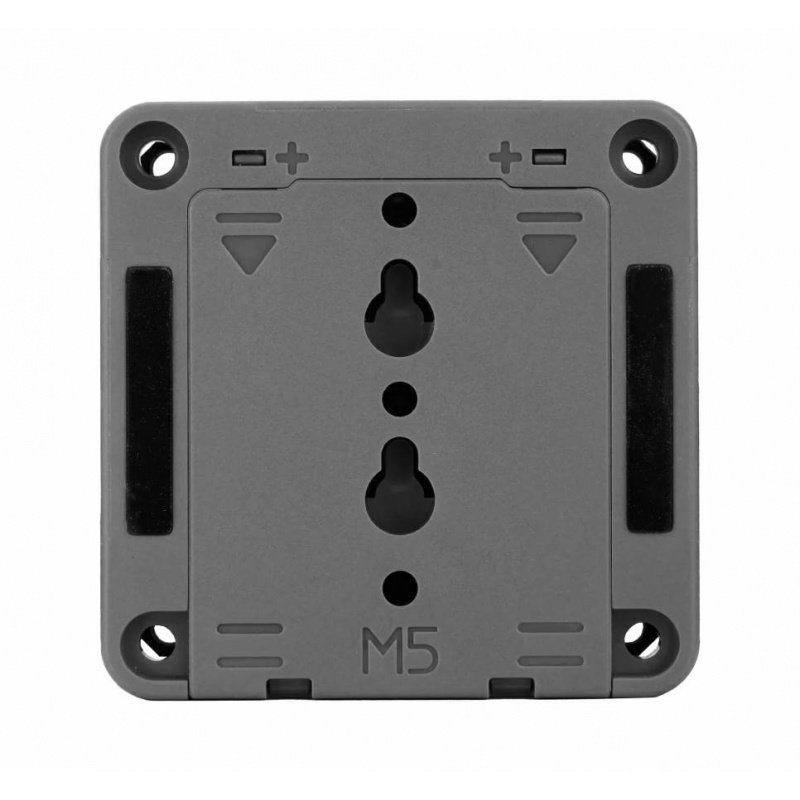

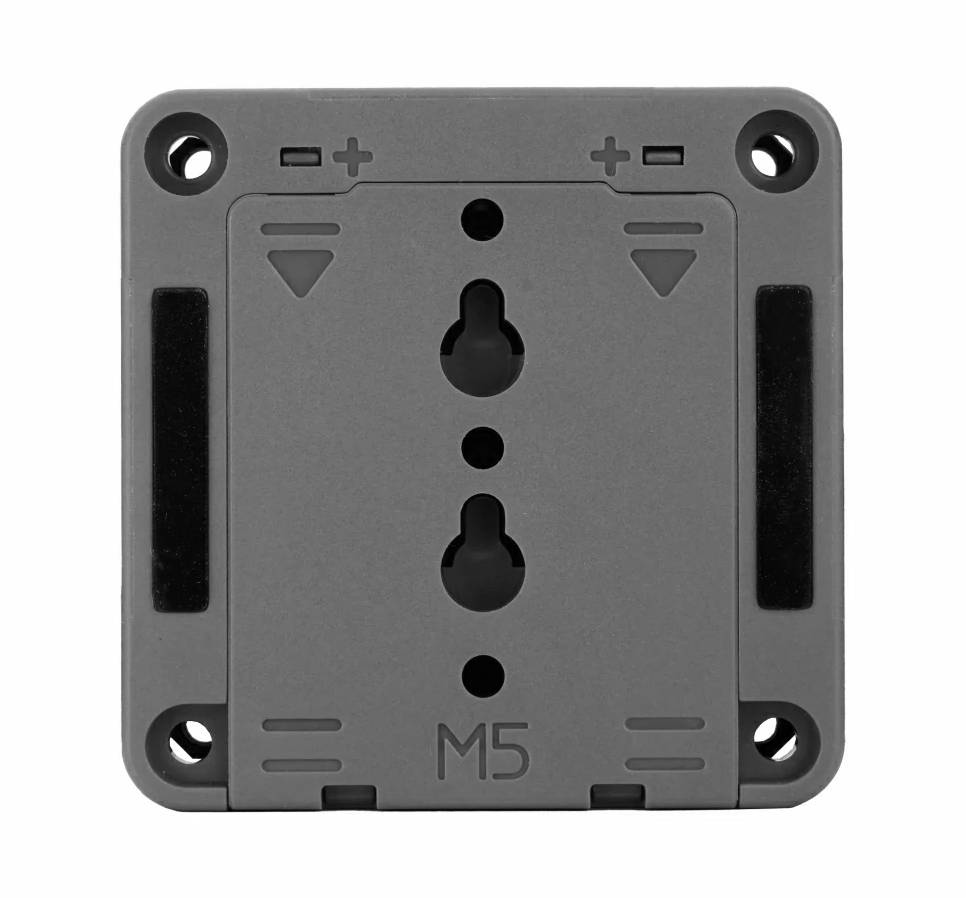

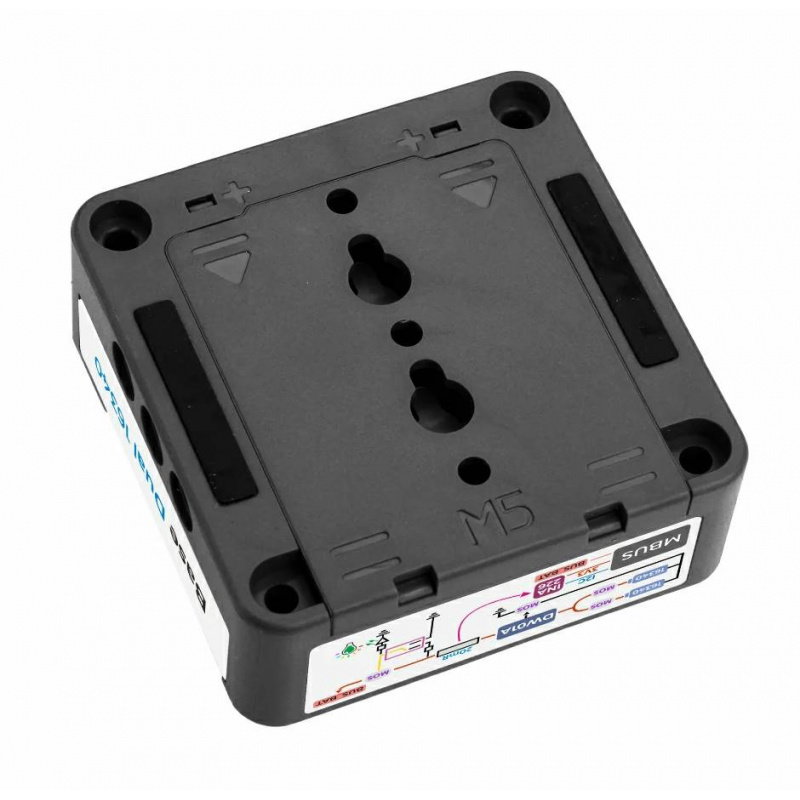

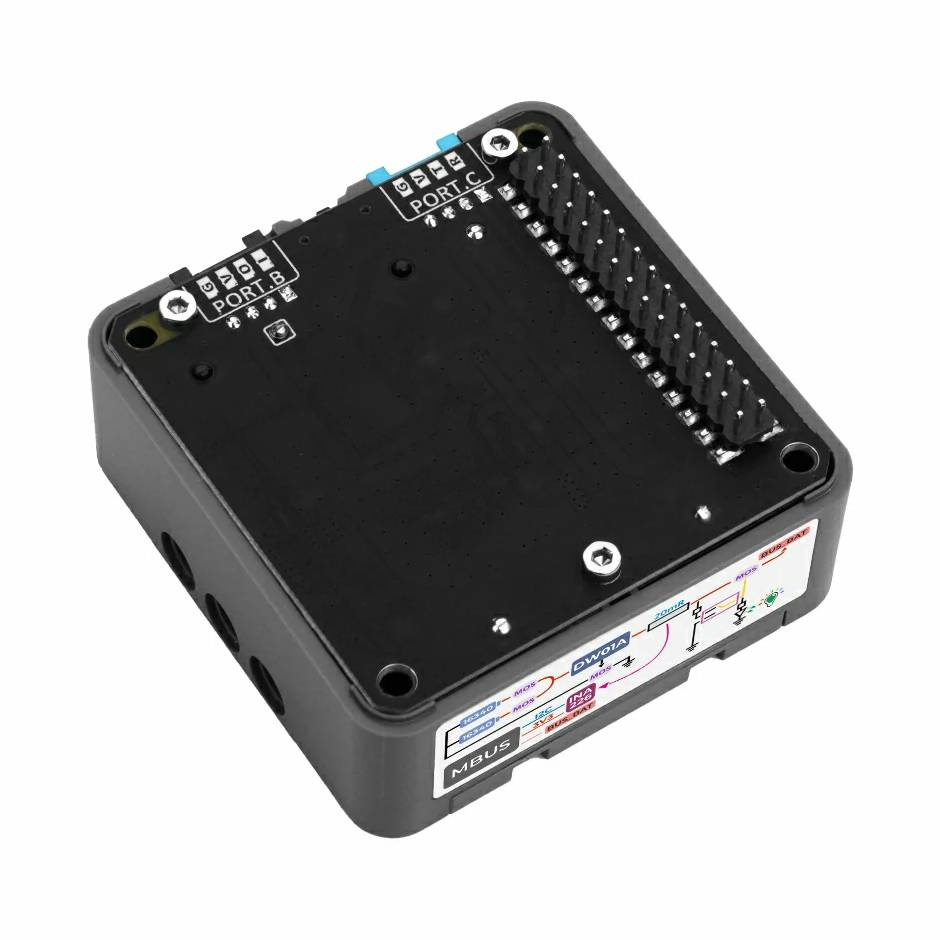

Base Dual 16340 - power base with a 1400mAh battery - INA226 - M5Stack A179
The M5Stack Base Dual 16340 A179 is a compact battery base for M5Stack controllers , housing two 16340 cells with a capacity of 700 mAh each . The module offers a total capacity of 1400 mAh, voltage and current monitoring via the INA226 chip, DW01A protection, and two HY2.0-4P connectors . A built-in switch allows for convenient power control.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Base Dual 16340 - power base with 1400 mAh battery - INA226 - M5Stack A179

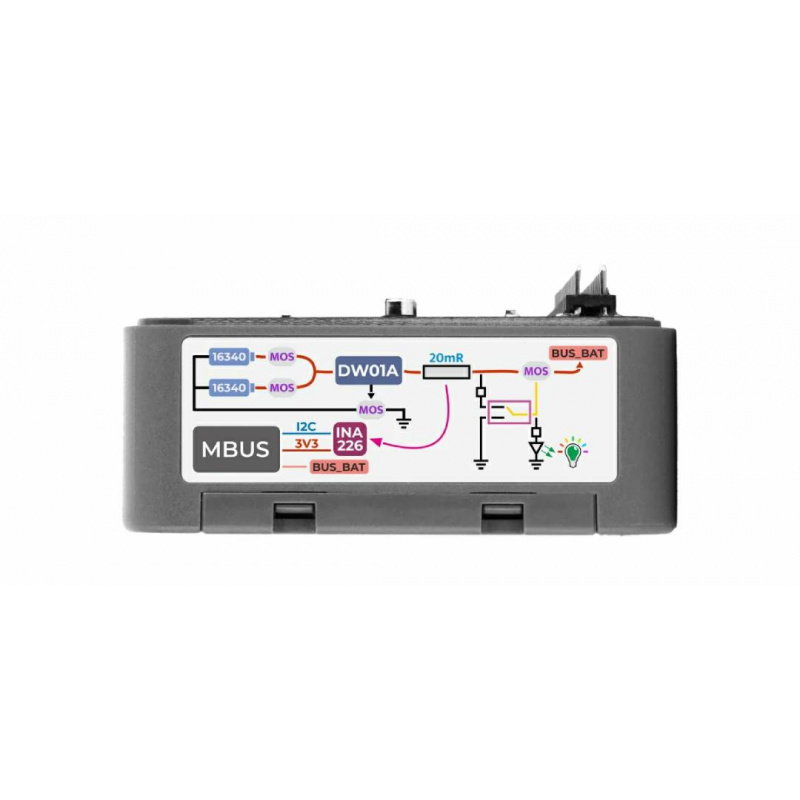

The M5Stack Base Dual 16340 is a power supply module designed to expand the mobility of M5Stack devices. The base houses two 16340 batteries, each with a capacity of 700 mAh , operating in parallel and providing a total capacity of 1400 mAh. The INA226 chip allows monitoring of voltage, current, and power consumption via the I2C bus, while the DW01A fuse protects the cells during operation . The module also features overcurrent and reverse polarity protection, as well as a sliding power switch . Two HY2.0-4P interfaces provide access to GPIO and UART and allow for the connection of additional sensors , modules, and peripherals.
Base Dual 16340 - power base with 1400 mAh battery - INA226 - M5Stack A179.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
The base contains two 16340 batteries with a capacity of 700 mAh each, working in parallel and providing a total capacity of 1400 mAh.
Main features of the M5Stack Base Dual 16340 battery stand
- M5Stack Battery Base : Provides mobile power to compatible controllers and embedded devices
- Two 16340 batteries : two cells with a capacity of 700 mAh each provide a total capacity of 1400 mAh
- Parallel connection of cells : allows for increasing the available capacity while maintaining the voltage typical of a single Li-Ion cell
- INA226 Monitor : allows real-time voltage, current and power measurement
- I2C communication : allows the master device to read parameters from the power monitoring system
- DW01A protection system : is responsible for protecting the batteries during operation
- Overcurrent protection : increases system safety in the event of excessive load
- Reverse polarity protection : reduces the risk of module damage due to incorrect cell assembly
- Slide Power Switch : Allows you to quickly turn the power on and off without disconnecting the batteries
- Two HY2.0-4P connectors : provide GPIO and UART interfaces for cooperation with sensors and peripheral modules
- Compact design : 54 x 54 x 21 mm housing fits well in portable devices
Pinout and compatibility of the Base Dual 16340 module with M5Stack

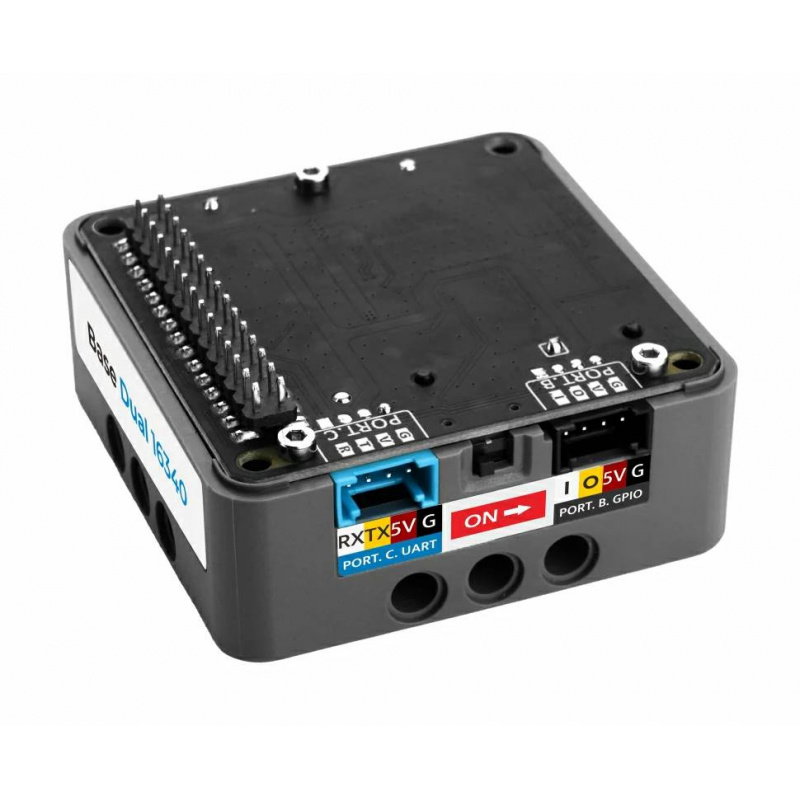

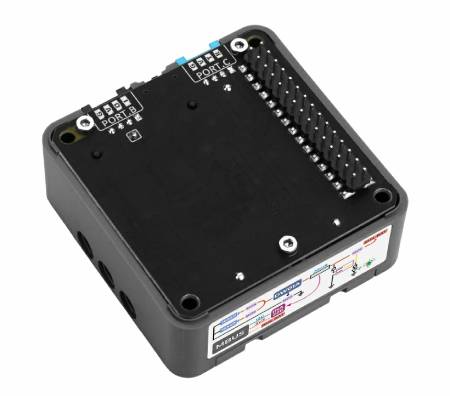

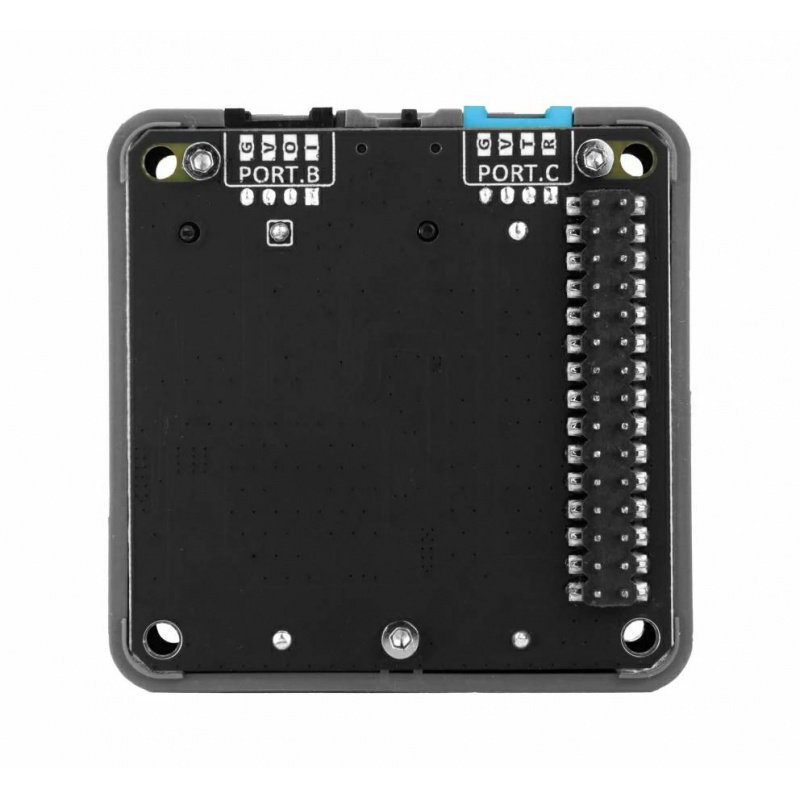

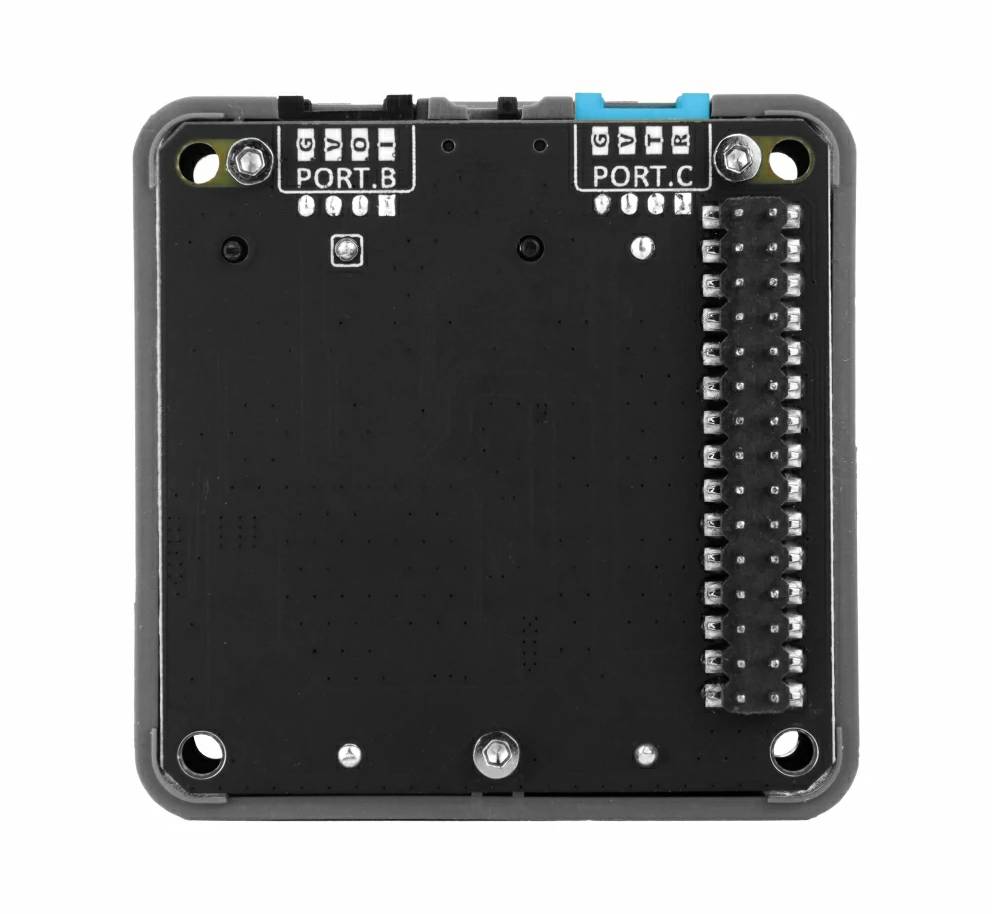

The Base Dual 16340 uses a 30-pin M5-Bus connector , which provides power, communication, and battery monitoring lines. The bus provides the INA_SDA and INA_SCL lines for the INA226 chip, RXD and TXD, 3.3V and 5V power supplies, BAT, and HPWR lines, among other things. This allows the base to be integrated with compatible M5Stack controllers using the M5-Bus system. Two Grove HY2.0-4P connectors are also available. PORT.B provides GND, 5V and the PORT.B OUTPUT and PORT.B INPUT lines, while PORT.C provides GND, 5V, and the TXD and RXD serial communication lines. This solution allows you to simultaneously power the device and expand the project with additional sensors or peripheral modules without the need for an additional connection board. Before connecting to a specific M5Stack controller, consider the M5-Bus pins used by the project to avoid conflicts between modules.

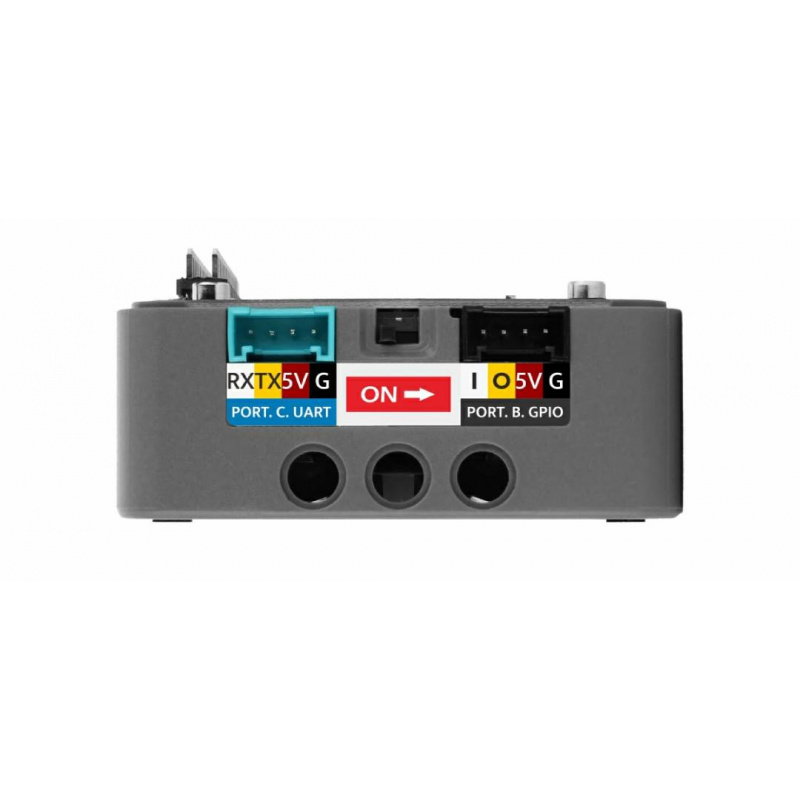

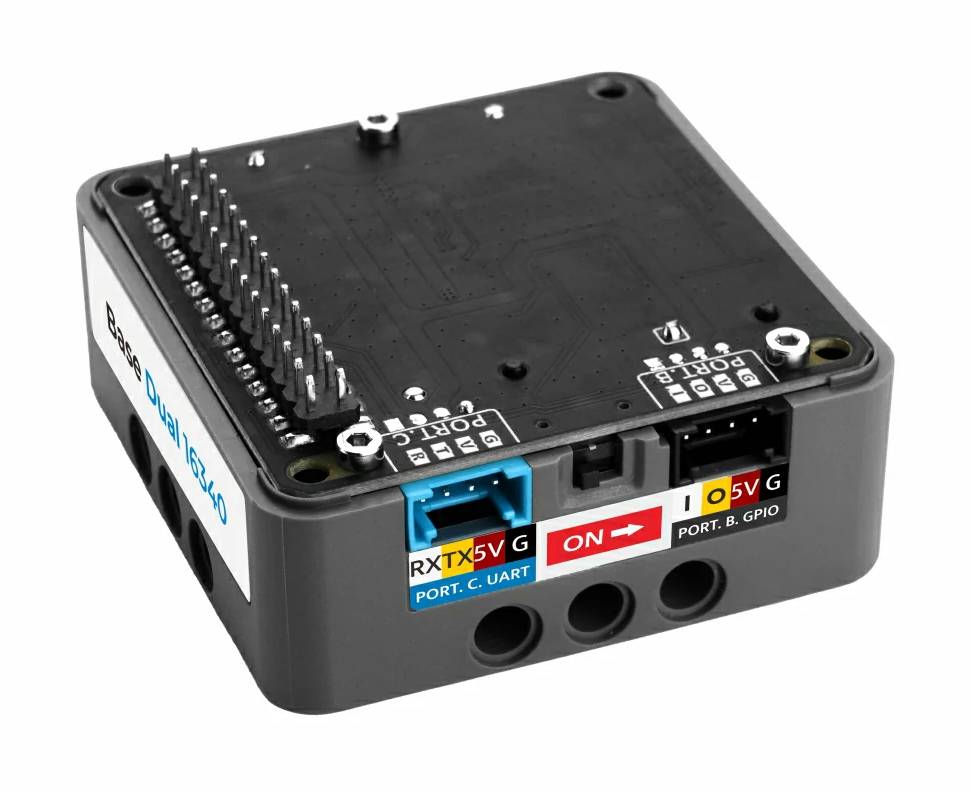

Two Grove interfaces provide access to GPIO and UART and allow you to connect additional sensors, modules and peripherals.
The M5Stack Base Dual 16340 will prove to be a mobile power source for M5Stack projects.
Technical specifications of M5Stack Base Dual 16340 A179
- Battery type: 16340 Li-Ion
- Number of batteries: 2
- Battery connection method: parallel
- Single battery capacity: 700 mAh
- Total capacity: 1400 mAh
- Battery nominal voltage: 3.7 V DC
- Charge cut-off voltage: 4.2 V ± 0.03 V DC
- Charging temperature: 0°C to 45°C
- Standard charging current: 0.2 C
- Temperature during standard discharge: -20°C to 60°C
- Standard discharge current: 0.2 C
- Maximum discharge current: 3 C
- Discharge cut-off voltage: 2.75 V DC
- Power Monitoring System: INA226
- Battery protection system: DW01A
- Monitored parameters: voltage, current and power
- Monitoring system interface: I2C
- Power Control: Slide Switch
- Overcurrent protection: yes
- Reverse polarity protection: yes
- Main interface: M5-Bus
- Expansion interfaces: 2 x HY2.0-4P
- PORT.B: GND, 5V, GPIO Output, GPIO Input
- PORT.C: GND, 5V, TXD, RXD
- Standby current consumption without battery: 1.10 mA at 4.2 V
- Standby current consumption with battery: 33.41 mA at 4.2 V
- Module operating temperature: 0°C to 40°C
- Dimensions: 54 x 54 x 21 mm
- Weight: 66.4 g
Kit contents
- 1x M5Stack Base Dual 16340
- 2x 16340 700 mAh Battery
- 1x L-shaped Allen key 2.5mm for M3 screws
- 2x M3 x 20mm screw
- 2x M3 x 22mm screw
- 2x M3 x 25mm screw
