Product description: Tab5 Keyboard - 70-key physical keyboard for Tab5 - STM32F030C8T6 - M5Stack A164
The M5Stack Tab5 Keyboard is an input extension designed for the Tab5 device , providing convenient control using physical keys . The keyboard utilizes a 14 x 5 layout and supports multiple simultaneous keystrokes, making it ideal for text entry, command management, and terminal applications. The module is powered by an STM32F030C8T6 microcontroller , which scans the keyboard matrix and communicates with the host device. The built-in software supports three operating modes : Normal, HID, and Character, allowing you to customize the keyboard's operation to suit various scenarios. The module communicates with the Tab5 via an I2C interface , and an independent INT interrupt line ensures low-latency event reporting. Two WS2812E RGB LEDs can be used to provide full-color status indication.

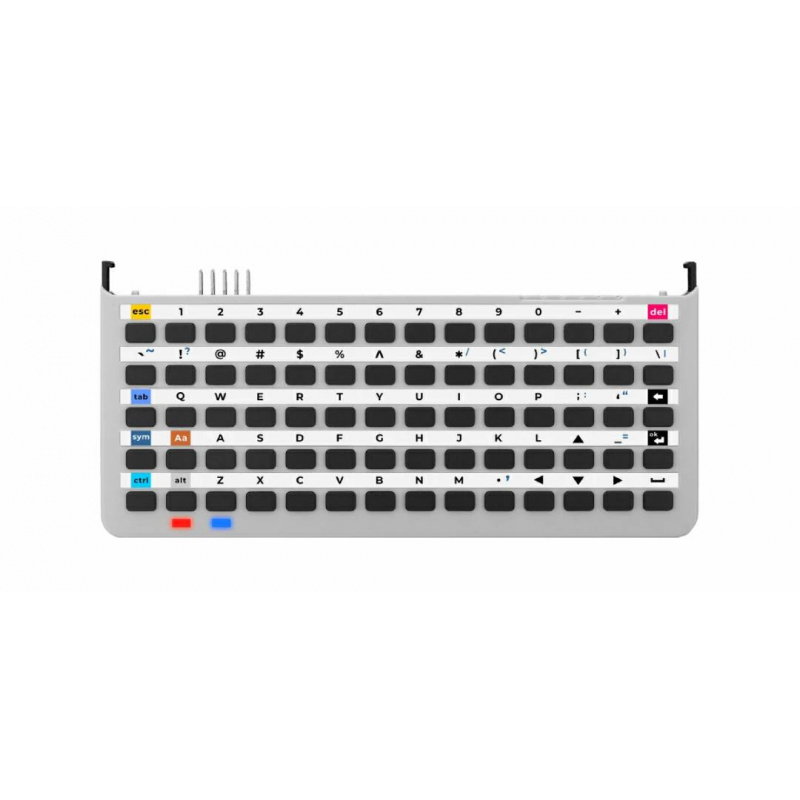

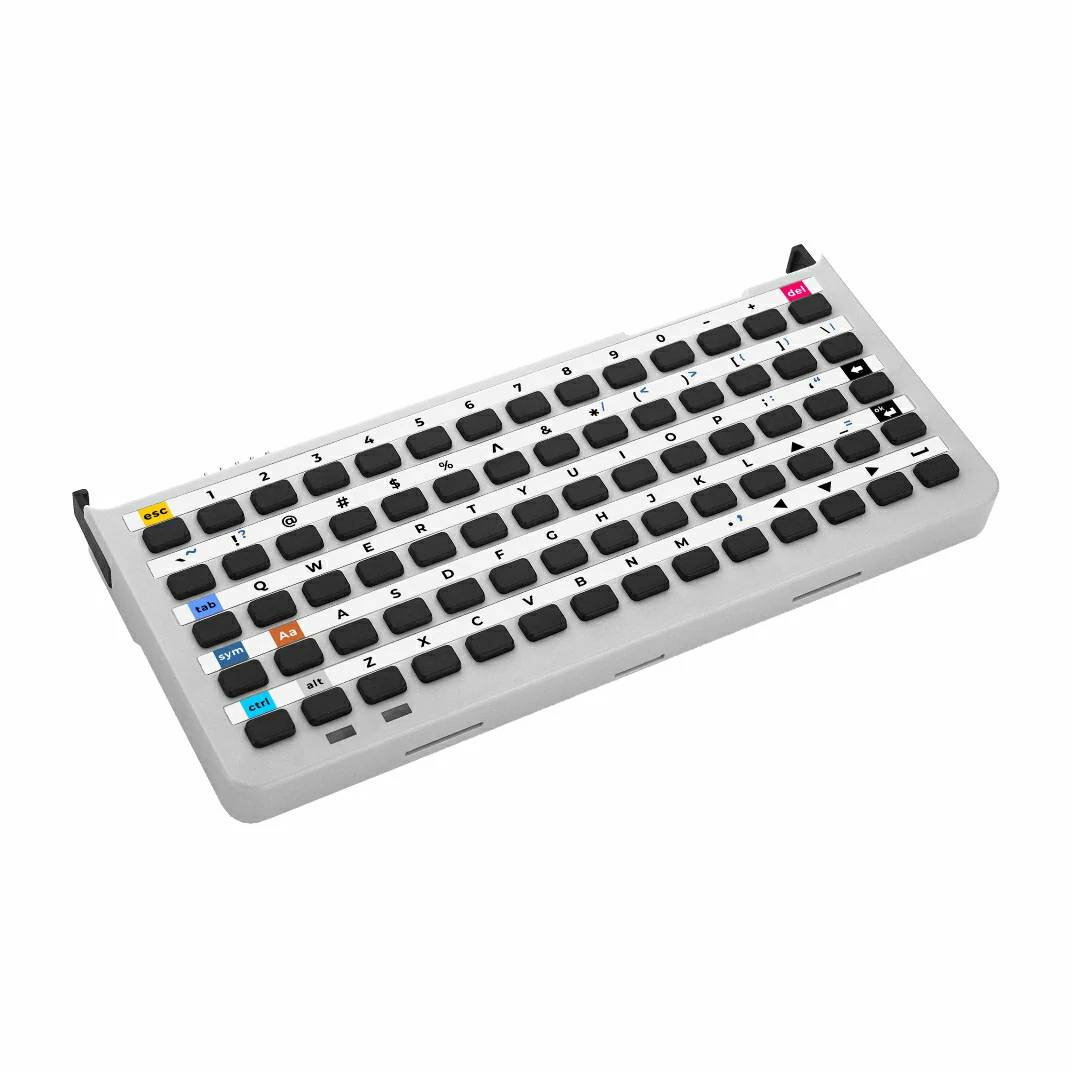

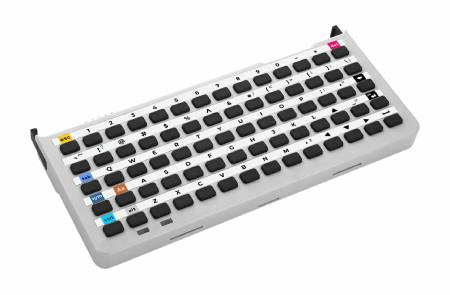

Tab5 Keyboard - 70-key physical keyboard for Tab5 - STM32F030C8T6 - M5Stack A164.
Direct connection to Ext.Port1 ensures simple plug and play installation.
Main features of the keyboard
- Designed for Tab5 : Direct connection to Ext.Port1 for simple plug-and-play installation
- STM32F030C8T6 microcontroller : responsible for keyboard operation, communication and quick event reporting
- 70-key layout : includes letters, numbers, symbols, and popular function keys
- 14 x 5 matrix : supports multiple simultaneous key presses
- Three operating modes : Normal, HID and Character allow you to adjust the module's operation to the application
- I2C communication : provides stable data exchange with default address 0x6D
- INT interrupt line : allows for low latency when reporting keyboard events
- Two WS2812E RGB LEDs : enable full-color status indication

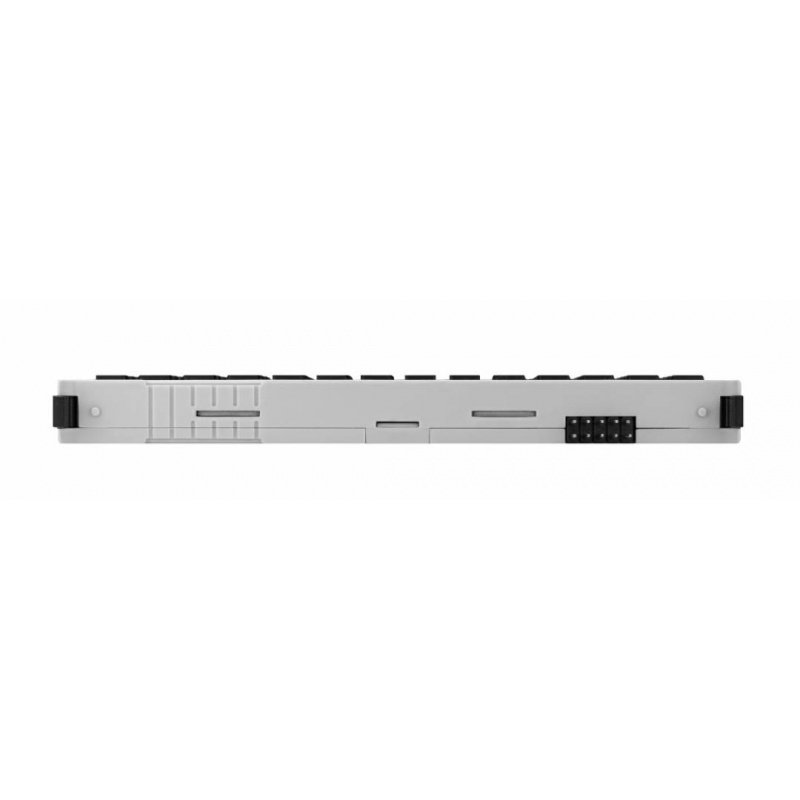

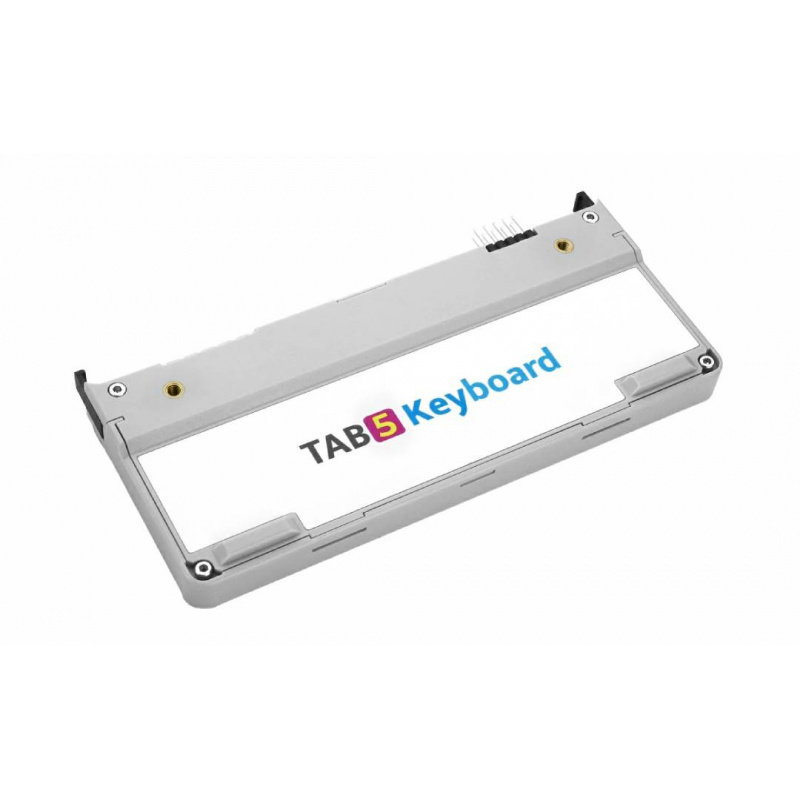

- Solid mounting : Side latches and two M3 mounting holes make it easy to integrate with the Tab5
- Compact design : suitable for mobile and portable projects
Tab5 Keyboard Technical Specifications
- Microcontroller: STM32F030C8T6
- Number of keys: 70
- Matrix layout: 14 x 5
- Operating modes: Normal, HID, Character
- Communication interface: I2C
- Default I2C address: 0x6D
- RGB LEDs: 2 x WS2812E-1313
- Connector: 2 x 5 pin, 2.54 mm pitch
- Operating voltage: 3.3 V
- Standby current consumption: 14.5 mA
- Current consumption when operating with RGB off: 14.5 mA
- Maximum current consumption at RGB white and maximum brightness: 21.5 mA
- Mounting holes: 2 x M3
- Dimensions: 128 x 59.4 x 13.1 mm
- Weight: 65.2 g
Contents of the set
- 1x M5Stack Tab5 Keyboard
The Tab5 Keyboard is perfect for text entry on Tab5 devices, providing a more convenient experience than on-screen touch keyboards.
