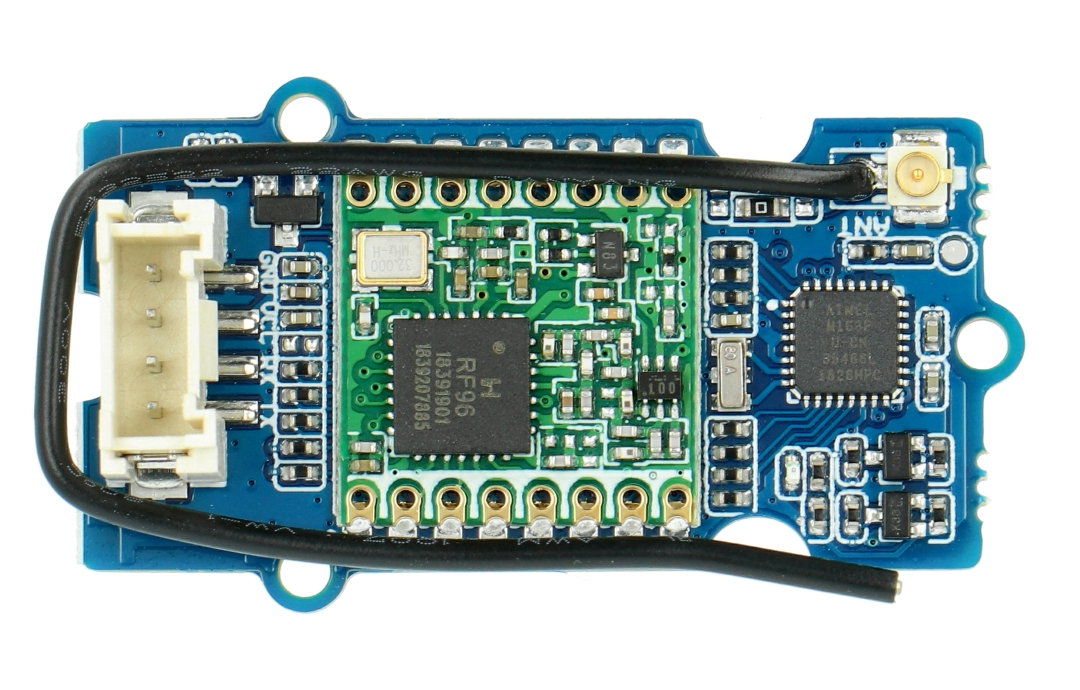

Grove - LoRa Radio module 868MHz
868 MHz RFM95 long-range radio module (Long Range: LoRa). Allows data transmission at distances up to approx. 800 m, using the cable as an antenna. The module is equipped with a u.FL connector so it is possible to connect an additional antenna. The cable with Grove connector adapted to SeeedstudioBase Shield v2.0is included.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Grove - LoRa Radio 868MHz - radio module.
868MHz RFM95long-range radio module (Long Range: LoRa). Enables data transmission atdistances up to approx. 800 m,using the cable as an antenna. The module is equipped with au.FL connectorso it is possible to connect an additional antenna. The set includes a cable with Grove connector adapted to SeeedstudioBase Shield v2.0.The system operates with voltage of 3.3 V and 5 V.
The module is equipped with an ATmega 168 microcontroller, a commonly used high-performance, low power consumption chip and RFM95 chip based on SX1276 LoRa®which is a transceiver (transmitter-receiver) providing communication in the spread spectrum with a very long range and high resistance with minimal power consumption. We also offer a 433MHzradio module.
The module comes with 4-pin cable for Base Shieldv2.0.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Arduino compatible product The manufacturer provides auser guide,together with examples for Arduino. |
Connection of Grove radio module - LoRa Radio 868 MHz
The module communicates with Arduino via UART interface. Thanks to the Grove connector it is possible to connect it directly to the board by means of BaseShieldv2.0. The modulehas the following leads.
| Pin | Description |
|---|---|
| GND | The weight of the system. |
| VCC | Supply voltage from 3.3 V to 5 V. |
| RX | UART receiver. |
| TX | UART transmitter. |

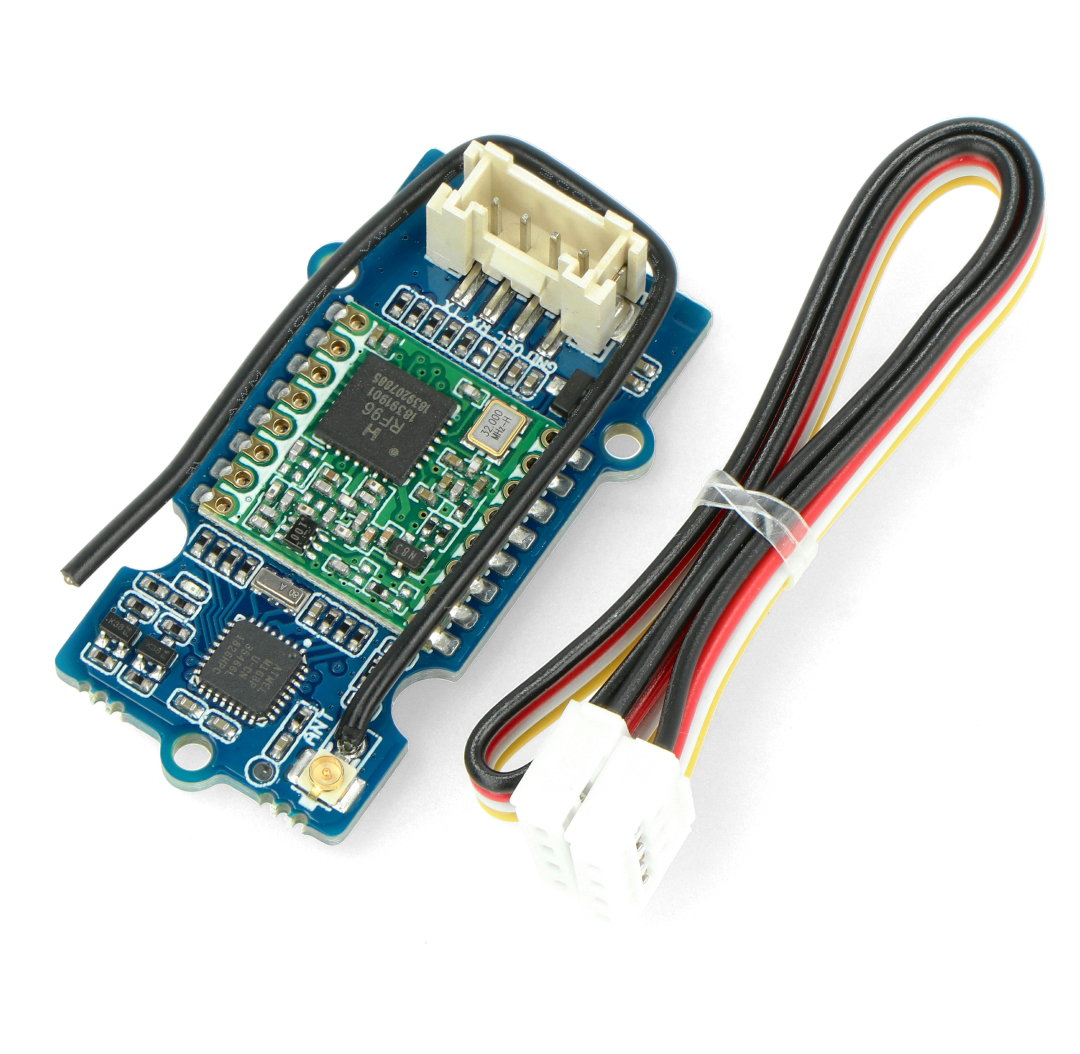

The set includes
- Grove module - Lora Radio 868 MHz
- Connecting cable Grove
Grove specification - LoRa Radio 868MHz - radio module
- Communication system: RFM95 based on SX1276 LoRa®.
- Control system: ATmega168
- Operating voltage: 3.3 V to 5 V
- Power consumption
- Transmission: 28 mA
- Standby: 8.4 mA
- Acceptance: 20 mA
- Interface: UART
- Built-in antenna + u.FL connector
- Operating frequency: 868 MHz
- Operating temperature: -20 °C to 70 °C
- Output power: 100 mW (20 dBm)
- Connecting cable included
- Dimensions: 40 x 20 mm
Useful links
| Name | Value |
|---|---|
| Frequency from | 868 MHz |
| Frequency to | 868 MHz |
| Sensor - type | radio |
| Width | 8.9 cm |
| Height | 13.9 cm |
| Depth | 1.3 cm |
| Weight | 0.01 kg |
