Vertical aluminium case - M.2 extension - for LattePanda Sigma - DFRobot FIT0968

Index: DFR-25294 EAN: 5904422386481
The aluminum case for LattePanda Sigma is a solid construction that provides protection and convenient installation of custom M.2 expansion boards . Thanks to its precise workmanship, it allows for vertical positioning and easy access to ports . The surface has been sandblasted, which increases scratch resistance. The set includes a bracket, mounting screws and an external WiFi antenna . The case is only compatible with LattePanda Sigma, ensuring stability and system expandability.
Vertical aluminium case - M.2 extension - for LattePanda Sigma - DFRobot FIT0968
€41.90
€34.07 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot

Product description: Vertical aluminum case - M.2 expansion - for LattePanda Sigma - DFRobot FIT0968

The LattePanda Sigma case is a durable and functional solution for users looking for stable protection and convenience in expanding the capabilities of their board. Made of high-quality aluminum alloy , it provides durability and shock resistance. Thanks to its precise workmanship and sandblasted surface, it is scratch-resistant, and the matte black color adds a professional look. The design supports vertical positioning , which saves space on the desk and provides better cooling. Numerous holes allow for the installation of various non-standard M.2 extensions , such as PCIe extensions or additional SSD media. The set also includes a mounting bracket, screws, anti-slip strips and external WiFi antennas . The case is only compatible with the LattePanda Sigma , making it a dedicated solution for this platform.

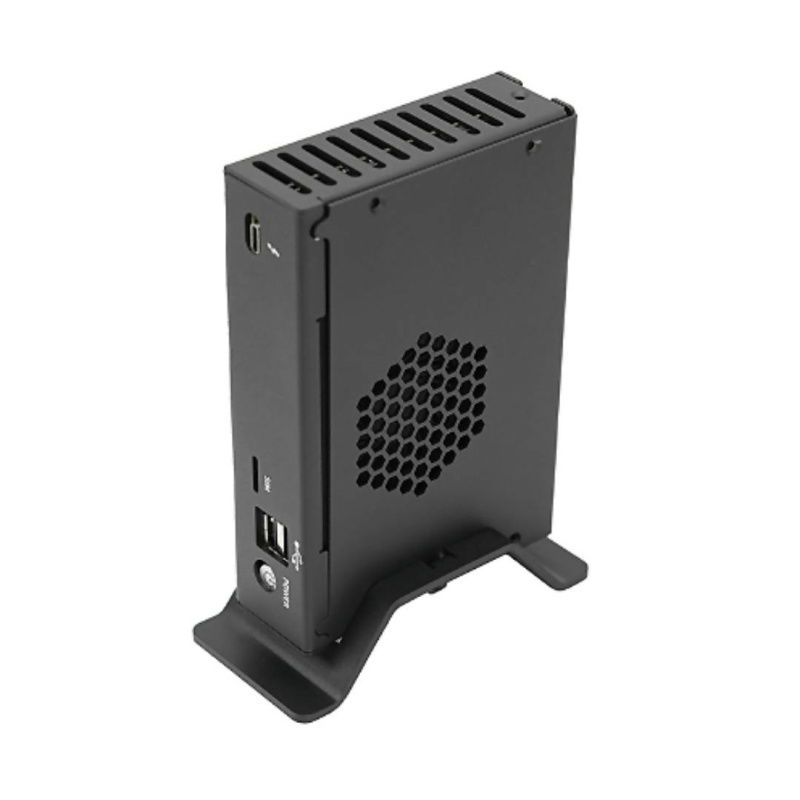

Vertical Aluminum Case - M.2 Expansion - for LattePanda Sigma - DFRobot FIT0968

Vertical aluminum case - M.2 expansion - for LattePanda Sigma - DFRobot FIT0968.

Vertical Aluminum Case - M.2 Expansion - for LattePanda Sigma - DFRobot FIT0968

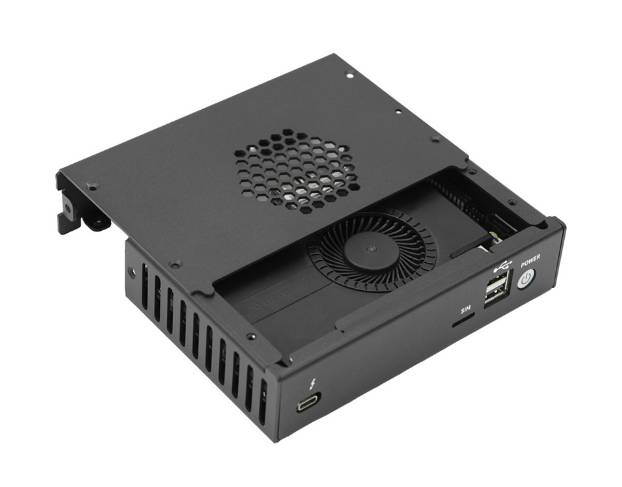

Expandable housing designed specifically for the LattePanda Sigma.

Main features of the case

  • Durable aluminum construction - provides protection and shock resistance
  • Vertical positioning - saves space and improves airflow around the plate
  • Easy access to ports - the design allows for convenient connection of peripheral devices
  • Support for M.2 expansions - ability to install PCIe cards, SSDs and other modules
  • Scratch-resistant surface - sandblasting increases the durability and aesthetics of the housing
  • Additional accessories - mounting screws, handle, anti-slip strips and WiFi antennas included

Mounting the case for LattePanda Sigma

  1. Prepare all the elements of the kit and the necessary tools (M3 screwdriver, scissors).
  2. If you are using a WiFi module, connect the RF cables to it.
  3. Place the LattePanda Sigma into the bottom of the case and secure with four M3 x 7 screws.
  4. Mount the RF cables to the top of the housing and secure with gaskets and nuts.
  5. Connect the top and bottom cases by tightening the eight M3 x 7 screws.
  6. If necessary, install the optional vertical mount using two additional screws.
  7. Connect the WiFi antennas to the RF cables and stick the anti-slip strips to the base.

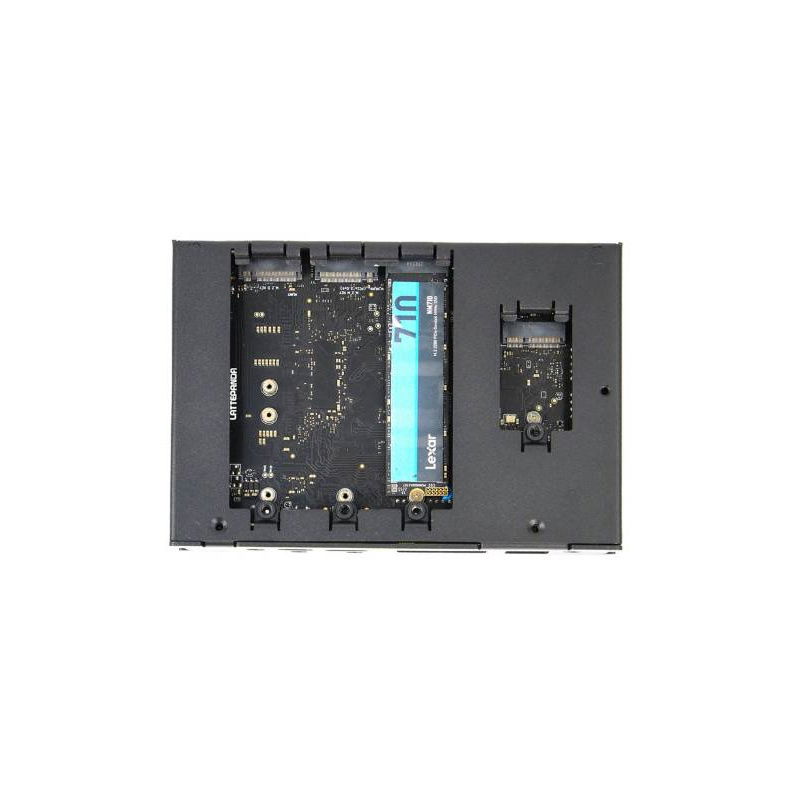

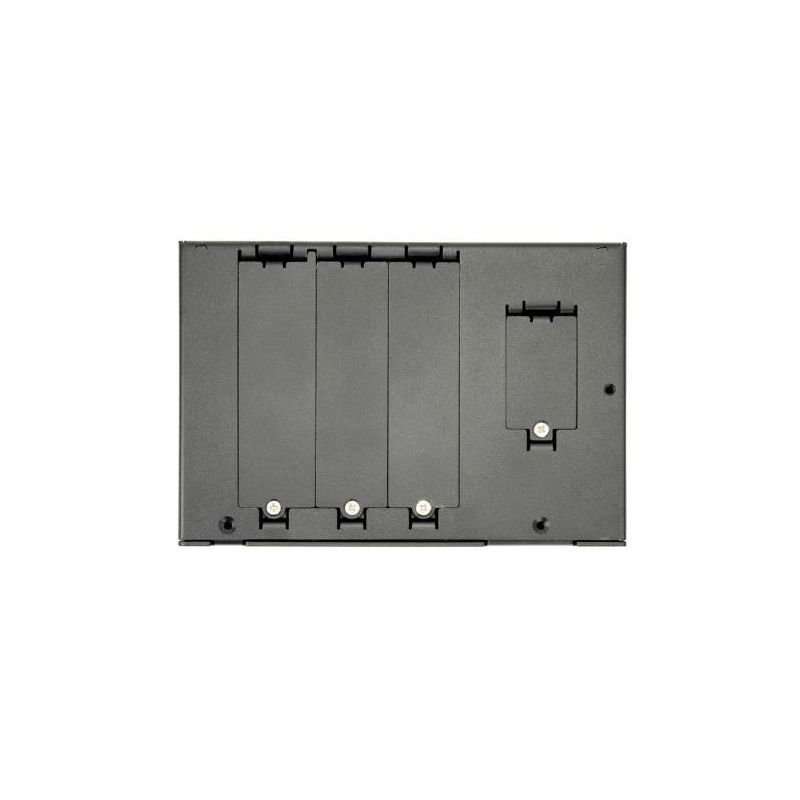

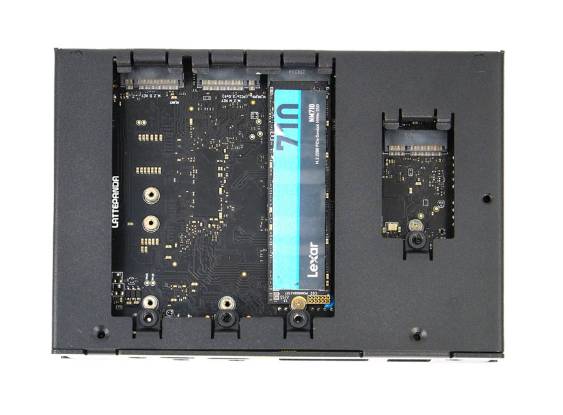

  8. Install additional M.2 expansions by removing the appropriate covers on the bottom of the case.
Vertical Aluminum Case - M.2 Expansion - for LattePanda Sigma - DFRobot FIT0968

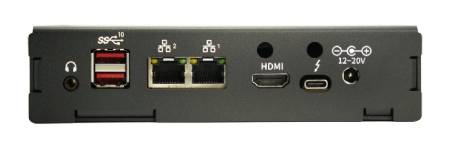

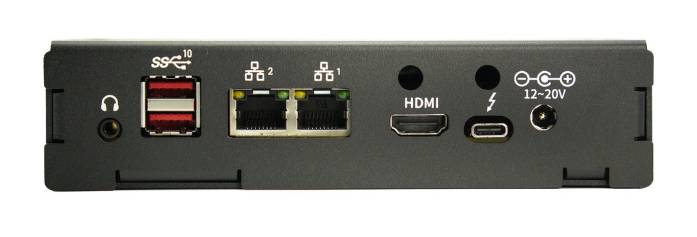

The case provides easy access to all ports and slots of the LattePanda Sigma.

Vertical Aluminum Case - M.2 Expansion - for LattePanda Sigma - DFRobot FIT0968

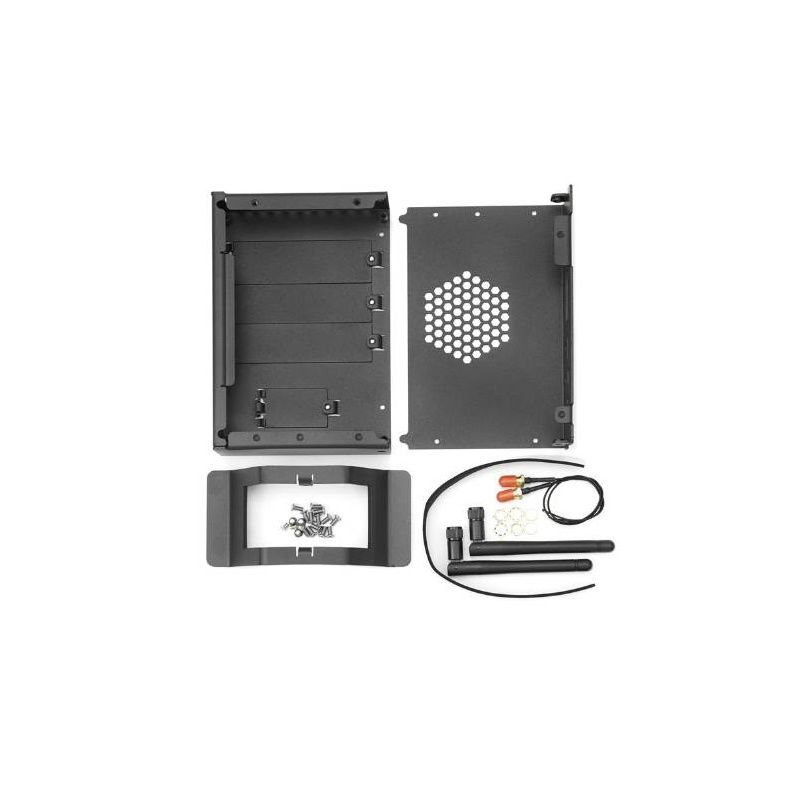

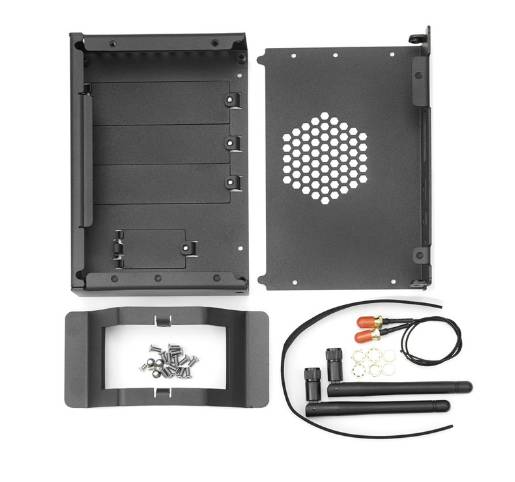

Items included in the set.

Technical specification of the housing

  • Material: aluminum alloy
  • Compatibility: LattePanda Sigma
  • Color: matt black (sandblasted)
  • Dimensions:
    • without handle: 156.5 x 105.6 x 38.1 mm
    • with handle: 171.7 x 124.7 x 60.7 mm
  • Weight: 360 g

Kit Contents

  • Aluminum case for LattePanda Sigma x1
  • Vertical bracket x1
  • Mounting screws M3 x 7 x 14
  • Anti-slip strips x2
  • External WiFi Antennas 2.4G + 5.8G x2
  • RF cables for antennas x2

Colour black
Package width 17.7 cm
Package height 13.5 cm
Package depth 5.2 cm
Package weight 0.352 kg
