Description
Module with digital addressed diode RGB WS2812 with outputs with the raster of 2.54 mm, for mounting of goldpin connectors (included). It allows you to get any color with a mixture of RGB colors. The LED has a built-in controller, where there is no need to use three pins of the PWM to work colors of the RGB palette. Only one pin is enough for the microcontroller to control any number of LEDs connected in cascade.
|
The product is compatible with Arduino GitHub service has madeNeopixel libraryfrom Adafruitavailable to service modules with digital RGB LEDs WS2812. |
Inputs

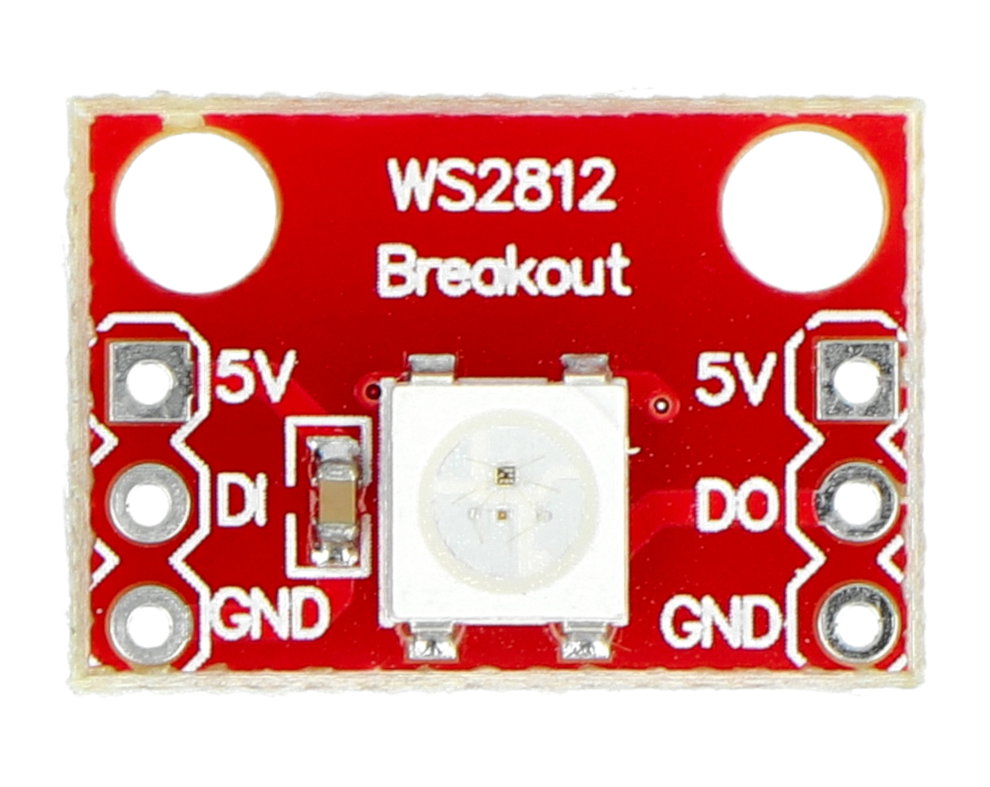

The inputs are openings for independent soldering ofgoldpin connectors 2.54 mm raster (included) to connect the sensor via awiredirectly or connect in the breadboard. Holes are located on both sides of the board to facilitate connection of additional diodes in the cascade method.
| Pin | Description |
|---|---|
| 5V | The supply voltage of 5 V. |
| DI | Control signal input, for example, withArduino. |
| GND | The ground of the system |
| DO | Output signal for connection of another LEDs. |
Specification
- Supply voltage: 5 V
- Led: LED RGBWS2812 SMD
- Three colors: RGB, with the ability to color mix
- Module dimensions: 17 x 13 mm
