Product description: Charger for Li-Ion 18650 / Ni-MH batteries with PowerBank function - XTAR X4 - AA, AAA 1-4 pcs.
Professional charger from Xtar with a backlit VA LCD display that shows the current battery status, voltage and charging current. It allows you to charge up to four Li-Ion and Ni-MH cells . The Xtar X4 is equipped with a function to reactivate deeply discharged cells and cells with a voltage of 0 V. It has a USB A output (5 V / 1 A), a microUSB input (5 V / 2.1 A), as well as a 2-pin power input (so-called eight) with a 230 V cable included in the set. The USB output is electronically protected against overload and turns off automatically when the power consumption exceeds 1 A. The X4 model also offers a PowerBank function, with a 5 V USB output with a maximum power of 1 A. The charger must be disconnected from the power supply and a Li-Ion battery in the size of 18650 (or higher) with a capacity of at least 2200 mAh must be placed in it to use the PowerBank function. The set does not include a power supply . A 5V/2.1A power supply is recommended.
Charger for Li-Ion 18650 / Ni-MH batteries with PowerBank function - XTAR X4 - AA, AAA 1 - 4 pcs.
Attention!
Cells discharged below a certain level are irreversibly damaged and their reactivation may not be possible .
Charged batteries left in the charger will naturally self-discharge. Charging will resume when the battery voltage drops below 3.9 V.

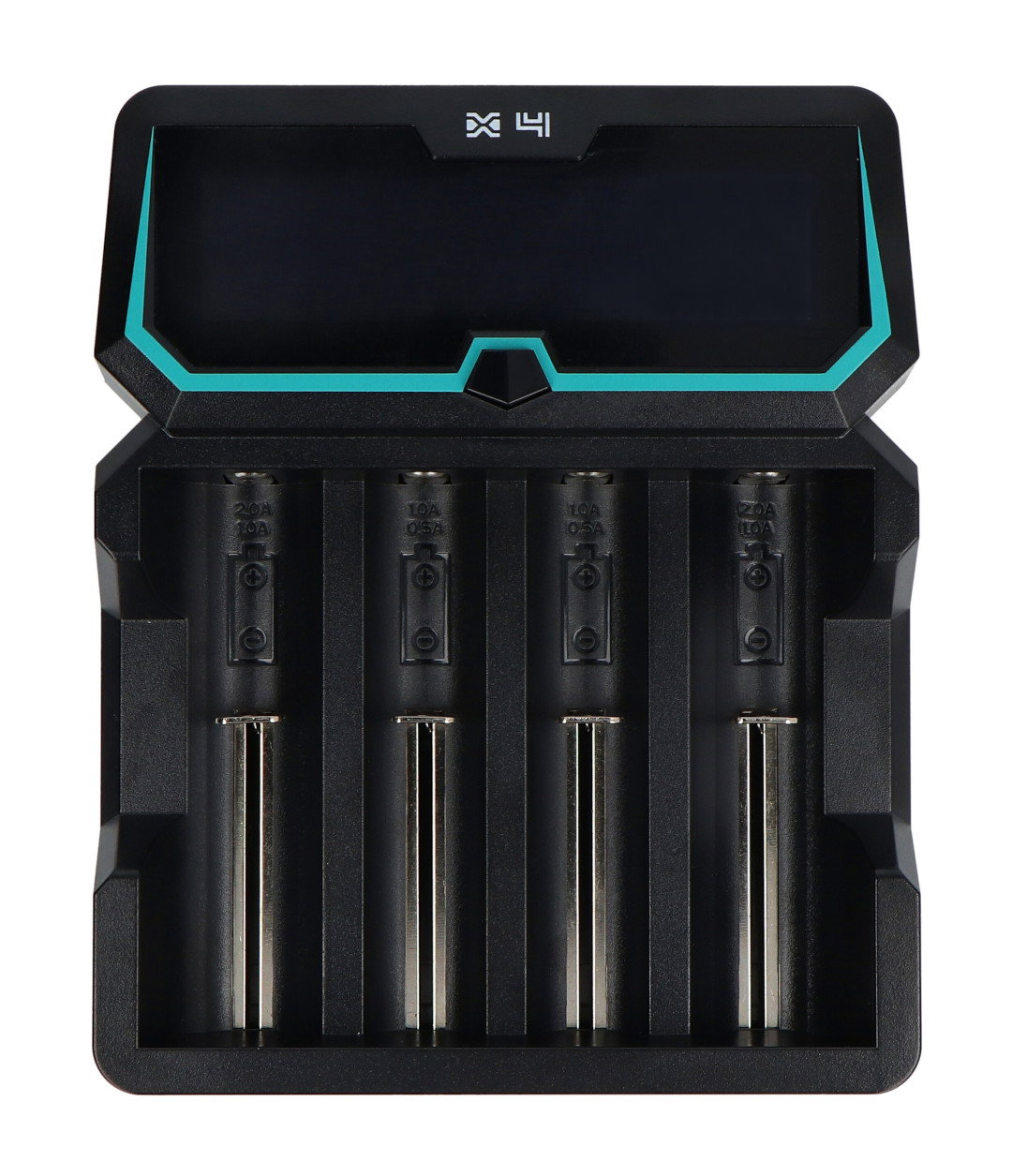

XTAR X4 charger with PowerBank function.
Key Features of the Xtar X4 Charger
- Designed to charge four cells: Li-Ion 3.6 V / 3.7 V / Ni-MH 1.2 V / Ni-CD 1.2 V, also supports 20700 / 21700 cells with protection
- Three-stage charging process TC / CC / CV - the charger automatically selects the optimal charging parameters for Li-Ion cells
- CC charging process for Ni-MH cells - ensures optimal cell charging
- Two power supply options - the charger can be powered by any 2.1 A power supply from a USB socket or directly from the 230 V mains
- Clear LCD display - shows the current voltage, cell charging current and charge level in mAh
- A range of protections - it has protection against charger overheating, overload/short circuit and reverse cell polarity
- Built-in PowerBank function - can be used as a PowerBank for any 5V charged devices via USB port
- Cell reactivation function - the charger detects deeply discharged cells and attempts to restore them
Xtar X4 Charger Specifications
- Model: X4
- Input voltage: 100V to 240V, 50/60Hz, 0.8A
- Number of links: 4
- Supported battery types:
- Li-Ion Batteries 3.6V / 3.7V / IMR / INR / ICR
- Ni-MH 1.2V / Ni-CD batteries
- Supported battery sizes:
- 14500 / 14650 / 16340 / 17335 / 17500 / 17670 / 18350 / 18490 / 18500 / 18650 / 18700 / 20700 / 21700 / 22650 / 25500 / 26650
- AAAA / AAA / AA / A / SC / C
- 20700/21700 cells secured
- Maximum length of the charged battery: 70 mm
- Charging method:
- Li-Ion - processor controlled TC / CC / CV
- Ni-MH - processor controlled CC
- Charging current in CC phase:
- 2A x 1 / 1A x 2 / 0.5A x 4 - power supply via microUSB
- 2 A x 2 / 1 A x 4 - 230 V power supply
- Charge termination voltage: 4.2 V
- Termination current for lithium cells: < 150 mA
- PowerBank function 5V/1A
- Reactivation of deeply discharged cells and 0 V cells
- Protection: thermal, short circuit, against reverse battery insertion
- Dimensions: 140 x 118 x 38 mm
- Weight: 235 g

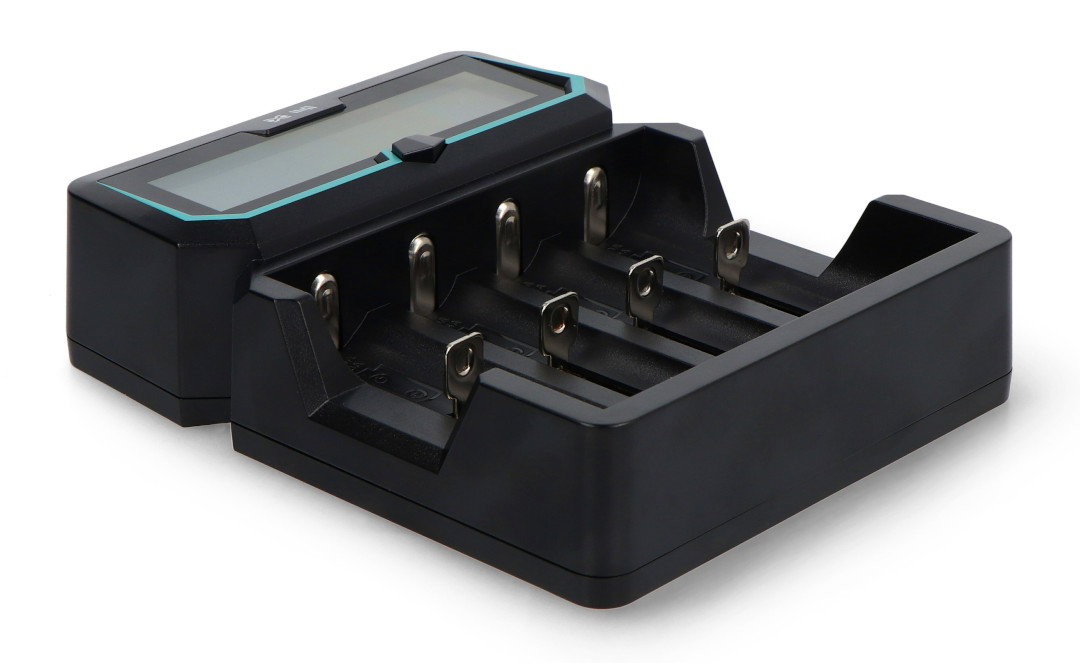

Charger for Li-Ion 18650 / Ni-MH batteries - XTAR X4.

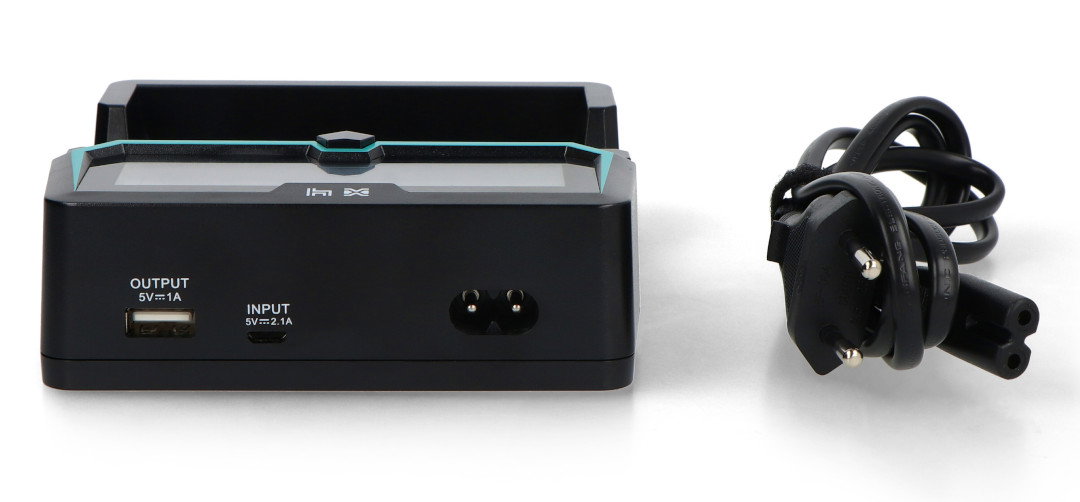

Power cable included with charger.
Kit Contents
- Xtar X4 Charger
- Power cable 2-pin 230V
- User manual
