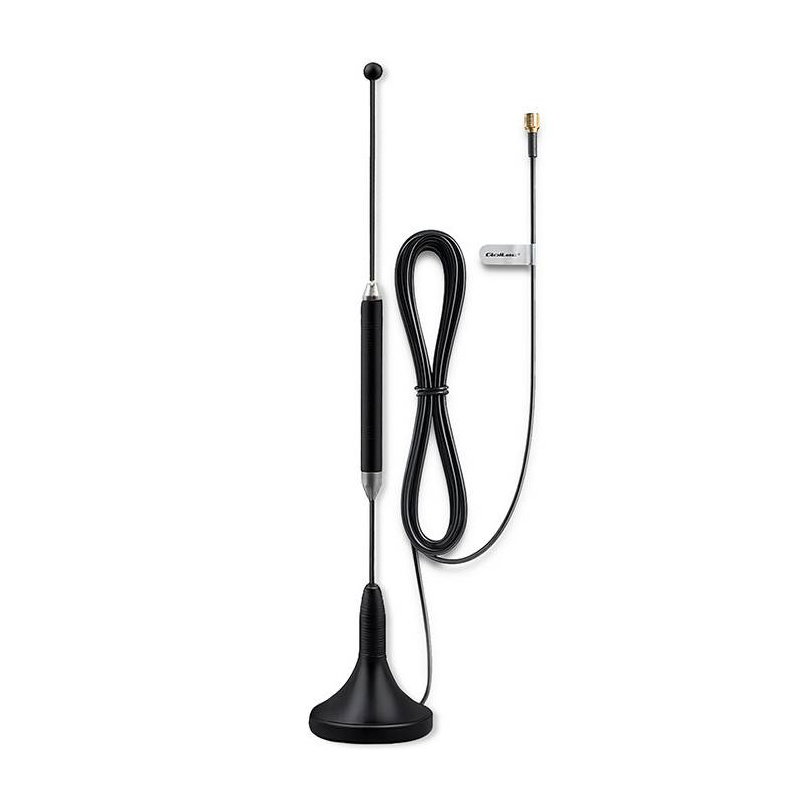

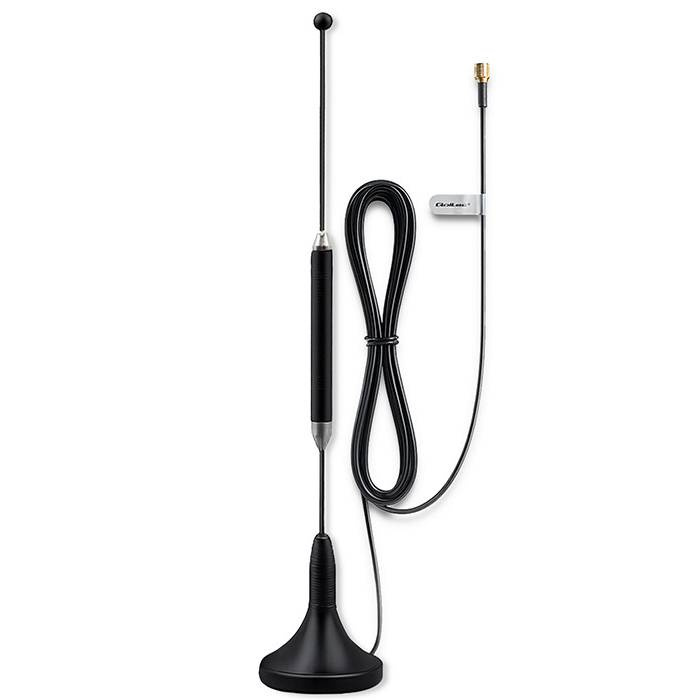

Product description: 4G LTE 600 - 2700 MHz antenna with magnetic base - 5 dBi - SMA - internal - Qoltec 57059
The Qoltec omnidirectional LTE antenna is designed to improve internet connection quality and data transmission stability in 4G LTE networks. The 360° design allows for signal reception from every direction, making it suitable for both stationary and mobile applications. The operating range of 600 MHz to 2700 MHz allows for compatibility with multiple cellular network bands used by GSM and LTE operators. The model is equipped with a magnetic base that allows for quick and stable installation without the need for drilling holes or additional brackets. A strong magnet ensures secure attachment to metal surfaces, such as a device housing or a telecommunications cabinet. The antenna offers an impedance of 50 Ω , a VSWR of ≤ 1.5, and an IP67 rating, ensuring stable operation and resistance to environmental conditions.
Technical specifications of the antenna
- Antenna type: omnidirectional
- Antenna type: 4G LTE
- Operating frequency: 600 MHz to 2700 MHz
- Energy gain: 5 dBi
- Power: 100 W
- Impedance: 50 Ω
- Polarization: vertical
- Antenna connector: SMA
- VSWR: ≤ 1.5
- Tightness class: IP67
- Cable: RG174
- Cable length: 3 m
- Color: black
- Material: ABS, plastic, metal
- Operating temperature: -40°C to 85°C
- Additional information: magnetic base, 360° omnidirectional design

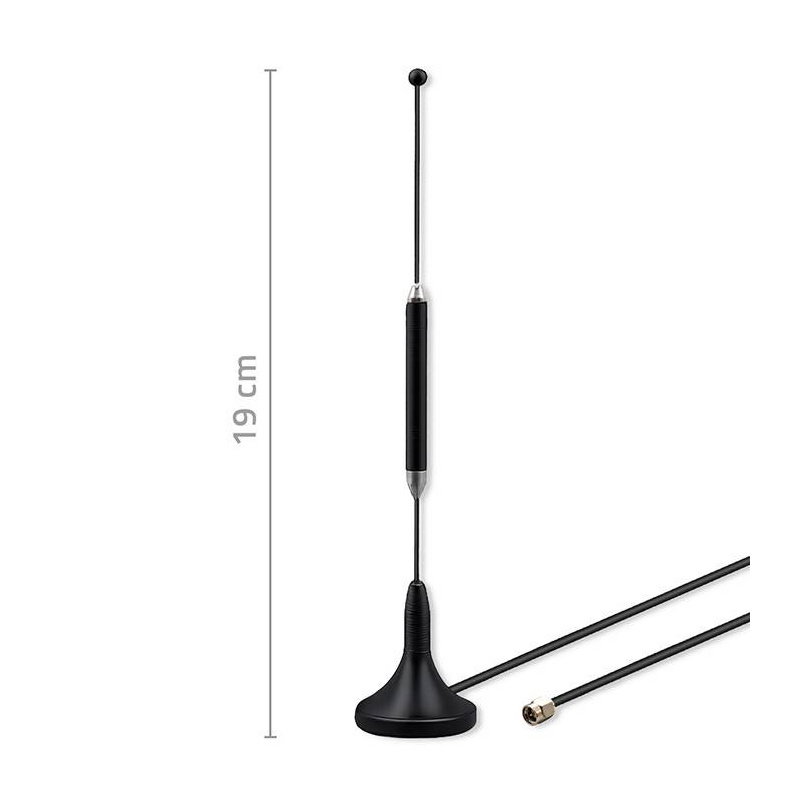

- Dimensions: 30 x 30 x 190 mm
- Weight: 0.054 kg
Contents of the set
- 1x Qoltec 4G LTE omnidirectional antenna
