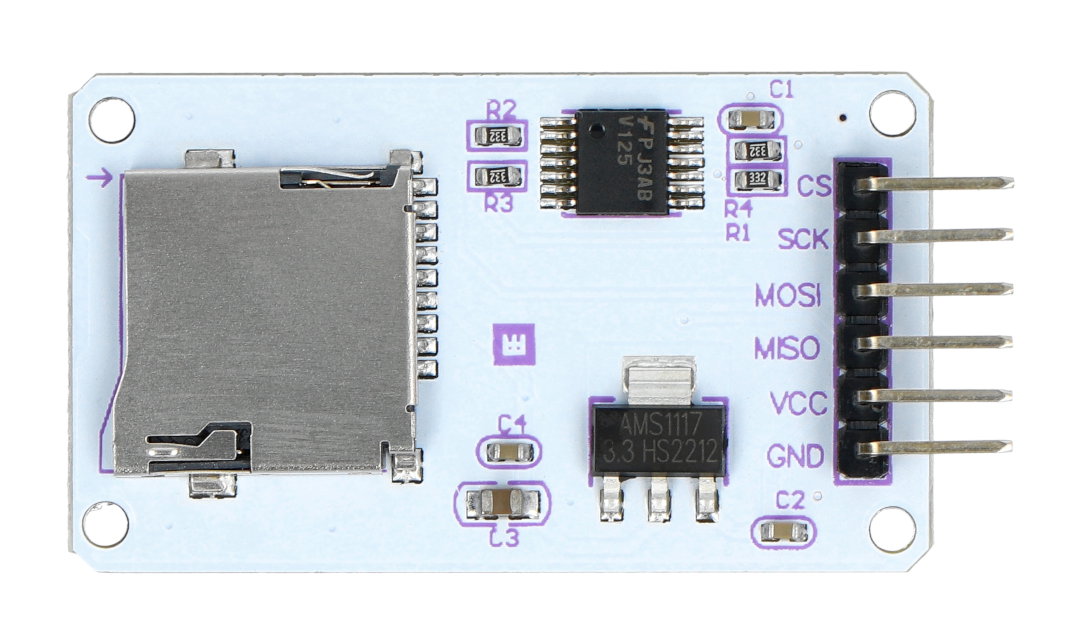

Velleman WPI304N - MicroSD Logging Shield for Arduino - 2 pcs.
The module can be used as a data recorder, it allows you to expand the memory of Arduino with the microSD cards up to 2 GB and a microSDHC cards up to 32 GB. It communicates via the SPI bus. The price is for 2 PCs of modules.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of the Velleman brand. Choosing Velleman components, tools and accessories at Botland guarantees equipment of the highest quality. All Velleman products presented here are original.
Description
The module can be used as a data recorder, it allows you to expand the memory of Arduino with the microSD cards up to 2 GB and a microSDHC cards up to 32 GB. It communicates via the SPI bus.
Connection
The system communicates using the SPI bus, it has solderedgoldpin connectors - 2.54 mm pitch. The description of pins are given in the table below.
| Pin | Description |
|---|---|
| VCC | Supply voltage |
| GND | The ground of the system. |
| CS | Chip Select. |
| MISO | Input pin of data. |
| MOSI | Output pin of data. |
| SCK (CLK) | Clock pin of the SPI bus. |
Specification
- Supply voltage: from 4,5 V to 5,5 V
- Communication interface: SPI
- Required library: SD.h
- Dimensions: 41 x 24 x 5 mm
- Weight: 23 g
- Price is for 2 PCs of modules
Useful links
| Name | Value |
|---|---|
| Width | 8 cm |
| Height | 4 cm |
| Depth | 12.5 cm |
| Weight | 0.023 kg |
