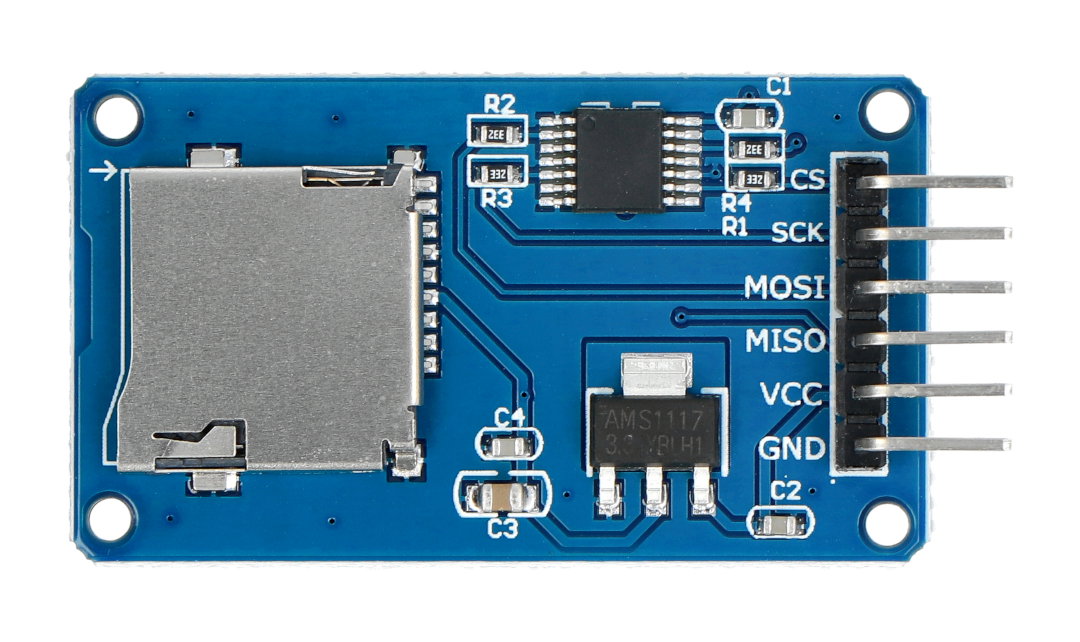

Micro SD Card Reader Module

Index: MOD-08230 EAN: 5904422311278

The module of the reader of micro SD cards with goldpin connectors - 2.54 mm pitch. It communicates with the main board via SPI interface. It works with a supply voltage from 3.3 V to 5 V.

Micro SD Card Reader Module
€1.00
€0.81 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description

The module of the reader of micro SD cards with goldpin connectors - 2.54 mm pitch. It communicates with the main board via SPI interface. It works with a supply voltage from 3.3 V to 5 V.



Sensor maintenance

The SD card communicates using the SPI bus. Most of the microcontrollers, including those used inArduino AVRy,have hardware to verify this interface.

The product is compatible with STM32

The module works with the built-in examples in the Arduino IDE.



Specification

  • Supply voltage: 4.5 V to 5.5 V

  • Integrated voltage regulator: 3.3 V on SPI pins

  • Current: about 80mA
  • Interface: SPI
  • Pins' pitch: 2.54 mm
  • Mounting holes M2: spacing of 38 mm and 20 mm
  • Module dimensions: 42 x 24 mm







Package width 8 cm
Package height 0.4 cm
Package depth 4.5 cm
Package weight 0.005 kg

Be the first to ask a question about this product!

Product reviews

Micro SD Card Reader Module

5/5

Average grade

15

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.

Zdjęcia użytkowników

Michał 18.10.2023 Confirmed purchase Translated review
Works as intended
P2 28.08.2023 Confirmed purchase Translated review
Excellent (5/5)
Bartosz 11.07.2023 Confirmed purchase Translated review
A useful device in many projects. On the plus side, the use of a 3.3V stabilizer directly on the component, so you do not need to mount additional components on the breadboard.
Grzegorz 02.07.2023 Confirmed purchase Translated review
Great for testing :)
Krzysztof 27.04.2023 Confirmed purchase Translated review
okokok
Adrian 24.04.2023 Confirmed purchase Translated review
Everything as described.
Oscar S. 23.04.2022 Confirmed purchase Translated review
Good quality product. I recommend.
Michał P. 19.04.2022 Confirmed purchase Translated review
A neat reader with a noticeable click.
Michał J. 13.01.2022 Confirmed purchase Translated review
Good
Michał N. 27.09.2021 Confirmed purchase Translated review
I use the reader with a raspberry pi pico it works very well only It's a bit big For this type of use
Adam S. 28.08.2021 Confirmed purchase Translated review
It is worth buying it when you need to save on SD and quickly connect to the breadboard.
Józef R. 14.07.2021 Confirmed purchase Translated review
Convenient, tolerates power supply and 5V control
Paweł G. 20.04.2021 Confirmed purchase Translated review
It is just right, the package is secured, nothing can be damaged.
Sergiusz S. 12.04.2021 Confirmed purchase Translated review
The reader works OK, I had no major problems with ESP32. It should only be noted that the reader requires a voltage of 5V for proper operation. When powered at 3.3V, the test SD card application from arduino returned to me an initialization error. Somewhere on the network I found a hint to connect to 5V and now everything works. I don't know about the signal line levels, my ESP32 didn't burn, and it certainly doesn't tolerate 5V on the GPIO pins.
