Product description: CR123A battery tray for micro: Maqueen - DFRobot FIT0611
Specially designed power supply module withCR123A lithium-ion batterycage for the microrobot: Maqueen.The module also acts as a chargerwitha microUSB port, maximum charging current is 350 mA.It has protection against reverse polarity and too high a current. There is also a power switch and JST connector on the board.

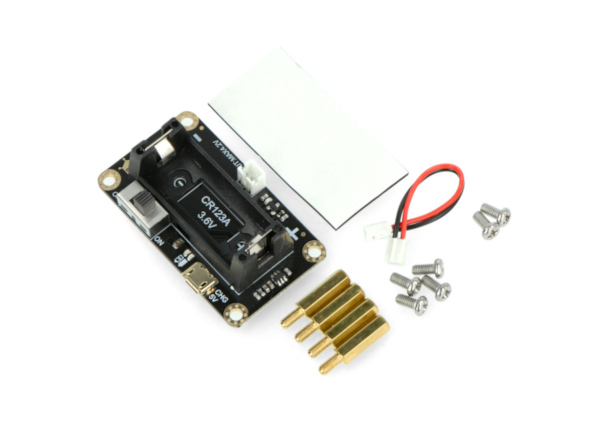

Battery holder CR123A for micro: Maqueen.
Pad specifications
- Charging voltage: 4.5 V to 5.5 V
- Charging interface: USB
- Output voltage: 3.5 V to 4.2 V
- The charging current: 350 mA
- Reverse polarity protection
- Overcurrent protection
- Dimensions: 56 x 32 mm
The set includes
- 1x CR123A stand module
- 4x screw
- 4x distance
- 1x connection cable
- 1x double-sided tape
