Product description: Luxonis Oak-D-Pro - AI Image Recognition Kit - OV9782
The OAK-D Pro with the OV9782 sensor is an advanced AI stereo camera manufactured by Luxonis designed for industrial, robotic, and autonomous systems applications. The device combines active stereo, a 1 MP Global Shutter camera , and edge AI processing powered by the RVC2 architecture. The OV9782 sensor offers 1280 x 800 px resolution at 120 fps and a wide 89.5° / 80° / 55° (D / H / V) field of view. Active stereo technology with a 940 nm projector enables precise depth measurements even in low-light conditions . The aluminum housing with a Gorilla Glass front and an IP66 sealing rating enable operation in demanding industrial environments.

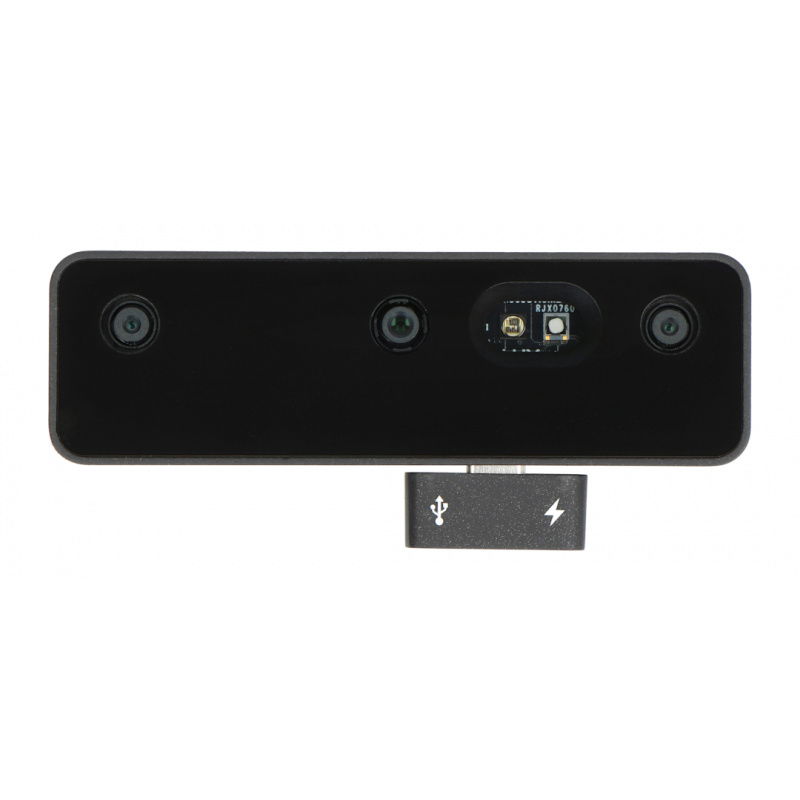

Luxonis Oak-D-Pro - AI Image Recognition Kit - OV9782.

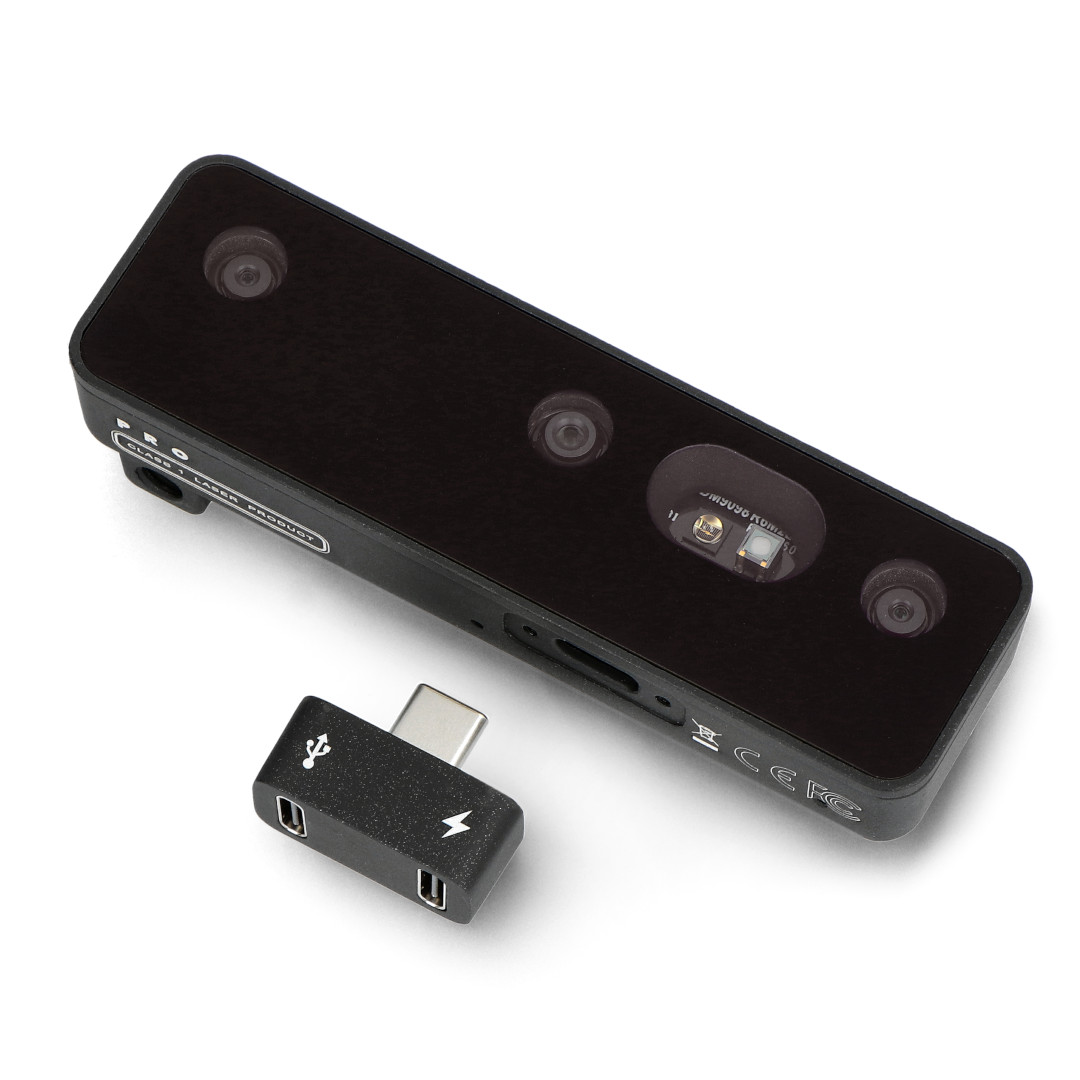

The Luxonis Oak-D-Pro uses the Myriad X VPU vision processor.
Main Features of Luxonis OAK-D Pro
- Global Shutter on all sensors : OV9782 color matrix and OV9282 stereo pair ensure perfect sharpness during fast movement
- Active Stereo : Built-in IR dot projector (Belago 1.1) improves depth perception on low-texture surfaces
- Night Vision Mode : IR LED illuminator allows AI and Computer Vision algorithms to run in complete darkness
- High performance : 4 TOPS computing power allows for object detection, 3D tracking and segmentation directly on the device
- Industrial strength : IP66 housing and high vibration resistance in accordance with EN 60068-2-6:2008
- Integrated IMU : 9-axis BNO085 sensor provides precise orientation and motion data
- Wide field of view (FOV) : OV9782 sensor offers viewing angles of 89.5° (D) / 80° (H) / 55° (V)
RVC2 Architecture and AI Processing
The OAK-D Pro utilizes the RVC2 architecture based on the Movidius Myriad X VPU . The chip provides up to 4 TOPS of processing power , including approximately 1.4 TOPS dedicated to neural networks. The camera allows you to run AI models directly on the device, supports H.264, H.265, and MJPEG encoding , and image processing such as crop, resize, warp, and RGB-depth alignment . Edge processing reduces latency and load on the host computer.
Active stereo and IR
The 940nm VCSEL projector emits approximately 4700 IR dots , improving alignment disparity on low-texture surfaces. An IR flood LED allows operation in complete darkness . The projector complies with the Class 1 IEC 60825-1 standard, ensuring safe operation.

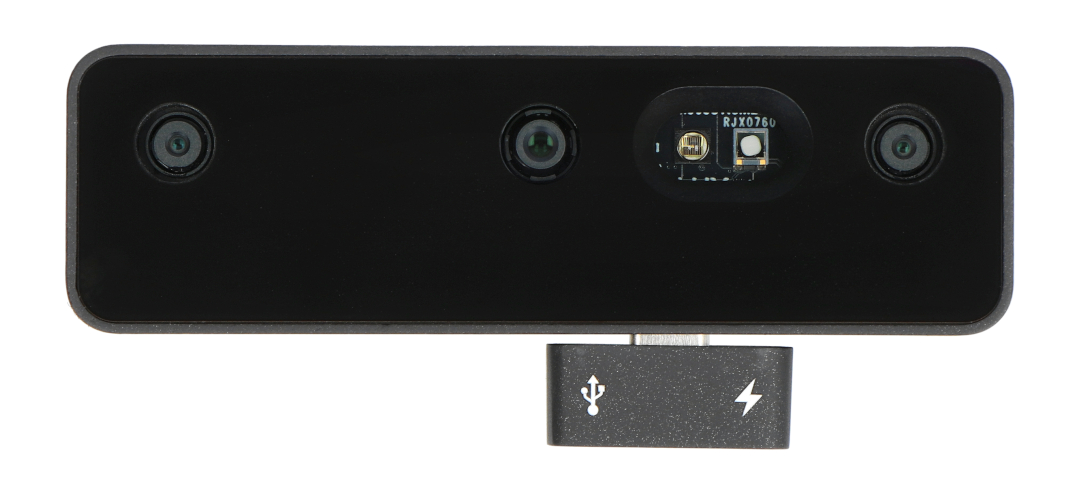

The camera is equipped with an IR LED (for night vision) and an IR laser spot projector.

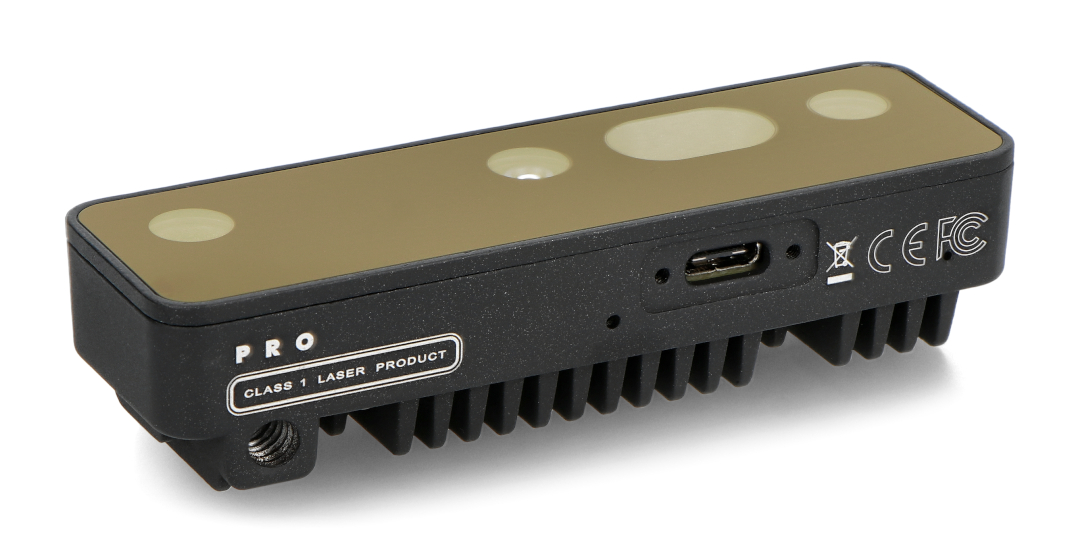

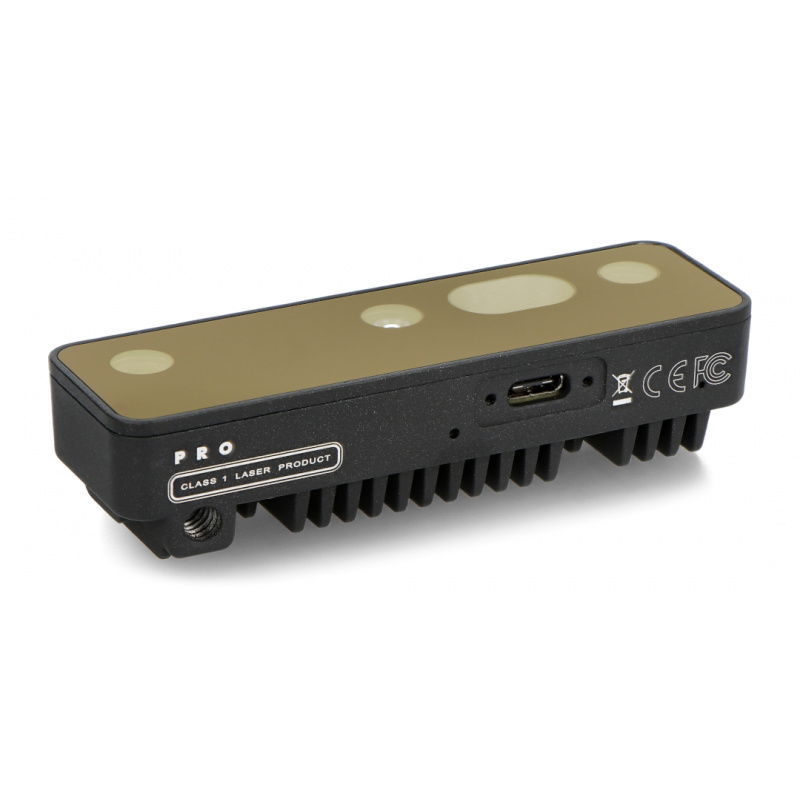

OAK-D Pro uses a USB Type-C interface.
Practical applications
- Autonomous robots and drones : precise obstacle avoidance and navigation indoors and outdoors, regardless of the time of day
- Industrial Quality Control : Inspect fast-moving parts on production lines with global snapshot
- Security and surveillance systems : AI monitoring in dark conditions using night mode
- Precision farming : autonomous mowers and field robots operating in variable weather and lighting conditions
- Logistics and warehousing : 3D space scanning and parcel identification in low-light warehouses
Luxonis OAK-D Pro Technical Specifications
- RGB camera:
- Sensor: OV9782
- Resolution: 1 MPx (1280 x 800 px)
- Shutter type: Global Shutter
- FOV (D / H / V): 89.5° / 80° / 55°
- Effective focal length: 2.35 mm
- Aperture: f/2.0 ±5%
- Pixel size: 3 µm
- Sensor size: 1/4''
- Focus range: 19.6 cm to ∞
- Maximum frame rate: 120 fps
- Spectral range: visible light
- Stereo camera:
- Sensor: OV9282
- Resolution: 1 Mpx (1280 x 800 px)
- Shutter type: Global Shutter
- FOV (D / H / V): 89.5° / 80° / 55°
- Effective focal length: 2.35 mm
- Aperture: f/2.0 ±5%
- Pixel size: 3 µm
- Sensor size: 1/4''
- Focus range: 19.6 cm to ∞
- Maximum frame rate: 120 fps
- Infrared operation: yes
The OAK-D Pro camera has a computing power of 4 TOPS.

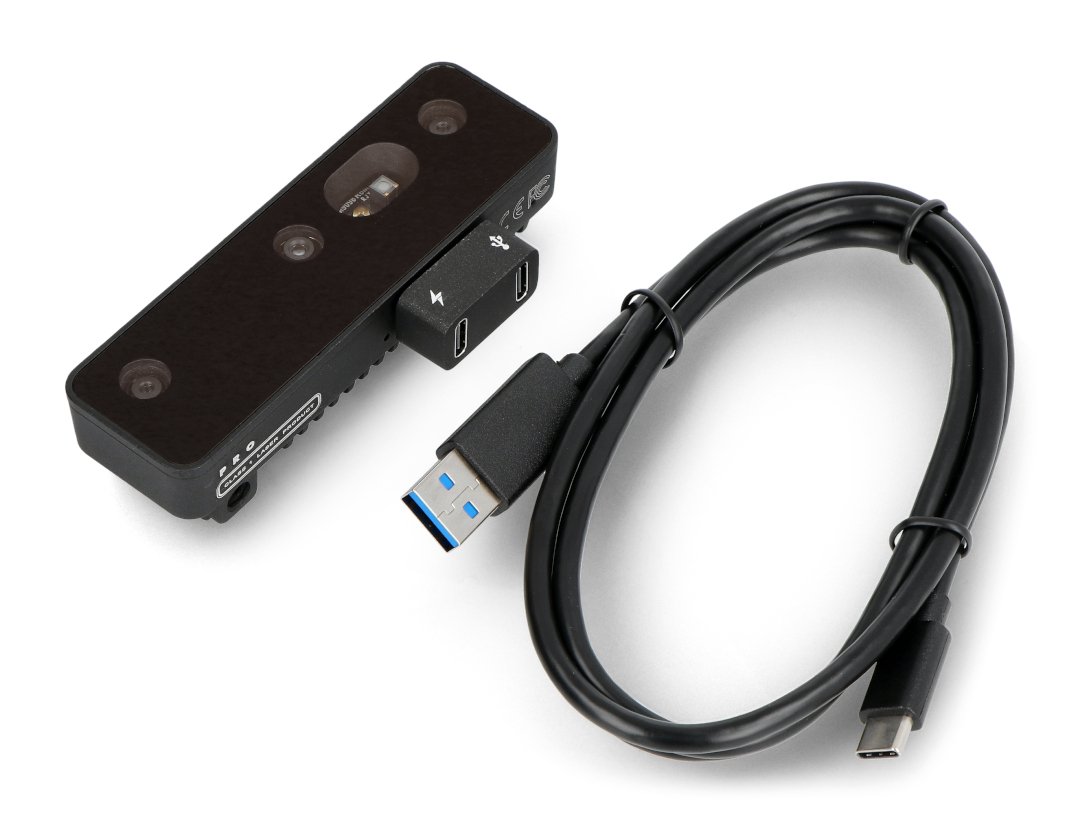

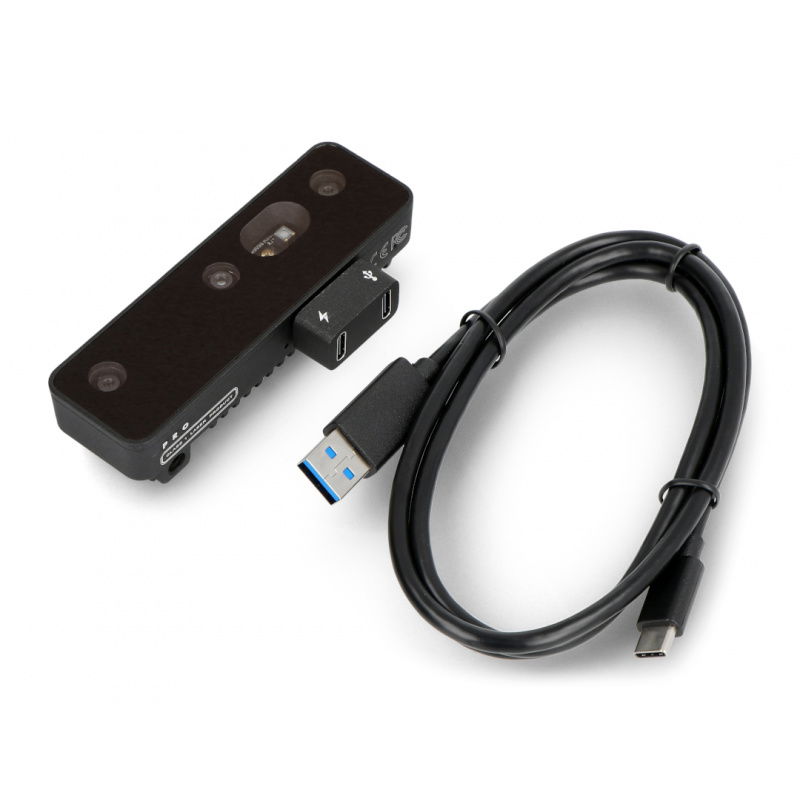

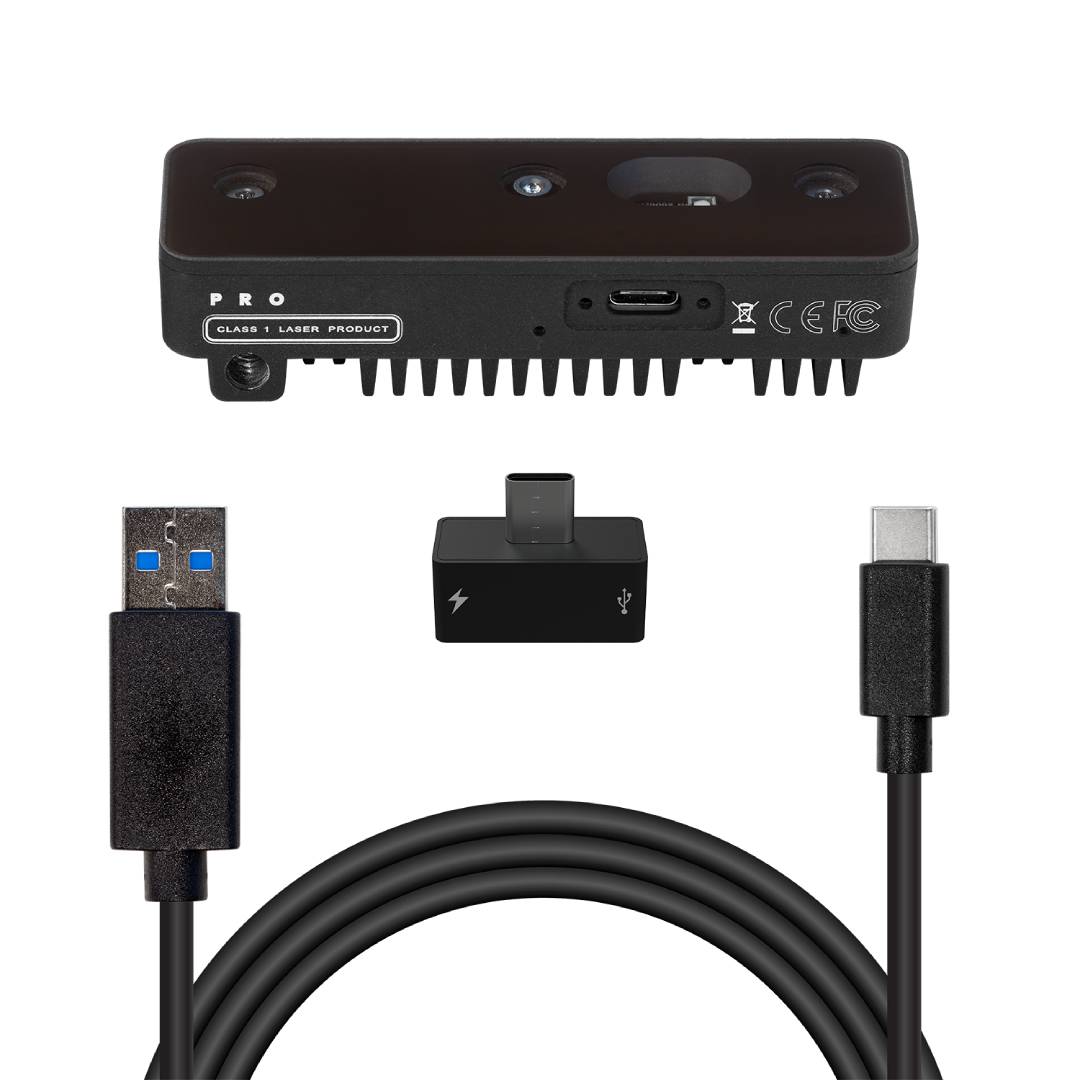

Elements included in the set.
Luxonis OAK-D Pro Technical Specifications
- Spot projector:
- Model: Ams Belago 1.1 Dot-Pattern Infrared Illuminator
- Number of points: 4700
- HFOI 50%: 78° ± 7%
- VFOI 50%: 61° ± 7%
- VCSEL wavelength: 940 nm
- Interface: USB Type-C USB 3.2 Gen1
- Power supply: 5V
- Power consumption: 2.5 W to 7.5 W
- Architecture: RVC2 (Movidius Myriad X VPU)
- IMU: BNO086
- Operating temperature: -20°C to 50°C
- Protection class: IP66
- Dimensions: 97 x 29.5 x 22.9 mm
- Weight: 91 g
Contents of the set
- OAK-D Pro Camera (OV9782)
- USB Type-C cable
- Y-adapter
