Product description : Aqara W100 TH-S04D - temperature and humidity sensor - ZigBee / Thread / Matter
The Aqara W100 is a powerful climate sensor designed to monitor indoor temperature and humidity . The large 3.4" LCD screen provides easy-to-read current parameters, and the measurement accuracy is ±0.2°C for temperature and ±2% RH for humidity. The device can operate in Thread or ZigBee mode, allowing you to tailor the communication method to your smart home system. Three buttons supporting single, double, and long presses allow you to configure up to 9 actions . In ZigBee mode, the sensor also offers additional capabilities within the Aqara ecosystem, including cooperation with external sensors and HVAC devices.
Aqara W100 TH-S04D - temperature and humidity sensor - ZigBee / Thread / Matter.
The sensor supports a wide operating temperature range (-20°C to 60°C) and humidity range (0% to 98%, non-condensing).
Main features of the Aqara W100 sensor
- Temperature and humidity measurement : allows you to constantly monitor the conditions in the room
- High measurement accuracy : temperature measurement accuracy is ±0.2°C and humidity measurement accuracy is ±2% RH

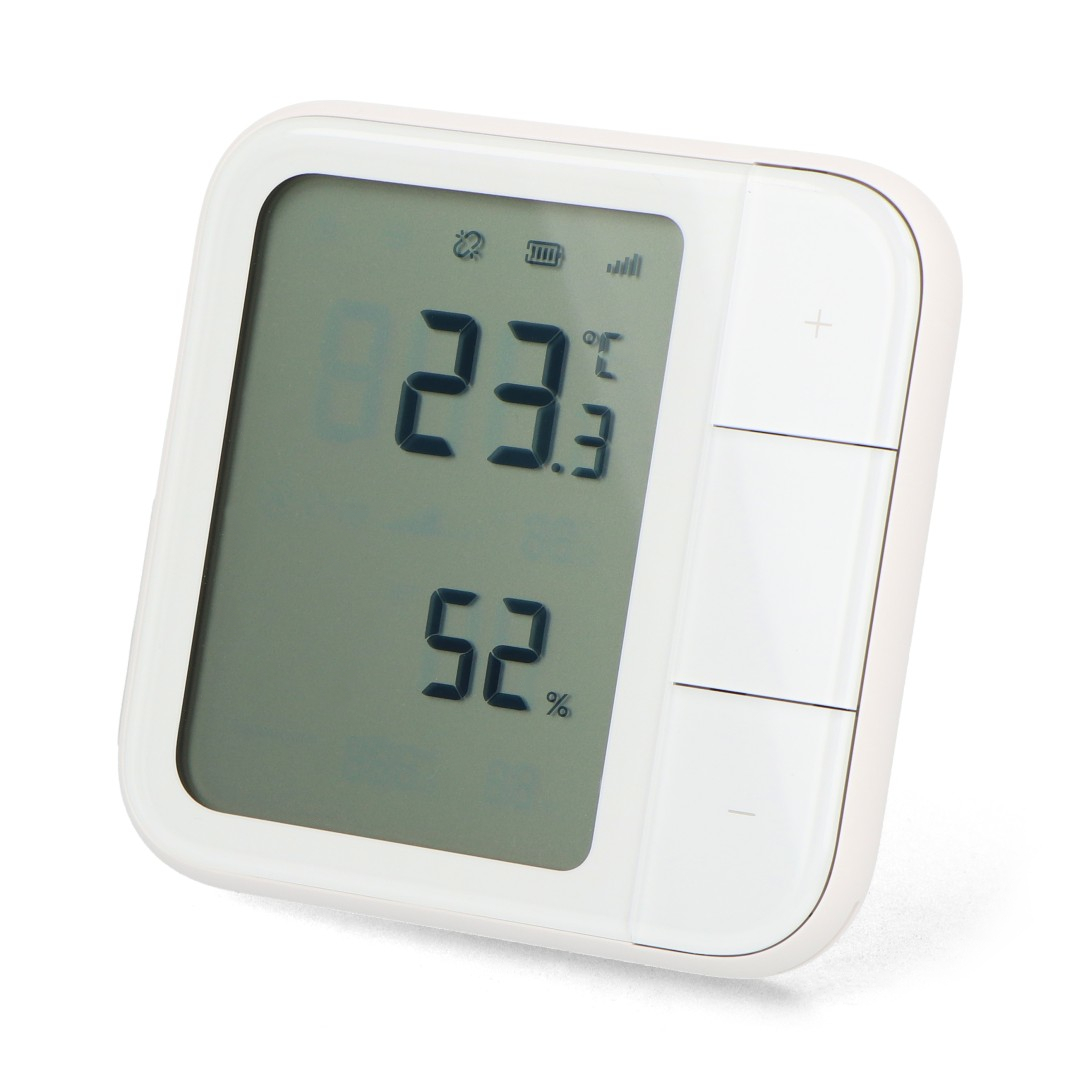

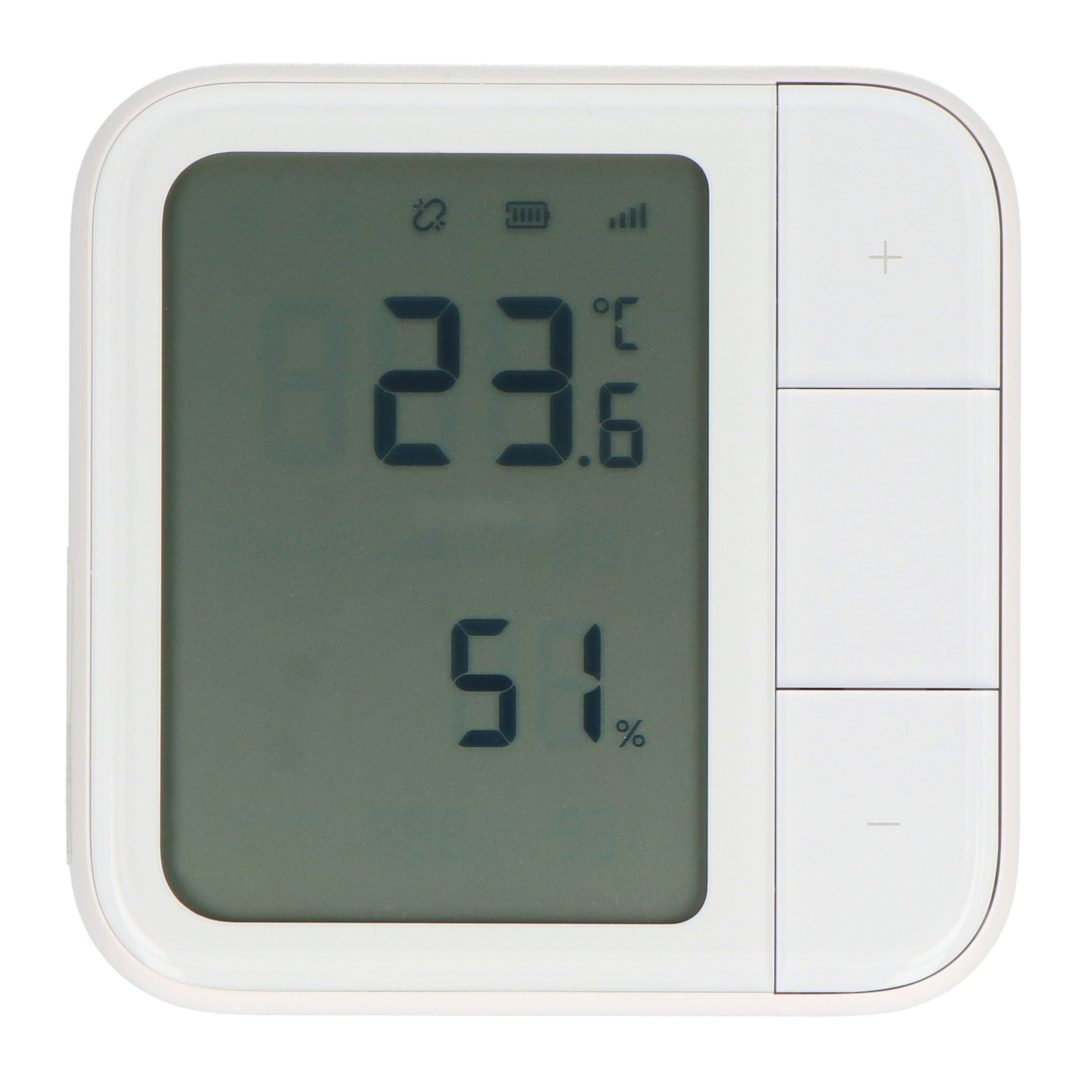

- 3.4" LCD display : allows you to conveniently check current parameters without using the application
- Thread and ZigBee : the ability to choose the protocol allows the device to be adapted to various smart home configurations
- Matter Support : In Thread mode, allows direct integration with compatible Matter controllers
- Three programmable buttons : each recognizes single, double, and long presses, for a total of up to 9 configurable actions
- Additional climate indications : in ZigBee mode, the device can present additional data from the associated Aqara sensor
- Cooperation with HVAC systems : in the appropriate configuration, the device can be used to control a compatible Aqara thermostat or air conditioning via Hub M3
- Long operating time : two CR2450 batteries provide up to 2.4 years of operation in ZigBee mode and up to 2.3 years in Thread mode according to manufacturer's tests
- Versatile installation : the design allows the device to be placed on a stand or mounted on a wall
- Wide operating range : the sensor can operate at temperatures from -20°C to 60°C and humidity from 0% RH to 98% RH without condensation
ZigBee, Thread, and Aqara W100 Sensor Compatibility
The Aqara W100 supports two communication protocols – Thread and ZigBee , allowing you to tailor your integration to your smart home system. Thread is the default mode and allows connection to compatible Matter controllers, while ZigBee mode is primarily designed for use with the Aqara Gateway and provides access to additional Aqara Home features. Depending on the selected mode, the device can work with popular ecosystems such as Apple Home, Amazon Alexa, Google Home, SmartThings, and Home Assistant . The sensor also supports Bluetooth, which is used for setup and connection. Selecting the appropriate mode allows you to choose between direct Matter integration via Thread or the extended features available in the Aqara environment via ZigBee.

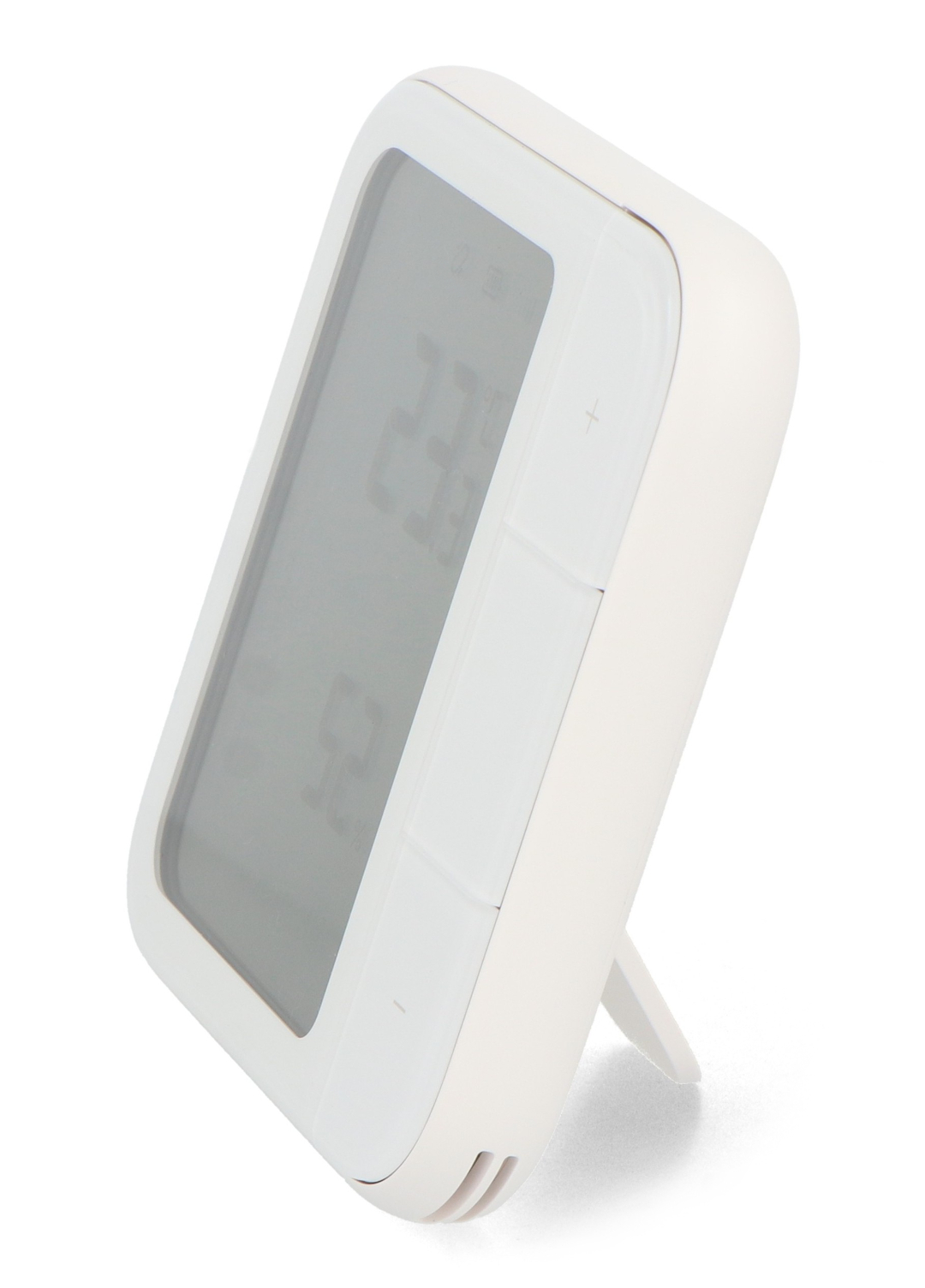

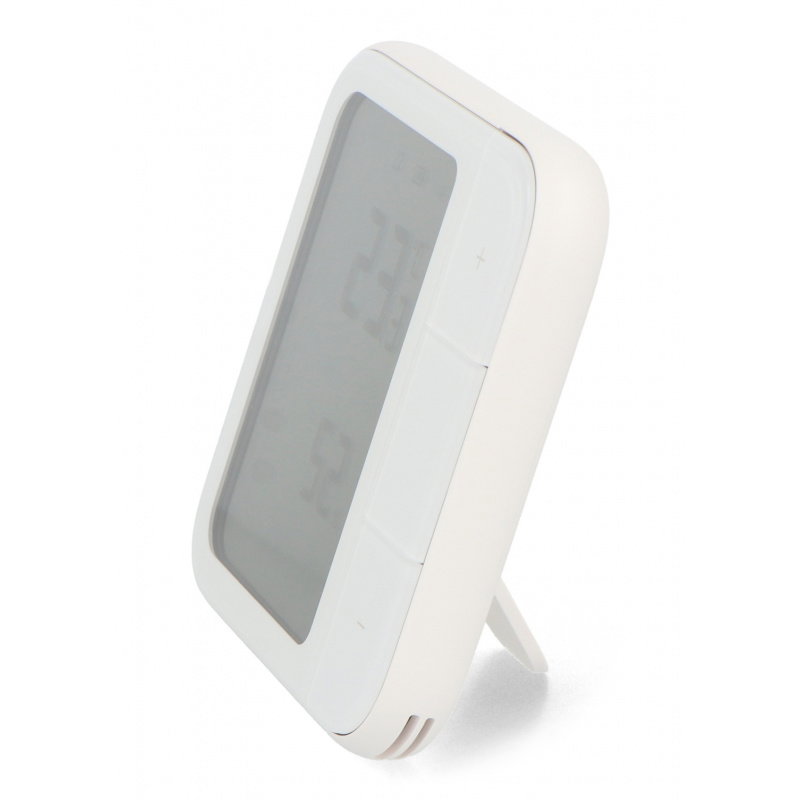

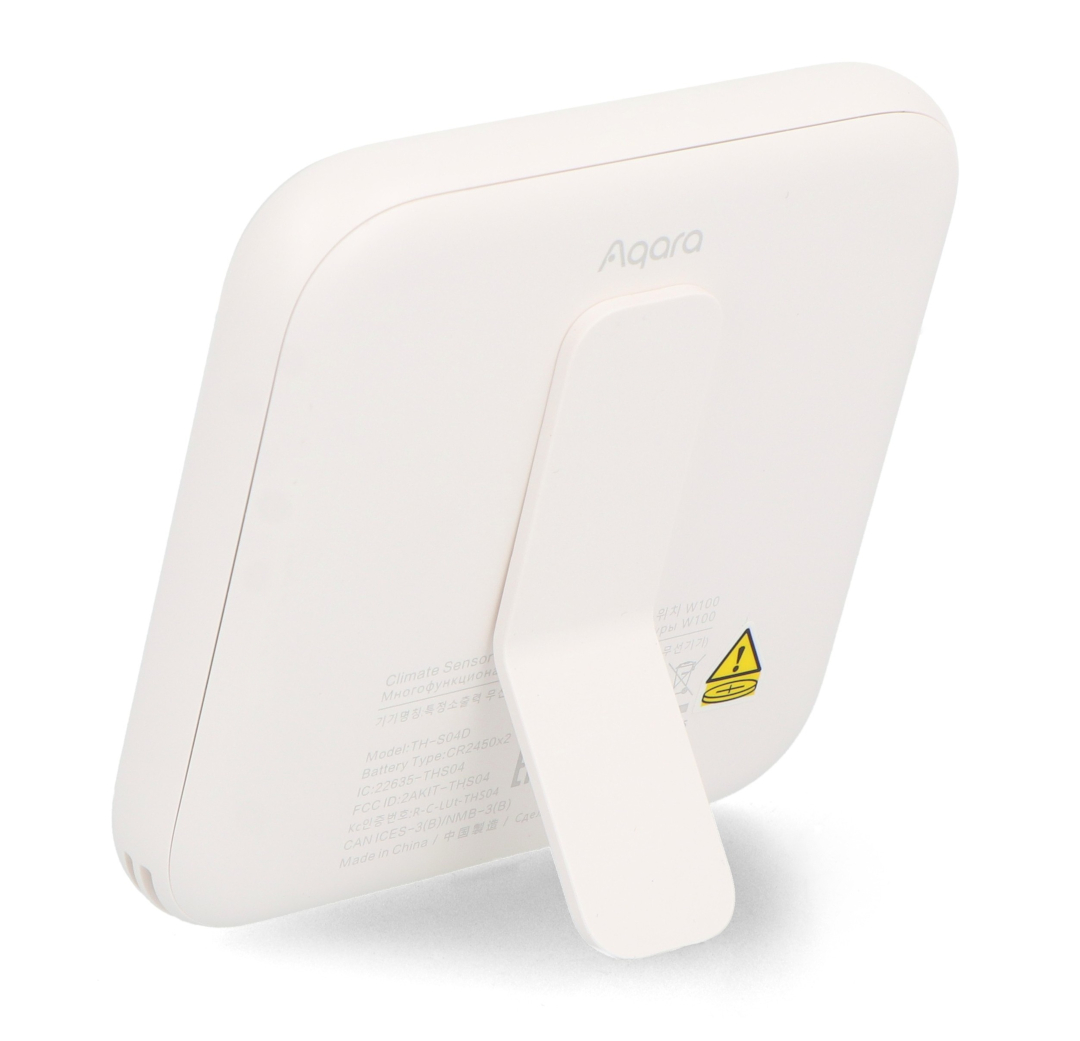

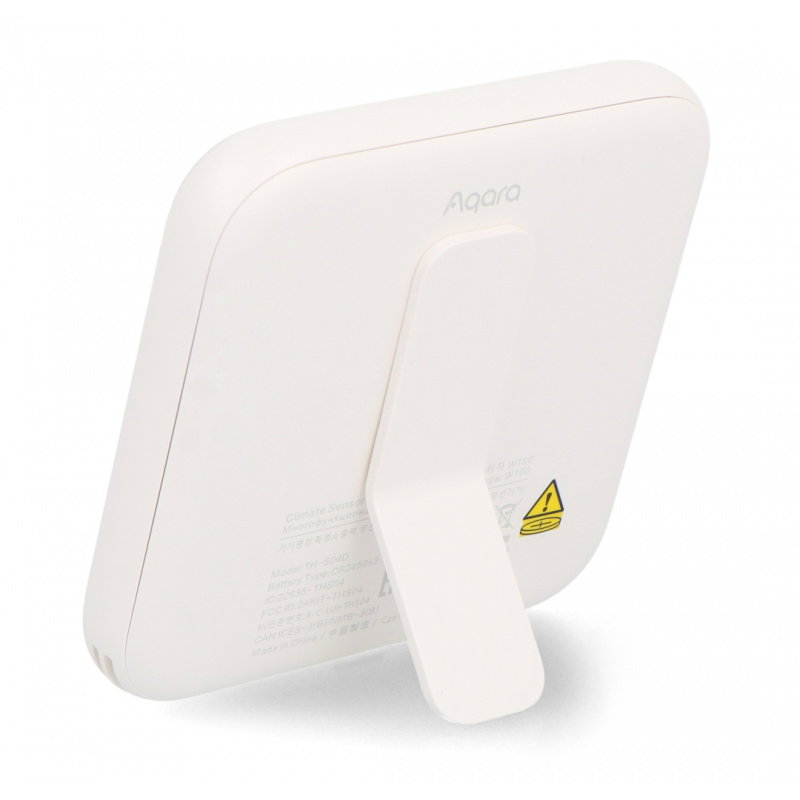

The sensor can be placed on a desk thanks to the included stand.
Aqara W100 supports ZigBee and Thread protocols and is compatible with Matter.
Technical specifications of the Aqara W100 sensor
- Model: TH-S04D
- Device type: temperature and humidity sensor
- Wireless protocols: Thread, ZigBee, Bluetooth
- Matter Support: Yes, in Thread Mode
- Display: 3.4" LCD
- Measured parameters: temperature, humidity
- Temperature measurement accuracy: ±0.2°C
- Humidity measurement accuracy: ±2% RH
- Number of buttons: 3
- Supported button actions: single press, double press, long press
- Maximum number of configurable actions: 9
- Operating temperature: -20°C to 60°C
- Operating humidity: 0% RH to 98% RH, non-condensing
- Power supply: 2x CR2450 batteries
- Declared operating time in ZigBee mode: up to 2.4 years
- Declared operating time in Thread mode: up to 2.3 years
- Installation: on a stand or on a wall
- Dimensions: 86 x 86 x 13.65 mm

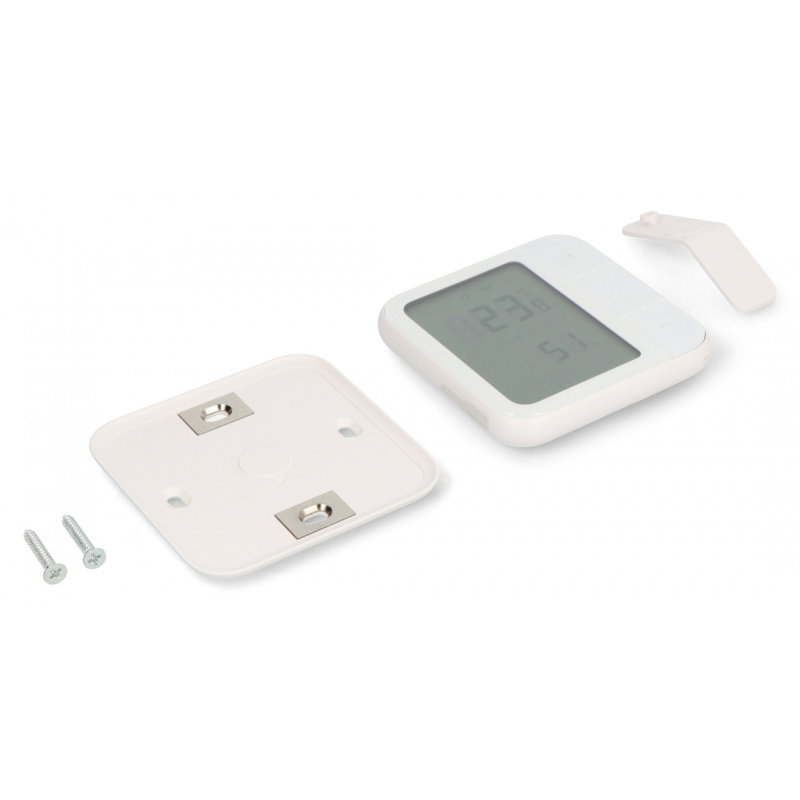

Contents of the set
- Aqara W100 sensor
- Screw set
- Wall mount
- Desk stand
