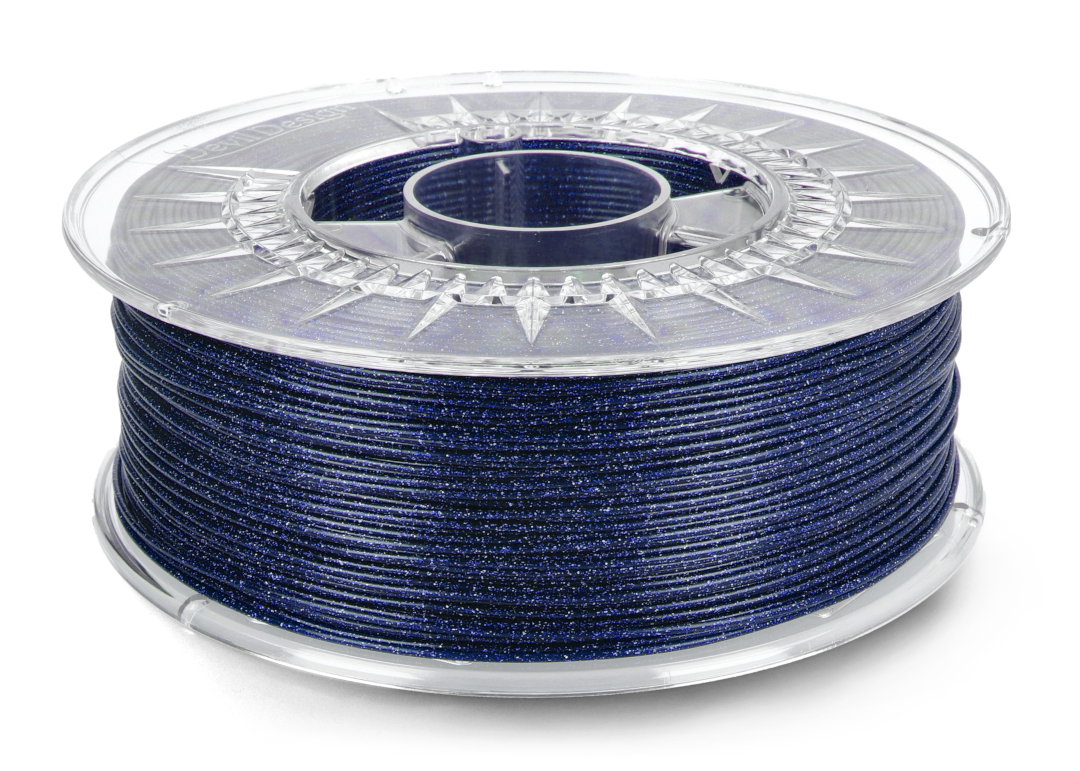

Product description: Devil Design PLA 1,75 mm 1 kg - Galaxy Super Blue
PLA Filament is a thermoplastic polyester filament used for FFF 3D printing and printing pens. Manufactured by Devil Design. Material with a net weight of 1 kg is wound on a spool and vacuum packed with moisture absorber. Filament in Galaxy Super Blue color - navy blue with a touch of glitter.
In our offer of filaments you will also find other materials and colors.
Devil Design PLA Filament 1,75 mm 1 kg - Galaxy Super Blue.
PLA Filament from Devil Design
This spool contains 1 kg net of filament, which can be used in all FFF printers not protected from using filaments from a third party supplier and open source designs. PLA is a biodegradable material, made from renewable natural resources. It is a product primarily dedicated to beginners due to its trouble-free use.
Properties of PLA filament
- Easy to print at low temperatures
- Resistance to material warping
- Biodegradability
- Low odour intensity
- Inexpensive and comes in many colour variations
- It is not flammable
- High strength
- Totally waterproof
Suggested parameters for printing with the filament
| Head temperature | From 200°C to 235°C |
| Table temperature | From 50°C to 60°C |
| Print cooling | Recommended |
| Due to differences in construction of printers, the above data should be treated as guidelines, and the appropriate values should be determined experimentally. |
Technical specification and physical properties of Devil Design PLA filament
| Parameter | Range |
|---|---|
| Filament diameter | 1,75 mm |
| Dimensional tolerance of the felt | +/- 0.05 mm |
| Roundness of the filament | +/- 0,02 mm |
| Material surface | Gloss |
| Material shrinkage | Very low |
| Spool material | Transparent polycarbonate |
| Spool diameter | 200 mm |
| Spool width | ~ 70 mm |
| Mounting hole diameter | 52 mm |
| Packaging | Printed carton |
| Package dimensions | ~ 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
| Color | Galaxy Super Blue |
| Weight of empty spool | ~ 250 g |
| Product weight | 1,0 kg net, 1,36 kg gross |
Is 3D printing with PLA filament is safe for health?
Phenomena involving the change of physical state of substances from solid to liquid and vice versa can also be observed in case of Devil Design PLA Galaxy felt for 3D printers. During these transformations, fumes are also produced as a side effect. The polylactide filament is derived from natural raw materials, i.e. corn flour and sugar cane, which makes it environmentally friendly and fully biodegradable. Therefore, Devil Design PLA felt vapour is also safe for the health of living organisms.
The faster the solidification, the better the end result!
One of the inherent stages of the 3D printing process is the phase transition of the felt. In the first stage, the Devil Design PLA Galaxy filament is pressed and melted at just the right temperature to make it suitable for spreading into layers in the print zone. In the final stage, each print layer undergoes a curing process. For the final result to be as faithful as possible, efficient cooling by a fan in the printer head is required to speed up the solidification of the filament layers, from the first to the last.
