Product description: Remote control - single-channel kinetic button - RF 2.4 GHz for RTX modules - RTX RFR1K
The RTX RFR1K kinetic pushbutton enables convenient, local control of compatible RTX modules without the need for wiring to the pushbutton's mounting location. When pressed, the kinetic mechanism generates the energy needed by the transmitter to transmit a 2.4 GHz RF signal, so the pushbutton requires no batteries or external power source . This solution is particularly useful in applications where installing an additional traditional pushbutton would be difficult or would require running new cables. Depending on the RTX actuator module used, the pushbutton can be used to control lighting , roller shutters, garage doors, or gates, among other things . The housing can be mounted in the included wall frame or placed on a metal surface thanks to the four magnets located on the bottom.

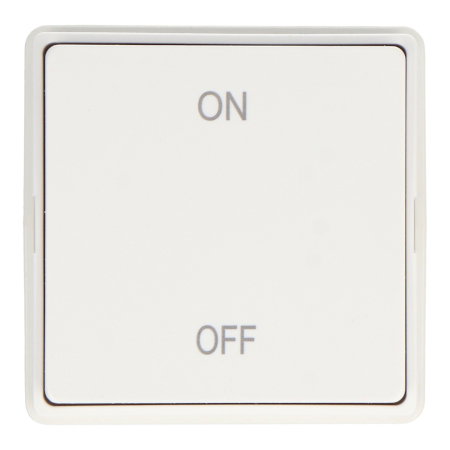

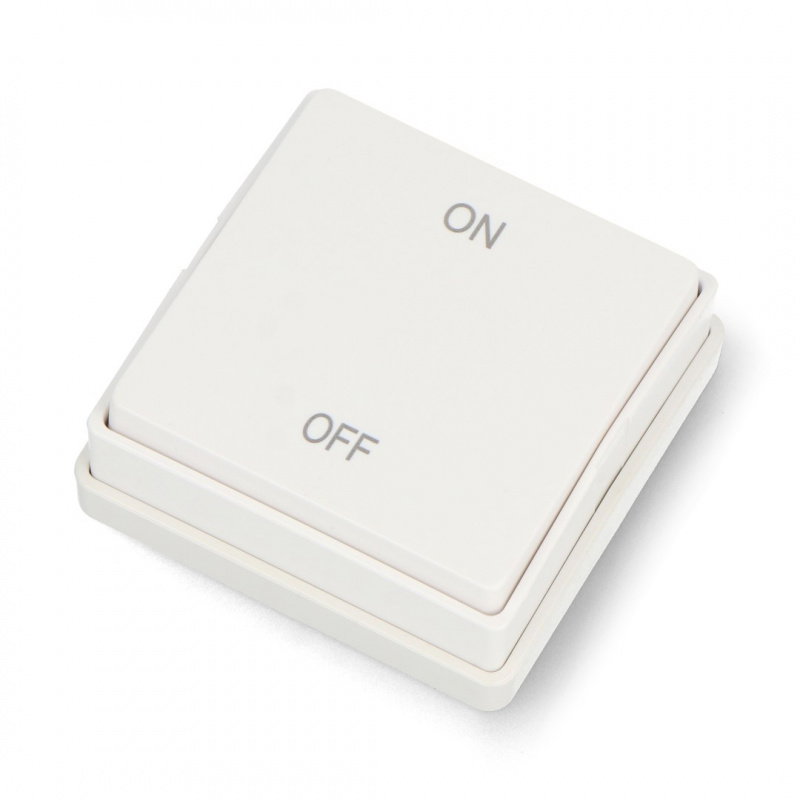

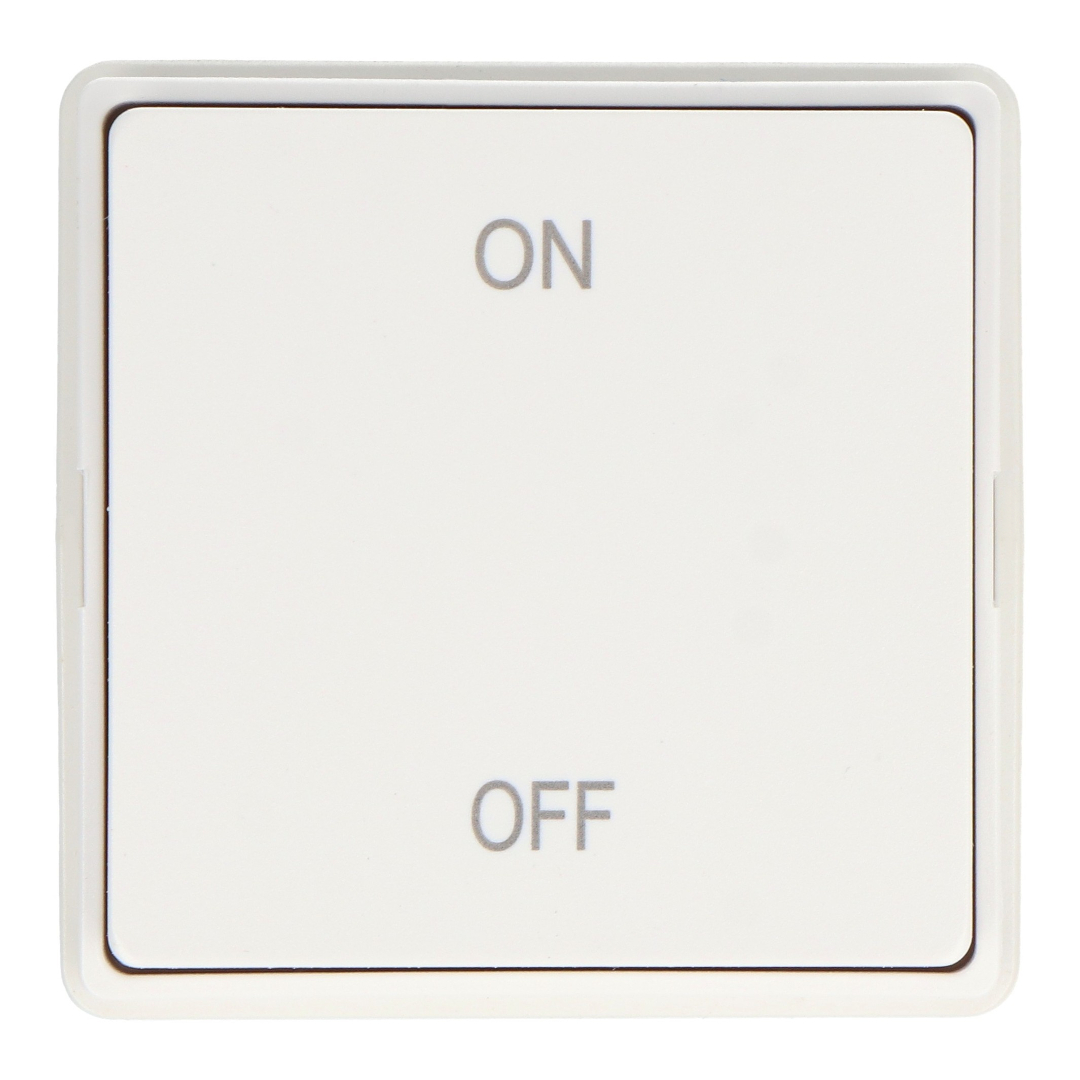

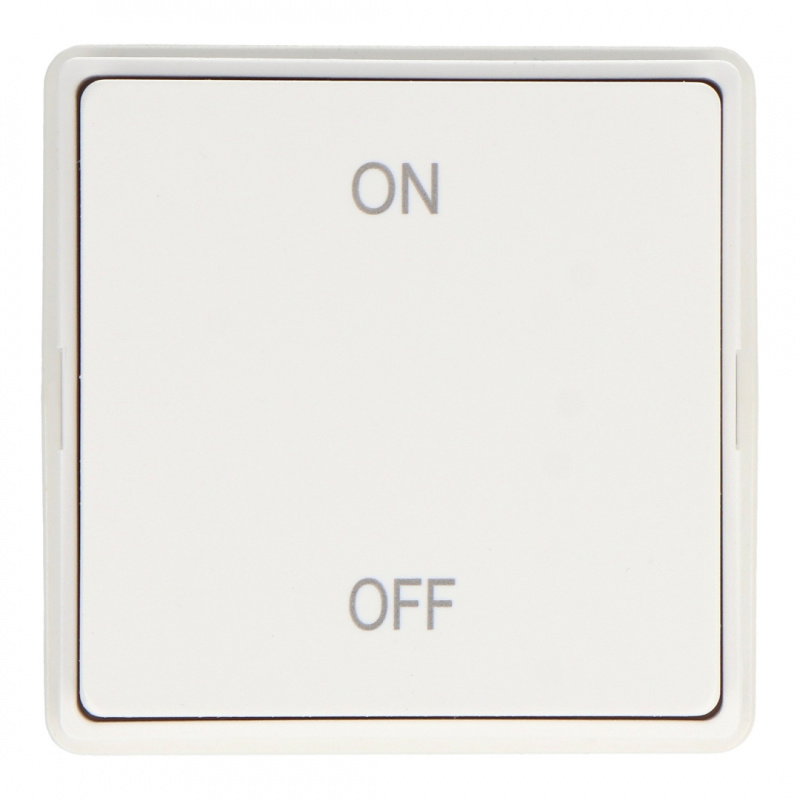

Remote control - single-channel kinetic button - RF 2.4 GHz for RTX modules - RTX RFR1K.
The transmitter does not require batteries - the energy needed to send the signal is generated when the button is pressed.
Main Features of the RF RTX Button
- Kinetic power : the energy needed to send the signal is generated by pressing the button, so the transmitter does not require batteries
- 2.4GHz RF Connectivity : Wireless communication with a compatible RTX receiver
- Range up to 15 m : allows you to conveniently control the device from another place in the room
- Single-channel monostable pushbutton : a bell-type design intended for momentary triggering of functions
- Supports up to three buttons : Up to three compatible buttons can be paired with one RF receiver.
- Two mounting options : can be mounted in a wall frame or on a metal surface using 4 built-in magnets
- Transmitter and receiver included : the set allows you to start working with a compatible RTX module
- RTX compatibility : the button works with RTX devices equipped with the appropriate RF connector
RTX RFR1K Kinetic Button Technical Specifications
- Number of channels: 1
- Button type: monostable, bell
- Radio communication band: 2.4 GHz
- Communication range: up to 15 m
- Transmitter power supply: kinetically generated energy when pressed
- Battery: not required
- Maximum number of buttons assigned to one receiver: 3

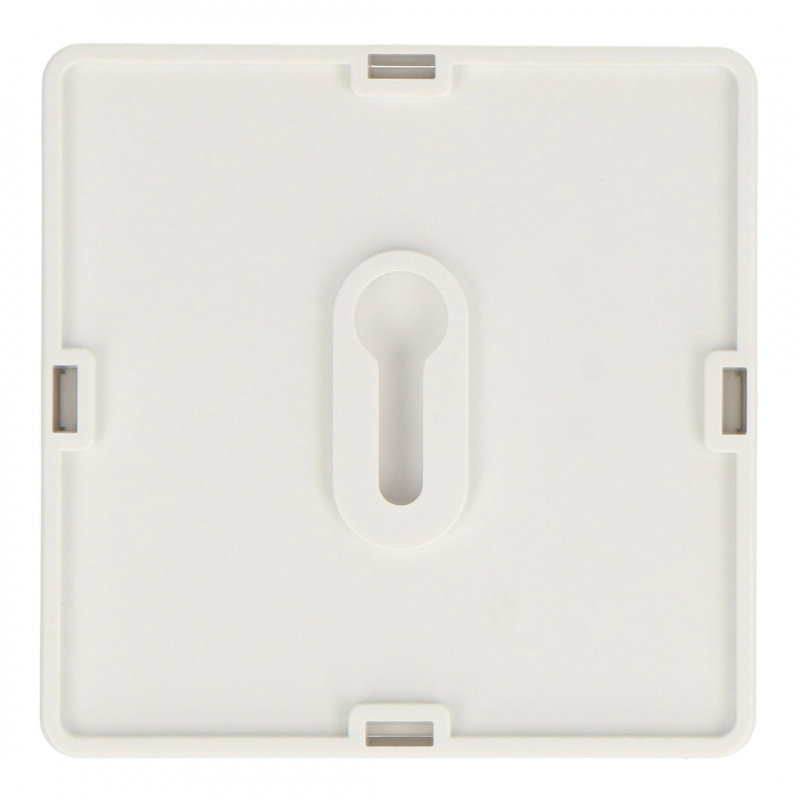

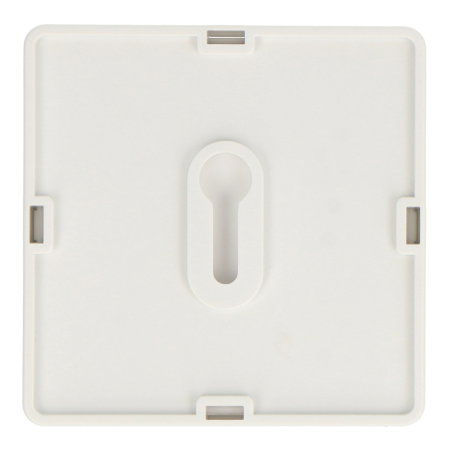

- Installation: wall frame or metal surface
- Magnetic mounting: 4 magnets in the housing
- Compatibility: RTX modules equipped with an RF connector
- Operating temperature: -10°C to 55°C
- Dimensions: 52 x 52 mm
RTX RFR1K Kit Contents
- Kinetic button - transmitter
- Radio module - receiver

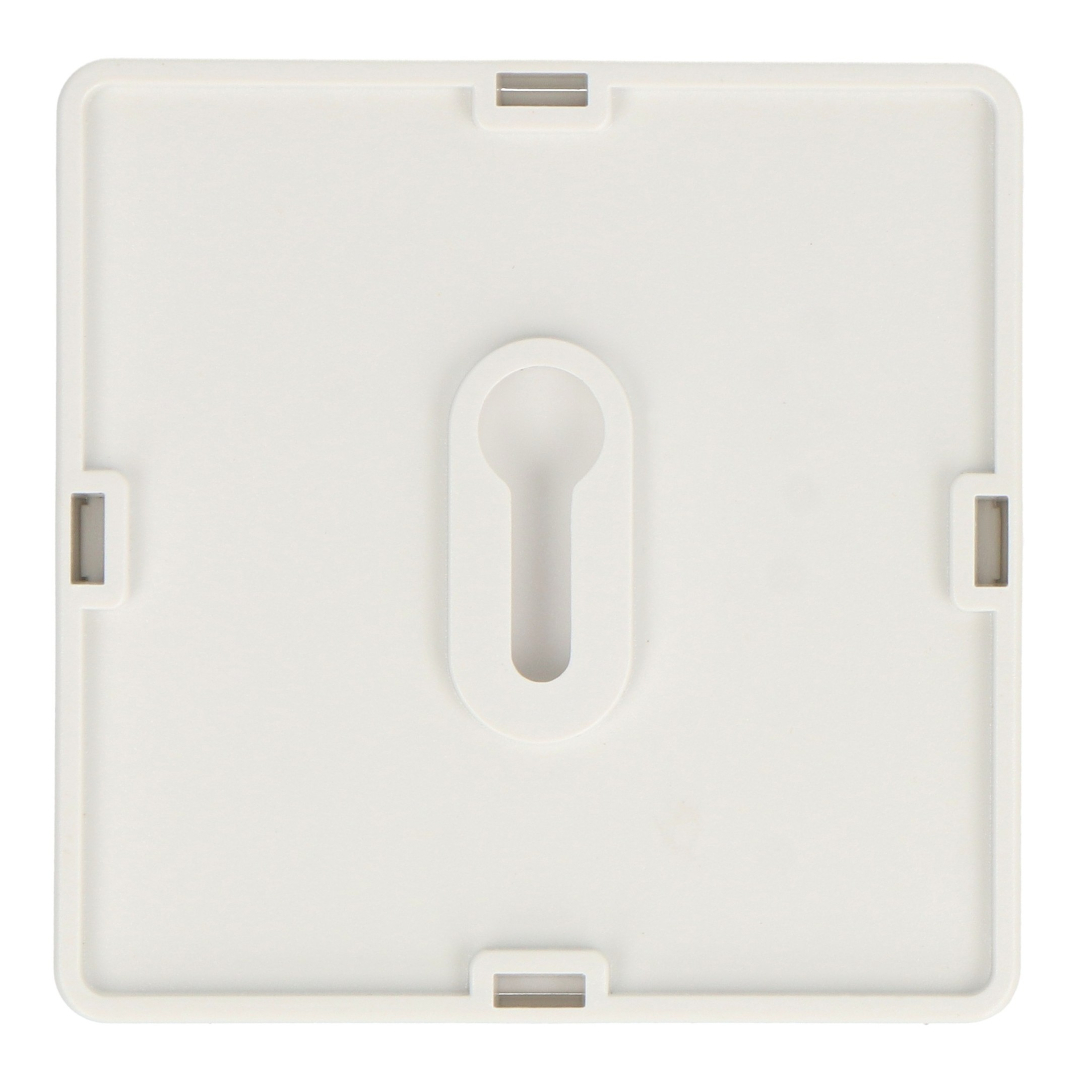

- Wall mounting frame

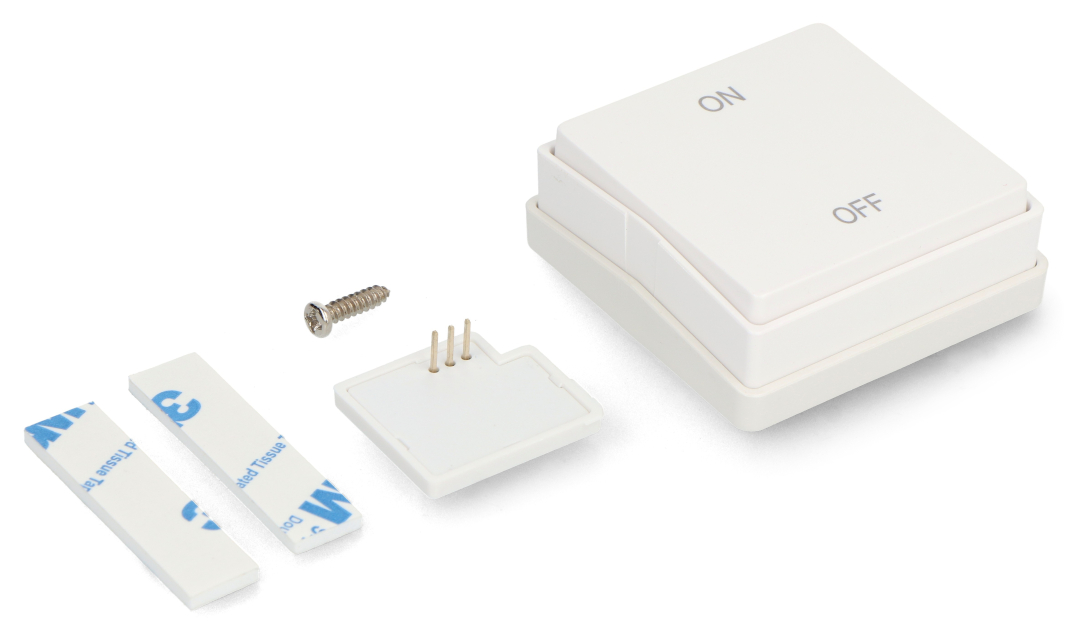

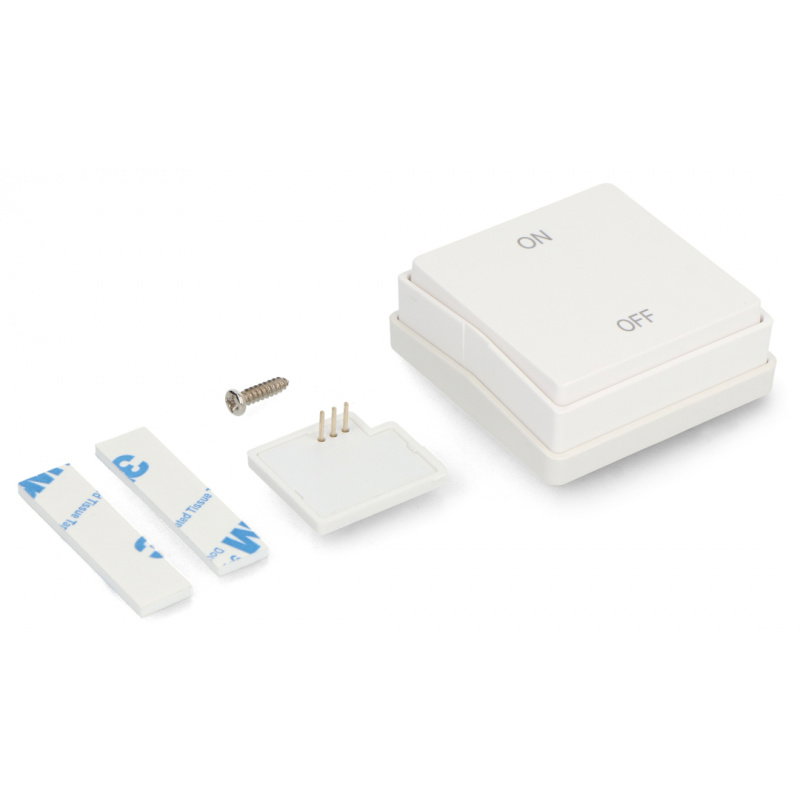

Elements included in the set.
