Product description: Remote control - dual-channel kinetic button - RF 2.4 GHz for RTX modules - RTX RFR2K
The RTX RFR2K kinetic pushbutton allows for convenient, wireless control of compatible RTX modules without the need for power or wired installation. When pressed, the kinetic mechanism generates the energy needed to transmit a 2.4 GHz RF radio signal, allowing the transmitter to operate without batteries or an external power source . The dual-channel design expands control options and is suitable for locations where a traditional wall pushbutton is not intended. Depending on the RTX actuator module used, the device can be used to control lighting , roller shutters, garage doors, or gates, among other things . The pushbutton can be mounted in the included wall frame or placed on a metal surface using the four magnets located on the bottom of the housing.

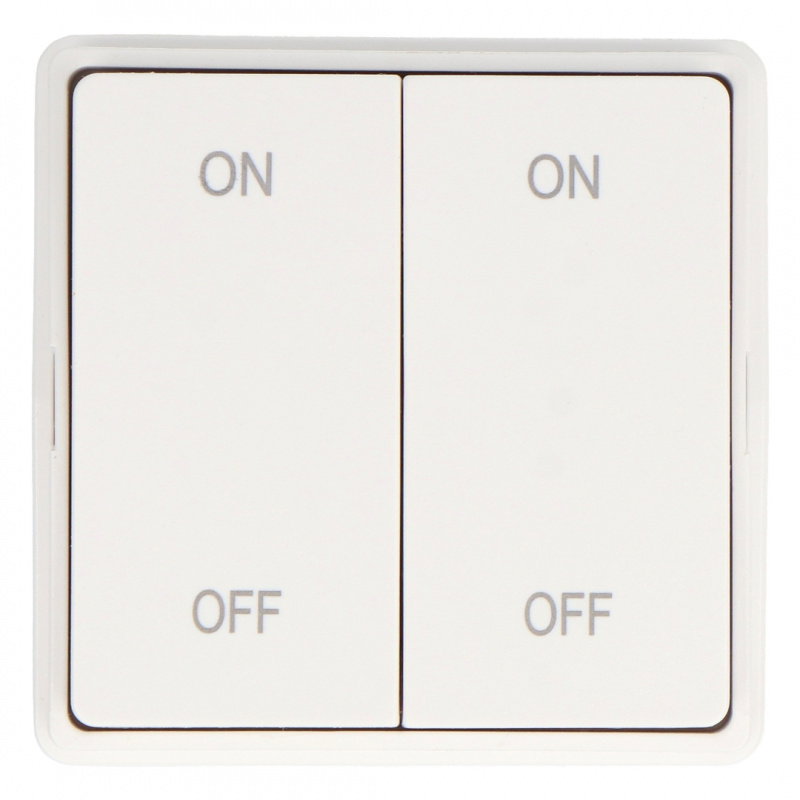

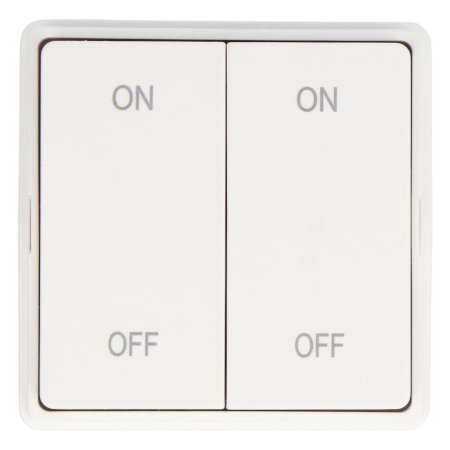

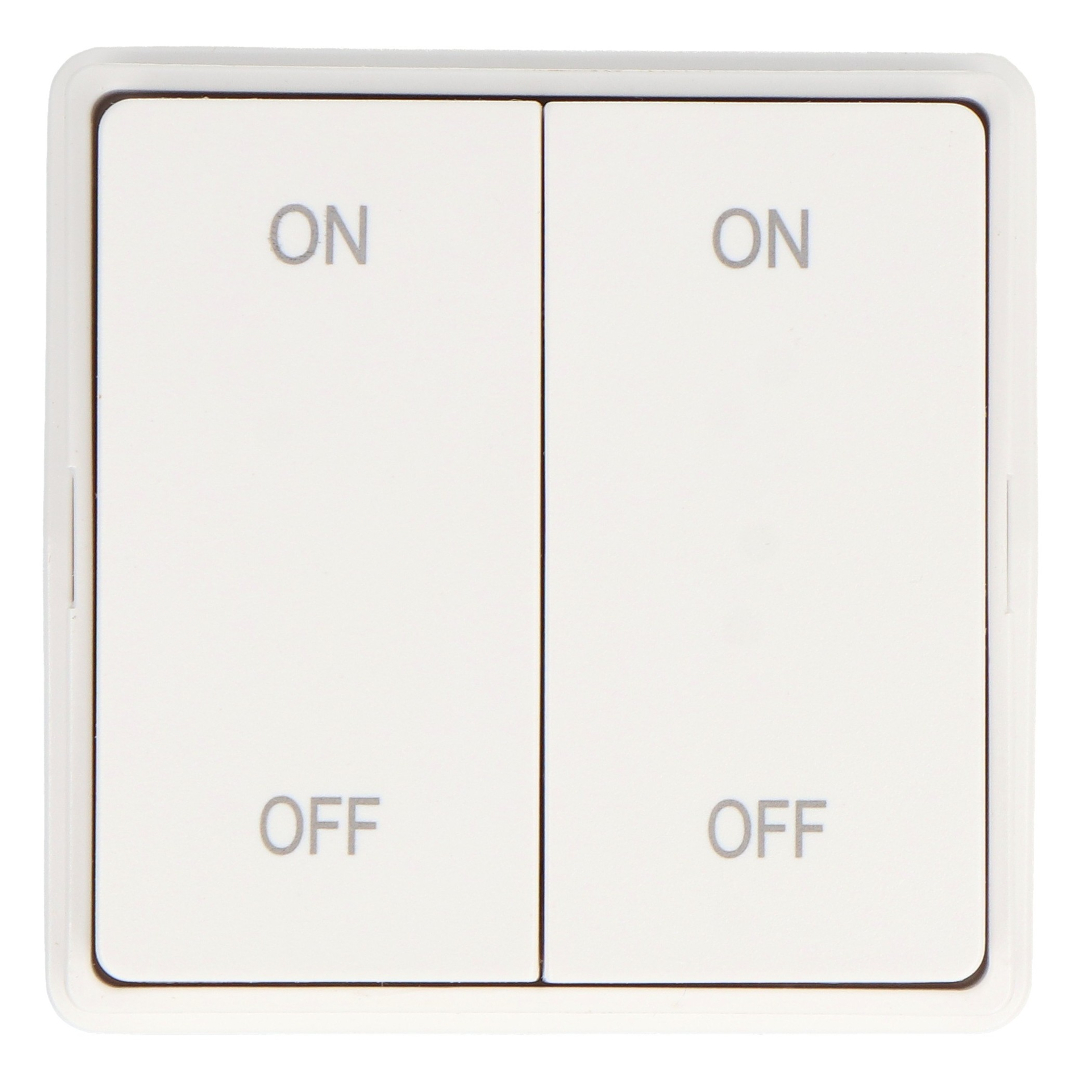

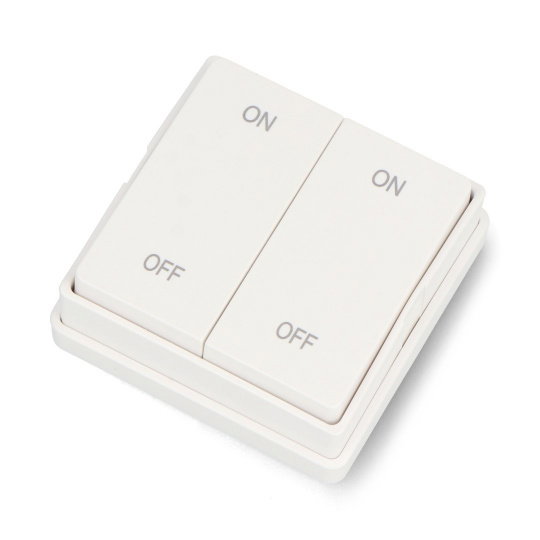

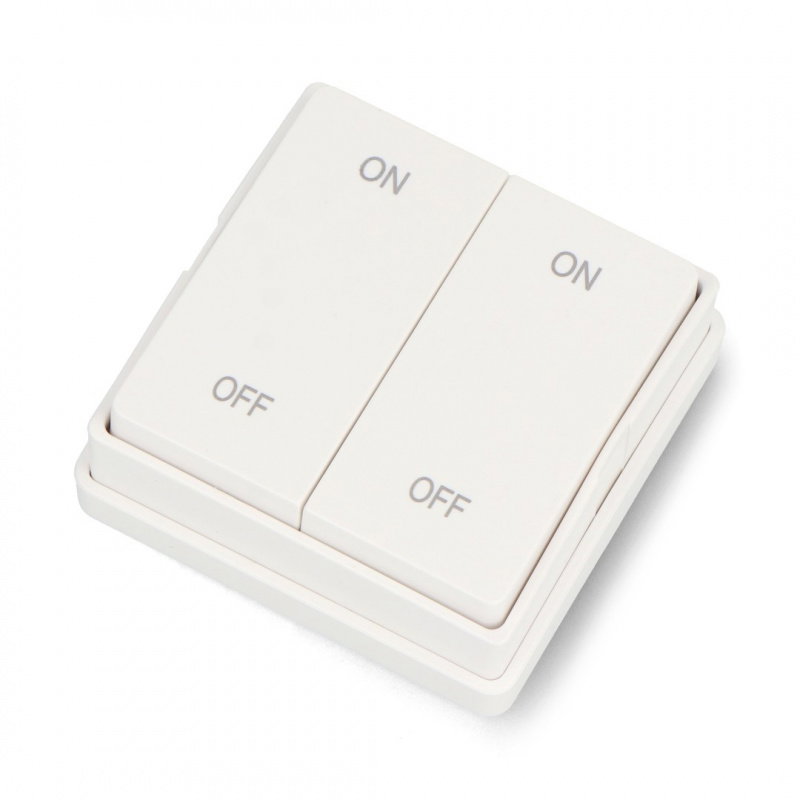

Remote control - dual-channel kinetic button - RF 2.4 GHz for RTX modules - RTX RFR2K.
The transmitter does not require batteries or additional power supply - the energy required to transmit the signal is generated when the button is pressed.
Main Features of the RF RTX Button
- Kinetic power : the energy needed to communicate with the receiver is generated when the button is pressed, so the transmitter does not require a battery
- Dual-channel design : dual monostable button increases control options for compatible RTX modules
- 2.4 GHz RF communication : wireless signal transmission to the included radio receiver
- Range up to 15 m : allows local control of the device without the need for additional cables
- Monostable button : a bell-type design intended for momentary triggering of functions
- Possibility to pair up to three buttons : one RF receiver can work with up to three compatible buttons
- Universal mounting : can be mounted in a wall frame or directly on a metal surface using 4 built-in magnets
- Transmitter and receiver included : a set designed to work with a compatible RTX execution module
- Compatibility with RTX devices : the button works with RTX brand modules equipped with the appropriate RF connector
RTX RFR2K Kinetic Button Technical Specifications
- Number of channels: 2
- Button type: double, monostable, bell
- Radio communication band: 2.4 GHz
- Communication range: up to 15 m
- Transmitter power supply: kinetically generated energy when pressed
- Battery: not required
- Maximum number of buttons assigned to one receiver: 3
- Installation: wall frame or metal surface
- Magnetic mounting: 4 magnets in the housing
- Compatibility: RTX modules equipped with an RF connector
- Operating temperature: -10°C to 55°C
- Dimensions: 52 x 52 mm
RTX RFR2K Kit Contents
- Kinetic button - transmitter
- Radio module - receiver

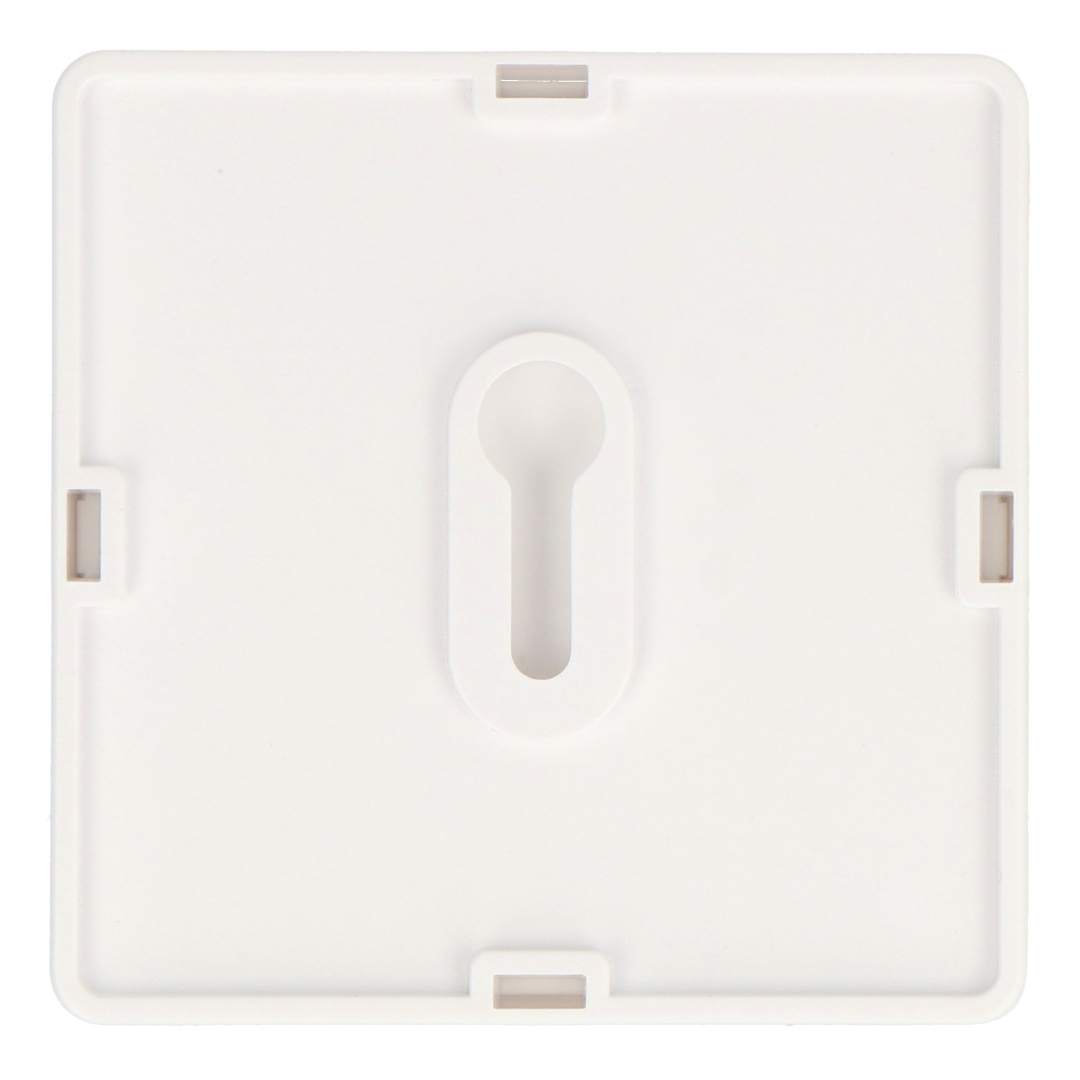

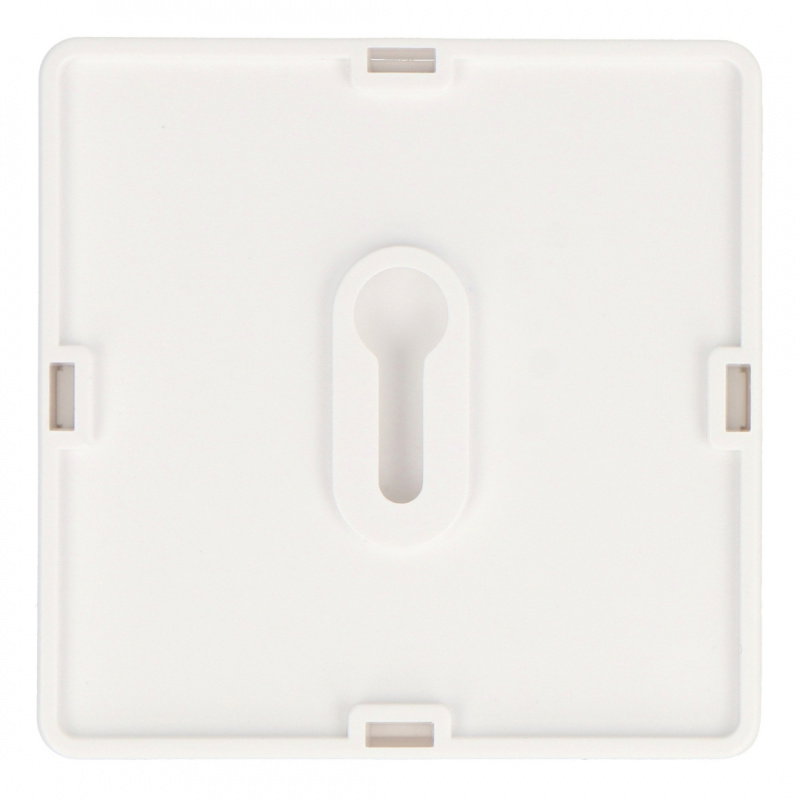

- Wall mounting frame

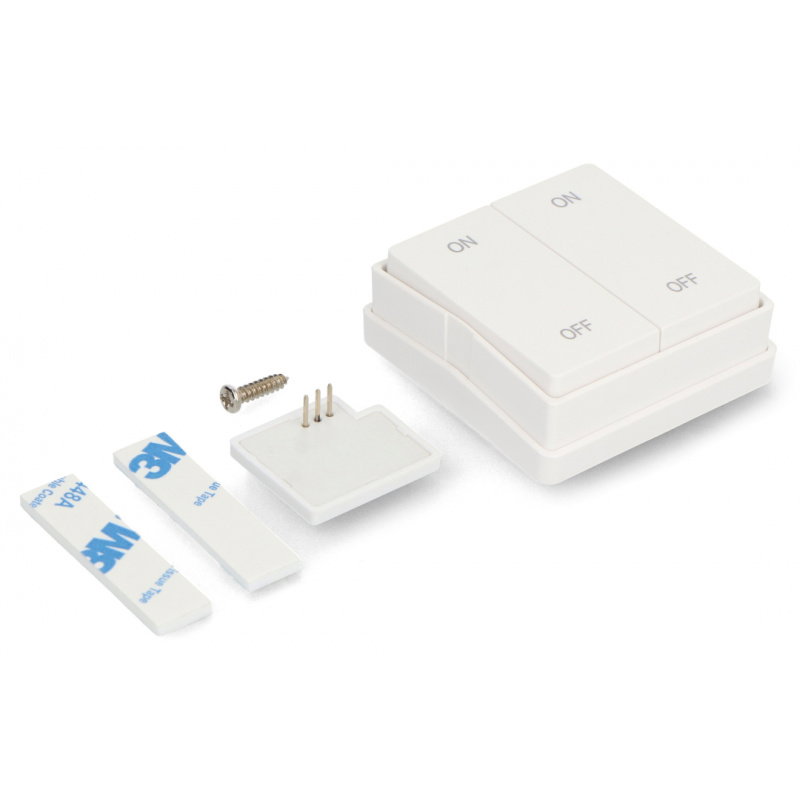

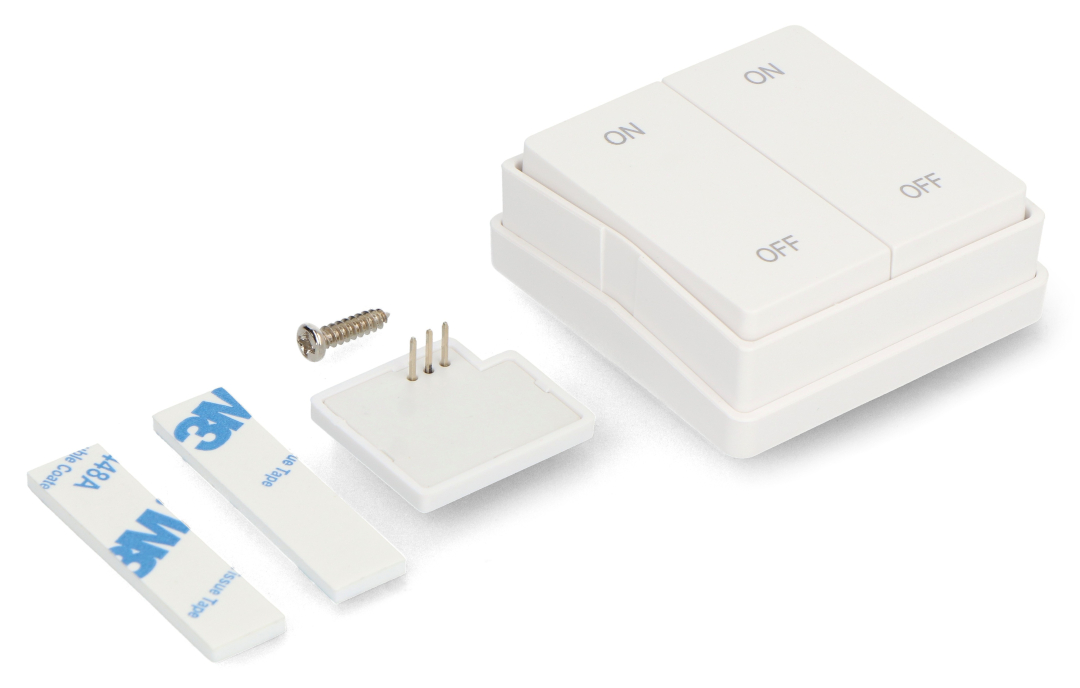

Elements included in the set.
