Product description: Type A case for Nvidia Jetson Orin - with camera holder - Waveshare 25334
The durable black aluminum housing has been designed especially for Nvidia Jetson Orin Nano and Jetson Orin NX users. Thanks to the designed ventilation holes and the possibility of installing a fan , the housing ensures excellent cooling efficiency, which is crucial for the stable operation of the minicomputer in various operating conditions. Additionally, the housing is equipped with a holder with dedicated holes for the camera , which allows for a tilt angle of up to 180° , enabling the installation of a single or double camera . The product is easy to assemble, and the precise workmanship ensures the attractive appearance of the finished set. Additionally, the housing has a built-in button with a power indicator and ensures stable positioning thanks to non-slip feet. The case also has cutouts that allow access to all connectors, including the 40-pin GPIO connector . DIN mounting holes make it easy to install the housing in a variety of application scenarios. The product includes all necessary assembly components and detailed instructions to facilitate assembly and installation.
Type A case for Nvidia Jetson Orin - with camera holder - Waveshare 25334.

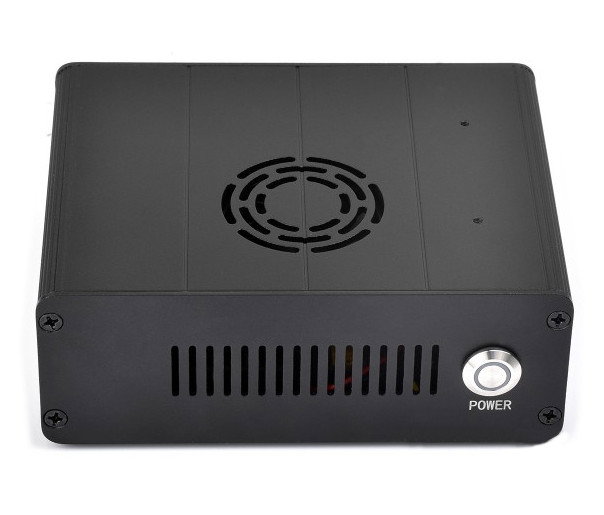

The housing is equipped with a button with a power indicator.
Special features of the housing
- Active and passive cooling: the case provides effective cooling thanks to the use of ventilation holes on three sides and dedicated holes on the top for the fan.
- Precise design: the housing is made of black aluminum and is characterized by a perfect fit and aesthetic appearance.
- Special camera holder: the holder allows the installation of a single or binocular camera, while ensuring the ability to adjust the rotation angle up to 180°.
- Flat ribbon cable included: The kit includes a flat ribbon cable that allows convenient use of the 40-pin GPIO connector.
- Non-heating silicone feet: thanks to silicone feet, the housing ensures stable positioning and maximum heat dissipation by limiting contact with the ground.
- Mounting holes: the housing is equipped with mounting holes for a DIN rail, which facilitates installation.
Technical specifications of the housing
- Type: housing
- Destiny: for Nvidia Jetson Nano/NX
- POWER utility button

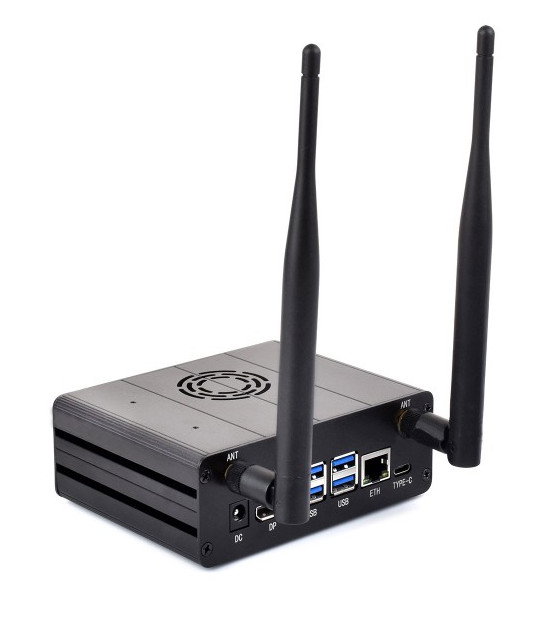

- Mounting for installing additional external antennas
- Cutouts for GPIO pins and peripheral ports
- Cooling type: passive (+ optional active when adding a fan)
- Material: aluminum
- Black colour
- Dimensions: 122 x 95 x 45 mm

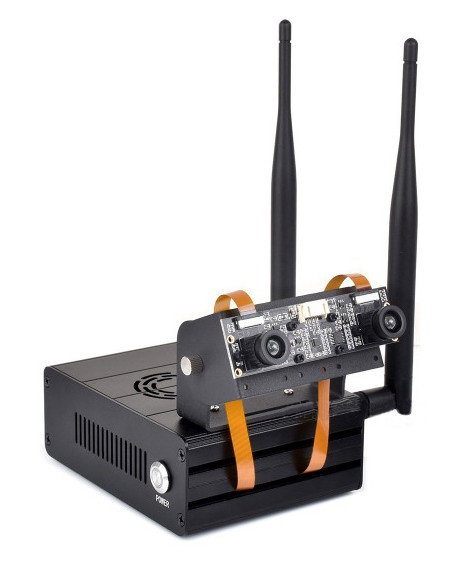

The housing has a handle with dedicated holes for the camera.

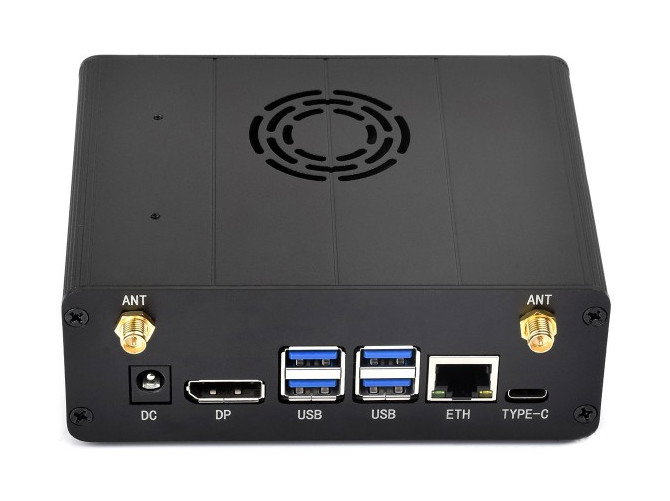

The housing allows easy access to all connectors.Set contents
- Aluminum housing (top and bottom + side plates) x 1
- Camera mount bottom mount x 1
- Camera mount top mount x 1
- Antenna(2pcs) x 1
- IPEX4 to SMA cable (2 pcs) x 1
- Button with 4 pin x 1 wires
- 2x 20 pin flat ribbon cable, 55 mm long x 1
- Screwdriver x 1
- Screws and accessories set x 1
