Product description: BIQU Panda Status - smart RGB LED strip for Bambu Lab A1 / P1 / X1 3D printers
BIQU Panda Status is a modern RGB light strip inspired by the H2D style, designed specifically for users of Bambu Lab P1P, P1S, X1C, X1E, and A1 3D printers . The system allows visual monitoring of the printer's status with dynamic lighting effects informing about print progress, errors, file downloads, and standby mode. The built-in ESP32-C3 module with WiFi communication allows for convenient lighting configuration via a web browser without the need to install additional software. The high-temperature-resistant design allows the strip to operate directly on the 3D printer's build plate. Magnetic mounting and USB Type-C power ensure quick and aesthetic setup.
BIQU Panda Status - smart RGB LED strip for Bambu Lab A1 / P1 / X1 3D printers.
RGB LED strip designed for Bambu Lab P1P, P1S, X1C, X1E and A1 3D printers.
Main features of the LED strip for Bambu Lab printers

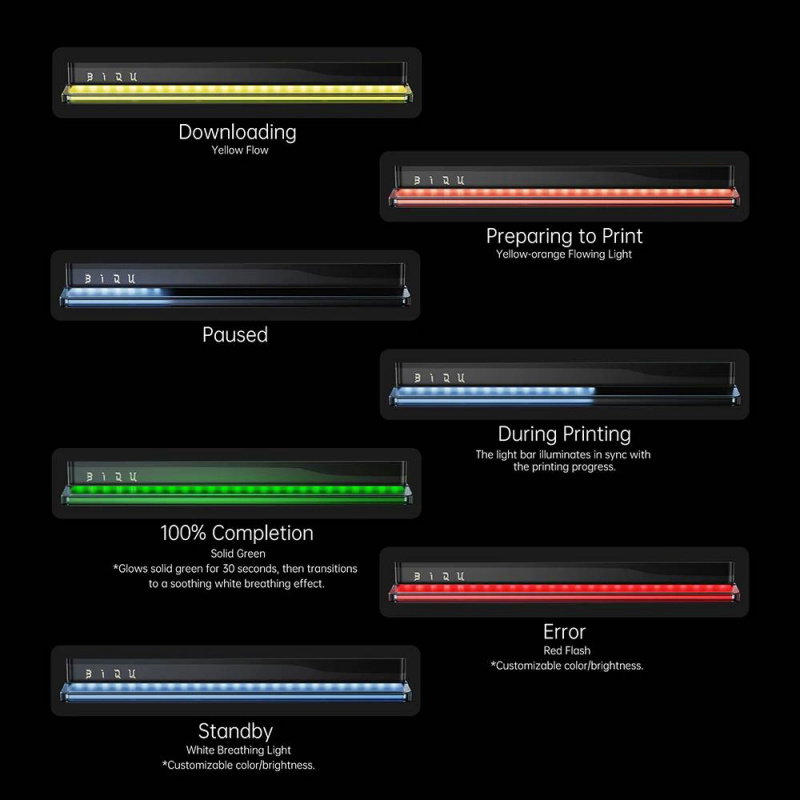

- 3D printer status visualization : LED backlight informs about print progress, errors, pause and ready status
- Dynamic RGB effects : colorful animations show print completion levels - 30%, 60% and 100%
- Rhythm-Light Sync mode : the backlight responds to ambient sound thanks to the built-in microphone
- WiFi control : configure colors, brightness and effects using the intuitive Web UI
- Compatibility with Bambu Lab printers : supports P1P, P1S, X1C, X1E and A1 models (A1 mini is not supported)
- Durable construction : housing resistant to high operating temperatures of the work table
- Magnetic mounting : quick installation using 3M tape and magnetic mount
- ESP32-C3 module : stable wireless communication and OTA firmware update capability
- USB Type-C power supply : convenient connection using the popular interface
Technical specifications of the LED strip
- Compatibility: Bambu Lab P1P, P1S, X1C, X1E, A1
- Microcontroller: ESP32-C3-MINI
- Number of LEDs: 25
- Communication: WiFi 2.4 GHz
- Power supply: USB Type-C 5V
- Logic voltage: 3.3 V
- RGB interface: PH2.0 3-pin
- Maximum current consumption: 540 mA
- Standby current consumption: 90 mA
- Supported effects: print status, music synchronization, RGB effects
- Controller operating temperature: below 90°C
- LED strip operating temperature: below 140°C
- Storage temperature: below 45°C
- Cable length: 1 m

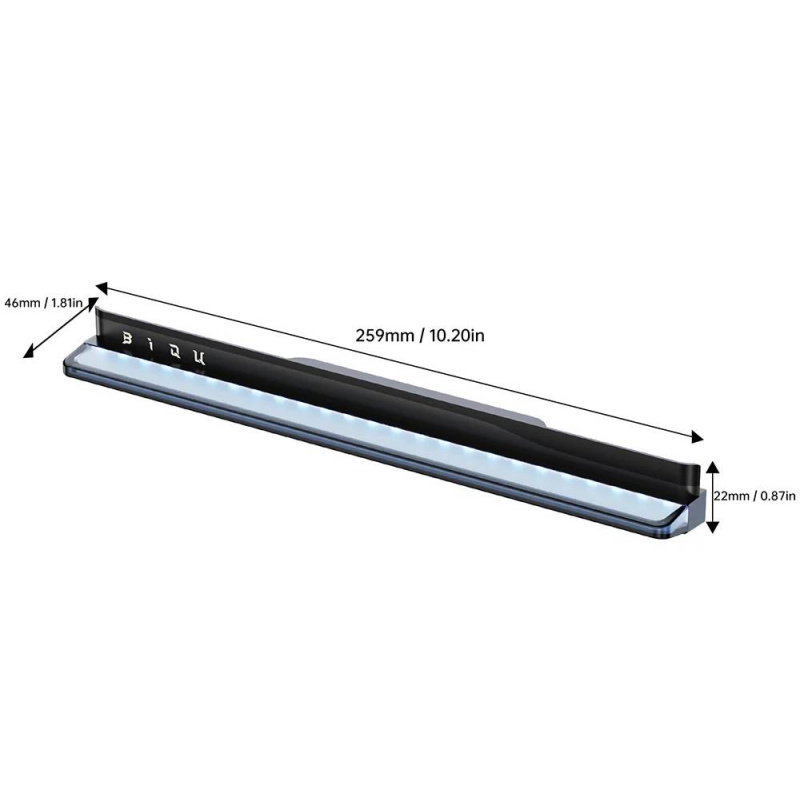

- Dimensions: 259 x 46 x 22 mm

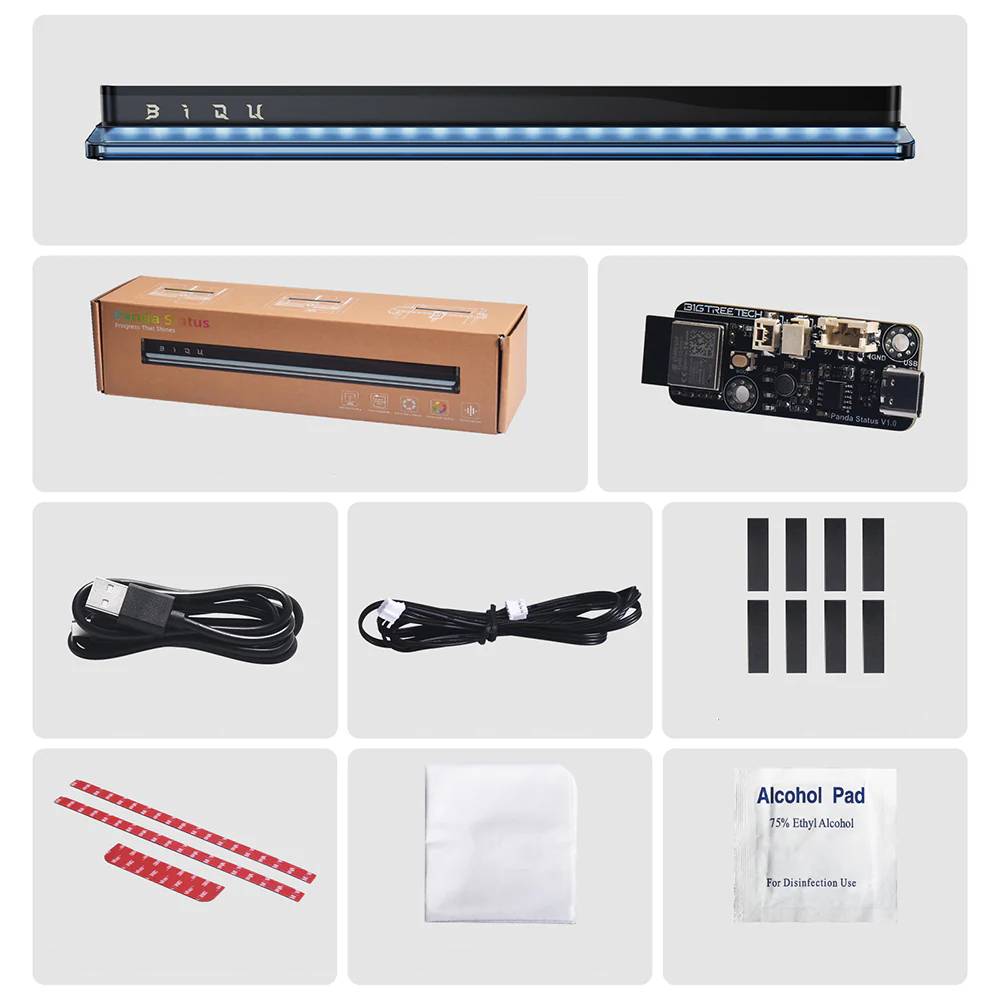

Contents of the set
- 1x BIQU Panda Status
- 1x Controller
- 1x USB Type-C power cable
- 1x Connection cable 1 m
- 8x Acetate tape
- 2x Double-sided 3M tape
- 1x Cleaning cloth
- 1x Alcohol wipe
Elements included in the set.
