Product description: Filament Rosa3D Refill PETG Structure HS 1.75 mm 1 kg - Light Gray
Filament Refill PETG Structure HS in light gray is a high-quality material that works great in 3D printing. PETG, or polyethylene terephthalate with glycol, is known for its excellent shock resistance, high durability and resistance to chemicals and high temperatures. The offered Refill filament with a diameter of 1.75 mm weighs 1 kg . It is characterized by a low level of shrinkage during printing, which translates into dimensional accuracy and print quality. Additionally, it is odorless, resistant to stretching, biodegradable and safe for the environment . Its properties make it ideal for creating models with complex details and for the production of functional parts that require solidity and resistance to damage. Refill is fully compatible with printers that are not equipped with locks that prevent the use of cartridges from external suppliers.

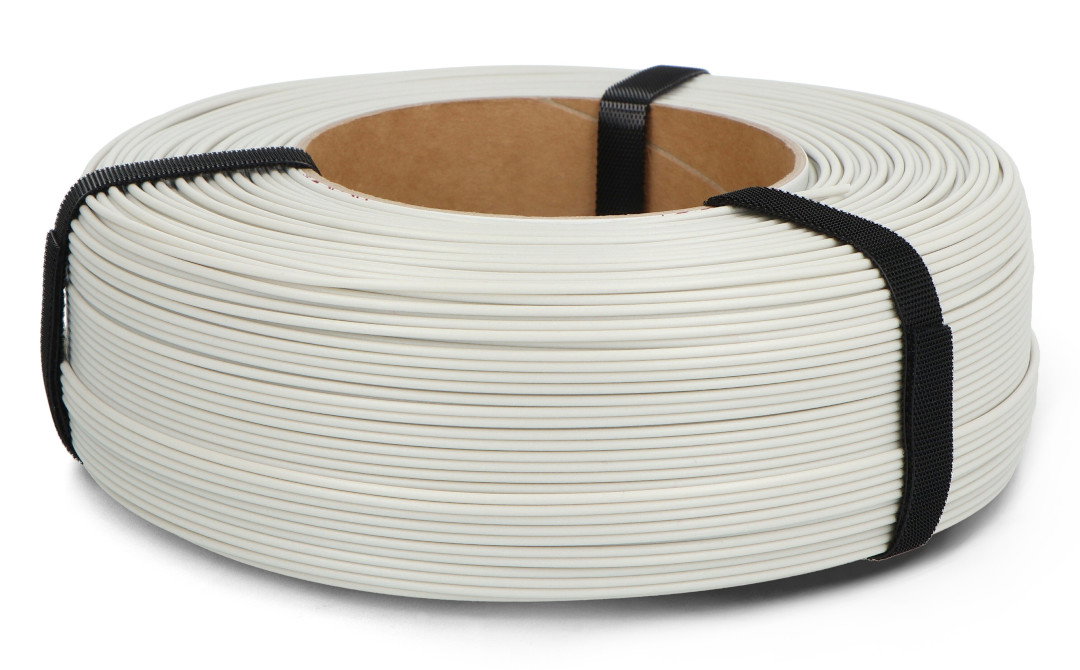

Rosa3D Refill PETG Structure HS filament 1.75 mm 1 kg - Light Gray.
Refill filament with a diameter of 1.75 mm, light gray color.Properties of PETG Structure HS
- High durability: PETG is shock-resistant, ensuring long-lasting durability of your prints.
- Chemical resistance: excellent resistance to chemicals, making the filament ideal for a variety of applications.
- Low shrinkage: minimal shrinkage during printing, ensuring precise dimensions and minimal deformation issues.
- Ease of printing: the filament is easy to use, which allows you to obtain high-quality prints without much difficulty.
Filament Applications
- Perfect for printing complex models that require precise detail reproduction.
- Perfect for the production of components that must be resistant to mechanical and chemical damage.
- Used in prototypes and engineering designs where material durability and resistance are important.
- Also suitable for decorative and aesthetic projects.
Suggested Filament Printing Parameters
| Printing temperature | From 230°C to 260°C |
| Table temperature | From 70°C to 90°C |
| Print cooling | From 20% to 60% |
| Closed printing chamber | Not required |
Due to differences in printer design, the above data should be treated as guidelines, and the appropriate values must be determined experimentally.
Technical specifications and physical properties of Rosa3D Refill PETG Structure HS filament
| PARAMETER | RANGE |
|---|---|
| Filament diameter | 1.75mm |
| Color | Light Gray |
| Material | PETG |
| Head temperature | From 230°C to 260°C |
| Table temperature | From 70°C to 90°C |
| Density | From 1.15 to 1.2 g/cm³ |
| Smell | Odorless |
| Tensile elongation | 3.8% (ISO 527-2) |
| Tensile strength (to break) | 48 MPa (ISO 527-2) |
| Heat distortion temperature | 68°C (ISO 75-2/B (0.45 MPa)) |
| Notched Izod impact strength | ≤ 4.1 kJ/m2 (ISO 180/A (-30°C)) |
| Vicat softening point | 78°C (ISO 306/A50) |
| Diameter tolerance | +/- 0.05mm |
| Packaging | Printed cardboard |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Net weight | 1kg |
