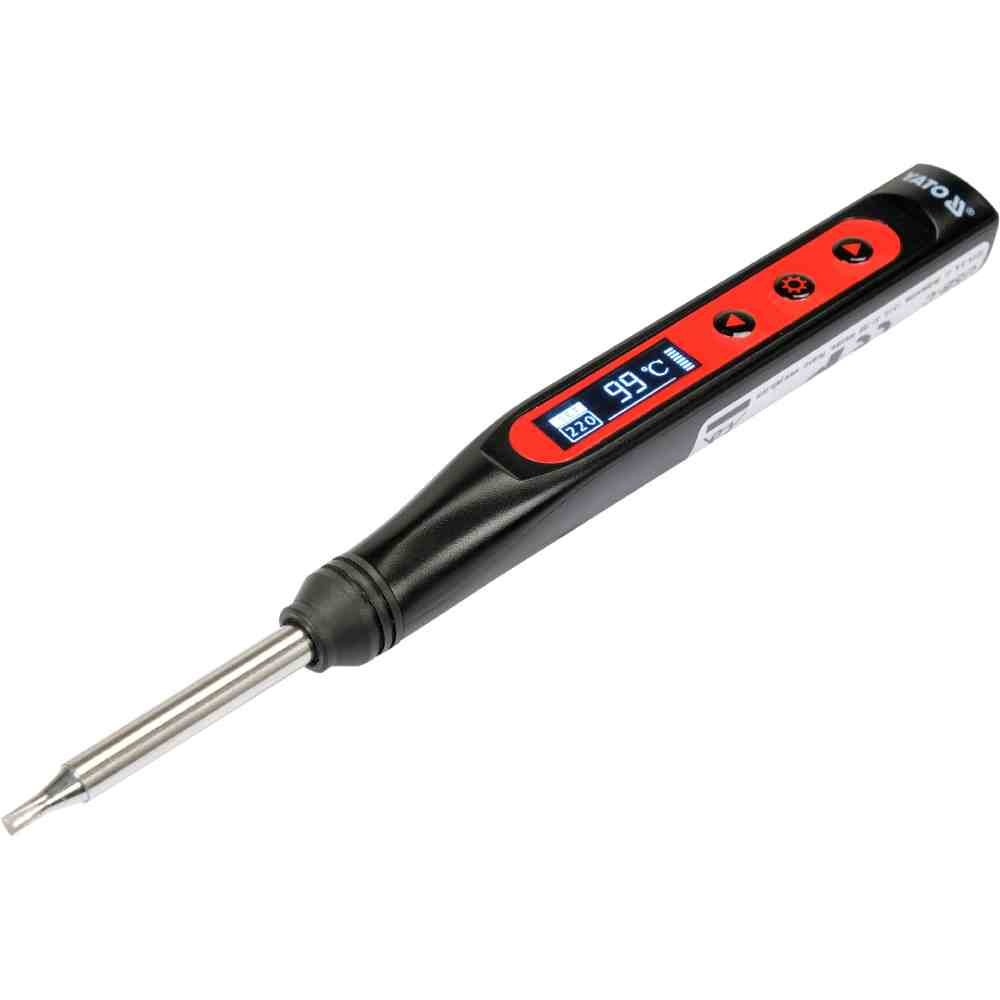

Product description: Portable digital soldering iron USB C - T12 tip - Yato YT-82490
The Yato YT-82490 is a portable digital soldering iron designed for use with popular T12 soldering tips. These tips combine a heating element, temperature sensor, and soldering tip in a single design, allowing for very rapid heating and effective temperature stabilization. Using a 65W fast charger, the tip can heat up to 350°C in approximately 9 seconds.
The soldering iron is powered via USB Type-C and works with power sources ranging from 9V to 24V and with a current output of over 1.5A. It can be powered by QC or PD phone chargers, laptop power supplies, power banks, Li-Ion battery packs, select Yato travel adapters, and car batteries. The built-in OLED display provides information on temperature, power, supply voltage, and operating settings, making the device convenient for both beginners and more advanced users.
Portable USB C digital soldering iron - T12 tip - Yato YT-82490.
Detailed features of the Yato YT-82490 soldering iron
- T12 tip system: integrated tip design enables rapid heating and very efficient temperature stabilization
- Powered by USB Type-C: The soldering iron can work with QC, PD chargers, power banks and other power sources from 9V to 24V DC
- Power from 18 W to 65 W: the device adapts its operating capabilities to the power source used
- Fast heating: Reaches 350°C in approximately 9 seconds with a 65W charger
- Wide temperature range: adjustable from 90°C to 480°C allows you to work with different binders and types of components
- Temperature stability ±2°C: facilitates precise soldering and improves repeatability
- Hibernation function: temporary sleep mode increases safety and reduces tip wear
- Temperature calibration: allows you to adjust the device's readings to actual operating conditions
- OLED display: shows the set and actual temperature, power, temperature unit, supply voltage and operating messages
Technical specifications
- Tip type: T12
- Tip included: T12-D24
- Power: from 18 W to 65 W
- Operating temperature: 90°C to 480°C
- Maximum tip temperature: 90°C to 480°C
- Temperature stability: ±2°C
- Warm-up time: 5 s to 10 s
- Heating time to 350°C: about 9 seconds when powered by a 65W charger
- Functions: hibernation, temperature calibration, temperature stabilization
- On/Off switch: yes
- Display type: OLED
- Power supply: USB Type-C
- Supply voltage: 9 V to 24 V DC
- Maximum voltage: 24V DC
- Maximum current: 3 A
- QC/PD power supply standard: 9V/1.5A, 12V/2A, 15V/2.5A, 20V/3.25A

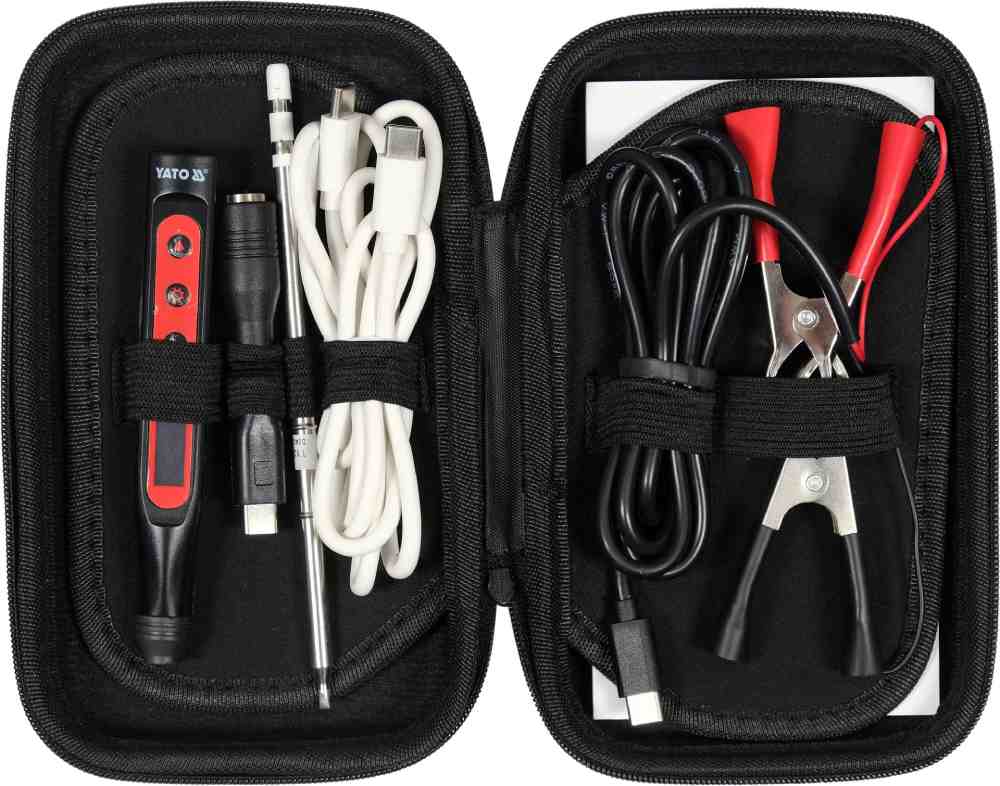

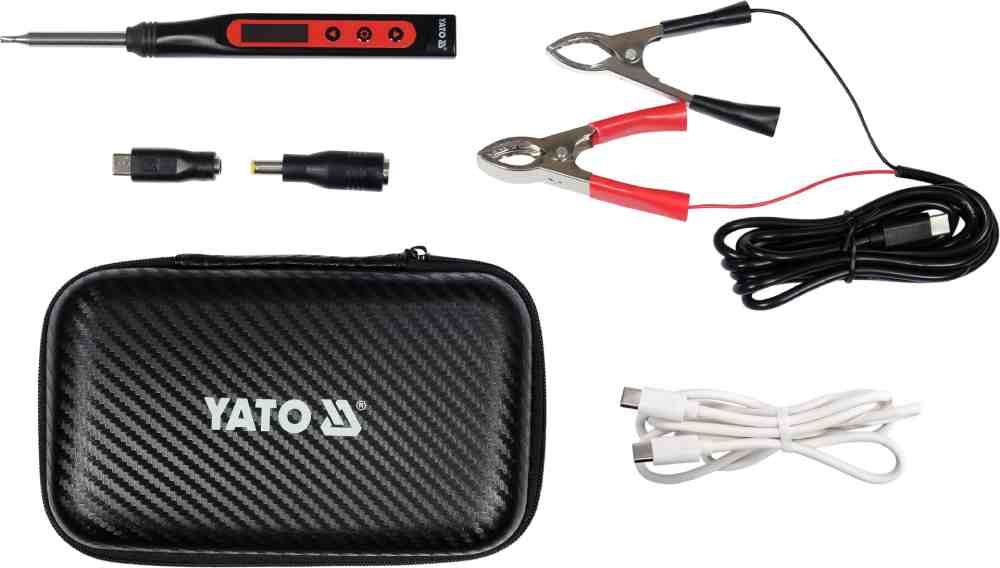

Contents of the set
- Yato YT-82490 Portable Digital Soldering Iron
- T12-D24 soldering tip
- USB Type-C - USB Type-C cable
- USB Type-C Cable - Crocodile Clips
- USB Type-C Male - DC 5.5 x 2.5mm Female Adapter
- DC 5.5 x 2.5 mm male - DC 7.4 x 5.0 mm female adapter
- 1.5 m silicone-insulated cable with USB Type-C connector and alligator clips for car batteries
- Zippered case
