The multimeter is designed only for low-voltage circuits up to 36 V. The device should not be used to measure mains installations or other systems exceeding this limit.
Product Description: Smart Portable Soldering Iron with Multimeter and Rechargeable Battery - USB Type-C PD/QC - 75W - ZOYI ZT-N2
The ZOYI ZT-N2 is a compact tool designed for electronics repairs, prototyping, and field service. It combines a temperature-controlled soldering iron with a digital multimeter , allowing you to both make soldered connections and diagnose low-voltage electronic circuits. The soldering iron offers temperature control from 100°C to 450°C and works with interchangeable T65 tips , allowing you to choose the tip for the job at hand. The built-in multimeter measures AC/DC voltage up to 36 V, resistance up to 40 MΩ, and performs a continuity test with an audible alarm at resistance below 47 Ω. The soldering iron can be powered by an external USB Type-C power source or by the built-in 800 mAh lithium-polymer battery . A clear OLED display shows temperature, measurement parameters, and system settings, while automatic sleep and shutdown functions help reduce energy consumption and enhance work safety.

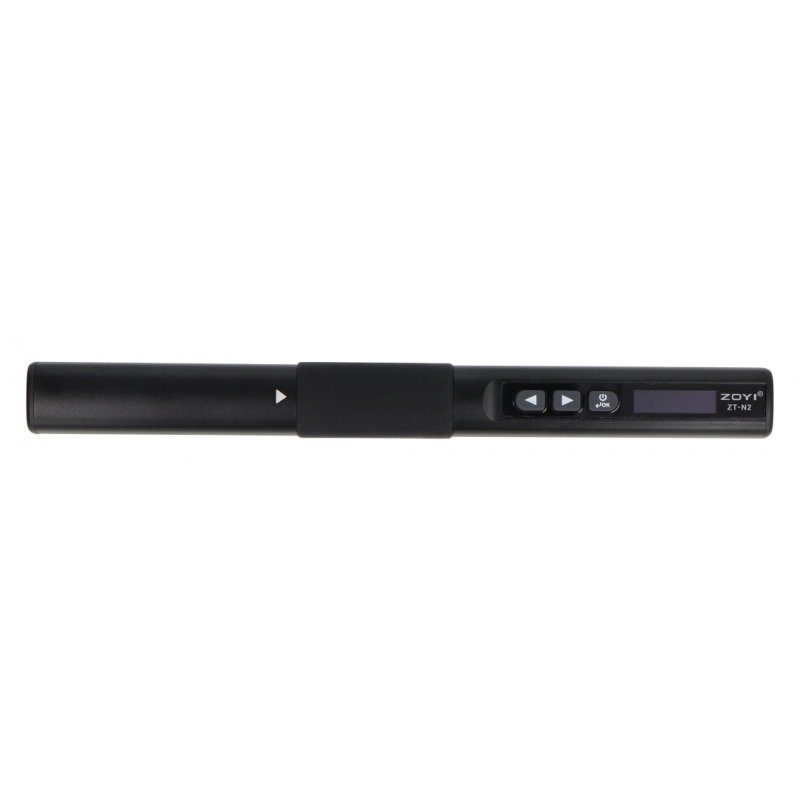

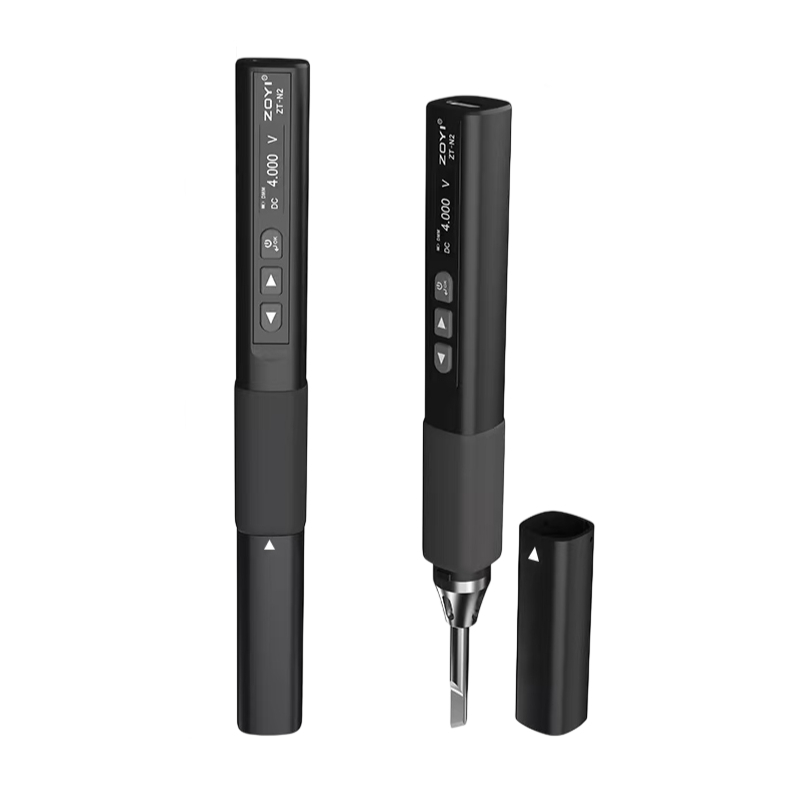

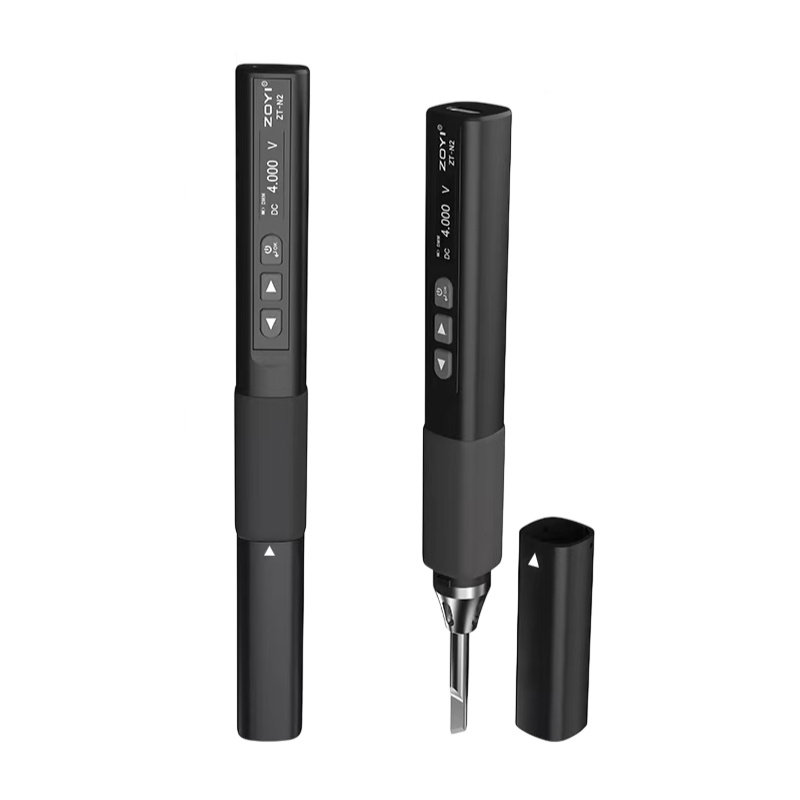

Smart Portable Soldering Iron with Multimeter and Rechargeable Battery - USB Type-C PD/QC - 75W - ZOYI ZT-N2.

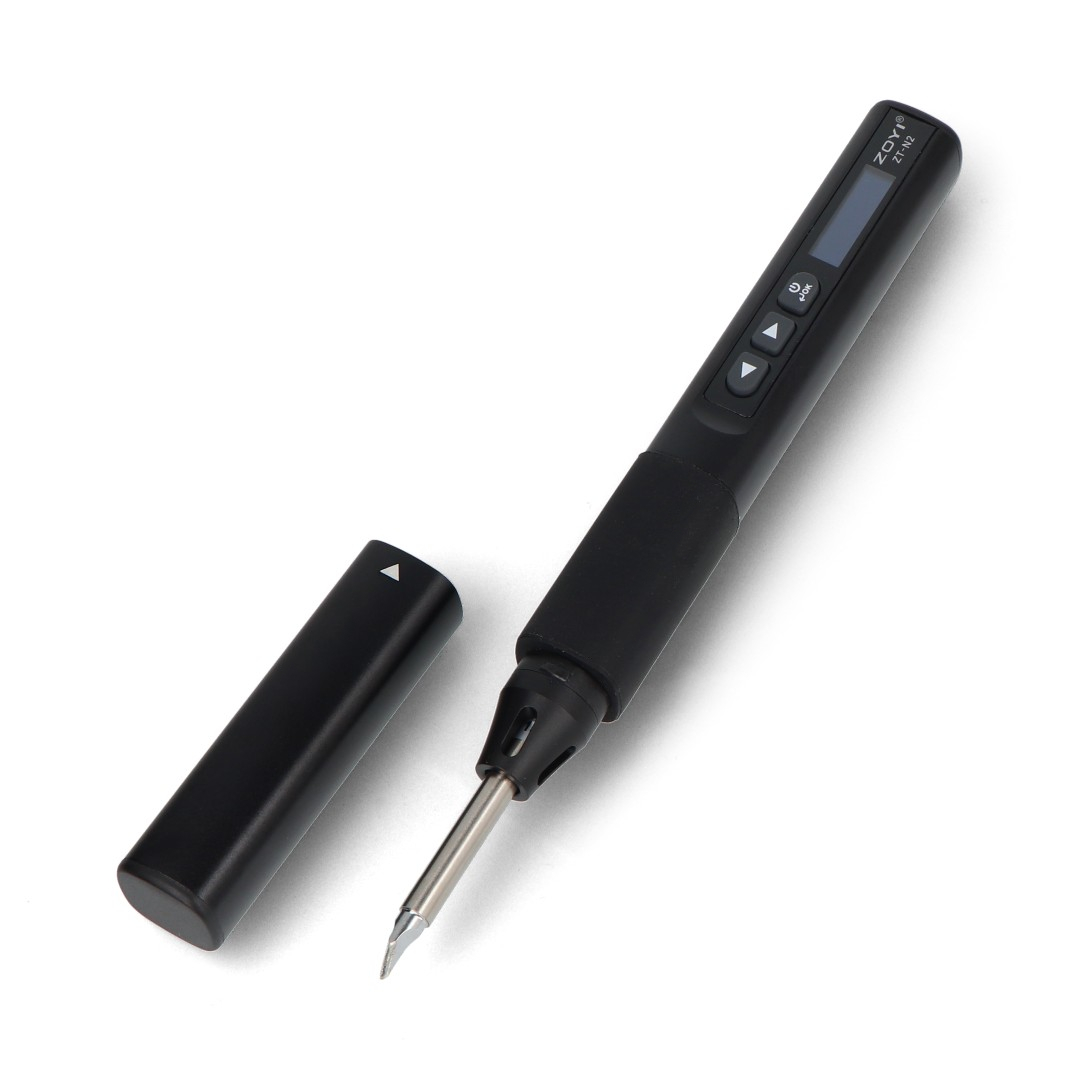

The soldering iron is compatible with T65 tips.
Main features of a portable soldering iron
- 2-in-1 design : combines a smart soldering iron and a digital multimeter in one compact device
- Power up to 75 W : allows for quick tip heating with a suitable power source
- Temperature adjustment from 100°C to 450°C : allows you to adjust the temperature to the type of binder and the work being performed
- USB Type-C Power Supply : Supports input voltage from 5V to 20V
- PD/QC Support : Ensures compatibility with popular fast charging standards
- Built-in 800 mAh battery : allows operation without external wired power supply
- OLED display : shows temperature, measurement values and device settings
- AC/DC voltage measurement : allows voltage control in circuits up to 36 V
- Resistance measurement up to 40 MΩ : allows you to diagnose components and connections in electronic systems
- Continuity test : the buzzer sounds when the resistance is below 47 Ω
- Auto-ranging : simplifies basic multimeter measurements
- Sampling rate 3 times per second : ensures smooth result refreshment
- Automatic sleep mode for the soldering iron : after 5 minutes of inactivity, the temperature is lowered
- Auto shut-off : time can be set to 5, 10, 15 or 20 minutes or disable this function
- Temperature calibration : allows you to correct readings after changing the tip or in case of measurement discrepancies
- Interchangeable tips and measuring probes : increase versatility and facilitate the use of the device
- Compatibility with T65 tips : allows the use of replaceable soldering tips of this type
- Aluminum body with silicone grip : provides a compact and comfortable design for handheld operation
Practical applications of a soldering iron with a multimeter
The ZOYI ZT-N2 is perfect for electronics repairs, wire soldering, prototyping, and servicing low-voltage devices . By combining a soldering iron and multimeter, a single tool can be used to make a connection and then later check voltage, resistance, or circuit continuity. A built-in rechargeable battery allows for emergency soldering outside the workshop , while USB Type-C power allows for use with a compatible power supply or power bank. The device is particularly suitable for working with consumer electronics, prototype modules, microcontroller systems, and other circuits with a voltage of up to 36V.
Contents of the set
- ZOYI ZT-N2 soldering iron with multimeter
- Soldering tip compatible with the T65 system
- Measuring probes
- Soldering iron stand
- USB Type-C cable

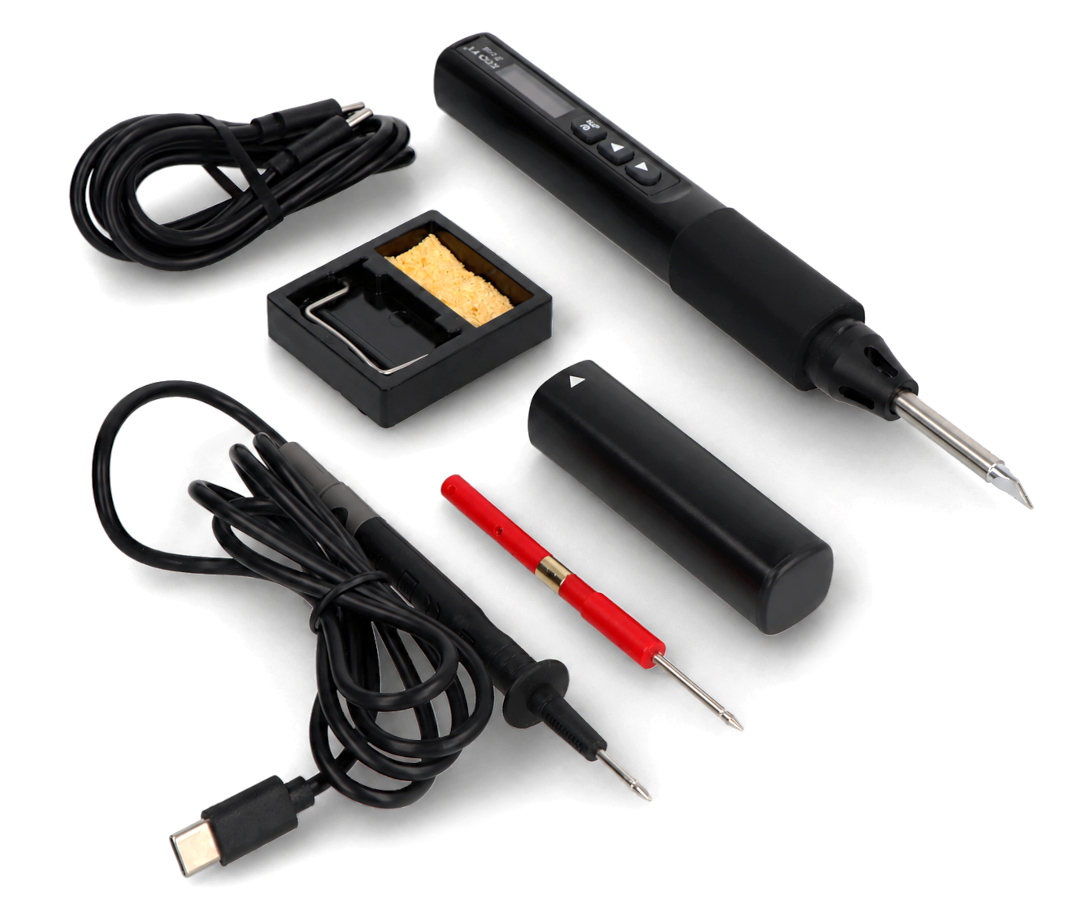

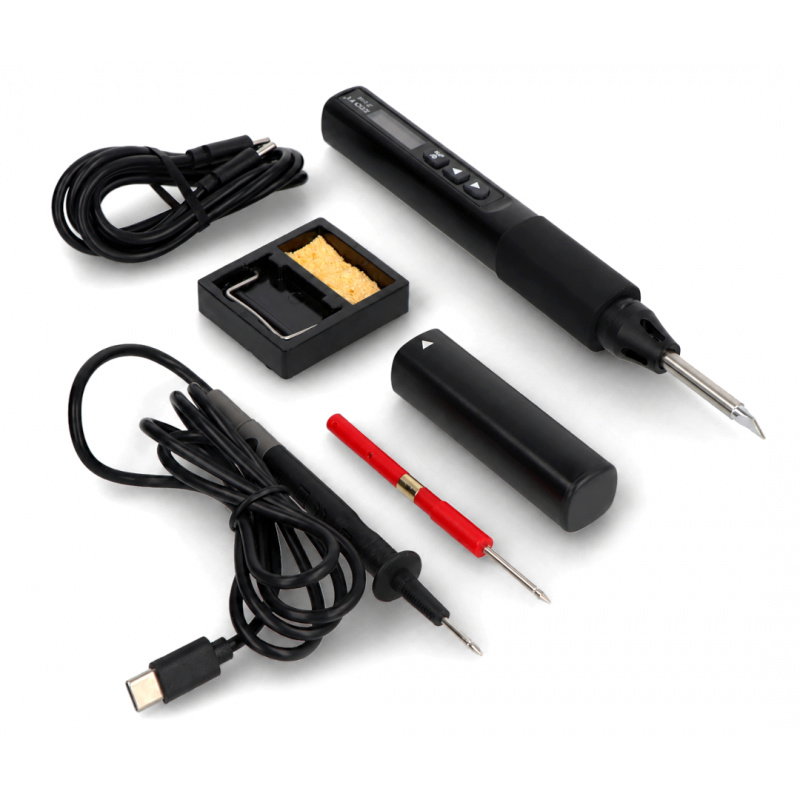

Elements included in the set.
| Technical specifications of the ZOYI ZT-N2 soldering iron with multimeter | |
|---|---|
| Type | 2-in-1 intelligent soldering iron with multimeter |
| Display | OLED |
| Soldering iron temperature range | from 100°C to 450°C |
| Temperature range in degrees Fahrenheit | from 212°F to 842°F |
| Supply voltage | from 5 V to 20 V DC |
| Power connector | USB Type-C |
| Maximum power | 75 W |
| Supported fast charging protocols | PD / QC |
| Compatible tip model | T65 |
| Tip temperature calibration | Yes |
| Automatic sleep mode of the soldering iron | after 5 minutes of inactivity |
| Automatic shutdown | 5 min, 10 min, 15 min, 20 min or OFF |
| Battery type | lithium polymer |
| Battery voltage | 3.7V |
| Battery capacity | 800 mAh |
| Operation without external power supply | Yes |
| Low battery warning | Yes |
| DC voltage measurement range | from 400 mV to 36 V |
| DC voltage measurement resolution | 0.1 mV / 0.001 V / 0.01 V depending on range |
| DC voltage measurement accuracy | ±(0.5% + 3) |
| Maximum DC measurement voltage | 36 V |
| AC voltage measurement range | from 4 V to 36 V |
| AC voltage measurement resolution | 0.001 V / 0.01 V depending on range |
| AC voltage measurement accuracy | ±(1% + 3) |
| Maximum AC measuring voltage | 36 V |
| Resistance measurement range | from 400 Ω to 40 MΩ |
| 400.0Ω range | resolution 0.1 Ω, accuracy ±(2% + 3) |
| 4,000 kΩ range | resolution 0.001 kΩ, accuracy ±(1% + 3) |
| 40.00 kΩ range | resolution 0.01 kΩ, accuracy ±(1% + 3) |
| 400.0 kΩ range | resolution 0.1 kΩ, accuracy ±(1% + 3) |
| 4,000 MΩ range | resolution 0.001 MΩ, accuracy ±(1% + 3) |
| Range 40.00 MΩ | resolution 0.01 MΩ, accuracy ±(3% + 3) |
| Maximum measured resistance | 40 MΩ |
| Continuity test | Yes |
| Continuity test signaling threshold | below 47 Ω |
| Continuity test indication | sound |
| Measurement mode | automatic with the option of manually changing the range |
| Sampling rate | 3 measurements per second |
| Maximum temperature at 5V power supply | 220°C |
| Maximum temperature at 9V power supply | 280°C |
| Maximum temperature at 12V power supply | 350°C |
| Maximum temperature at 15V power supply | 450°C |
| Maximum temperature at 20V power supply | 450°C |
| Operating temperature | from 0°C to 40°C |
| Humidity during operation | less than 75% |
| Storage temperature | from -20°C to 60°C |
| Storage humidity | below 80% |
| Material | aluminum + ABS + silicone |
| Dimensions | 196 x 19 x 19 mm |
| Mass | 80 g |
