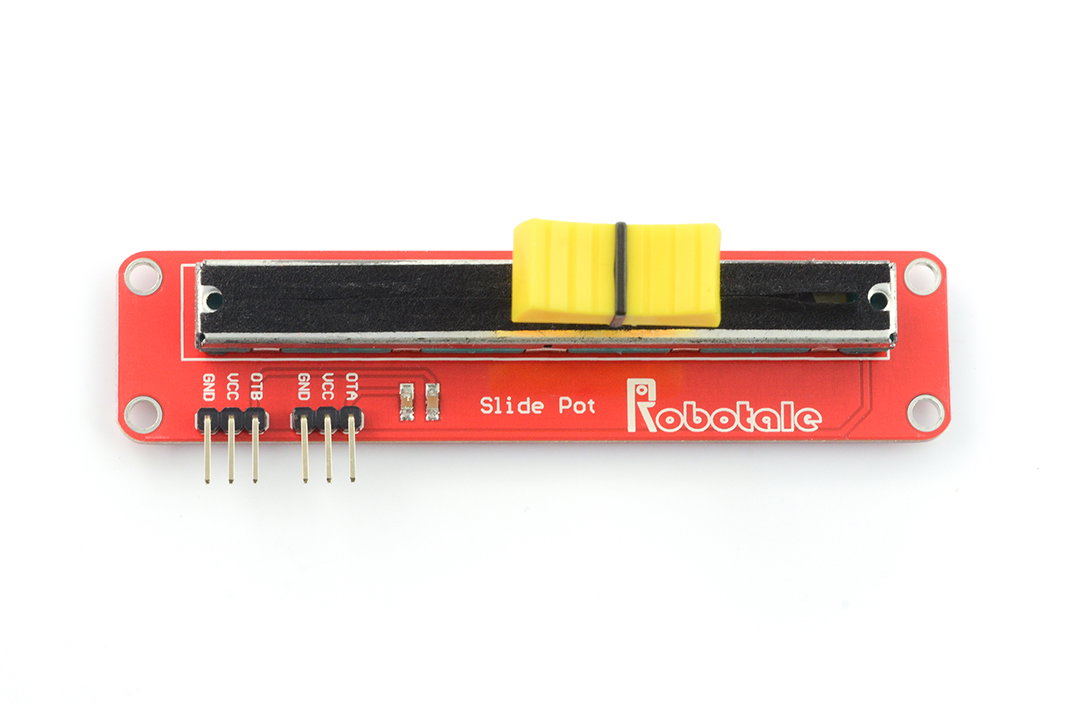

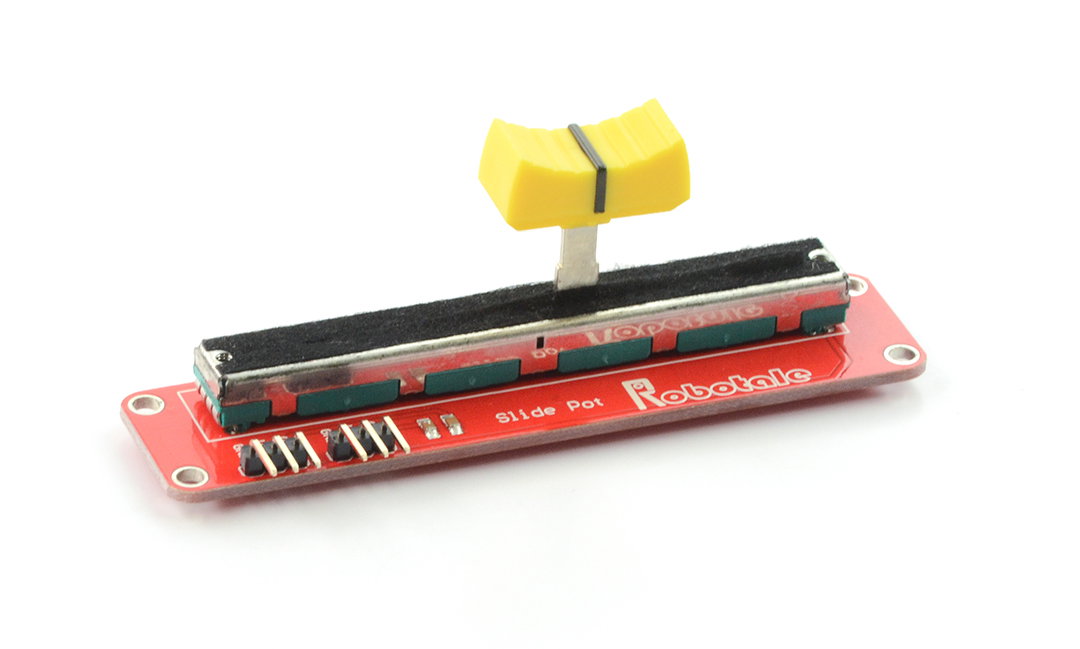

Product description: Linear slide potentiometer
Slide linear potentiometer. Equipped withtwo 3-pin connectors. The supply voltage is5 V.
The connection of the potentiometer
The sensor communicates with the microcontroller in an analog way. It has the following pins:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | The supply voltage of 5 V. |
| OUT | Output signal - analog. |
Specification of the potentiometer
- Supply voltage: 5 V
- Type: slide, linear
- Communication: analog
