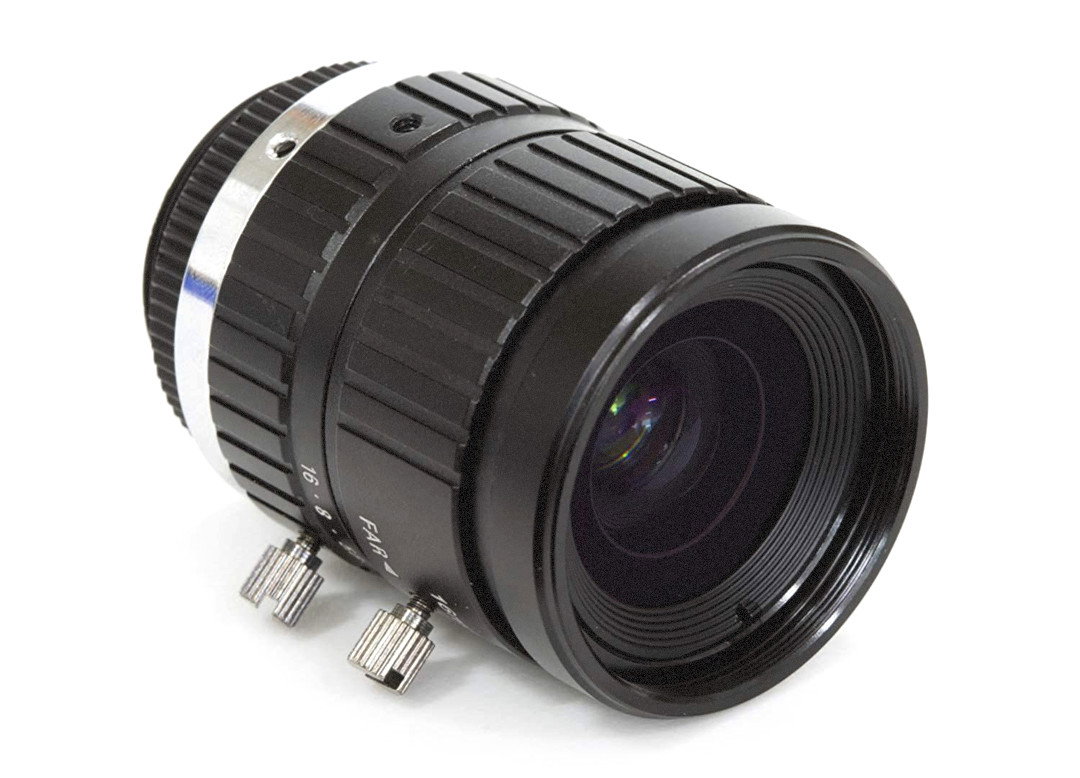

Product description: C-Mount 16mm lens - ArduCam LN045
ArduCam lens with a focal length of 16mm and a C-Mount type mounting method by which it connects to a high quality Raspberry Pi HQ. Image sharpness is adjusted manually. The lens is equipped with adjustable aperture from F1.6 to F16. The viewing angle of the lens is 30.8° x 23.4°, 24° with the 1/2.3" format of the Raspberry Pi HQ camera.
C-Mount variable iris lens for Raspberry Pi HQ camera.
C-Mount variable aperture lens from F1.6 to F16 for Raspberry Pi HQ camera. The official HQ camera and Raspberry Pi minicomputer can be purchased separately.ArduCam lens specification
- Model: C1516ZM02
- Optical format: 2/3"
- Focal length: 16 mm
- Aperture: adjustable from F1.6 to F16
- Viewing angle: 30.8° x 23.4°, 24° with 1/2.3" format of Raspberry Pi HQ camera
- Focus type: manual
- Rear focal length: 17.53 mm
- Mounting: C-Mount
- Minimum distance to the object: 0.2 m
- Dimensions: Φ33 x 36.5 mm
- Weight: 110.7 g
