Arducam adapter board - CSI - HDMI - for HQ 12MP IMX477 Raspberry Pi camera - FPC 15 pin 60 mm - ArduCam B0282
Kit consisting of two boards with adapter - for camera and Raspberry Pi. CSI to HDMI adapter was designed by ArduCam company. It was created to extend the connection without losing signal speed, which will be free from noise and interference. The adapter works best with HQ cameras, but is also suitable for use with original cameras for Raspberry Pi versions V1 and V2. Using a high speed HDMI cable it is possible to use the camera up to 5m away from the minicomputer. An FPC ribbon is also included.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Arducam adapter board - CSI - HDMI - for HQ 12MP IMX477 Raspberry Pi camera - FPC 15 pin 60 mm - ArduCam B0282
Set consisting of two boards with adapter - for camera and Raspberry Pi. CSI to HDMI adapter was designed by ArduCam company. It was created to extend the connection without any loss of signal speed, which will be free from interference and noise. The adapter works best with HQ cameras, but is also suitable for use with original cameras for Raspberry Pi versions V1 and V2. Using a high speed HDMI cable it is possible to use the camera up to 5m away from the minicomputer. An FPC ribbon is also included.

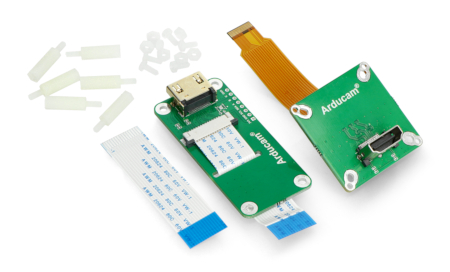

Arducam adapter board - CSI - HDMI - for HQ 12MP IMX477 Raspberry Pi camera - FPC 15 pin 60 mm - ArduCam B0282 - kit contents.
Botland is an official distributor of Arducam cameras, lenses and accessories in Poland. The brand's leading electronics complement the Raspberry Pi and Arduino platforms perfectly. Our range holds original Arducam products only.

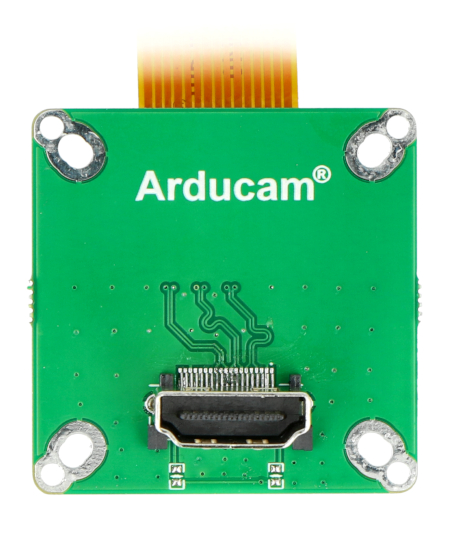

Adapter is equipped with HDMI connector.
Main features of the adapter
- Designed for use with HQ cameras and official cameras for Raspberry Pi versions V1 and V2
- Raspberry Pi High Quality camera combined with high speed HDMI cable can work up to 5m away
- Adapter extremely easy to install with conveniently placed mounting holes
Contents of the kit
- Board with adapter for Raspberry Pi - 1 pc
- Board with adapter for camera - 1 pc
- FPC strip 15 pin 60 mm - 2 pieces
- FPC 15 pin 78 mm / 22 pin tape for ArduCam IMX477 camera - 1 piece
- Set of mounting accessories
Technical specification of the adapter
- Type: CSI adapter - HDMI - for HQ 12MP IMX477 Raspberry Pi camera - FPC 15 pin 60 mm
- Supports all A&B models
- Compatible cameras:
- Raspberry Pi V1 camera (5MP OV5647)
- Raspberry Pi V2 camera (8 MP IMX219)
- Raspberry Pi High Quality camera (12.3 MP IMX477)
- Maximum length of HDMI cable: up to 5m
- Dimensions of board with adapter for Raspberry Pi: 65 x 30 mm
- Spacing of compatible mounting holes: 58 x 23 mm
- Dimensions of board with camera adapter: 38 x38 mm
- Compatible mounting hole spacing: 34 x 34 mm, 30 x 30 mm, 29 x 29 mm

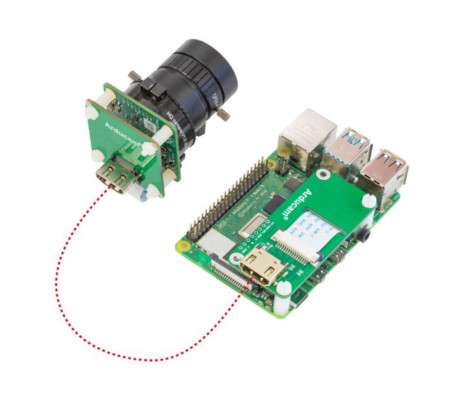

Example of adapter application - other elements should be purchased separately.
Useful links
| Name | Value |
|---|---|
| Width | 9 cm |
| Height | 3.8 cm |
| Depth | 8 cm |
| Weight | 0.041 kg |
