reComputer R1126-10 - Raspberry Pi CM4 4GB RAM + 64GB eMMC - Seeedstudio 100040889
A Raspberry Pi CM4 in an industrial DIN-rail case: the reComputer R1126-10 combines isolated RS485 and RS232 ports with 64 GB eMMC for the system and data.
- 4 GB RAM, WiFi and Bluetooth LE from the CM4 module
- 2 Ethernet ports, HDMI, M.2 NVMe and 2 Mini-PCIe slots
- Power from 9 V to 36 V DC and operation from -30 °C to 70 °C
We could not load the price.
The promotional price does not combine with quantity discounts.
A Raspberry Pi IoT gateway for the control cabinet
reComputer R1126-10 is an industrial IoT gateway with a Raspberry Pi Compute Module 4, 4 GB RAM and 64 GB eMMC in a fanless aluminum DIN-rail case. The CM4 module has a quad-core 1.5 GHz Cortex-A72 processor plus WiFi and Bluetooth LE, a low-energy Bluetooth, so you can run Raspberry Pi OS and familiar tools such as Node-RED on the gateway.
You connect industrial devices through 2 isolated RS485 ports, 2 isolated RS232 ports and 2 isolated digital inputs and 2 outputs. For networking there are a Gigabit Ethernet port and a second 100 Mb/s port, and the Mini-PCIe slots take a 4G or LoRa module, long-range radio connectivity. The gateway operates at temperatures from -30 °C to 70 °C and runs on 9 V to 36 V DC through a 2-pin terminal block with overvoltage protection up to 40 V.

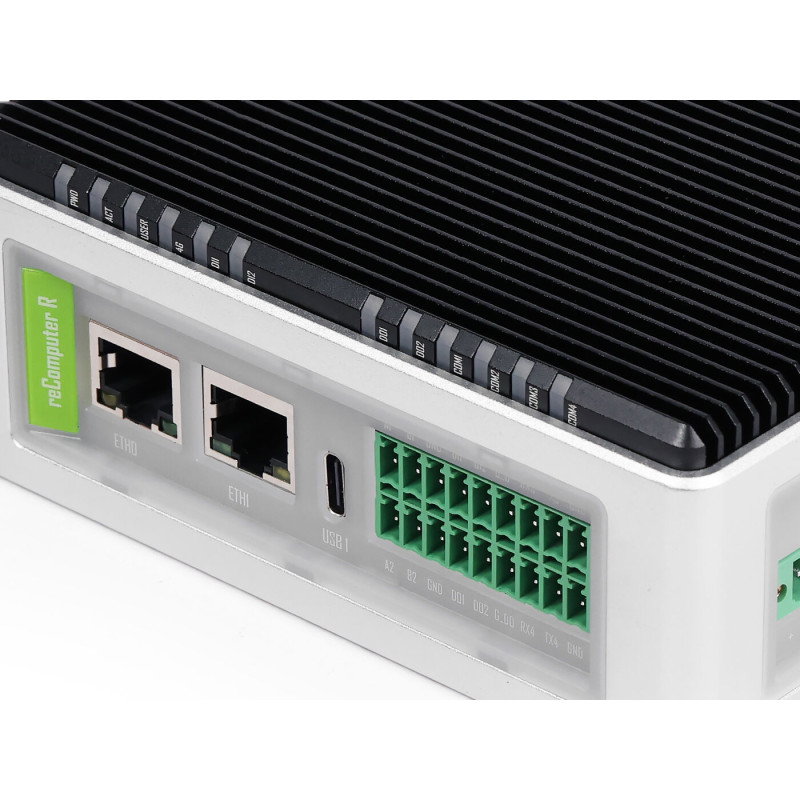

reComputer R1126-10 - side view, Ethernet ports and terminals
4 GB / 64 GB
RAM and eMMC of the Raspberry Pi CM4 module
2 x RS485 + 2 x RS232
isolated serial ports for industrial devices
9-36 V DC
power via a terminal block, protection up to 40 V
-30 °C to 70 °C
operating temperature, passive cooling with no fan

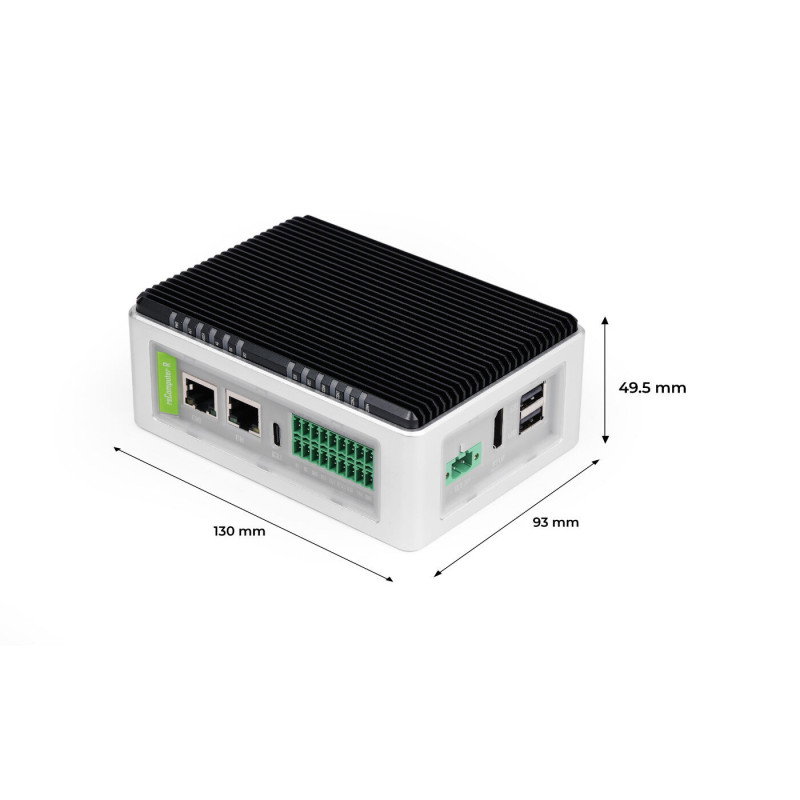

reComputer R1126-10 - view with dimensions
A DIN-rail case that runs without a fan

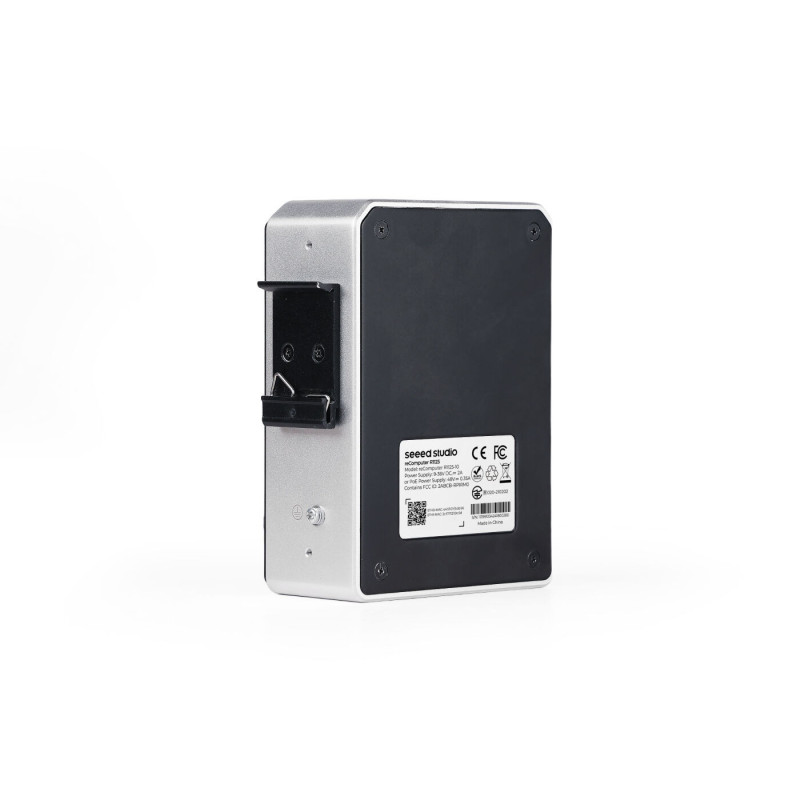

The 6061 aluminum case with transparent polycarbonate side panels dissipates heat passively, so there is no fan inside that could draw in dust. You snap the gateway onto a DIN rail with the clip from the set or screw it to a wall. The case has an IP40 rating, and the ports meet the EN 61000-4-2 electrostatic discharge immunity requirements at level 3.
An RTC clock with a CR2032 battery keeps the time after a power loss, and you can set the hardware watchdog, a chip that restarts a hung system by itself, in the range from 1 to 255 seconds. Credentials are protected by the ATECC608A encryption chip.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if you:
- are building a Modbus or BACnet gateway for a DIN-rail control cabinet
- need a Raspberry Pi with isolated RS485, RS232 and digital inputs in an industrial case
- want 64 GB eMMC for the system, logs and applications without using a microSD card
Consider another option if you:
- 2 GB RAM and 8 GB eMMC are enough for a simple gateway: choose the reComputer R1113-10
- need a computer for larger AI models and image analysis: see reComputer Super J3011 with Jetson Orin Nano
reComputer R1100 versions
| reComputer R1126-10 | reComputer R1125-10 | reComputer R1113-10 | |
|---|---|---|---|
| Module | Raspberry Pi CM4 with WiFi and BLE | Raspberry Pi CM4 with WiFi and BLE | Raspberry Pi CM4 with WiFi and BLE |
| RAM | 4 GB | 4 GB | 2 GB |
| eMMC storage | 64 GB | 32 GB | 8 GB |
| Connectors, case and power | same as in the whole R1100 series | same as in the whole R1100 series | same as in the whole R1100 series |
| See | this page | reComputer R1125-10 | reComputer R1113-10 |
Did you know
About 25 kWh a year
The manufacturer states that on 24 V power the gateway draws 2.88 W at idle and 5.52 W at full load. Running non-stop for a year at idle, it will therefore use about 25 kWh of energy.
Frequently asked questions
Is this a Raspberry Pi CM5?
No. The reComputer R1126-10 is built on a Raspberry Pi CM4 module with a Broadcom BCM2711 processor (4 Cortex-A72 cores at 1.5 GHz), 4 GB RAM, 64 GB eMMC and WiFi and Bluetooth LE.
How is it different from R1125-10?
The models differ only in eMMC storage: the R1126-10 has 64 GB and the R1125-10 has 32 GB. The processor, RAM, connectors, case and power supply are the same.
How do I flash the system?
Move the BOOT switch, connect the gateway to a computer with a USB Type-C cable and run the rpiboot tool, then flash the official Seeed system image with Raspberry Pi Imager.
Do 4G and LoRa work together?
No. The Mini-PCIe slot with the SIM card takes a 4G modem or a LoRa module in the USB version, and the second slot takes a LoRa module in the SPI or USB version. A 4G modem and a LoRa module do not work at the same time, and neither do two LoRa modules.
Can I boot the system from an SSD?
Yes, the M.2 NVMe 2280 M-Key slot takes drives from 128 GB to 1 TB. Not every drive boots the system, so the manufacturer recommends the drives it has tested.

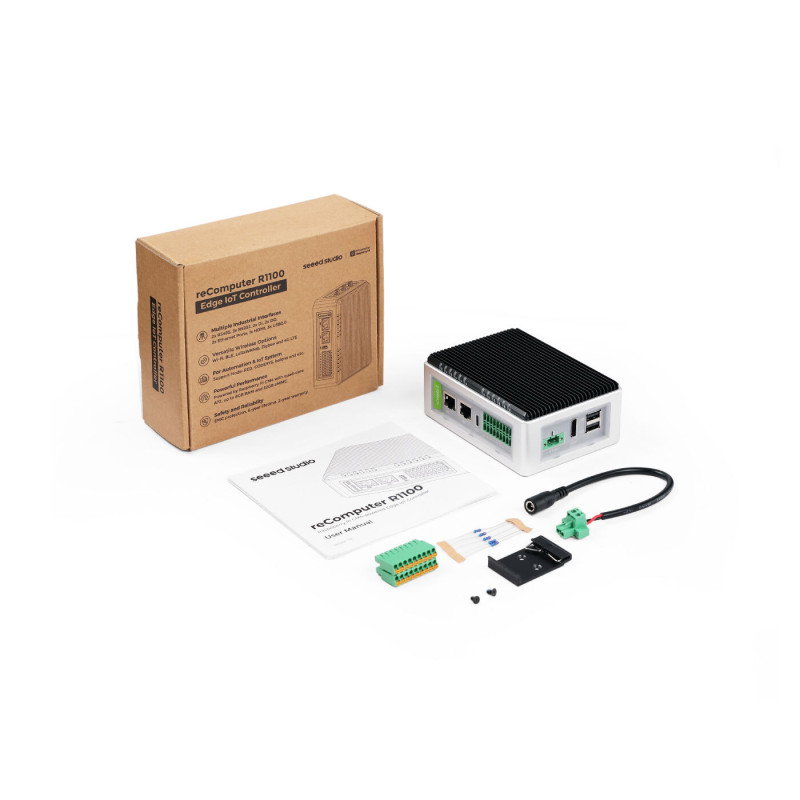

What's in the box
- 1 x reComputer R1126-10 industrial computer
- 1 x DIN-rail mounting clip
- 1 x Screw set
- 1 x Adapter from a DC jack to screw terminals
- 1 x 9 x 2 pin terminal connector (male)
- 5 x 120 Ω resistor
- 1 x Manual
The power supply and WiFi antenna are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | industrial computer and IoT gateway for a DIN rail |
| Module | Raspberry Pi Compute Module 4 (CM4104064) with WiFi and Bluetooth LE |
| CPU | Broadcom BCM2711, 4 Cortex-A72 (ARMv8) 64-bit cores, 1.5 GHz |
| RAM | 4 GB |
| eMMC storage | 64 GB |
| System | Raspberry Pi OS, Debian |
| Software | Node-RED, CODESYS, Balena |
| Protocols | Modbus RTU, Modbus TCP, BACnet, KNX |
| Ethernet | 1 x 10/100/1000 Mb/s (PoE with an additional module), 1 x 10/100 Mb/s |
| USB | 2 x USB Type-A 2.0, 1 x USB Type-C 2.0 (system flashing) |
| RS485 | 2 x, isolated, 120 Ω resistors included |
| RS232 | 2 x, isolated |
| Digital inputs | 2 x, isolated, 5-24 V DC, 5 kV isolation |
| Digital outputs | 2 x, isolated, transistor, below 60 V DC, 5 kV isolation |
| HDMI | HDMI 2.0, up to 4K at 60 fps |
| Slots | microSD, Nano SIM (internal), M.2 NVMe 2280 M-Key, 2 x Mini-PCIe |
| Wireless connectivity | WiFi 2.4 GHz and 5 GHz, Bluetooth LE 5.0 (antenna required); 4G and LoRa with an additional module |
| Other | 12 LEDs, buzzer, reset button, BOOT switch, RTC with CR2032 battery, watchdog 1-255 s, ATECC608A, optional TPM 2.0 |
| Power | 9-36 V DC, 2-pin terminal block, 40 V overvoltage protection; PoE IEEE 802.3af with an additional module |
| Power consumption | 2.88 W at idle, 5.52 W at full load |
| Power switch | none |
| Case | 6061 aluminum, polycarbonate side panels, passive cooling, IP40 |
| Mounting | DIN rail, wall |
| EMC immunity | ESD EN 61000-4-2 level 3, EFT EN 61000-4-4 level 2, surge EN 61000-4-5 level 2 |
| Operating conditions | -30 °C to 70 °C, humidity 10% RH to 95% RH; storage -40 °C to 80 °C |
| Dimensions | 130 x 93 x 49.6 mm |
| Weight | 560 g |
| Certifications | CE, RoHS |
| Manufacturer code | 100040889 |
| Manufacturer | Seeed Studio |
