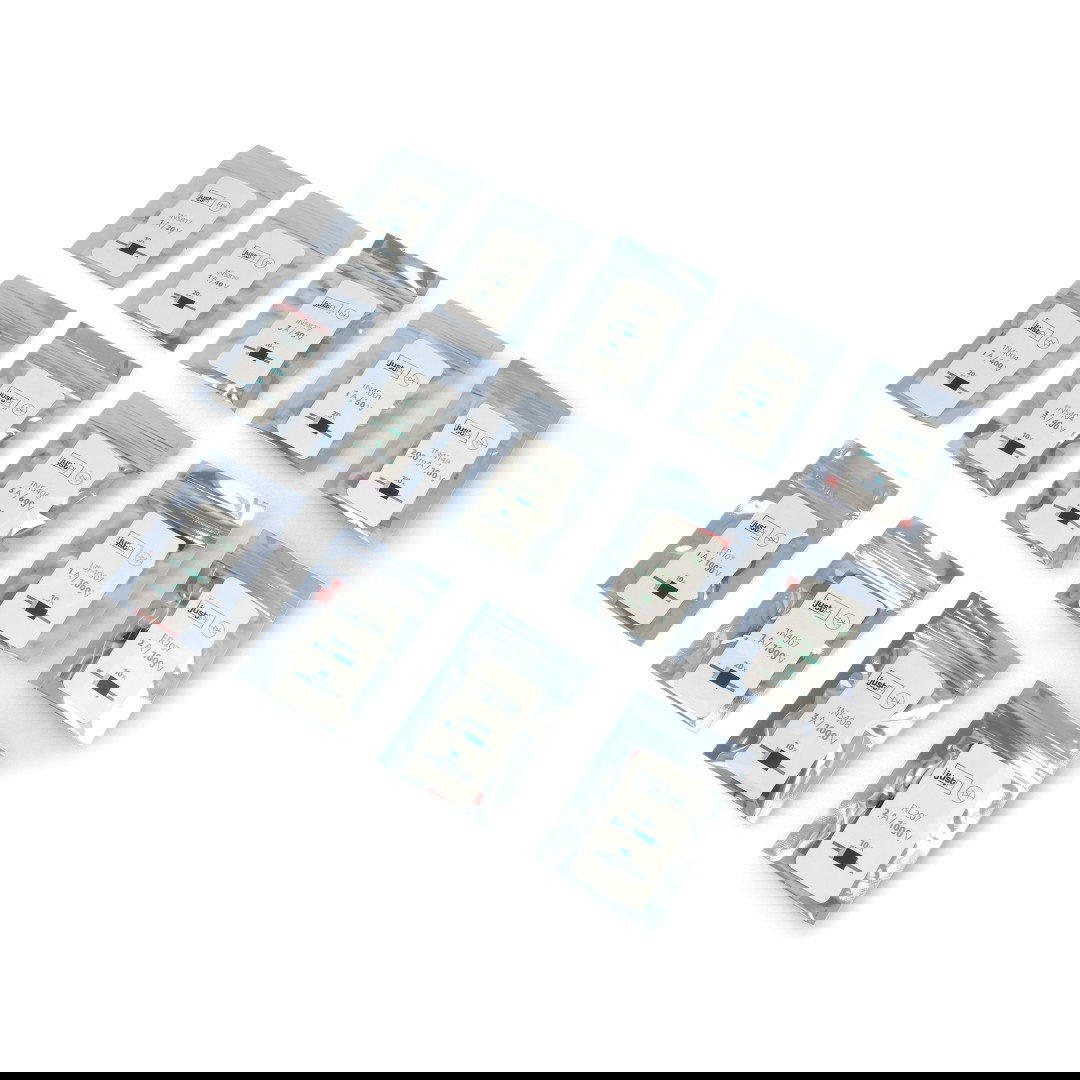

Set of rectifier diodes - various types - 200 pieces - justPi
A set of 14 types of rectifier diodes with maximum voltages ranging from 20 V to 1000 V and currents ranging from 200 mA to 3 A. The set includes diodes packed in 10, 20, and 30-piece packages. Depending on the parameters, the diodes are packed in individual string bags for easy storage and convenience during use.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Set of rectifier diodes - various types - 200 pieces - JustPi
A set of 14 types of rectifier diodes with maximum voltages ranging from 20 V to 1000 V and currents ranging from 200 mA to 3 A. The set includes diodes packed in 10, 20, and 30-piece packages. Depending on the parameters, the diodes are packed in individual string bags for easy storage and convenience of use. With a variety of voltage and current values, the set is suitable for building power supplies, voltage regulators, and protection systems. High-quality components guarantee reliable operation in a variety of conditions.
We also offer other electronic components! Check them out !
The rectifier diode set contains as many as 14 different types of rectifier diodes.
A set of 14 types of rectifier diodes with a maximum voltage from 20 V to 1000 V and a current from 200 mA to 3 A.
What is a rectifier diode used for?
Rectifier diodes are semiconductor components designed to rectify alternating current (AC) and other electrical signals. A rectifier, on the other hand, is an electronic device that converts alternating current (AC) to direct current (DC). This process is called rectification because it "straightens" the direction of current flow. A diode is defined by two parameters: V – maximum operating voltage, and A – maximum current.

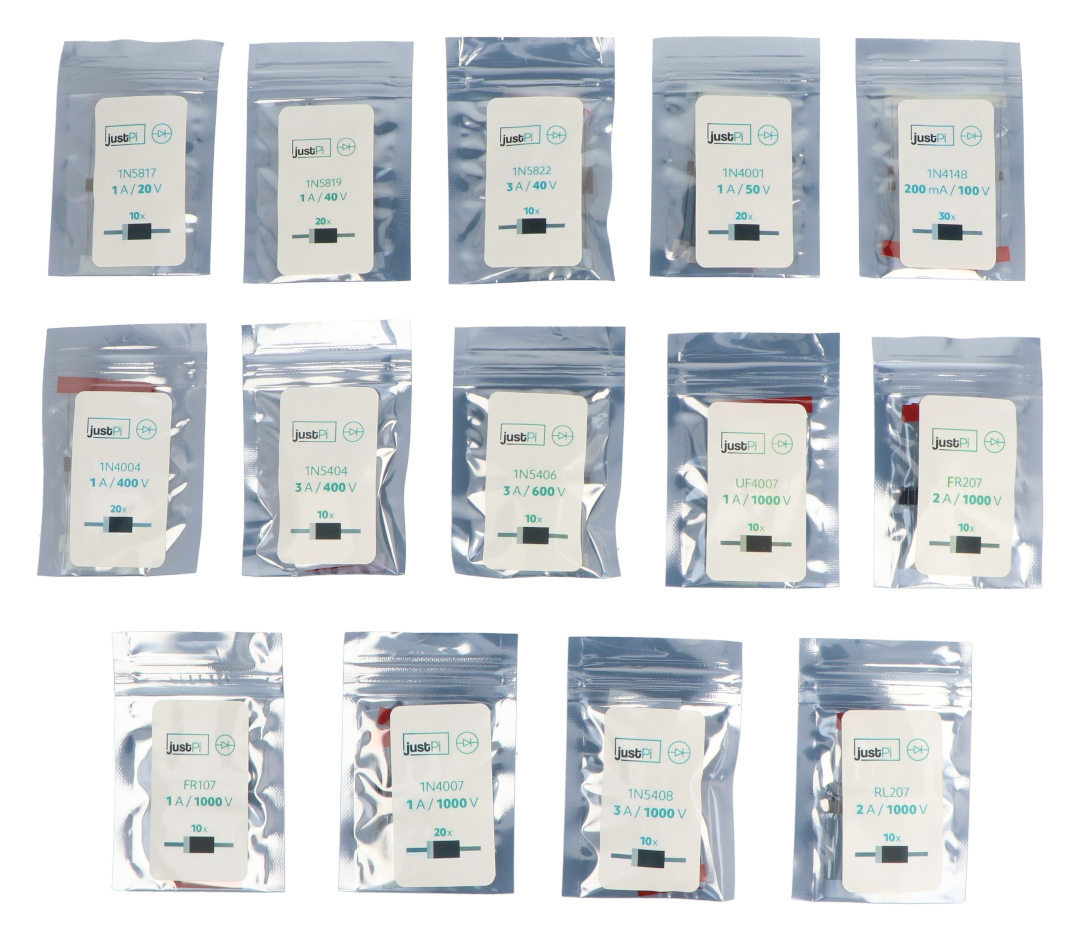

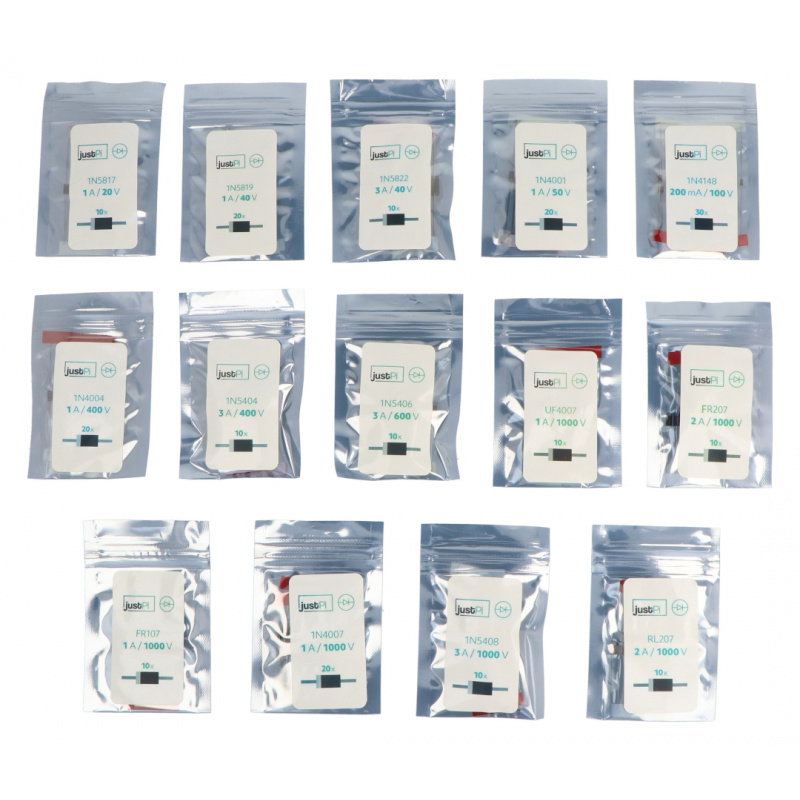

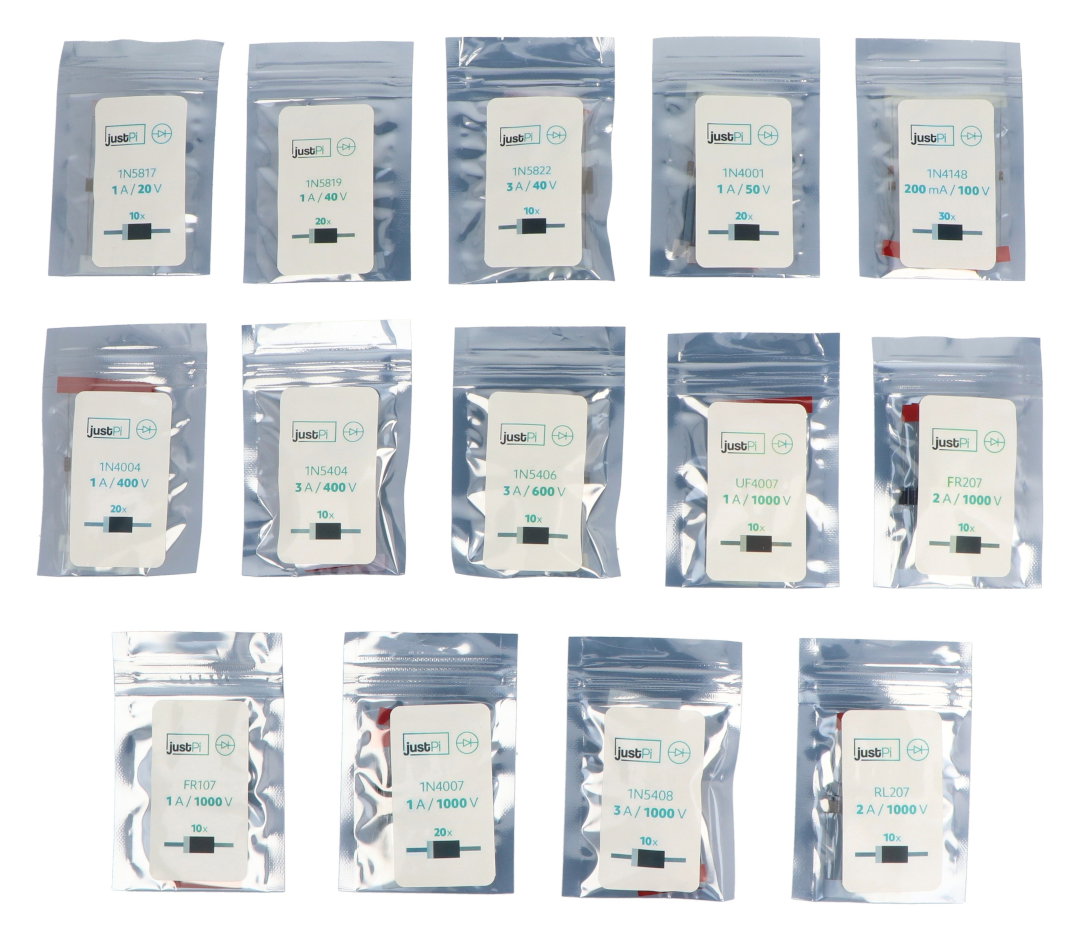

Kit contents
- Rectifier diode 1N5817 (1 A / 20 V) - 10 pieces
- Rectifier diode 1N5819 (1 A / 40 V) - 20 pieces
- Rectifier diode 1N4001 (1 A / 50 V) - 20 pieces
- Rectifier diode 1N4004 (1 A / 400 V) - 20 pieces
- Rectifier diode FR107 (1 A / 1000 V) - 10 pieces
- Rectifier diode UF4007 (1 A / 1000 V) - 10 pieces
- Rectifier diode 1N4007 (1 A / 1000 V) - 20 pieces

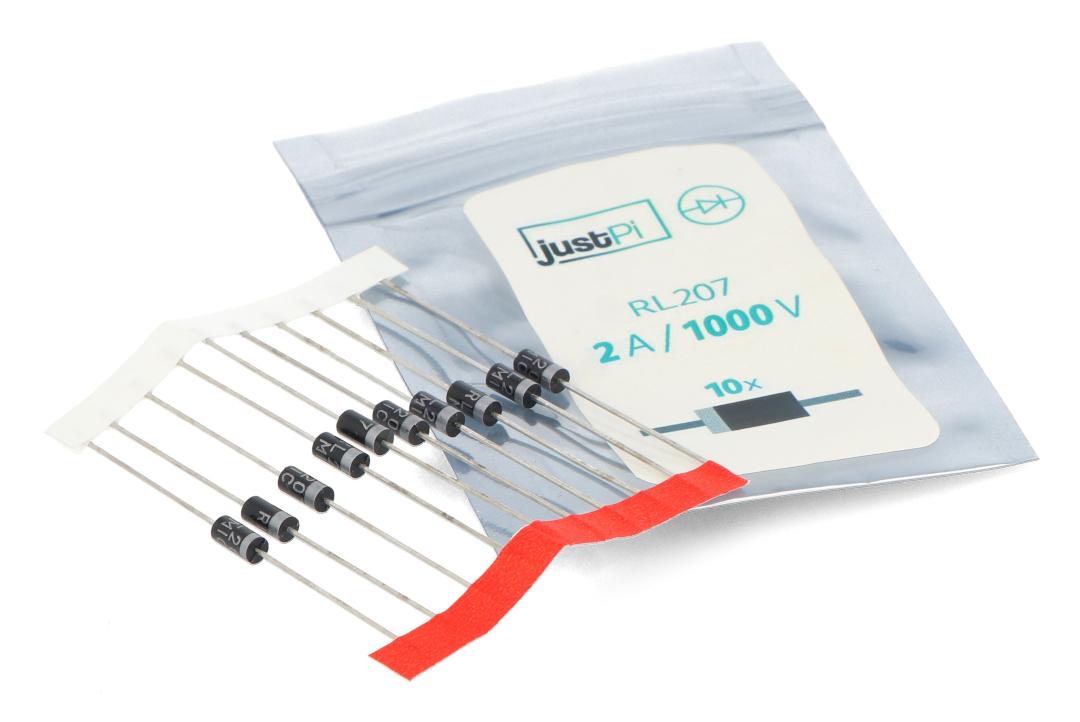

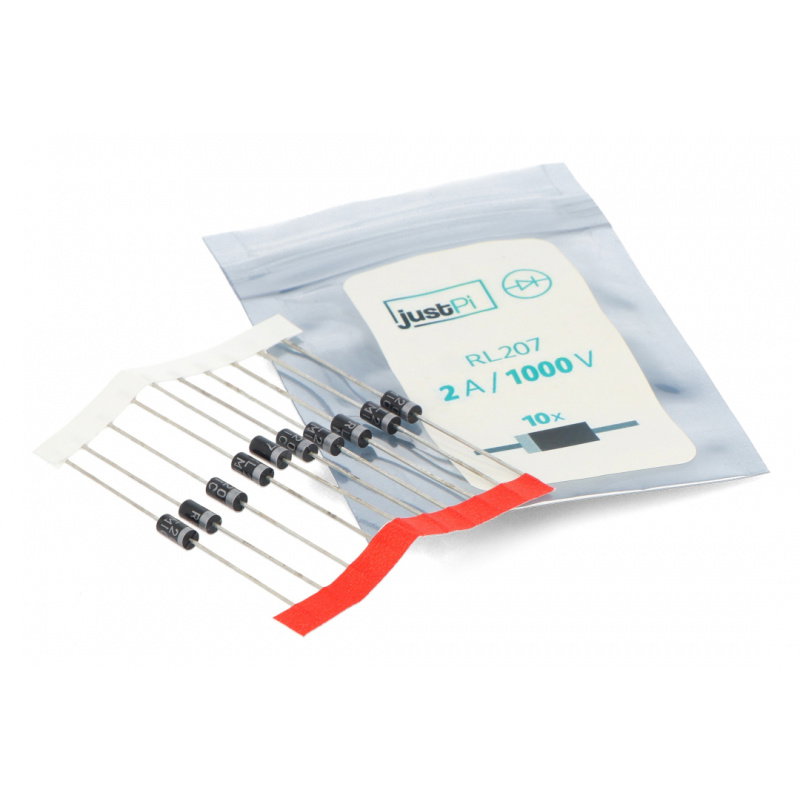

- Rectifier diode RL207 (2 A / 1000 V) - 10 pieces
- Rectifier diode FR207 (2 A / 1000 V) - 10 pieces
- Rectifier diode 1N5822 (3 A / 40 V) - 10 pieces
- Rectifier diode 1N5404 (3 A / 400 V) - 10 pieces
- Rectifier diode 1N5406 (3 A / 600 V) - 10 pieces
- Rectifier diode 1N5408 (3 A / 1000 V) - 10 pieces
- Rectifier diode 1N4148 (200 mA / 100 V) - 30 pieces

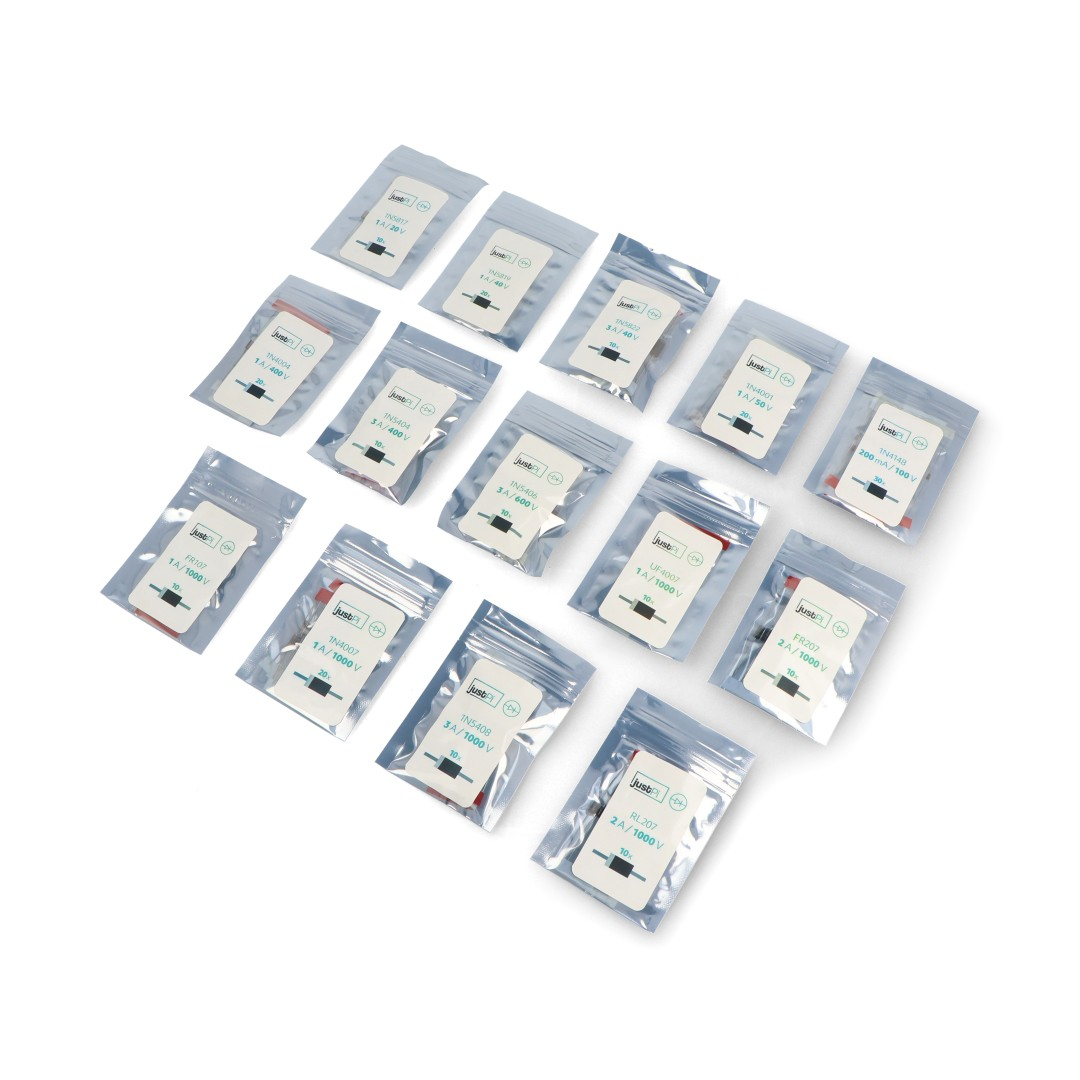

The elements were sorted and packed in convenient storage zip-lock bags.
Useful links
- Rectifier diode - what is it?
| Name | Value |
|---|---|
| Width | 12.2 cm |
| Height | 15 cm |
| Depth | 4.5 cm |
| Weight | 0.074 kg |
