Black type 900M-T-1C - for Zhaoxin / Aoyue / PT / WEP / Yihua soldering stations
Black type 900M T-1C soldering station tip. Black type soldering tips have additional protection on the surface, thanks to which they are more resistant to oxidation, i.e. corrosion, and they conduct heat much better. The tip of the blade is beveled at 45° and its diameter is 1 mm. The length of the blade is 15 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description: Black type 900M-T-1C soldering tip - for Zhaoxin / Aoyue / PT / WEP / Yihua soldering stations
Black type 900M T-1C soldering stationtip. Black type soldering tips have additional protection on the surface, which makes them more resistant to oxidation, i.e. corrosion, and they conduct heat much better. The tip of the blade is beveled at 45° and its diameter is 1 mm. The length of the blade itself is 15 mm.
5 tips for correct use
- If the tip of the soldering tip is dirty, clean it with a damp sponge while it is hot
- Remember that soldering with a clean tip is much easier
- Keep an eye on the temperature - a typical working and soldering temperature is between 250°C and 350°C
- If you need to solder at a higher temperature - you can do it, but remember to lower the working temperature to an appropriate range afterwards
- If you notice that the tip of the soldering iron is already very worn out - nothing lost! Dip it for a while in tin and then clean it with a damp sponge.

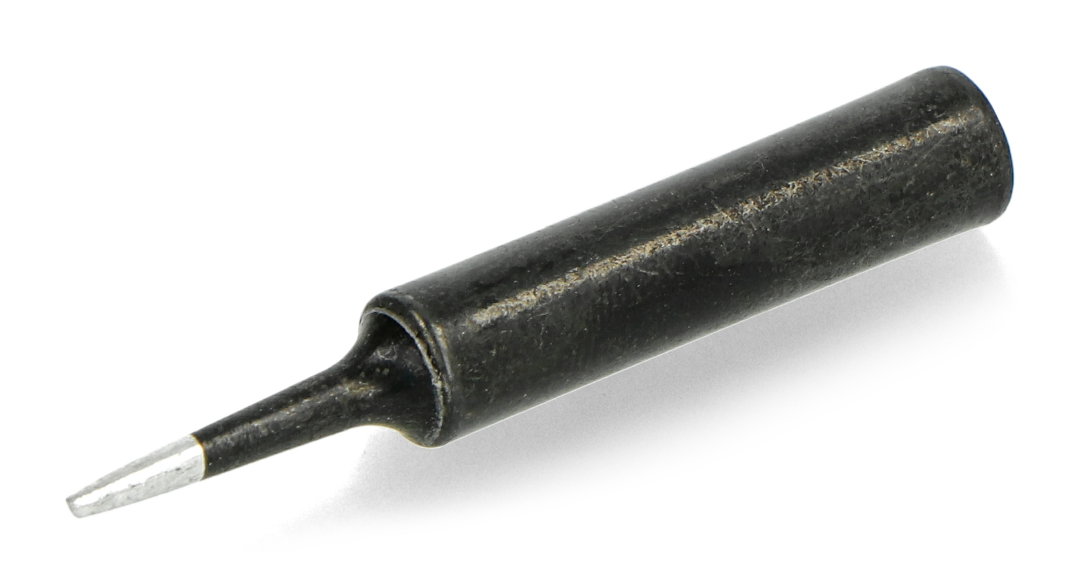

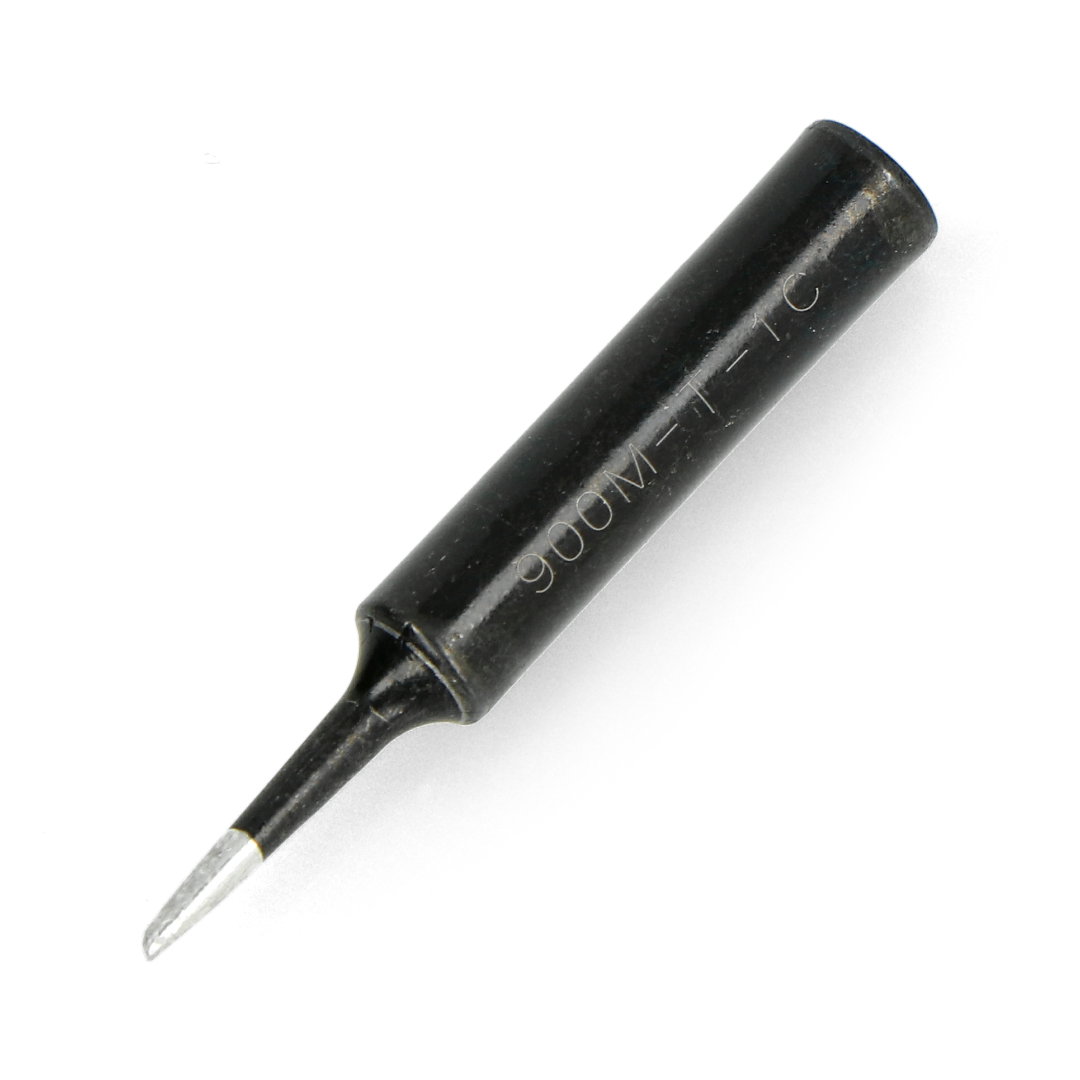

Black type blade 900M-T-1C.
Technical drawing.
Technical specification of the blade
- Series: BLACK
- Designation: 900M-T-1C
- Blade tip: chamfered
- Bevel angle: 45°
- Tip diameter: 1 mm
- Blade length: 15 mm
List of compatible stations
Blade fits all Zhaoxin stations and all similar models made by Aoyue / PT / WEP / Yihua, including:
- 936A Zhaoxin
- 936D Zhaoxin
- 868D Zhaoxin
- 898D Zhaoxin
- 852D Zhaoxin
- 852 Zhaoxin
- 936 Aoyue / PT / WEP / Yihua
- 937 Aoyue / PT / WEP / Yihua
- 937+ Aoyue / PT / WEP / Yihua
- 909 Aoyue / PT / WEP / Yihua
- 968 Aoyue / PT / WEP / Yihua
- 853K Aoyue / PT / WEP / Yihua
- 803 Aoyue / PT / WEP / Yihua
- 738 Aoyue / PT / WEP / Yihua
- 768 Aoyue / PT / WEP / Yihua
Improved corrosion resistance and faster heat conduction.
| Name | Value |
|---|---|
| Width | 4.5 cm |
| Height | 0.7 cm |
| Depth | 0.7 cm |
| Weight | 0.005 kg |
