Product description: Set of 4 Pinecil soldering tips - Gross series type TS - Pine64 TIPK1
The set includes four Pinecil soldering tips , compatible with the TS100. The TS-I, TS-C4, TS-D24 and TS-K tips offer a variety of shapes and sizes, adapted to a wide range of soldering tasks. The lengths of the tips range from 103.5 mm to 109 mm, and their weight ranges from 10.4 g to 11.2 g, ensuring comfort and precision during work. Made of materials with high thermal conductivity , they guarantee rapid heating and thermal stability, which translates into efficiency and quality of soldering . Thanks to the integrated thermocouple , each tip allows for accurate temperature measurement, crucial when working with delicate electronic components. This set is a perfect complement to the equipment of any electronics workshop.
Pay attention to the length!
The Pinecil V2 soldering iron is compatible with normal length tips (TS type) or short tips (ST type).

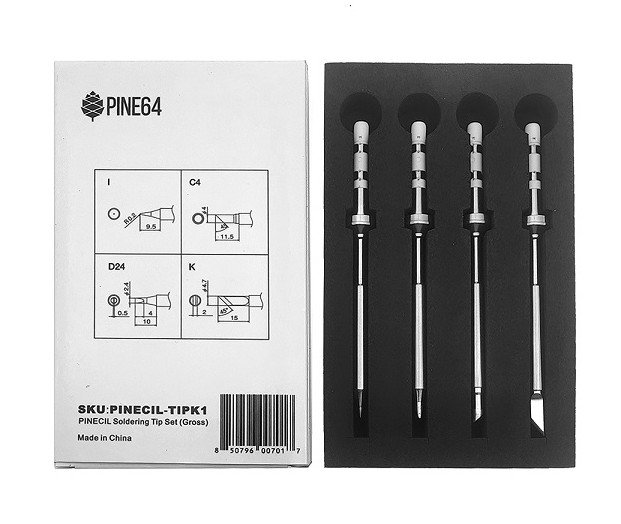

Set of 4 Pinecil soldering iron tips - Gross series type TS - Pine64 TIPK1.
Standard length TS tips.
Main features of the tips
- Compatibility : fits Pinecil and TS100 soldering irons, ensuring a wide range of applications
- Variety of tips : the set includes four types of tips suitable for many soldering tasks
- High quality materials : ensure durability and thermal stability during operation
- Integrated thermocouple : enables precise temperature measurement for accurate soldering
- Resistance of about 8 Ω : optimal performance at standard soldering temperatures
- Lightweight design : each tip weighs approximately 10g, making it more comfortable to use
How to extend the life of tips?
If you want to maximize the life of your tips, keep them clean by regularly removing solder residues with special sponges or brass cleaners . Avoid using excessively high temperatures. For leaded tin , the optimal temperature is around 300°C to 320°C, and for lead-free tin from 350°C to 365°C. Do not use sharp tools that can damage the coating of the tip. Additionally, to power the soldering iron for optimal tip performance, use a USB Type-C PD 65 W, 20 V / 3.25 A power supply or higher when using short tips. Store the tips in a dry place to prevent corrosion, and check their condition regularly, replacing if necessary.
The thermocouple is integrated into the tip of the tip.

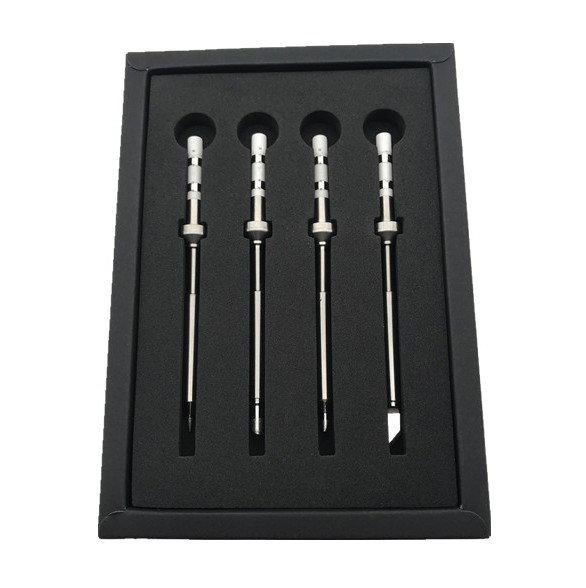

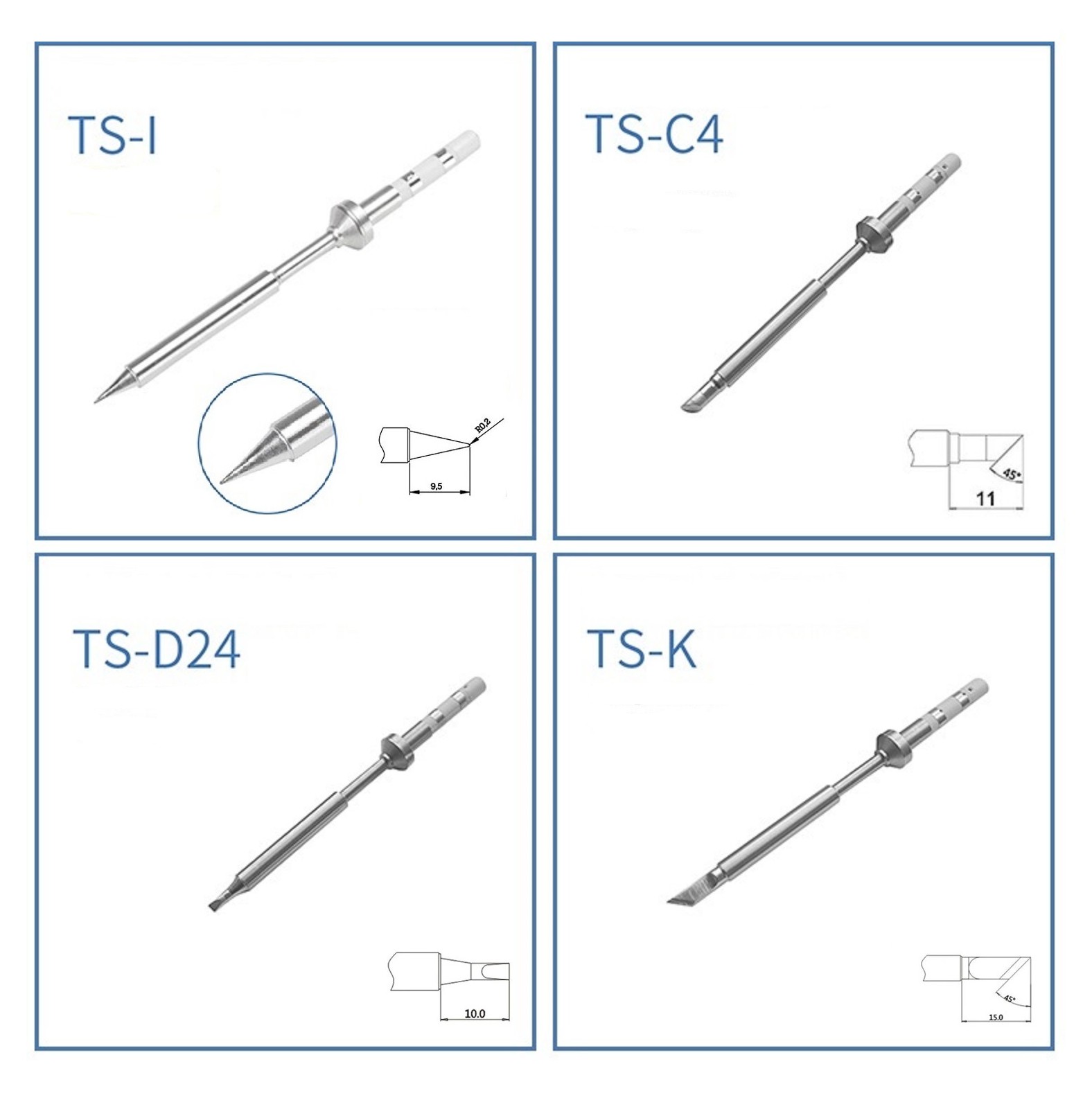

The set includes four different tips.
Technical specifications of the tips
- Compatibility: Pinecil V1, V2, TS100
- Tip length: 103.5 mm to 109 mm
- Resistance: about 8 Ω
- Tip weight: 10.4 g to 11.2 g
Kit Contents
- 1x TS-I (103.5mm)
- 1x TS-C4 (105mm)
- 1x TS-D24 (105mm)
- 1x TS-K (109mm)
