Product description: Set of 4 Pinecil soldering tips - Fine series type TS - Pine64 TIPK2
The set includes four Pinecil soldering tips , ideal for precision electronic work. Compatible with the TS100, they offer a resistance of about 8 Ω and a length of 105 mm to 107 mm , which allows for fast and efficient soldering . The set includes TS-BC2, TS-C1, TS-ILS and TS-KU tips, made of high-quality materials, ensuring durability and thermal stability. Each tip is equipped with an integrated thermocouple , which allows for precise temperature measurement and adjustment of parameters to a variety of tasks.
Pay attention to the length!
The Pinecil V2 soldering iron is compatible with normal length tips (TS type) or short tips (ST type).
Set of 4 Pinecil soldering iron tips - Fine series type TS - Pine64 TIPK2.
Standard length TS tips.
Main features of the tips
- Universal compatibility : fits Pinecil V1 and V2 and TS100
- Integrated thermocouple : precise temperature measurements and stable operation
- Different tip shapes : ideal for many applications, especially precision work
- Resistance of about 8 Ω : optimal performance at standard soldering temperatures
- Durability and precision : high-quality materials ensure long service life
- Lightweight design : each tip weighs only about 10g, making it more comfortable to use
How to extend the life of tips?
If you want your tips to last as long as possible, use the lowest possible working temperature , appropriate for the type of solder used. Avoid exceeding 350°C for lead-free solder and 320°C for leaded solder. Regularly clean the tips from solder residues and use appropriate sponges or brass cleaners . Do not use sharp tools that can damage their coating. Additionally , for optimal performance, use a USB Type-C PD 65 W, 20 V / 3.25 A or higher power supply when using short tips. Incorrect power supply can reduce soldering efficiency and shorten the life of the tips. Store them in a dry place to prevent corrosion. Check the condition of the tips regularly and replace them when they show signs of wear to maintain high soldering quality.

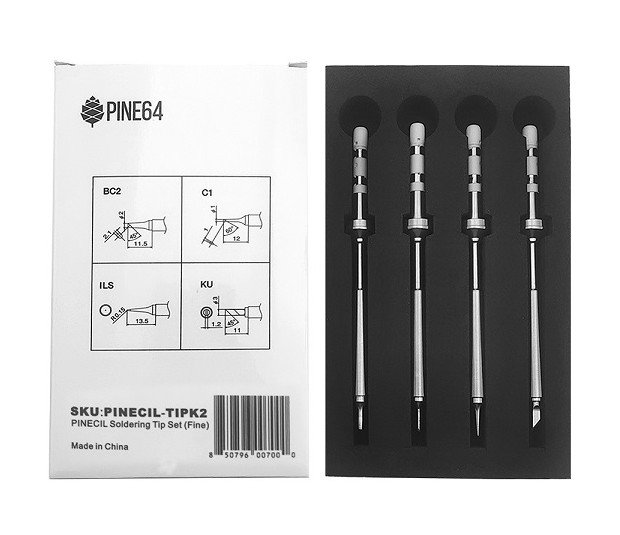

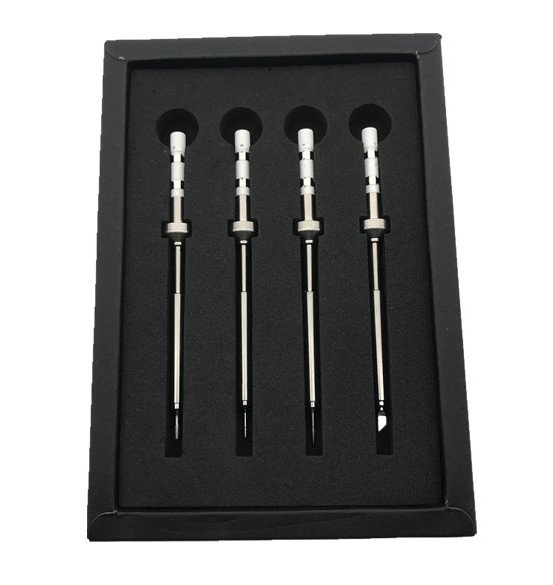

The set includes four different tips.
Technical specifications of the tips
- Compatibility: Pinecil V1, V2, TS100
- Tip length: 105 mm to 107 mm
- Resistance: about 8 Ω
- Weight of tip: approx. 10 g each
Kit Contents

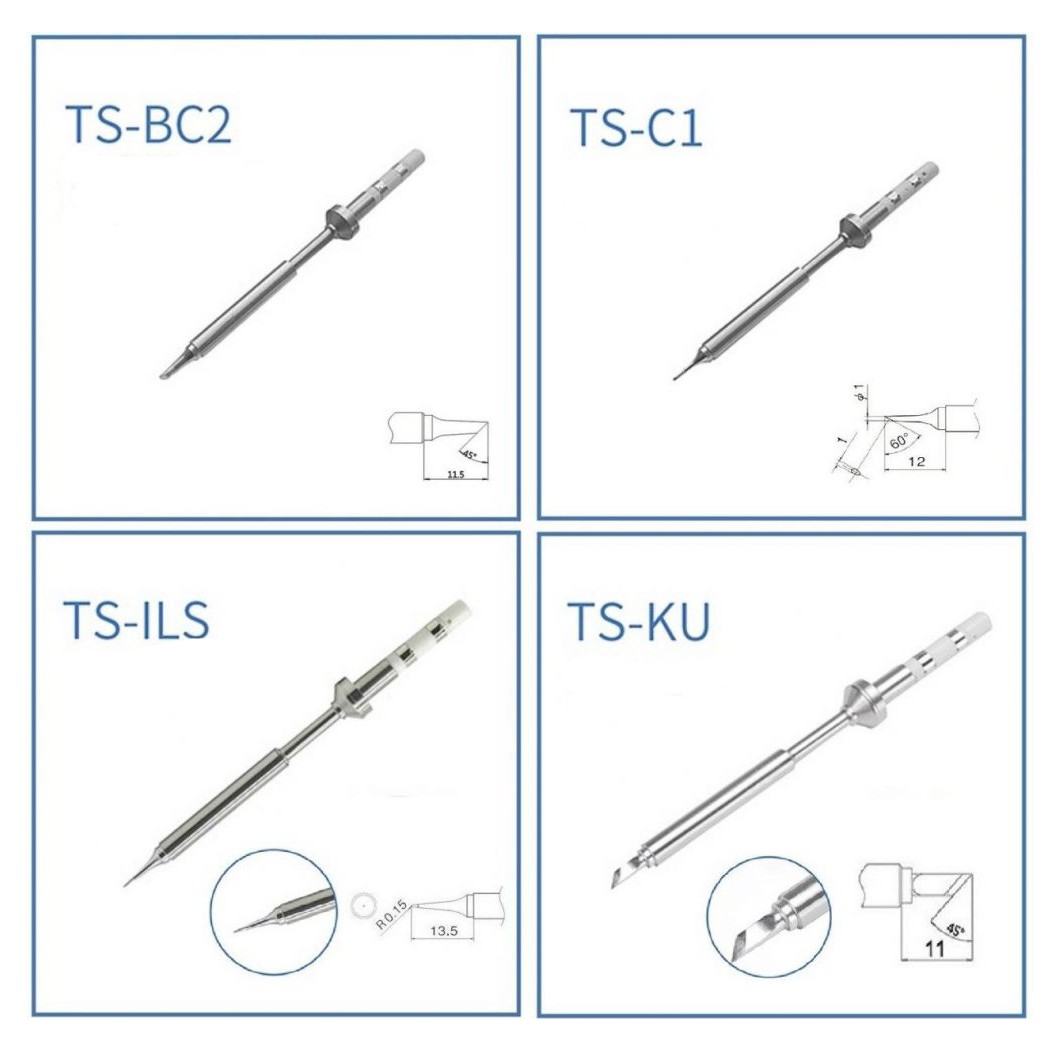

- 1x TS-BC2 (105mm)
- 1x TS-C1 (107mm)
- 1x TS-ILS (105mm)
- 1x TS-KU (105mm)
