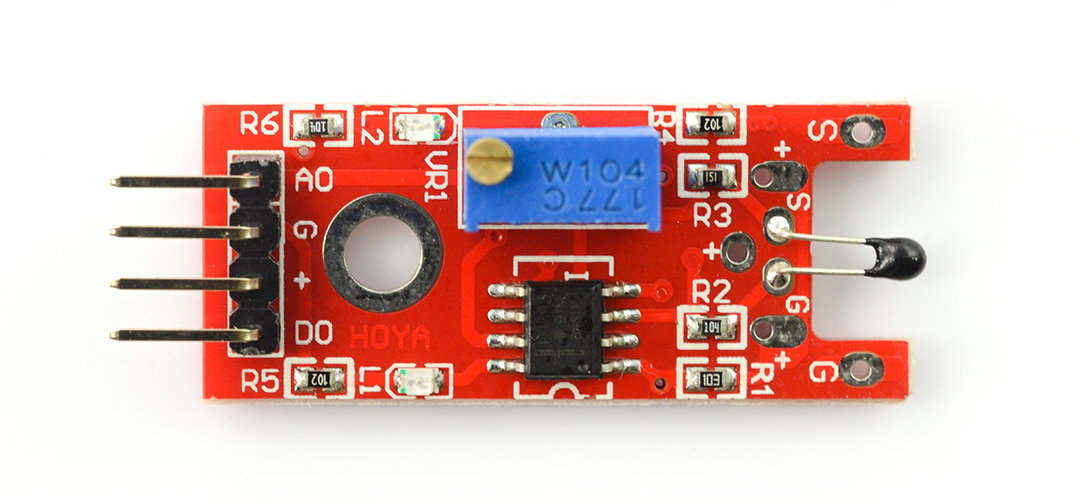

Product description: Iduino - temperature sensor - NTC-MF52 thermistor
Module with temperature sensor equipped with a thermistorNTC-MF52. For control, used is an analogue or digital output. It detects the temperature in the rangefrom -55°C to 125°C. It is powered with the voltage of5 V.
Connection of NTC-5MF52 temperature sensor
The sensor works any microcontrollerwith digital or analog inputs, includingArduino. To read data, simply connect the power supply and output pin to any input of the microcontroller, and read its status.
Example of connecting to Arduino.
| PIN | Description |
|---|---|
| VCC | Supply voltage is 5V. |
| GND | The ground of the system. |
| A0 | Analog signal. |
| D0 | Digital signal. |
Specification of the temperature sensor NTC-MF52
- Supply voltage: 5 V
- Type: analog / digital
- Thermistor:NTC MF52 3950
- Measurement range: from -55 °C to 125 °C
- Accuracy: +/- 0.5 °C
