Product description: Digital timer PC0628 3680 W 16 A - Qoltec 50628
The Qoltec PC0628 timer allows you to automatically turn electrical devices on and off at specific times , allowing for effective energy management at home or in the office. Simply set a schedule to tailor the operation of your devices to your needs. It supports 7-day weekly programming and offers up to 10 on/off cycles per day . The LCD display provides easy-to-read settings, while features like random mode and manual override enhance its functionality. The timer is compatible with most 230V devices , such as lighting, heating, and consumer electronics.

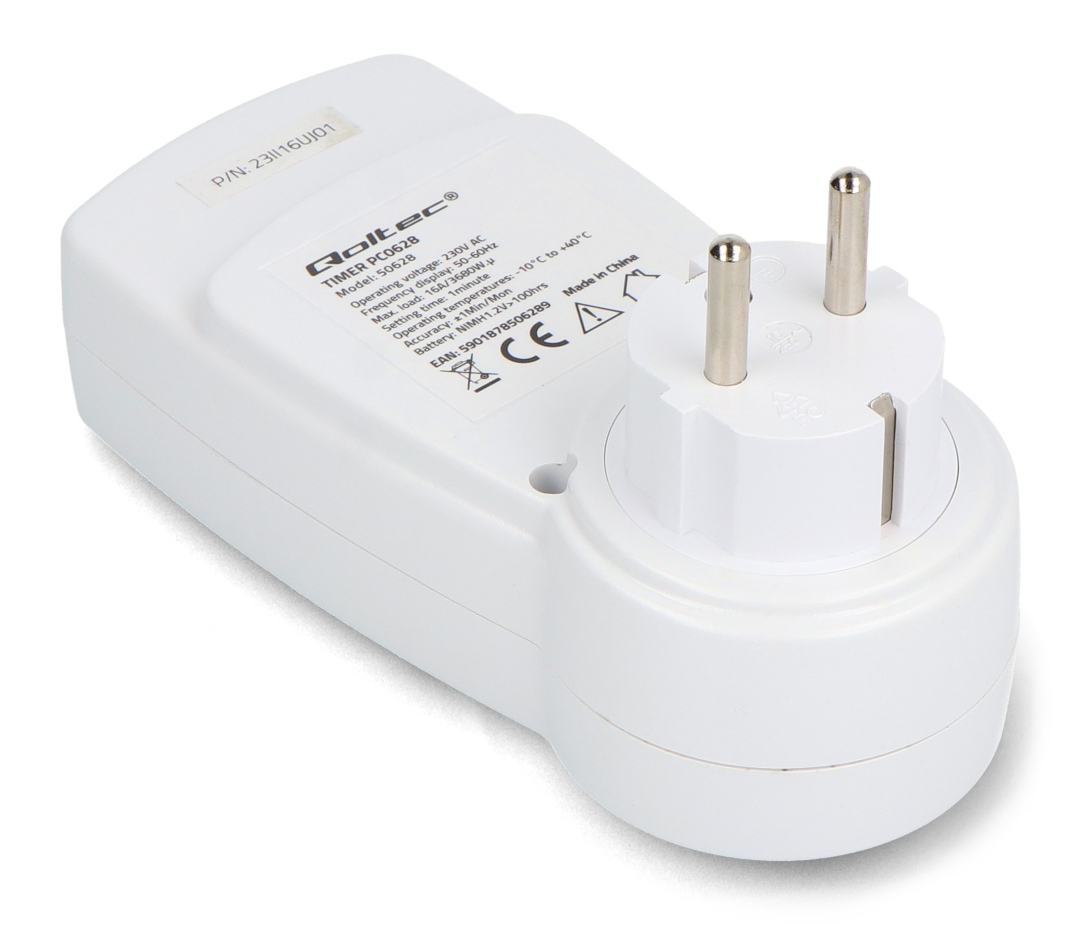

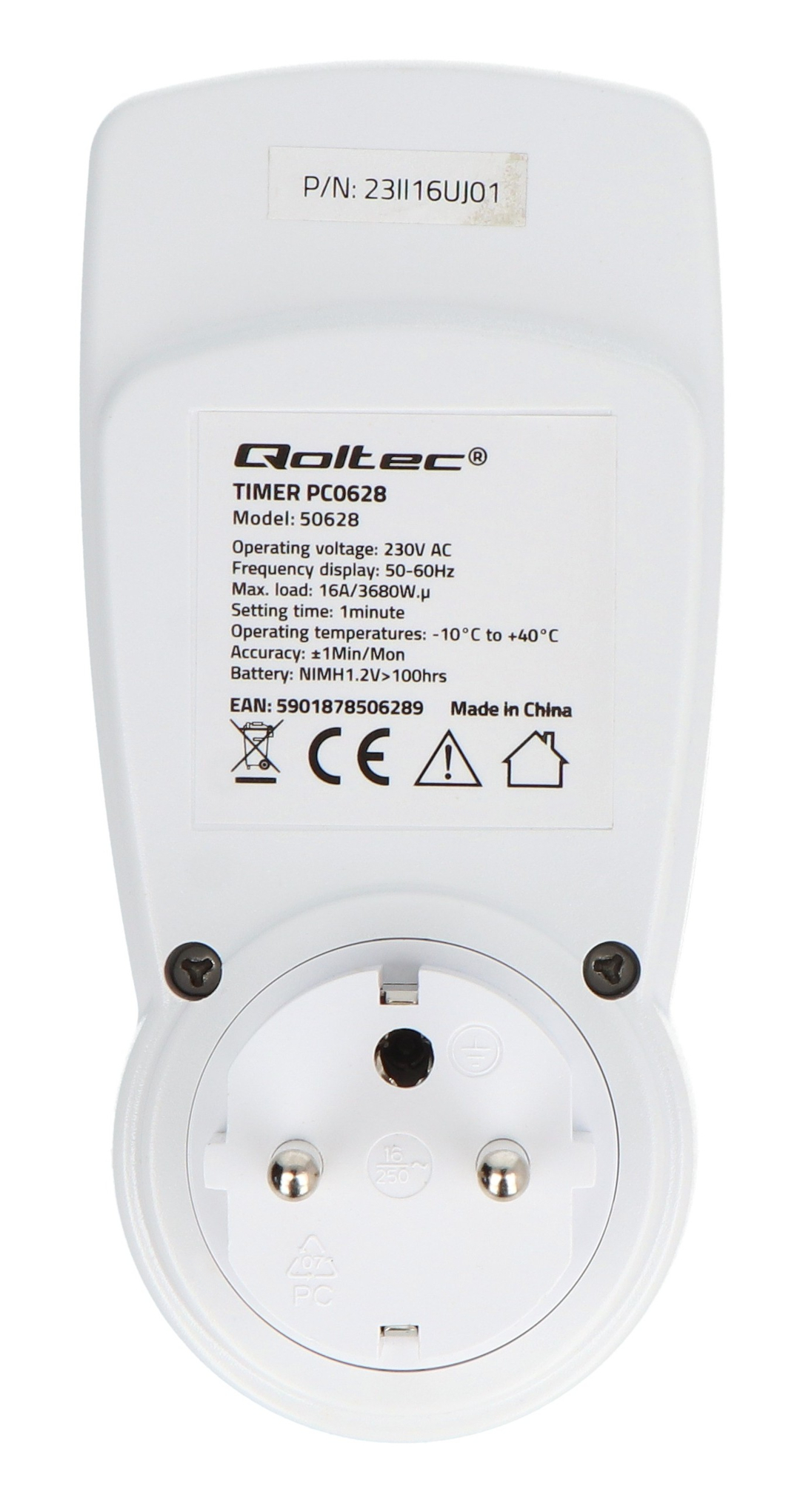

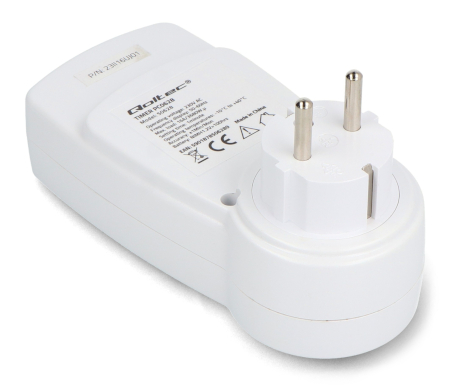

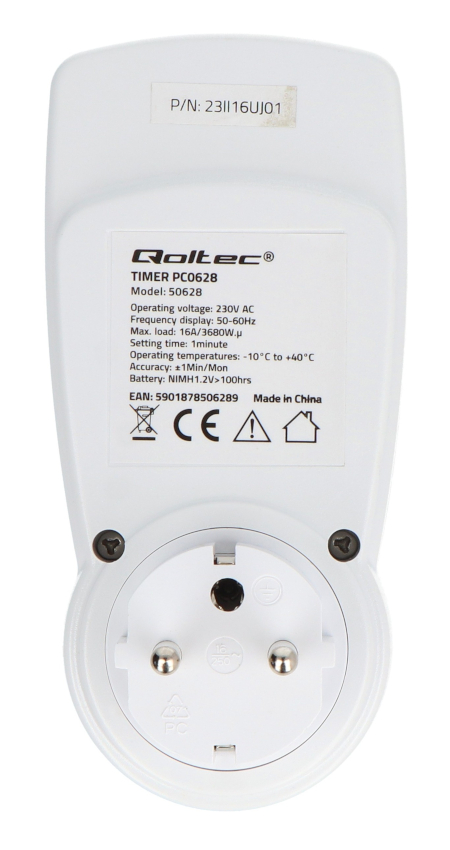

Digital timer PC0628 3680 W 16 A - Qoltec 50628.

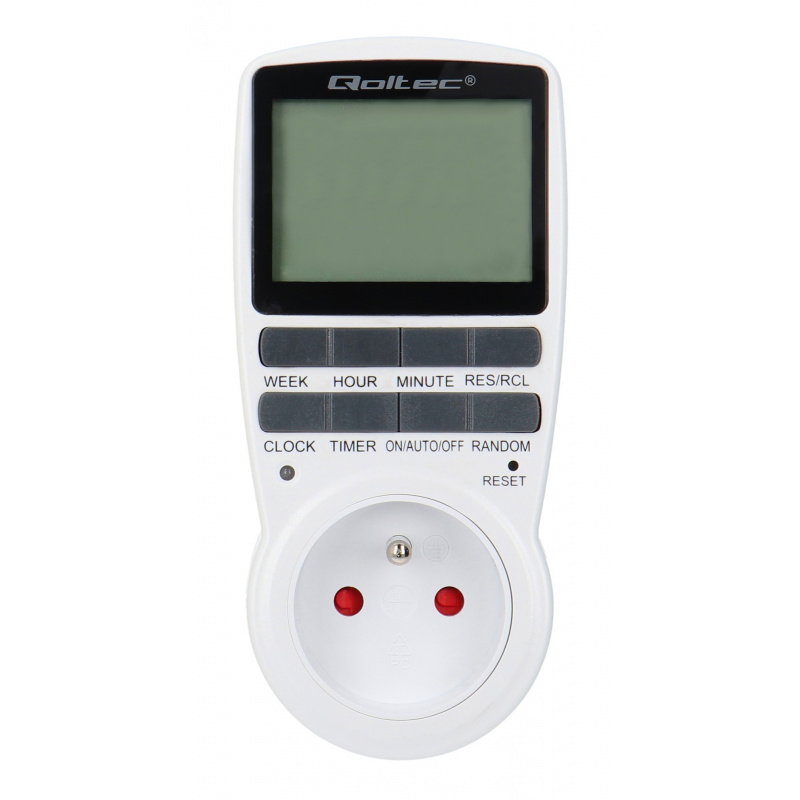

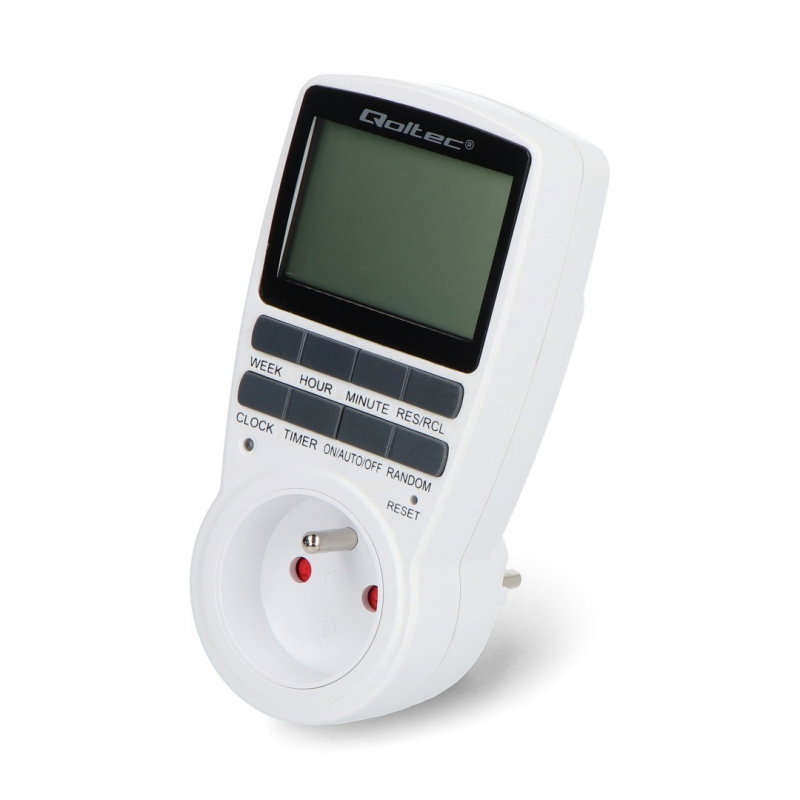

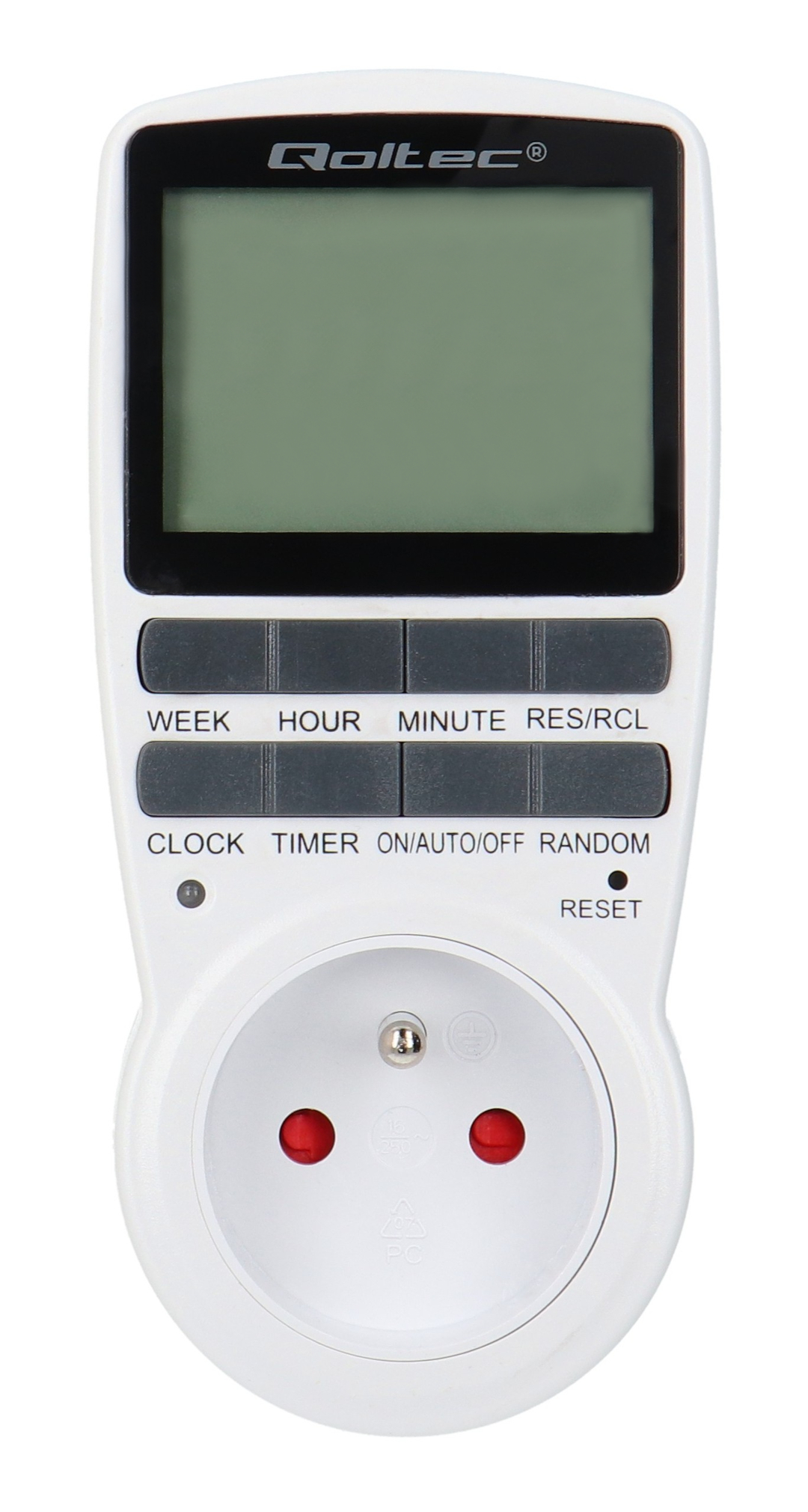

Electronic timer with LCD display.
Main features of the programmer
- 230 V timer : allows automatic control of electrical devices
- High power : supports devices up to 3680 W (16 A)
- LCD display : easy-to-read screen for configuring and monitoring settings
- Weekly programming : possibility to set a schedule for 7 days
- Up to 10 programs per day : precise control of device operation time
- 12/24-hour system : flexible time format selection
- Manual function : ability to force permanent on or off
- Random mode : simulates presence by randomly turning on devices
- Daylight Saving Time : Easily switch between standard time and daylight saving time
- Built-in battery : maintains settings for over 100 hours
Technical specifications of the timer
- Operating voltage: 230 V AC
- Voltage range: 220 V to 240 V AC
- Frequency: 50 Hz to 60 Hz
- Maximum power: 3680 W
- Operating current: max. 16 A
- Current indicator: 0 A to 16 A
- Accuracy: ±1 min/mon.
- Built-in battery: Ni-MH 1.2 V, over 100 h

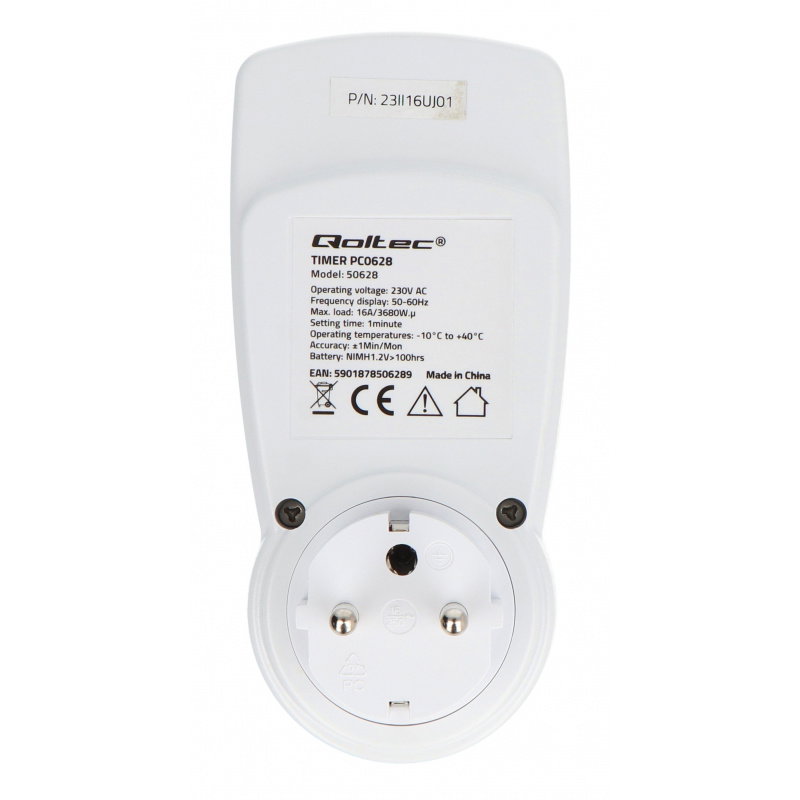

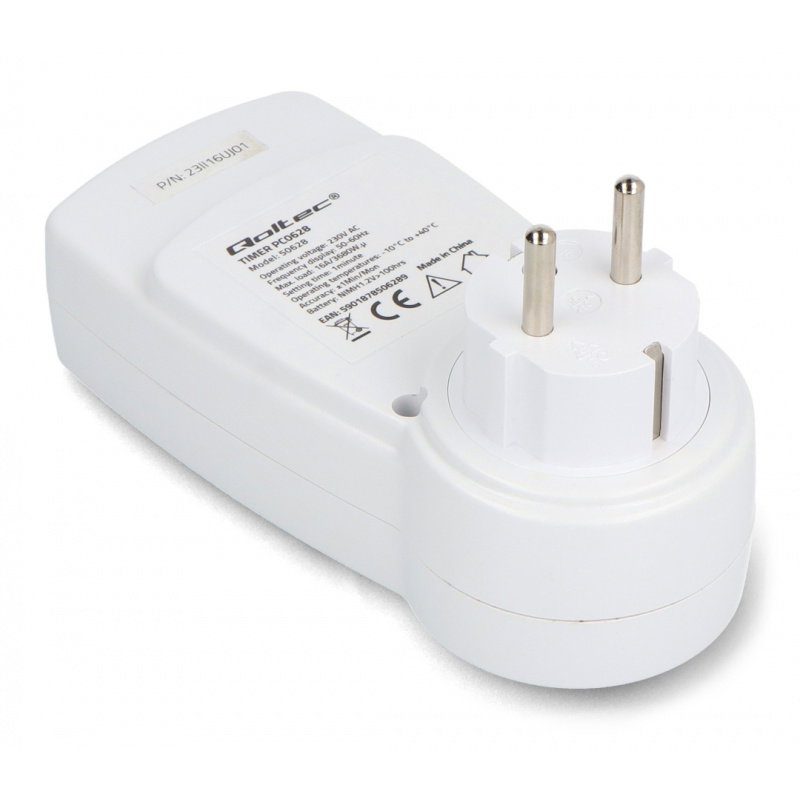

- Socket type: European with pin
- Display: LCD
- Application: management of lighting, heating, and electronics equipment
- Additional information: 7-day 12/24 programming
- Color: white
- Material: ABS
- Operating temperature: -10°C to 40°C
- Dimensions: 135 x 60 x 75 mm
- Weight: 0.168 kg
Kit contents
- 1x Electronic timer PC0628
- 1x User Manual
We can connect electrical devices powered by 230 V to the programmer.
