Product description: DIY HDMI adapter - angled - Waveshare 14527

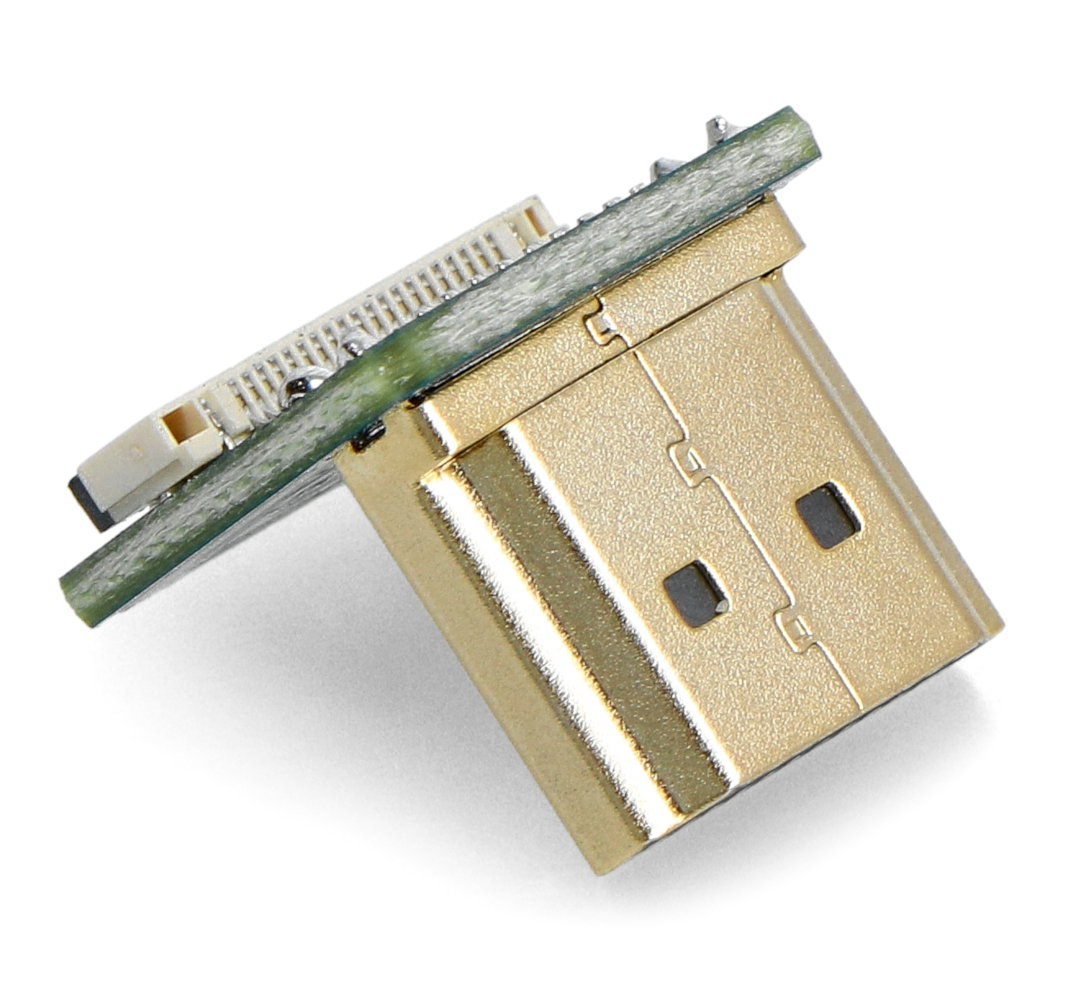

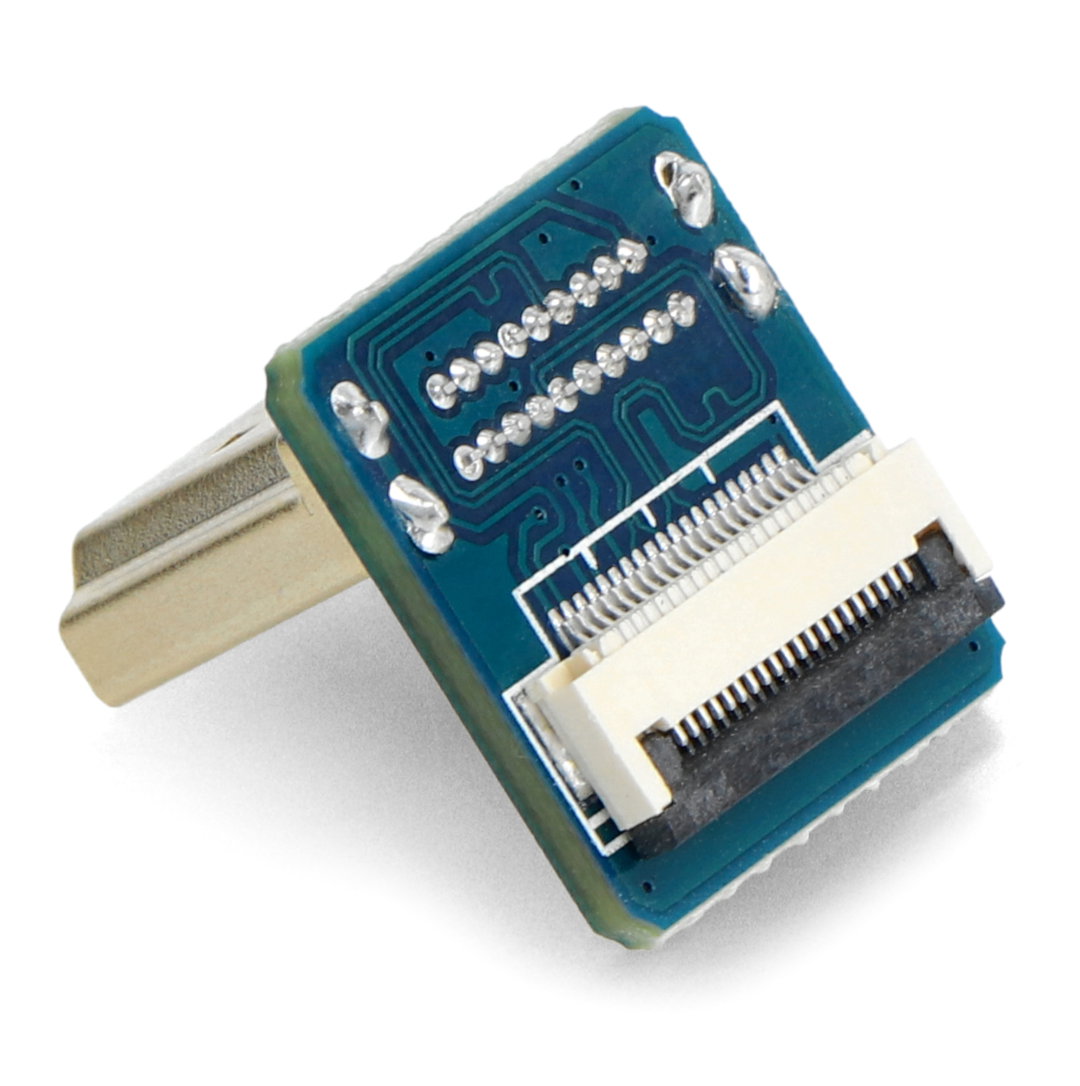

Waveshare DIY HDMI adapter for building cables that allow you to transmit audio and video data. It has an HDMI male plug to a female connector, arranged perpendicularly (angular) to the board. The dimensions of the adapter are 18 x 16.5 x 16.5 mm . Two DIY adapters and one FFC cable are required to build an HDMI cable. The set does not contain cables, they must be purchased separately.
More information on the configuration of connectors can be found on the manufacturer 's website.
DIY HDMI adapter - angled - Waveshare 14527.
In our offer you will also find other connectors:
and the appropriate cables necessary for prototyping devices with an HDMI interface:
The subject of the sale is one HDMI adapter, the cable must be purchased separately.
Adapter technical specification
- Type: audio/video adapter
- Connector standard: HDMI
- Type: male plug to female connector
- Setting: angled
- Dimensions: 18 x 16.5 x 16.5mm
Kit contents
- DIY HDMI adapter - angled - Waveshare 14527
