Product description: Active splitter 2x HDMI 4K / 2K 3.4Gb/s - Qoltec 51796
The Qoltec Active HDMI Splitter is a functional device that allows you to send a signal from a single HDMI source to two receivers simultaneously . This model supports 4K/2K resolution at 30 Hz , allowing for detailed image display and excellent color quality. Its active design supports stable signal transmission, making it ideal for both home entertainment and office or presentation use. The device works with a variety of signal sources, such as TVs, computers, laptops, consoles, and projectors. Support for Dolby True HD, DTS-HD, and 8-channel audio formats provides a better multimedia experience. The splitter is equipped with four LEDs to indicate device operation, and the plug-and-play function allows for easy setup.

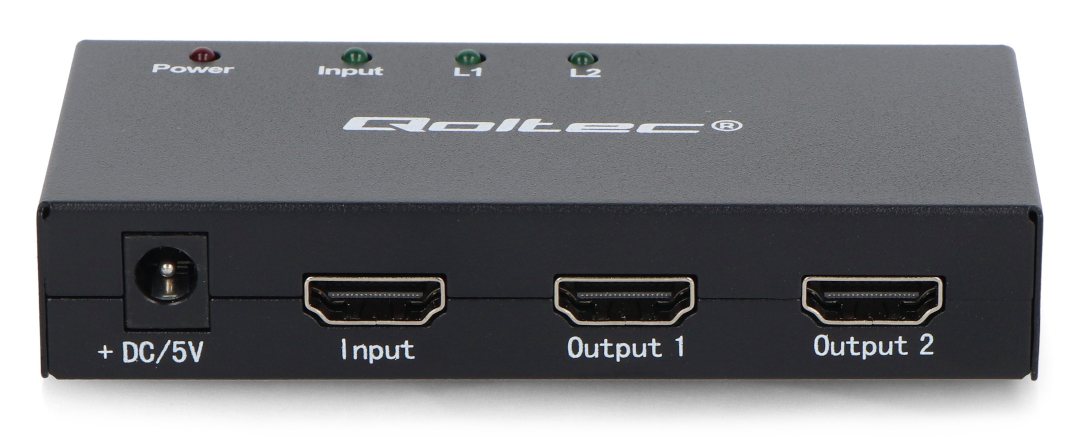

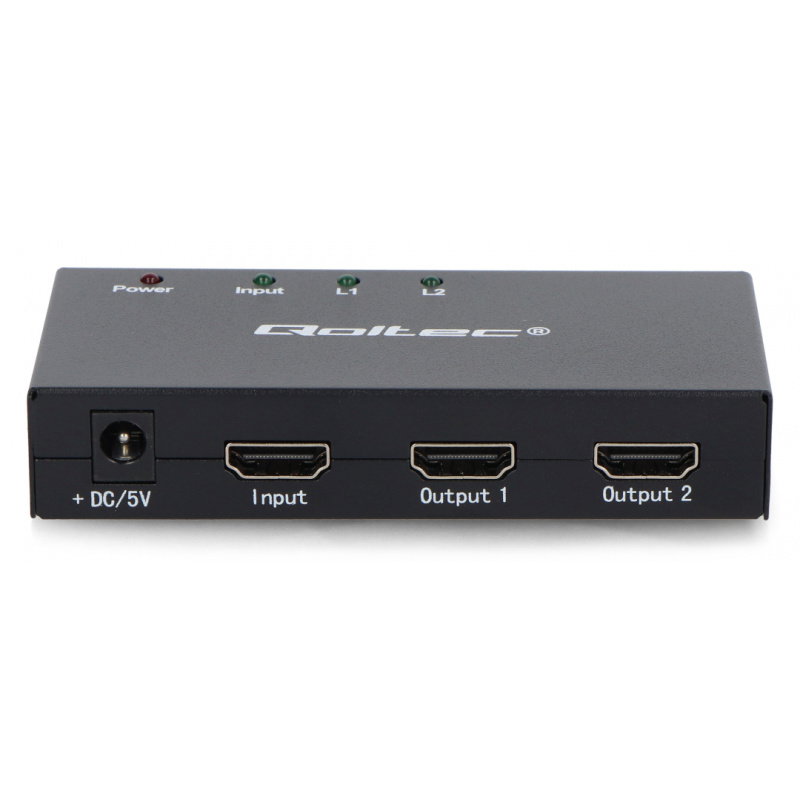

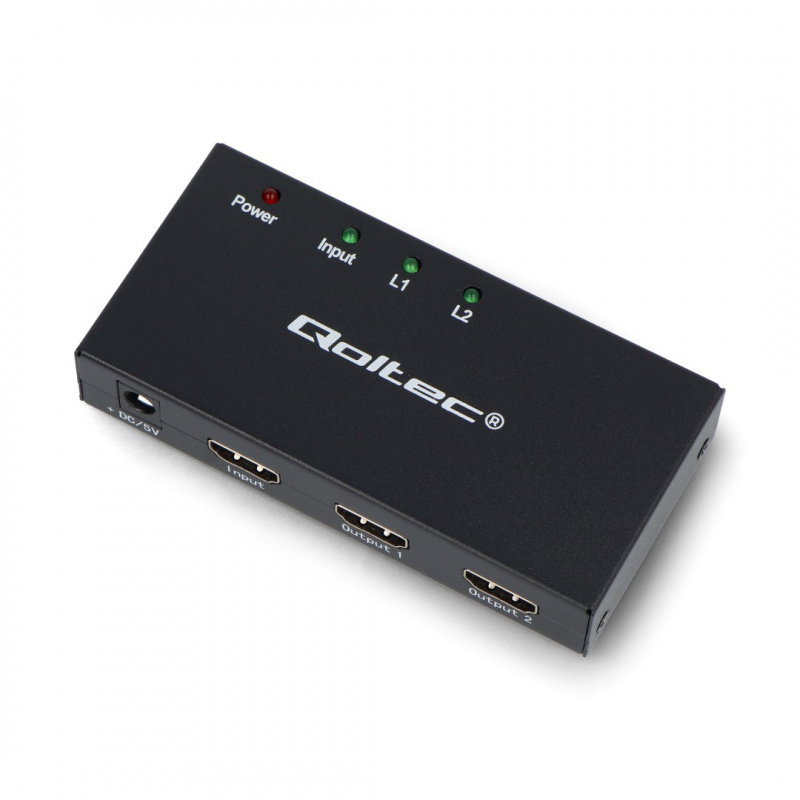

Active splitter 2x HDMI 4K / 2K 3.4Gb/s - Qoltec 51796.

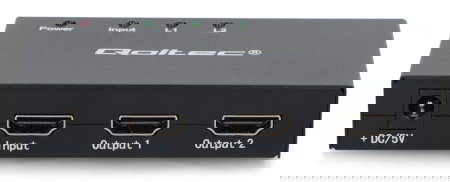

The splitter guarantees stable and smooth signal transmission from one source to two devices simultaneously.
Main features of the Qoltec HDMI splitter
- HDMI signal splitting : allows you to send an image from one source to 2 receivers simultaneously
- 4K 30Hz Support : Supports a maximum resolution of 3840 x 2160 px at a refresh rate of 30Hz
- Stable transmission : active design ensures smooth transmission of audio and video signals
- Advanced audio formats : supports DTS-HD, Dolby True HD, DTS, Dolby 7 - AC3 and DSD
- 3D support : compatibility with 3D materials increases the device's application possibilities
- Wide compatibility : works with TVs, computers, laptops, projectors and consoles
- Plug and play : quick installation without the need for additional configuration

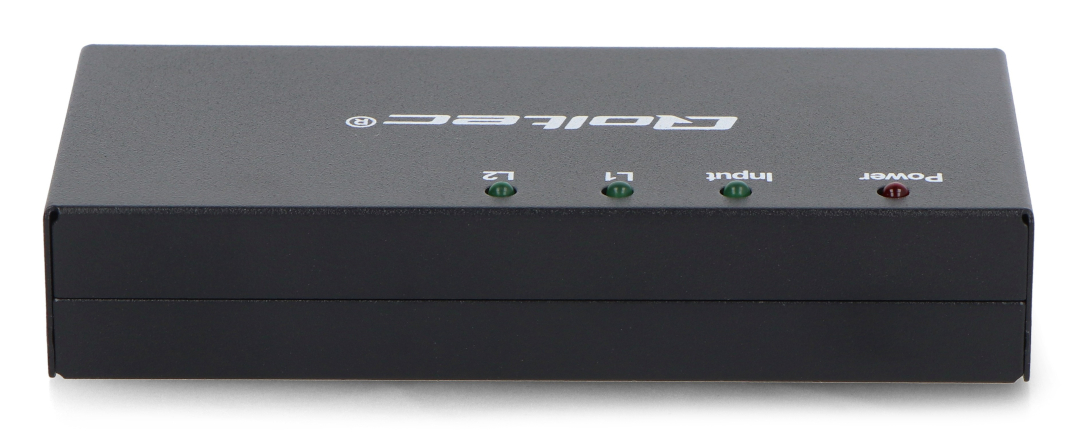

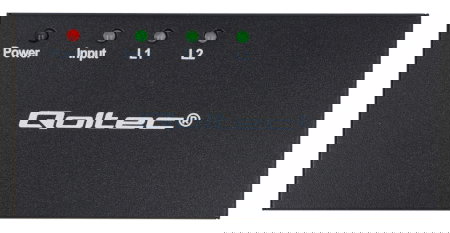

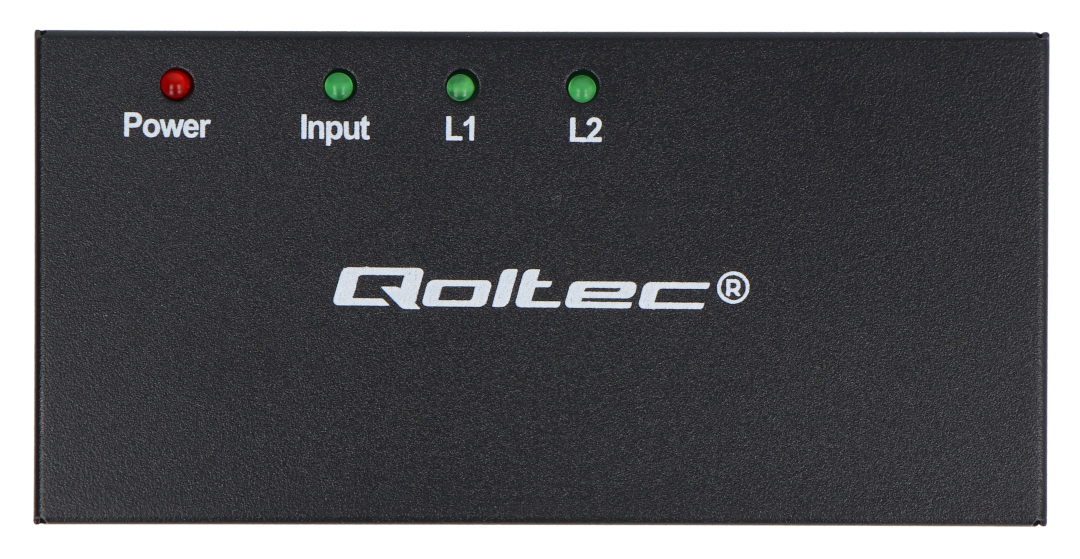

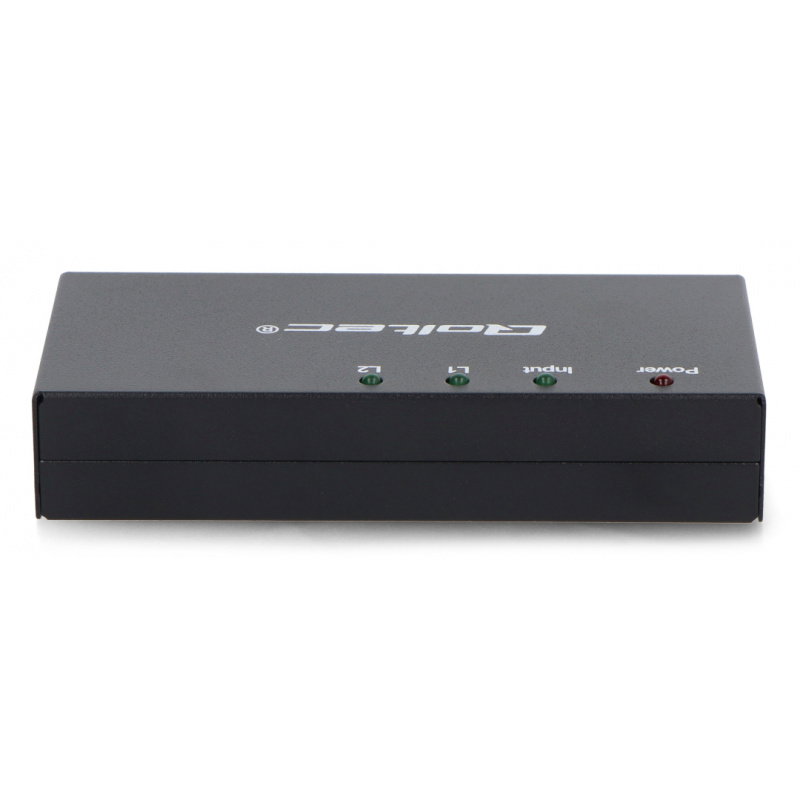

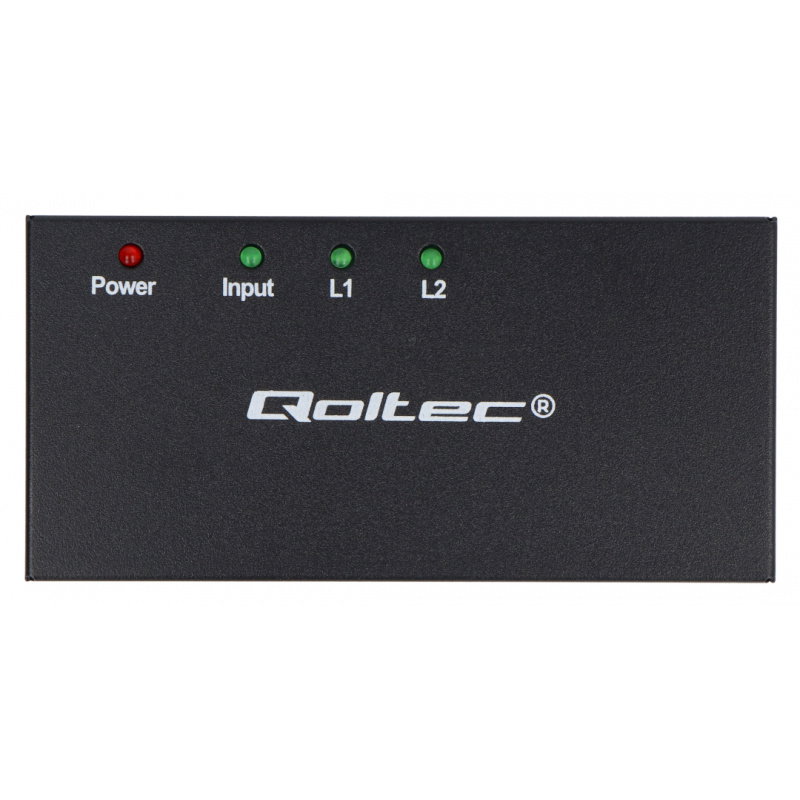

- LEDs : 4 indicators inform about the current operating status of the device
- Gold-plated connectors : support connection durability and wear resistance
Using an HDMI splitter in practice
The Qoltec active HDMI splitter is perfect for applications requiring simultaneous display of the same image on two screens. It can be used at home to connect a TV and a projector , in the office for presentations, or in retail outlets for operating information displays . It's a convenient solution for users who want to expand their multimedia system without investing in complex infrastructure.
The splitter is easy to use thanks to its plug and play feature.

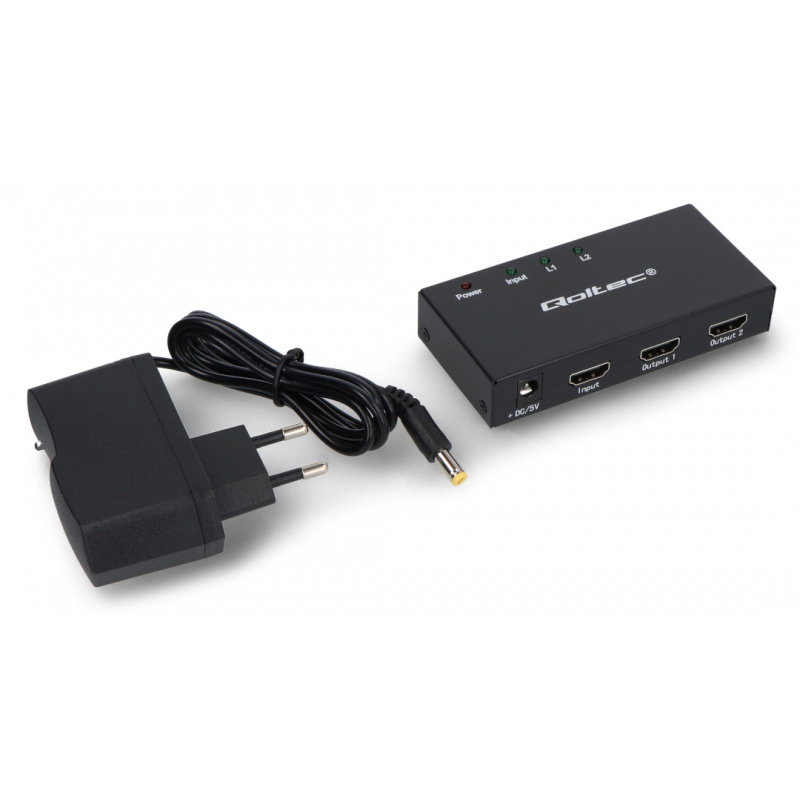

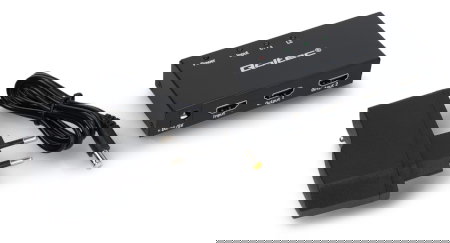

Elements included in the set.
Technical specifications of the HDMI splitter
- Model: 51796
- Standard: HDMI 1.4
- Power supply: 5V/1A
- Input: 1 x HDMI, 1 x DC jack
- Output: 2 x HDMI
- Maximum transmission speed: 3.4 Gb/s
- HDCP version: 2.2
- 3D support: yes
- Maximum operating current: 450 mA
- Maximum resolution: 4K / 2K
- HDMI resolution: 3840 x 2160 px / 30 Hz
- Transmission frequency: 340 MHz
- Refresh rate: 30 Hz
- Audio format: DTS-HD, Dolby True HD, DTS, Dolby 7 - AC3, DSD
- Video format: 8 / 10 / 12 bit, 3D
- Color depth: 4K 2K 30Hz 4:4:4
- Color space: RGB / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
- Connection length at 1080p and below: input up to 8m, output up to 8m
- Connection length at 4K: input up to 8 m, output up to 8 m
- Additional information: gold-plated plugs
- Operating temperature: -15°C to 55°C
- Color: black
- Dimensions: 51 x 105 x 20 mm
- Weight: 0.056 kg

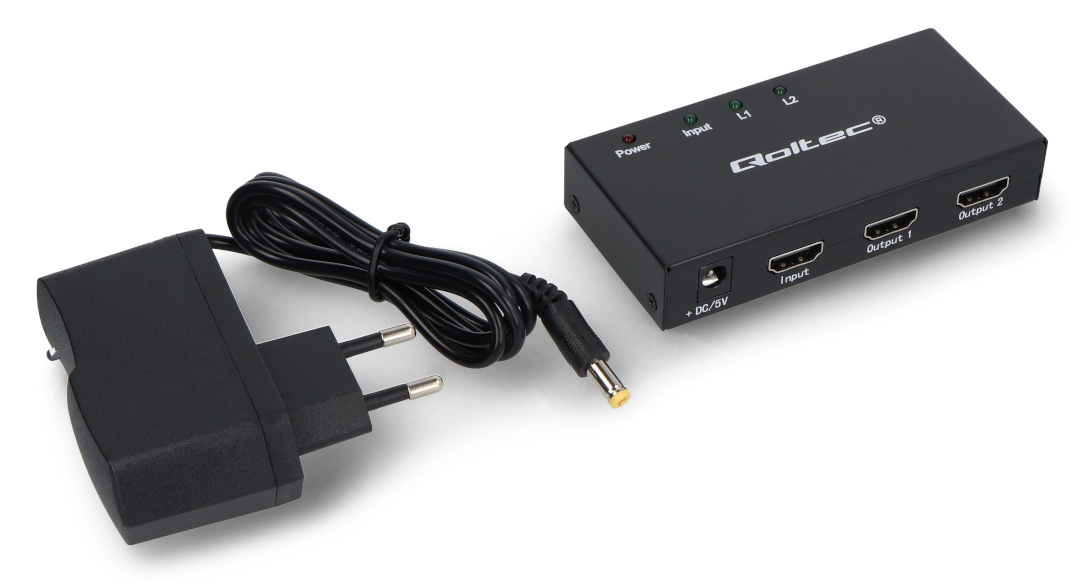

Contents of the set
- 1x HDMI splitter
- 1x DC Power Supply
- 1x User Manual
