The device necessary during repairs
The describedFazer 777is a high quality equipment, which is often used by professional electronics and electricians. It enables, among other things, simple and intuitivedetection oflivecables, which are under plaster, for example. Such a device can be particularly useful during repairs and modifications ofelectricalinstallations. It is worth noting thatthe detection sensitivity adjustmentis able to ensure detection of voltage in cables from a distance of 0.3 cm to even 50 cm. Thedetection sensitivitycan be easily controlled by means of the regulator placed in the lower part of the phaser. During measurements it is worth remembering thatthe detection sensitivity adjustmentshould depend on the prevailing conditions, and that reducing the sensitivity increases the accuracy of the indications.
Control of components
It is extremely useful for electronics and electricians to be able to easily test the correct operation ofelectrical equipment -for example, the efficiency of individual components (such as a resistor, diode, capacitor or transistor) can be easily checked. OurFazer 777also allows for efficient testing ofconductivity continuity.Simply place your finger on the contact marked CONT and with your other hand and the measuring pin touch the points selected for checking the circuit device - the red diode and the continuous signal indicate conductivity.

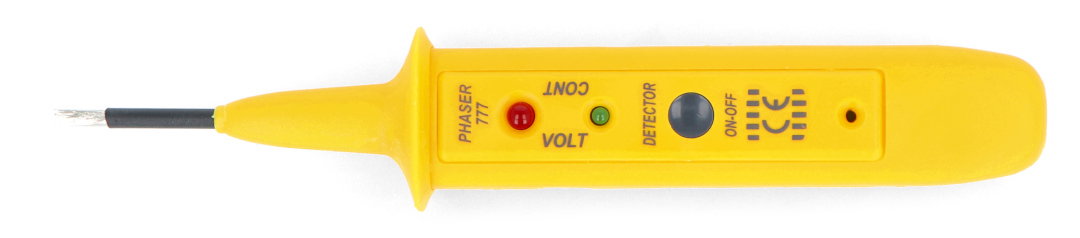

Fazer 777 Detector voltage indicator
Main functions of the Fazer777 Detector:
- Phase and zero identification (also in protected sockets) and grounding check
- Provision of indications necessary for determining the sequence of wires and diagnosis of short circuits in cables, fuses, light bulbs. In addition, the device has a test function to help in finding faults in electrical equipment
- 0 or 1 detection in digital circuits
- The challenge of commutator engines
- Voltage and weight indication in 12 V vehicle systems
- Verification of harmful radiation
Specification of voltage indicator Fazer 777 Detector:
- Voltage sensitivity range: from 60 V to 500 V
- Application: in systems with alternating voltage from 220 V to 380 V
- Measurement range: 0.3 cm to 50 cm
- Conduction continuity testing: ~1 MOhm
- Phase / alternating zero detection: up to 500 V
- DC voltage detection: 2.5 V to 60 V
- Power supply: 3x LR44 battery (included) provides up to 10000 indications.
- The device is undisable
