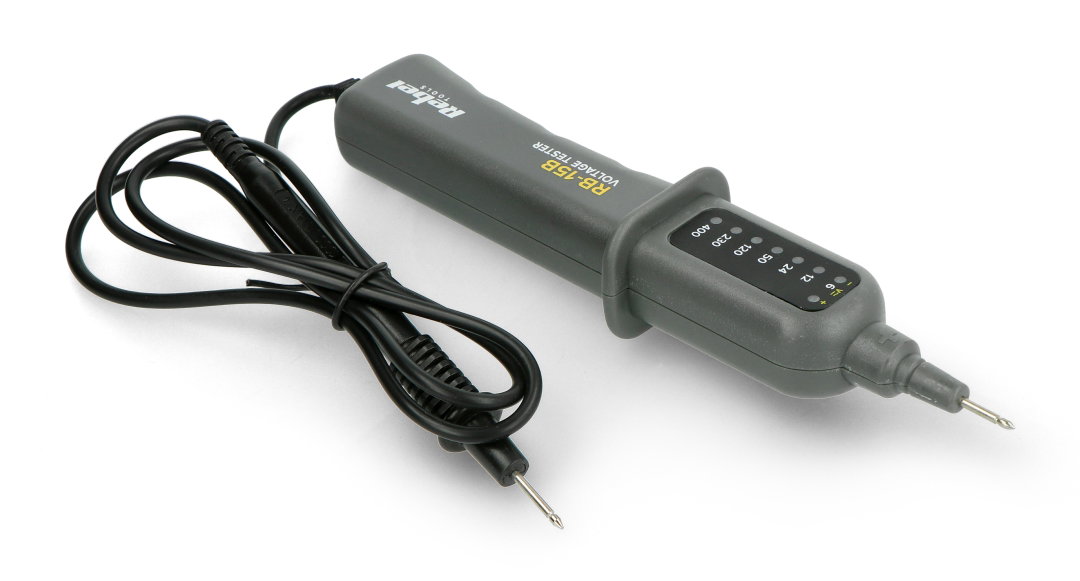

Product description: Voltage indicator Rebel RB-15B
Indicatorwhich allows you to quickly determine the voltage with which we currently work. The measurement is presented usingLEDson the front of the device. Each diode represents the range in which the measured voltage is located. An additional advantage ofthe meteris the function ofautomatic polarity determination. The indicator allows testing of voltages within the range from6 Vto400V (a voltage lower than 6 V is not signalled by the diodes). Another big advantage is the fact that the device is powered from the measurement source. The indicator has been equipped with a robust housing withIP54protection class.
The device is powered by the measurement source.
Technical specification
| Parameter | Range |
|---|---|
| DC voltage | from 6 V to 400 V |
| AC Variable voltage | 6 V to 400 V |
| Inductance | no |
| Automatic range selection | yes |
| Standby mode | no |
| Sounder | no |
| Polarity detection | yes |
| Transistor tester | no |
| Diode tester | no |
| Battery tester | no |
| Data Hold function | no |
| Battery indicator | no |
| Backlight | no |
| Flashlight | no |
| Dimensions | 185 x 37 x 32 mm |
| Power supply | from measurement source |
| Weight | 63 g |
